- 50mm aperture; large diameter objective lens collects more light; the target in the field of view is clearer; convenient to find a target in the sky
- Connect telescope camera; as a guide scope can be used with other accessories to easily achieve automatic star guidance
- Connect Eyepiece; as a right-angle correct-image optical finder scope (Eyepieces and Prism Diagonal sold separately)
- Fully multi-coated glass; multi layer broadband anti reflection coating double glue lens; well made edge coating; higher contrast and clearer field of view

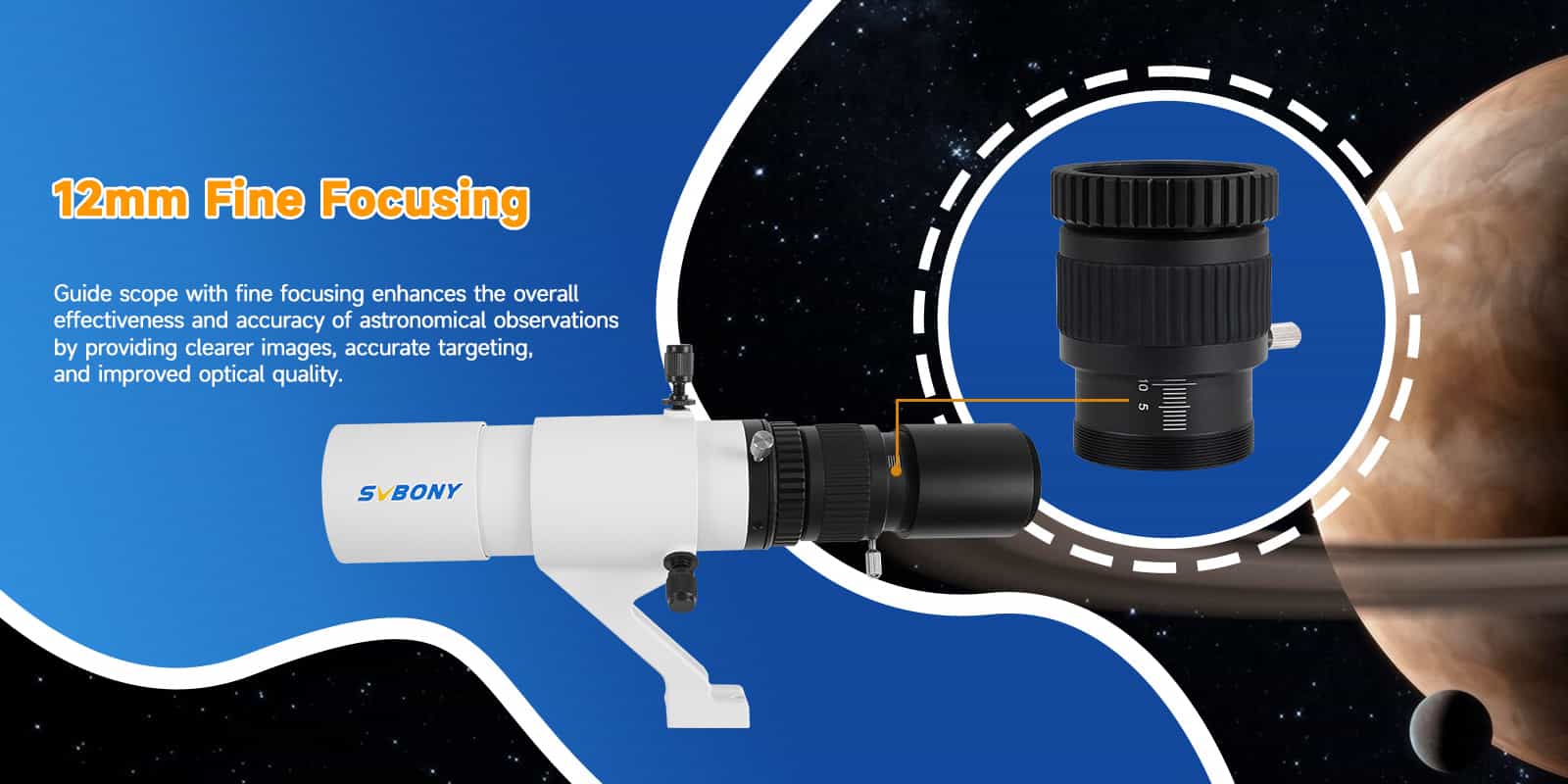

- Fine focusing; double spiral fine focusing and pull out coarse focusing structure; simple structure and convenient operation
The review blog: https://www.svbony.com/blog?s=SV198
In Stock
A very versatile guidescope
I received this little guider and was amazed by how versatile it is! It can be a finder (by pluggin in a 90º prism and eyepiece) and a guider. The build quality is excepcional, all metal. The lens have a very nice antireflex coating and there is a baffle inside for cutting down stray light. The equipment arrived in Brazil in perfect conditions, the packaging is made of some kind of foam, with cutouts for the dovetail, rings, guider and screws. The plastic pointed screws are a nice touch, so it will not scratch the guider tube. The images are very crisp and I had no problems in guiding my 8" GSO RC at 1610mm of focal distance with this guider. I can recommend it.
Model | SV198 |
Type of Optics | Achromat Refractor |
Lens Structure | 2-Elements/ 1Groups |
Tube material | Aluminum |
Aperture | 50mm / 1.97in |
Focal ratio | f/4.1 |
Focal Length | 206.6mm / 8.13in |
Coating | Fully multi-coated |
Blackened Lens Edges | Yes |
Focuser | Dual Helical + Telescopic Design |
Dual Helical Focuser Focusing stroke | 11mm |
Focusing seat accuracy (Dual Helical Focusing) | 0.1mm |
Rough Focusing stroke | 38mm |
Focusing seat accuracy (Rough Focusing) | 1mm |

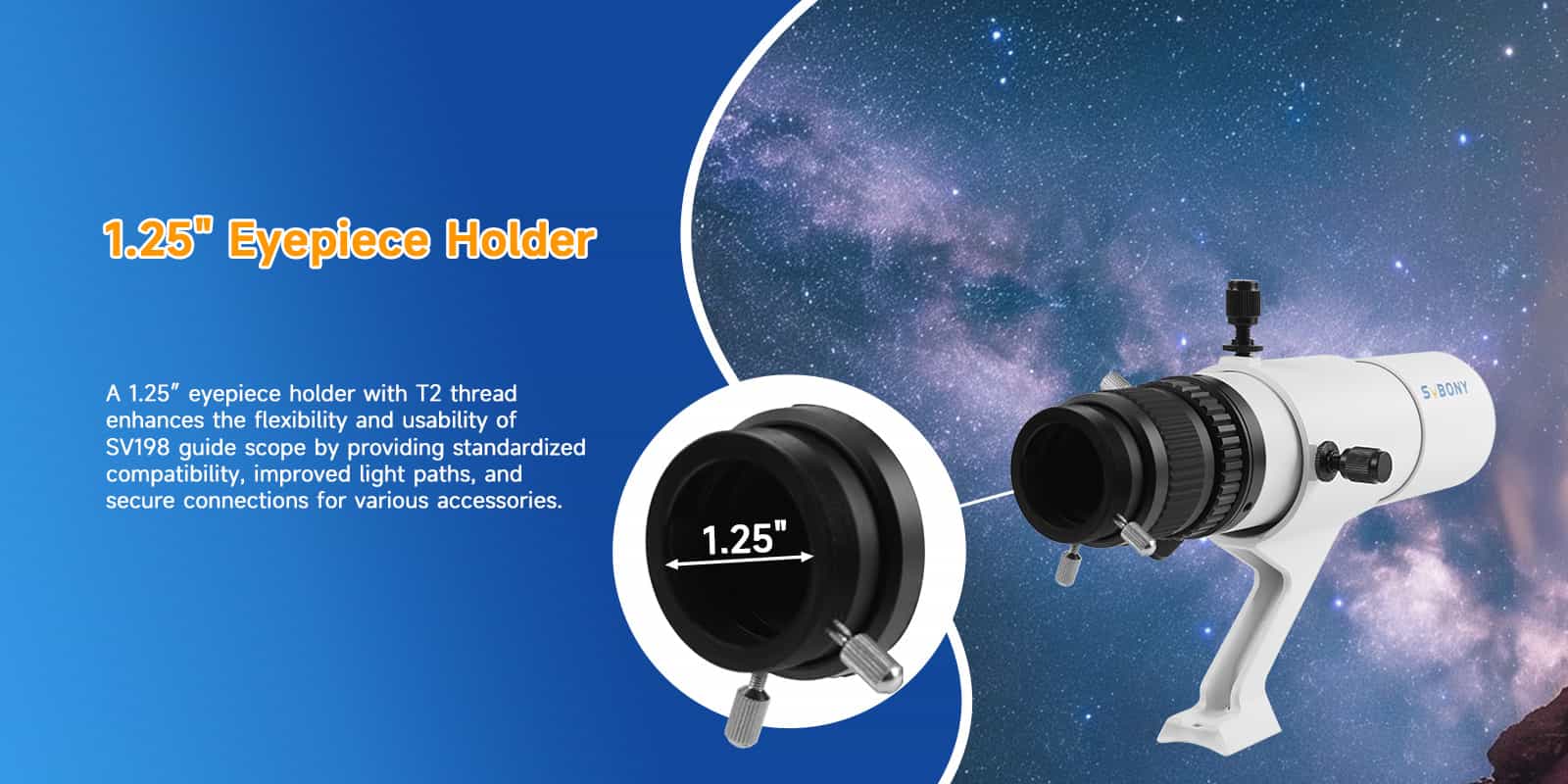

Connection thread to Eyepiece | 1.25" and T2 |
Base installation type | Vixen standard interface |
Tube diameter | 55.5mm |
Dew cap diameter | 58mm |
Total Length | 223mm |
Net Weight | 770g / 28.1oz |
The Parameter Comparison of SV198、 SV106and SV165
Model | SV198 | SV106 | SV165 |
Type of Optics | Achromat Refractor | Achromat Refractor | achromatic optics |
Lens Structure | 2-Elements/ 1Groups | ||
Tube material | Aluminum | Aluminum Alloy | Aluminum |
Aperture | 50mm / 1.97in | 60mm / 2.36in | 30mm/1.18in |
Focal ratio | f/4.1 | f/4 | f/4 |
Focal Length | 206.6mm / 8.13in | 240mm /9.45in | 120mm |
Coating | Fully multi-coated | Fully multi-coated | Fully multi-coated |
Blackened Lens Edges | Yes | Yes | |
Focuser | Dual Helical + Telescopic Design | Helical Focuser with 8 mm Travel | Helical Focuser |
Connection thread to Eyepiece | 1.25" and T2 | 1.25inch | 1.25in and M42*0.75 |
Base installation type | Vixen standard interface | Versatile | Vixen standard interface |
Tube diameter | 55.5mm | 66mm | 45mm |
Dew cap diameter | 58mm | 69mm | 48mm |
Total Length | 223mm | 270mm | 112mm |
Net Weight | 770g | 790g | 342g |
Back Focal Length | - | 220mm | - |

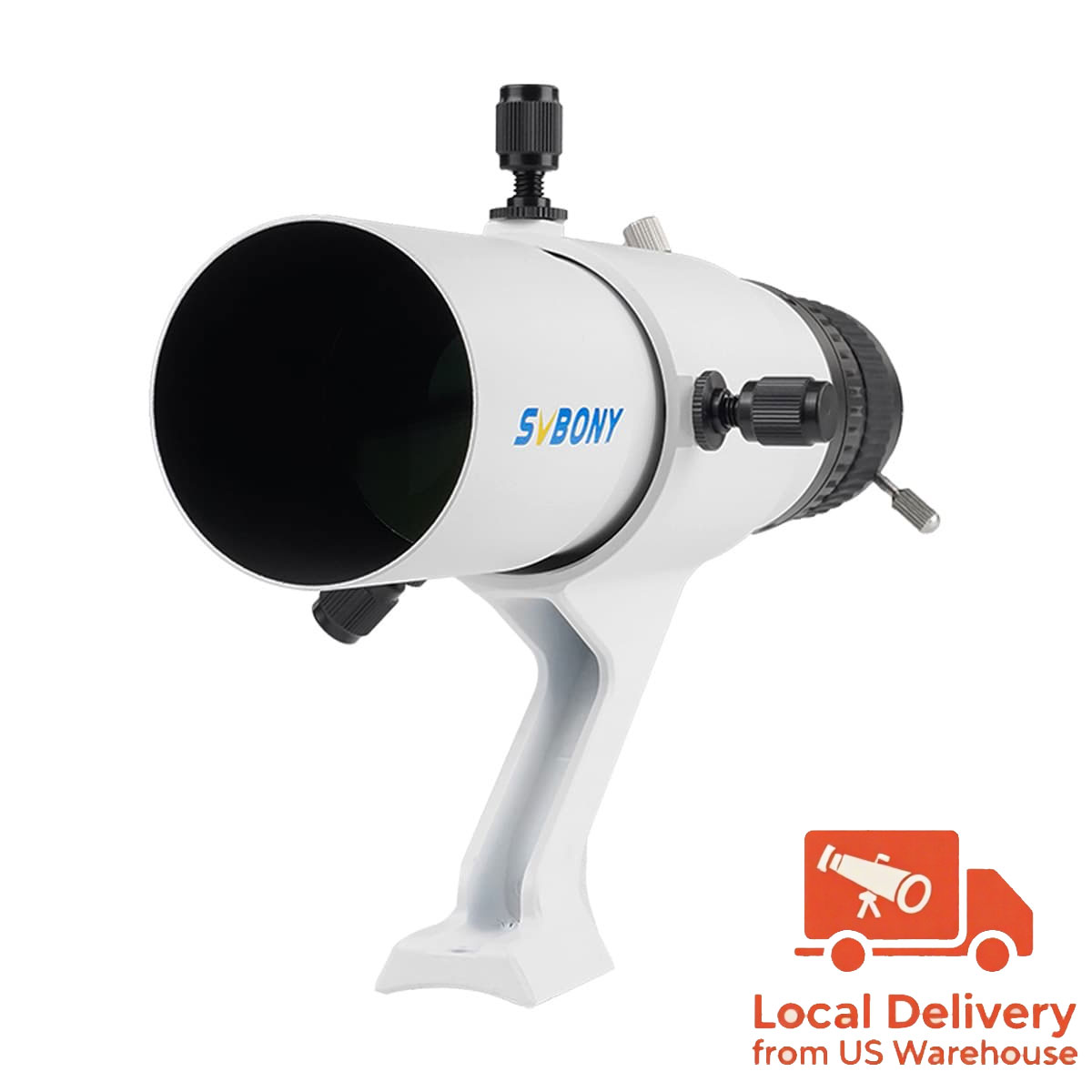

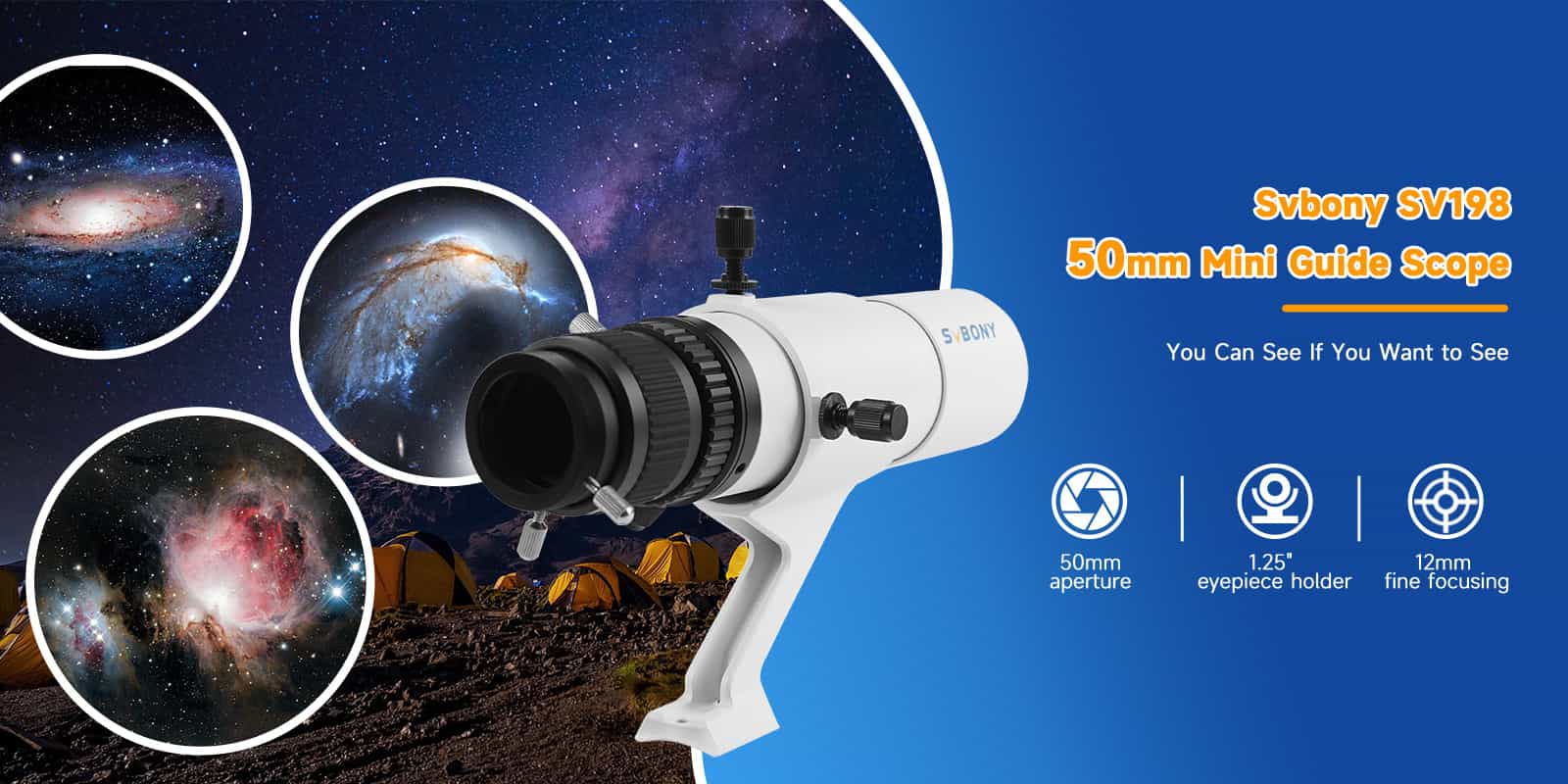

The SV198 50mm aperture guide scope with a built-in dual helical focuser is known for its versatility, let alone the lightweight. Together, all of those make SV198 a perfect tool for guiding, searching, and spotting. The full multi-coated achromat glass brings excellent optical performance, makes it great for both sharpness and color. BTW, it also could be used as a right-angle correct-image optical finder scope (Eyepieces and Prism Diagonal sold separately).
The package includes:
- SV198 50mm f/4.1 mini Guide Scope

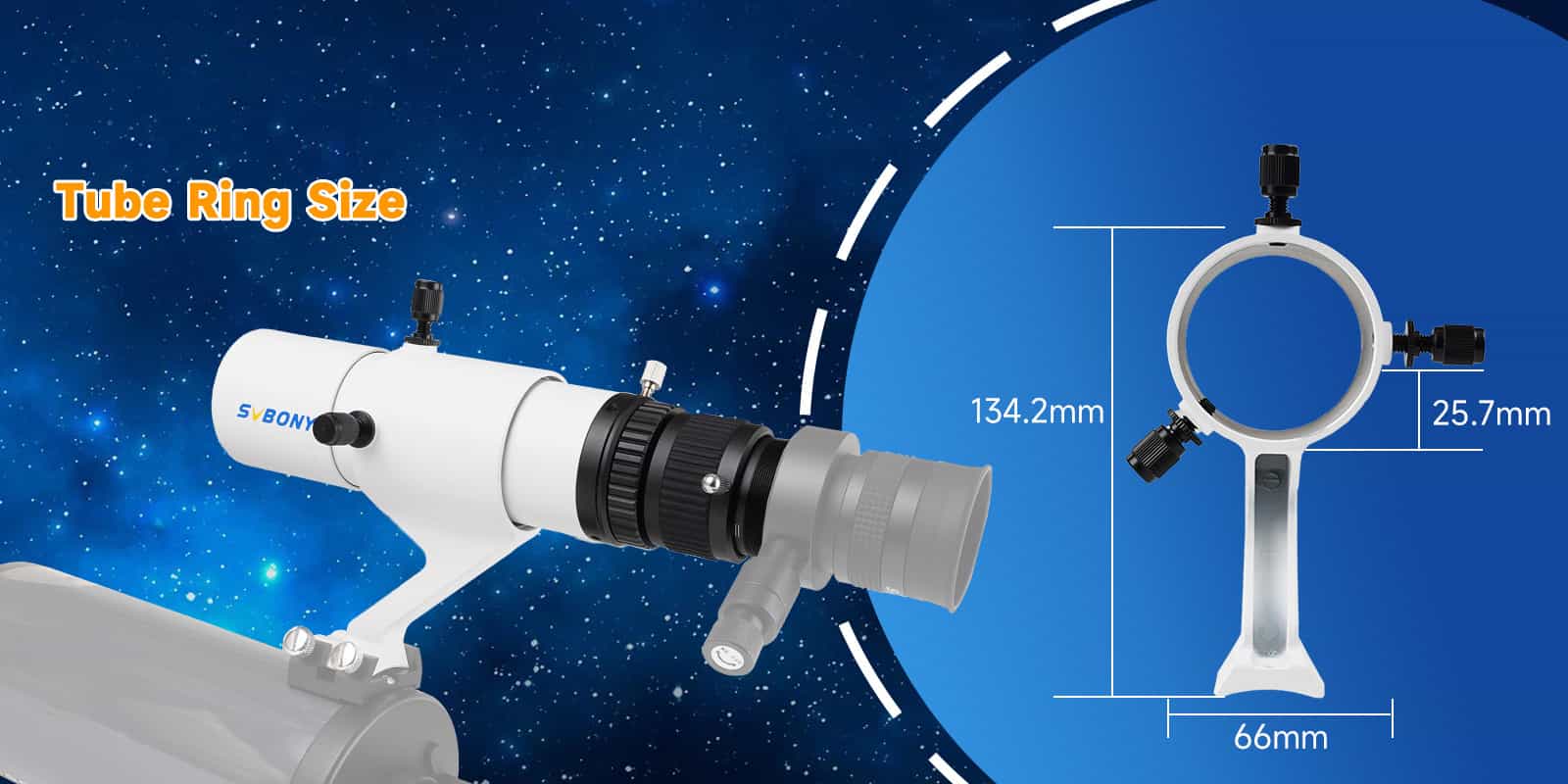

- Two-Ring bracket with a dovetail
- 6PCS Nylon-tipped thumbscrews
- 25" Dust Cover
- Lens Cover
