Using the SV555 Telescope with the EAF

Recently, some customers see that the EAF display is fully focused, but the image quality is still not good. If the image you get is like this, you need to pay attention.

Don't worry, this problem is because the EAF is not accurate, resulting in a false focus position. A little manual setting is required to get a more perfect image.

Solution:

If you encounter the problem of false focus, how to solve it, please refer to our following solution to try to solve it

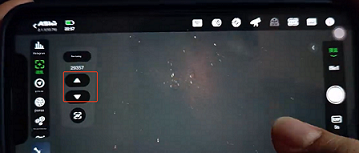

1 First, use the EAF manual focus button to move the focus ring to the approximate focus position, and then start the EAF autofocus function

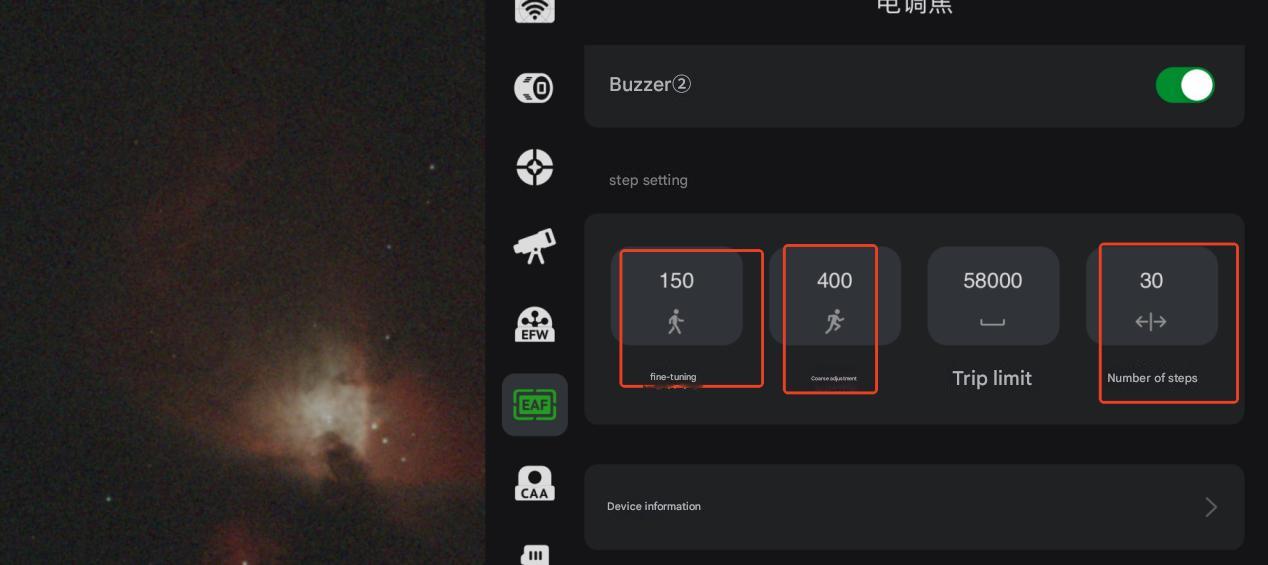

2 Set EAF parameters, Fine: 120-150, coarse : above 200, backlash: 30

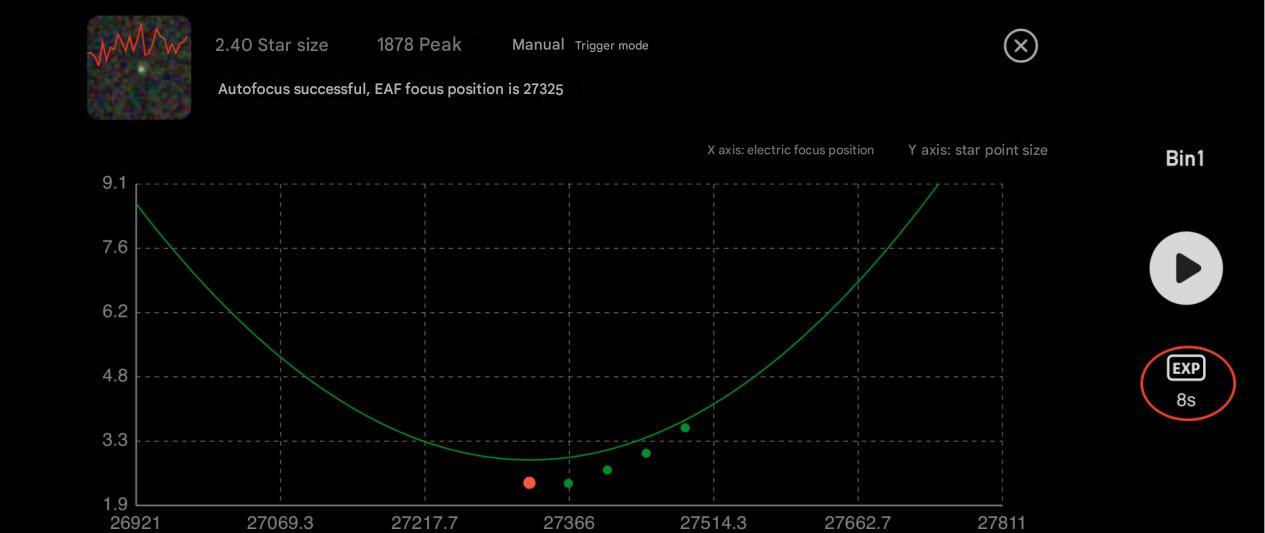

3 Start EAF, set the exposure to 8S, click to start EAF

For reference, the focus distance we tested was at this position (as shown in the picture)

Result showing:

Conclusion

Integrating the EAF with the SV555 telescope can significantly enhance your astronomical observations by allowing for precise focusing. By understanding and troubleshooting common issues, you can ensure a seamless experience while exploring the wonders of the night sky. If you continue to experience difficulties, don’t hesitate to reach out to customer support for further assistance. Happy stargazing!
