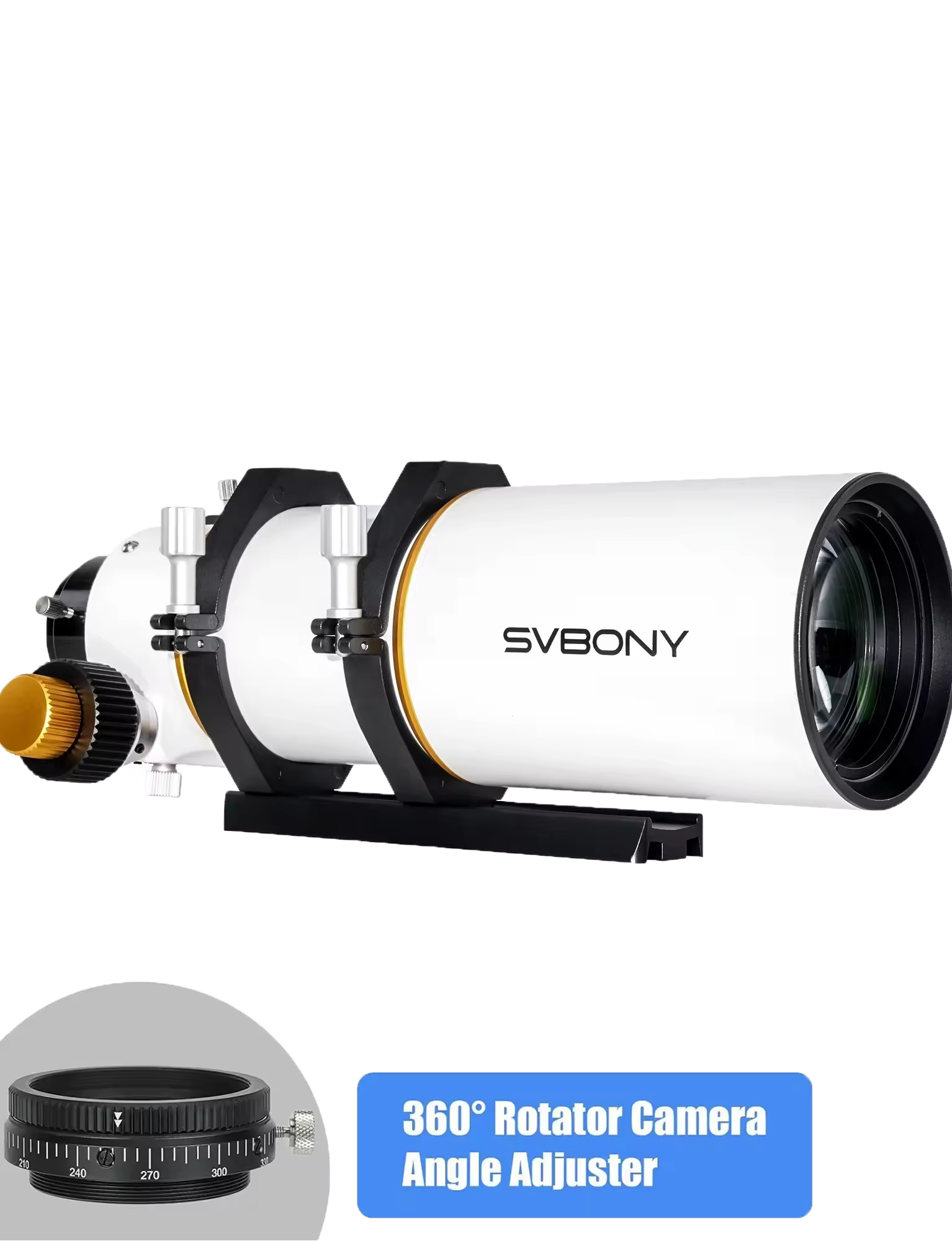

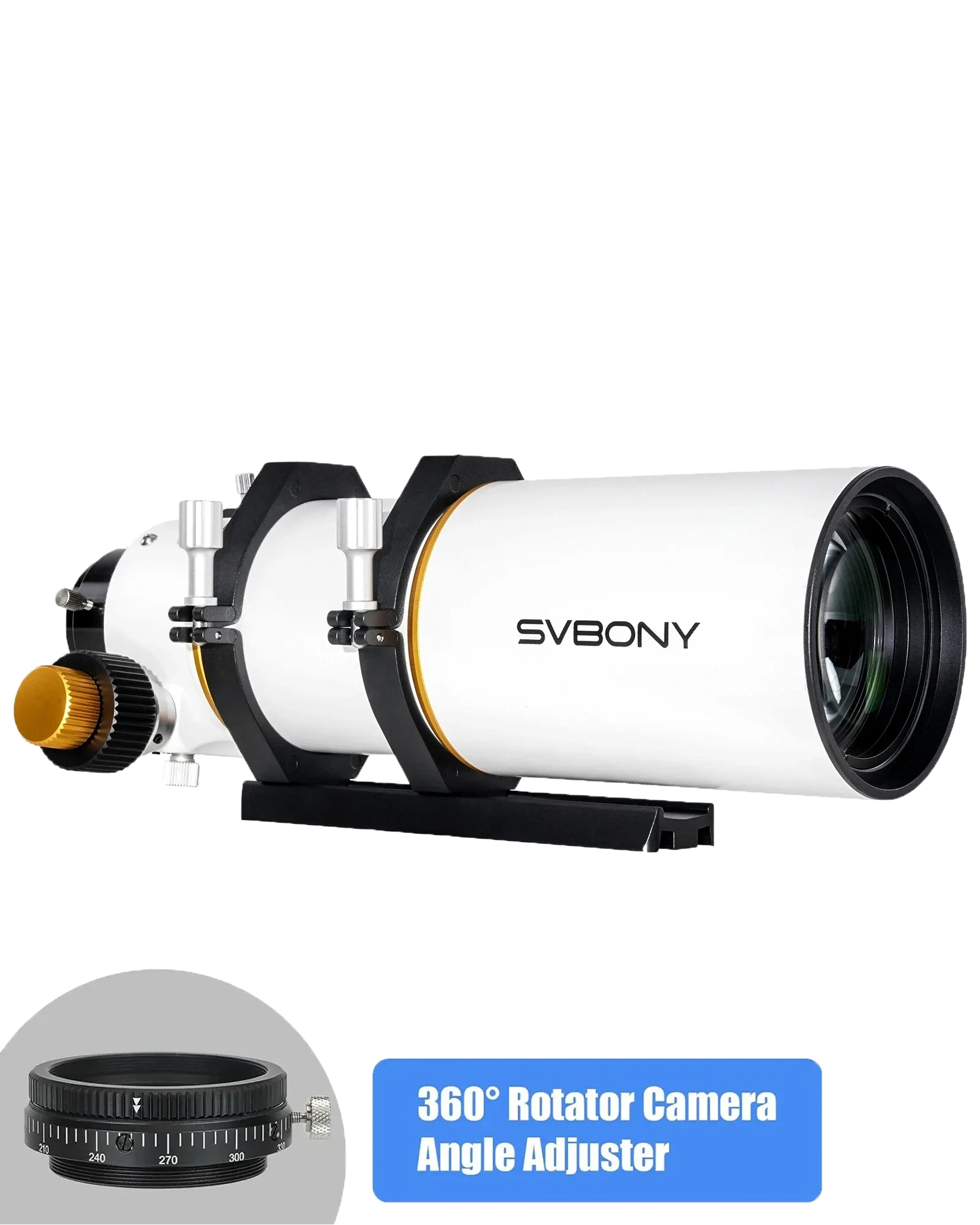

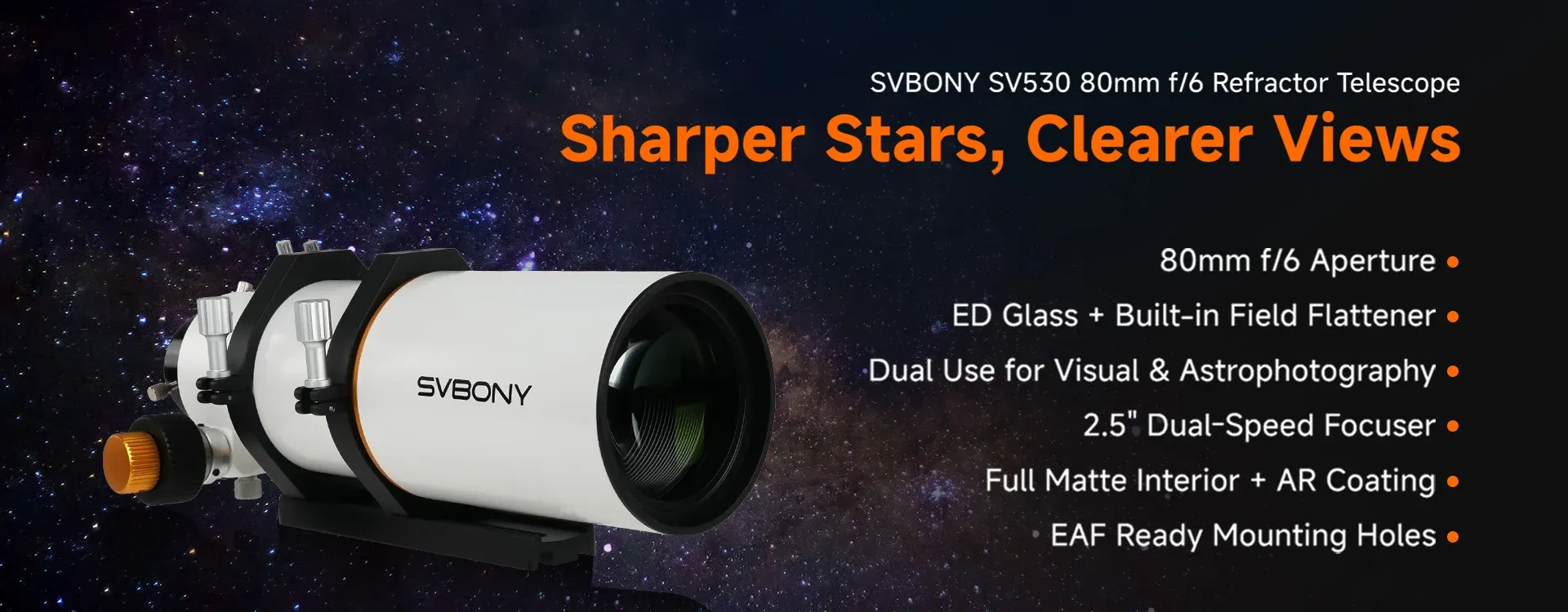

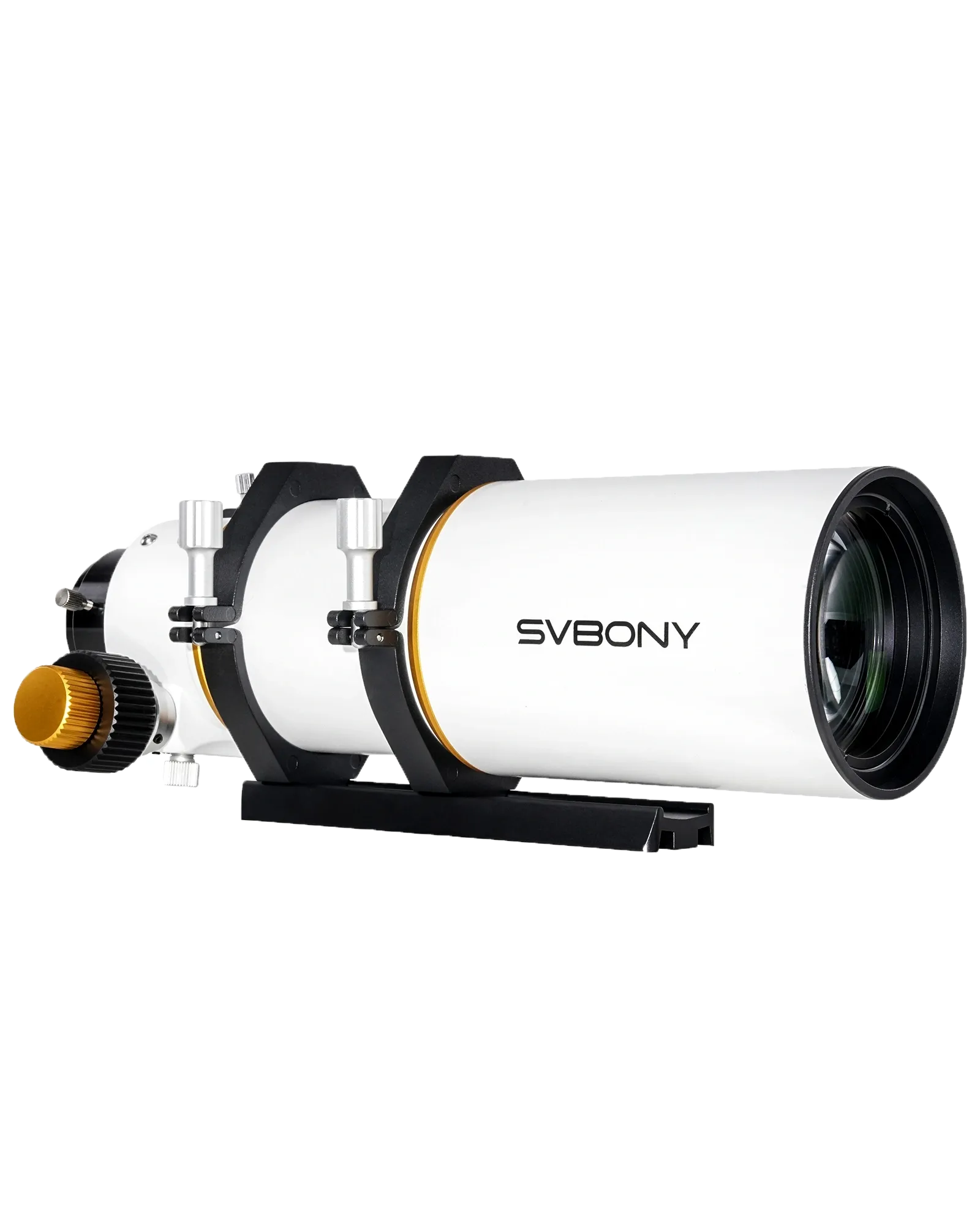

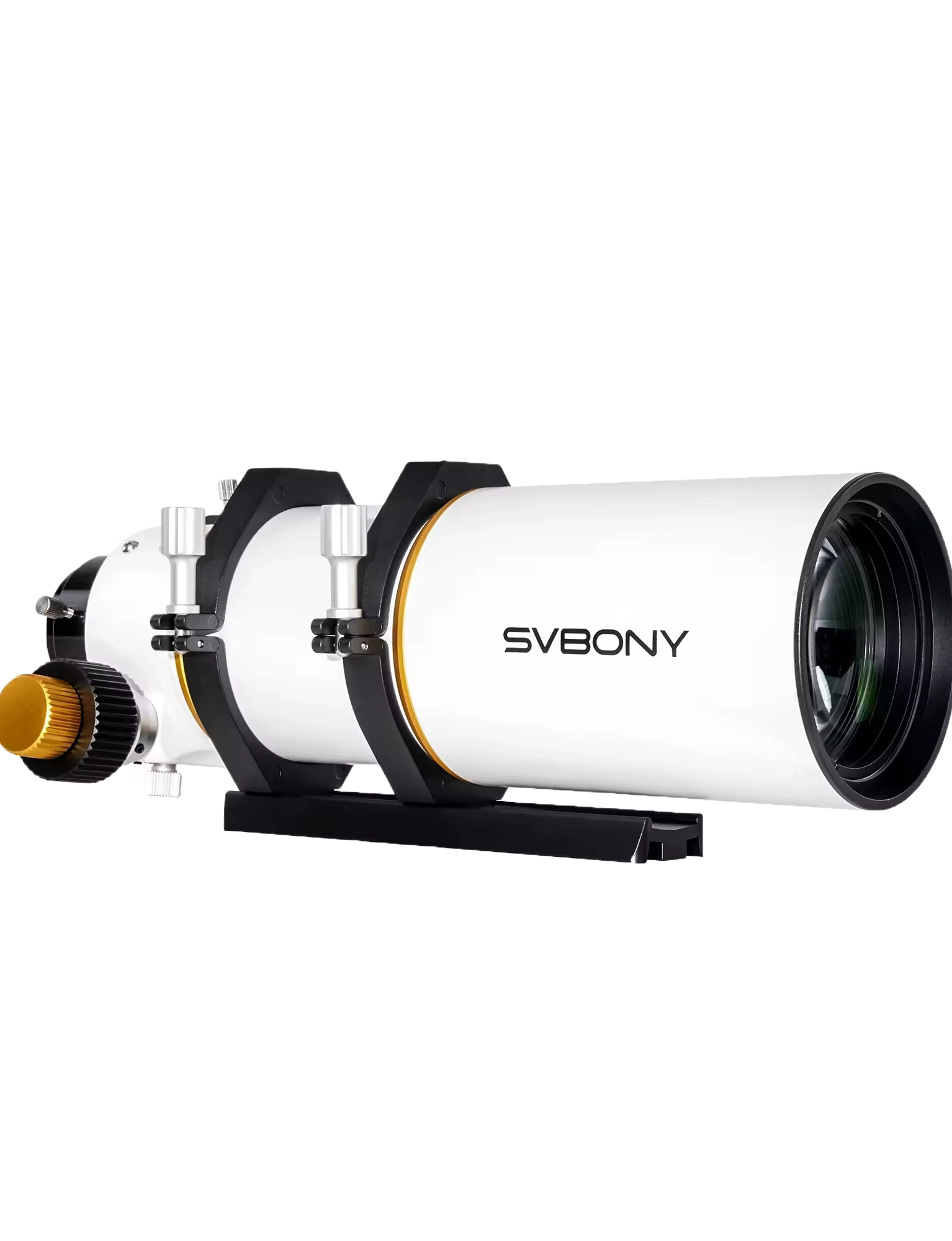

ED Refractor SV530 80mm Astrophotography

Description

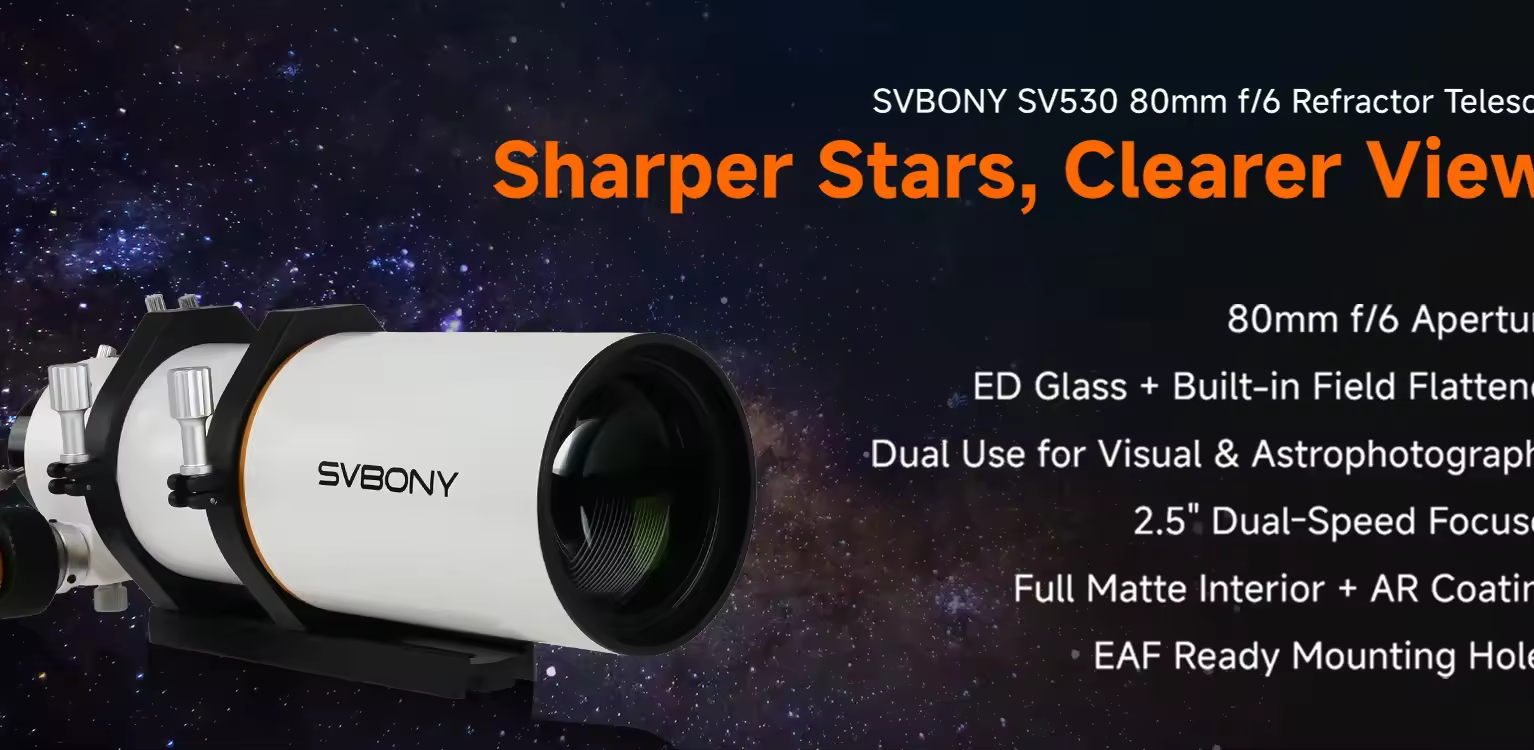

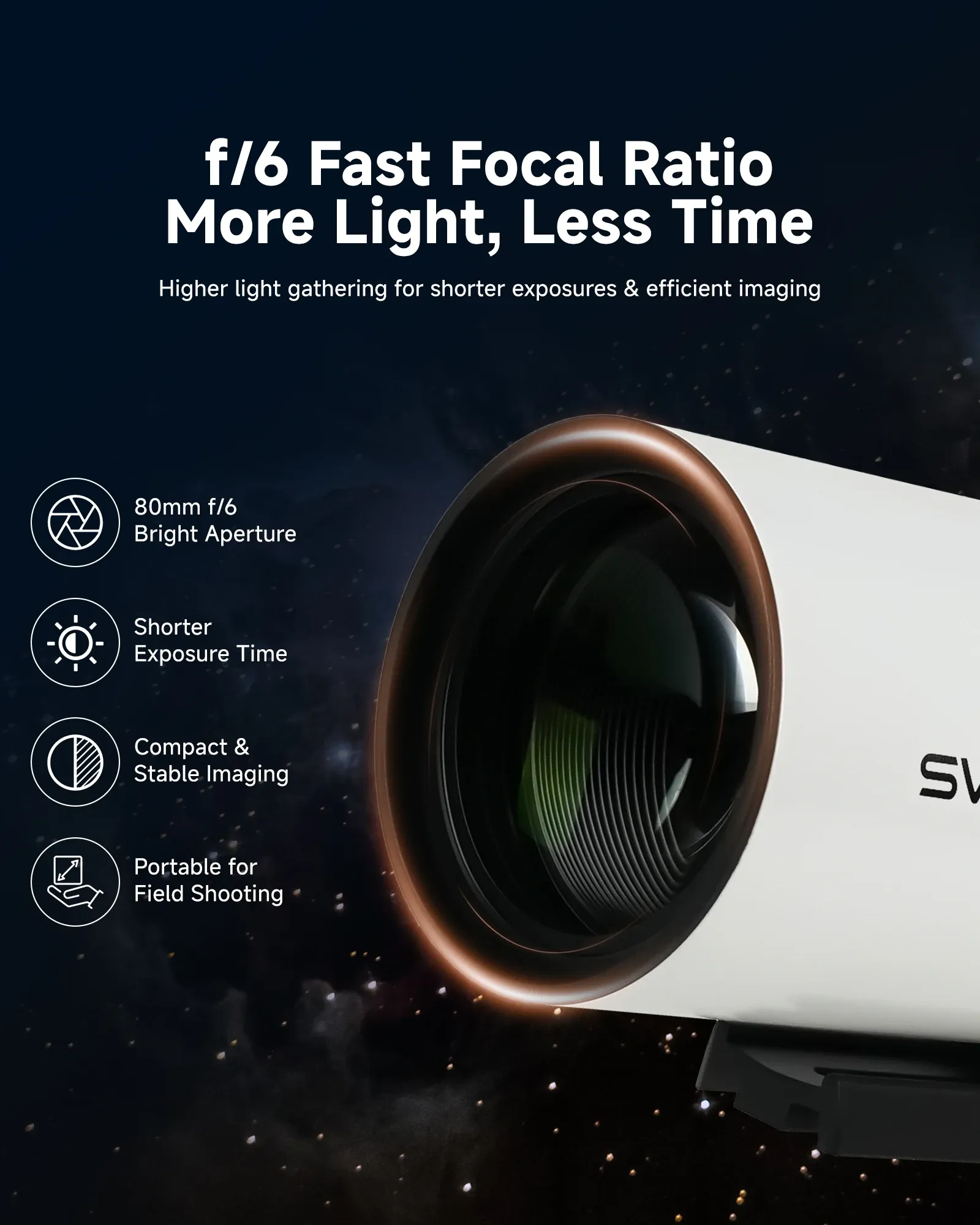

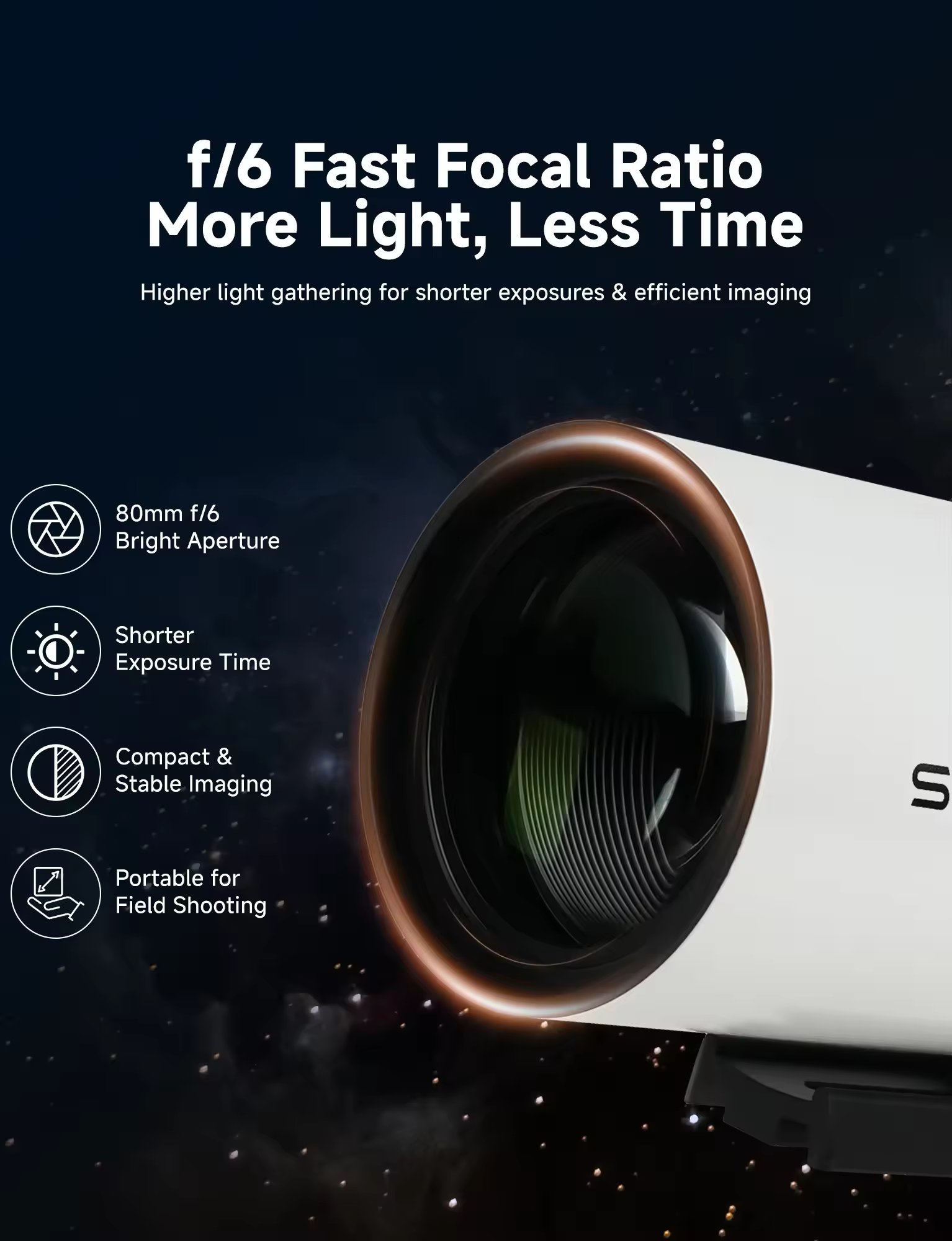

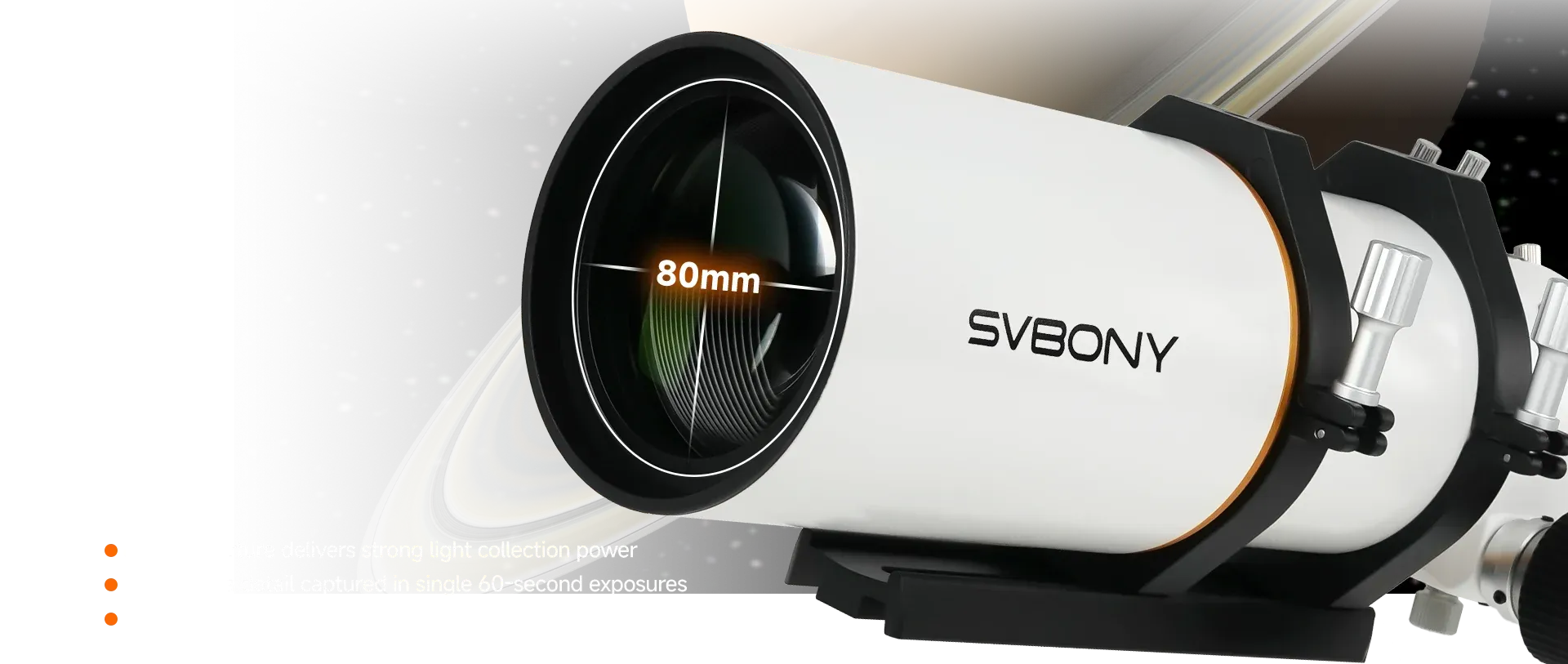

80mm f/6 Fast Optics for Visual & Imaging

The 80mm aperture and f/6 focal ratio provide strong light gathering for deep-sky imaging while keeping the scope versatile for both visual observation and astrophotography.

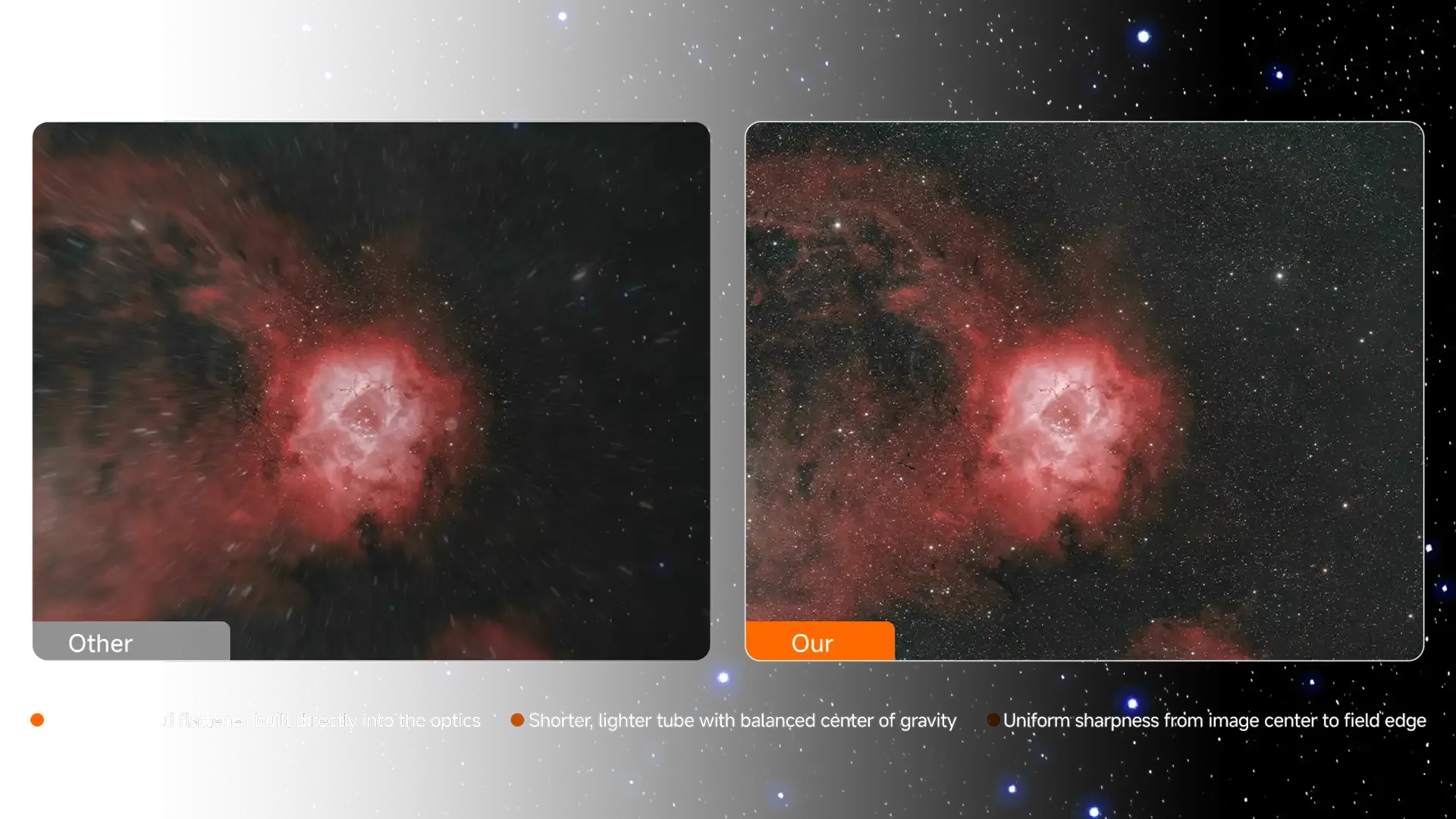

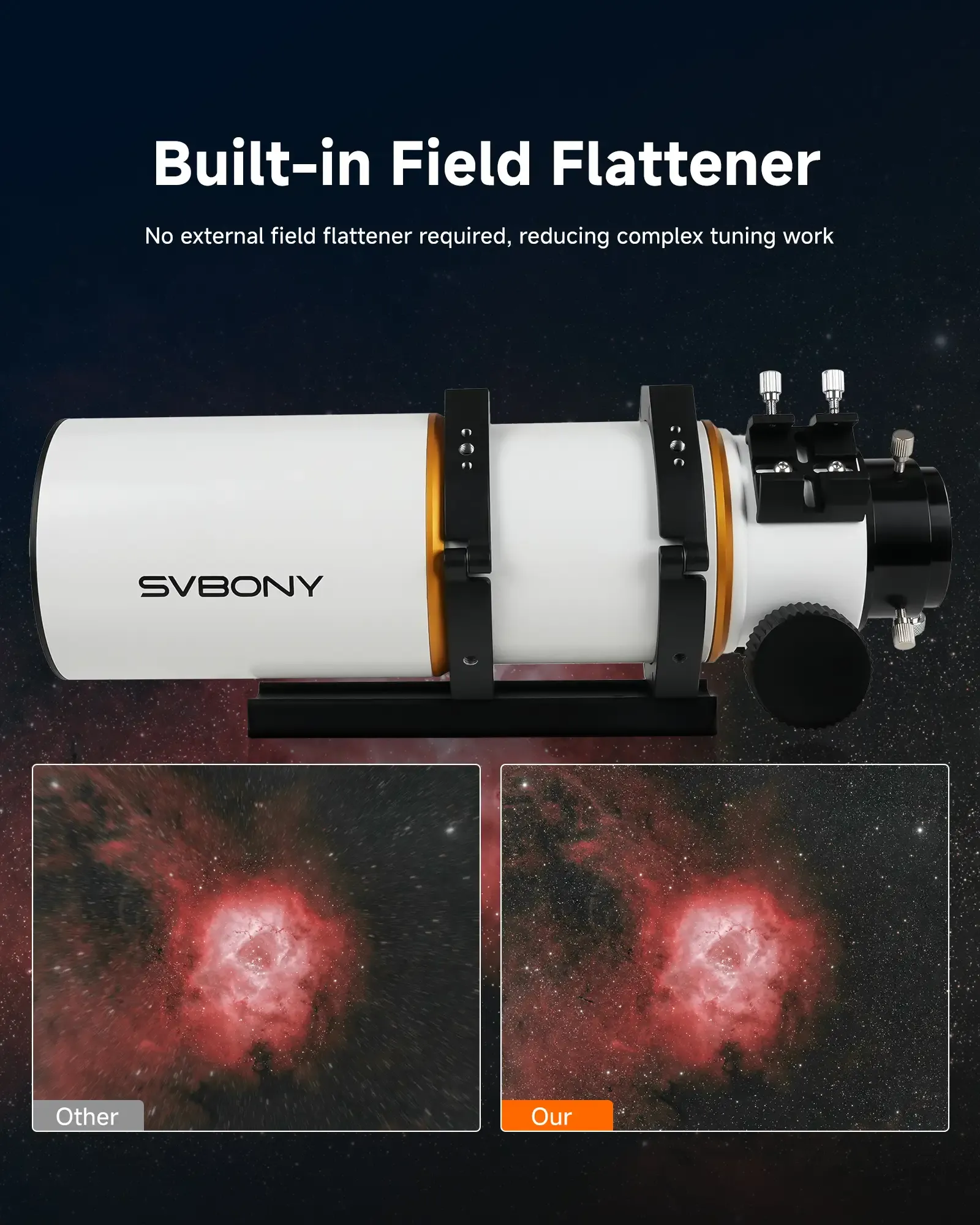

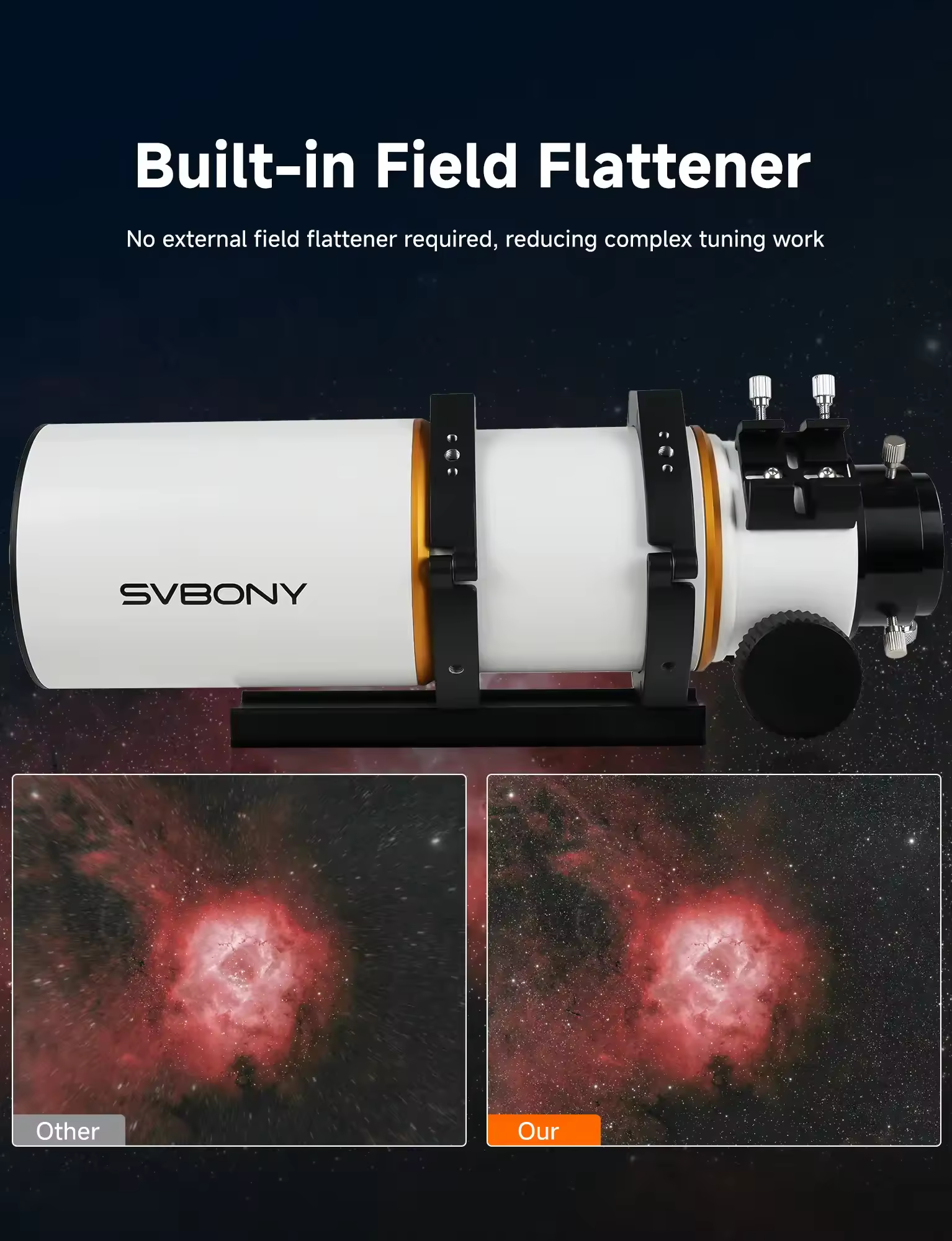

Built-in Field Flattener for Edge-to-Edge Sharpness

The integrated field flattener corrects field curvature and keeps stars sharper across the image field—without adding a separate flattener to your imaging setup.

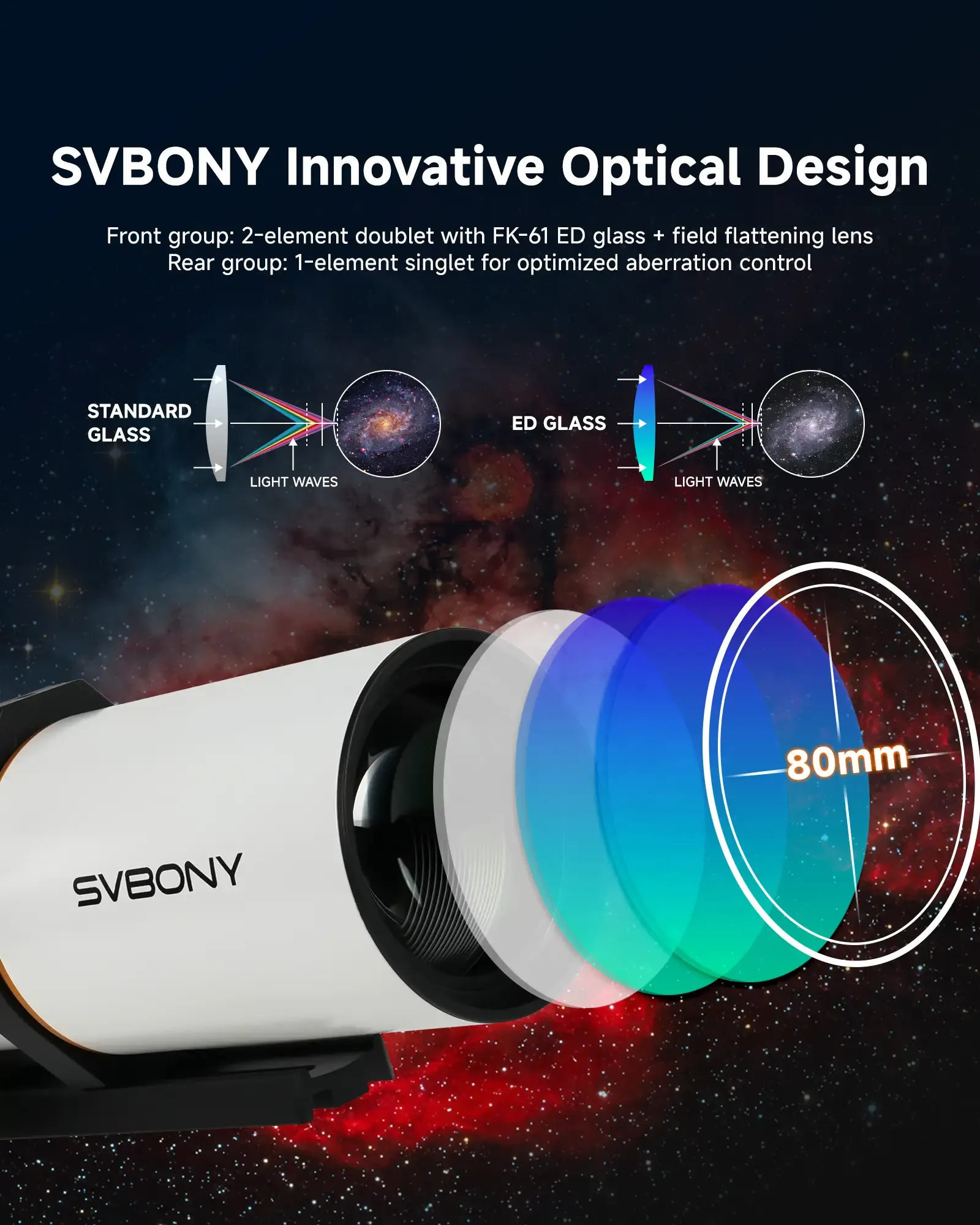

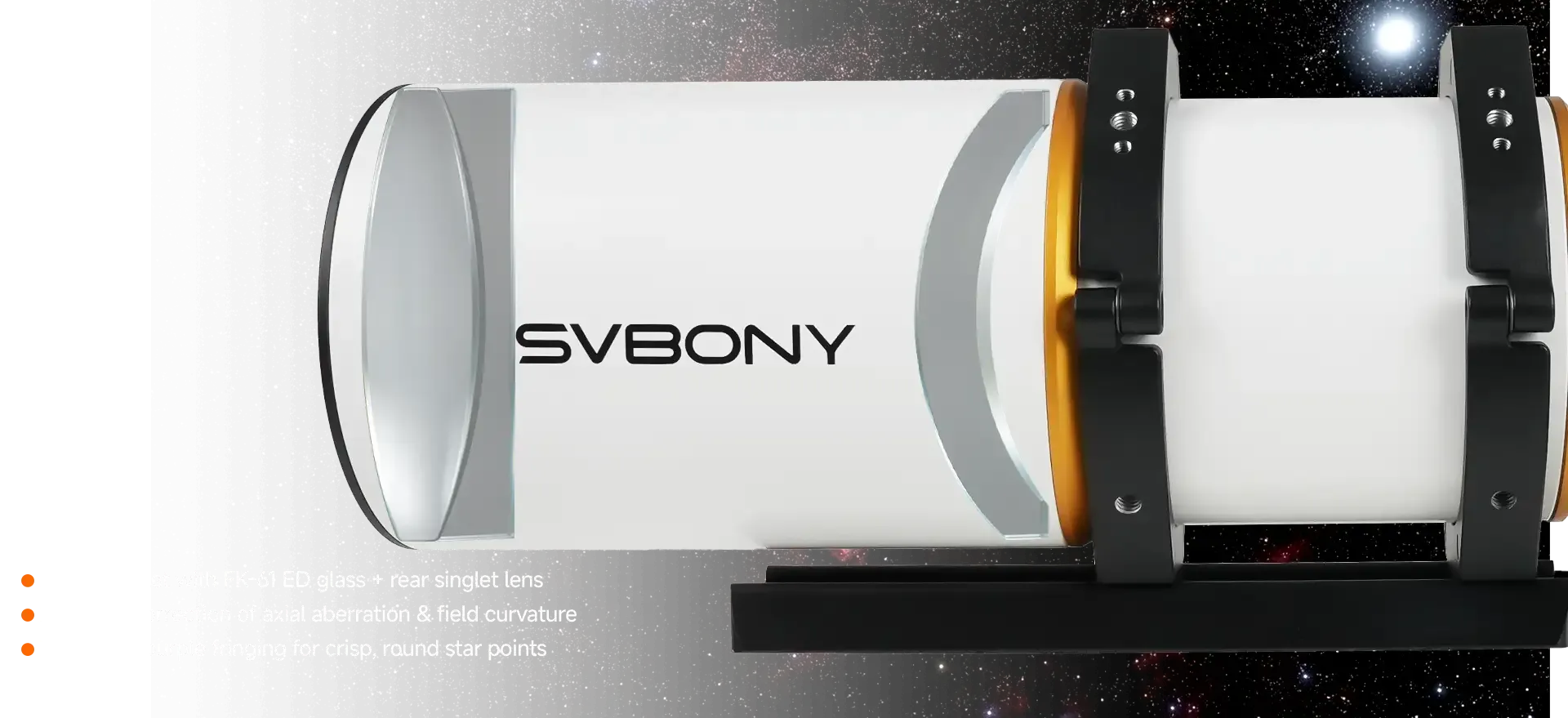

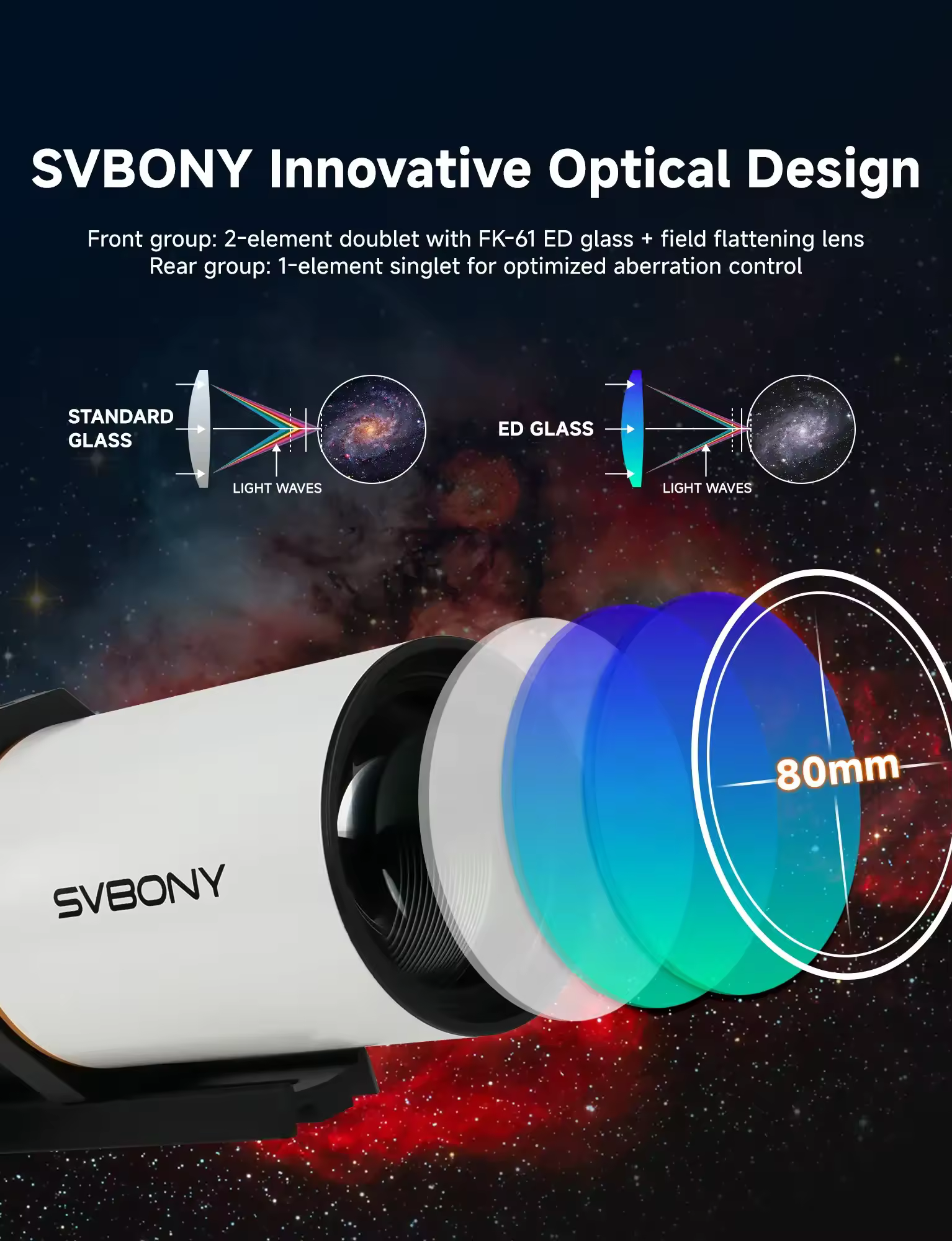

3-Element Optical Design with ED Glass

The ED doublet and integrated field-flattening element work together to control chromatic aberration and field curvature, helping produce rounder stars and sharper images across the field.

Optimized Optical Path for Better Aberration Control

The optical design is optimized to control axial aberration and field curvature, supporting sharper star images across the field.

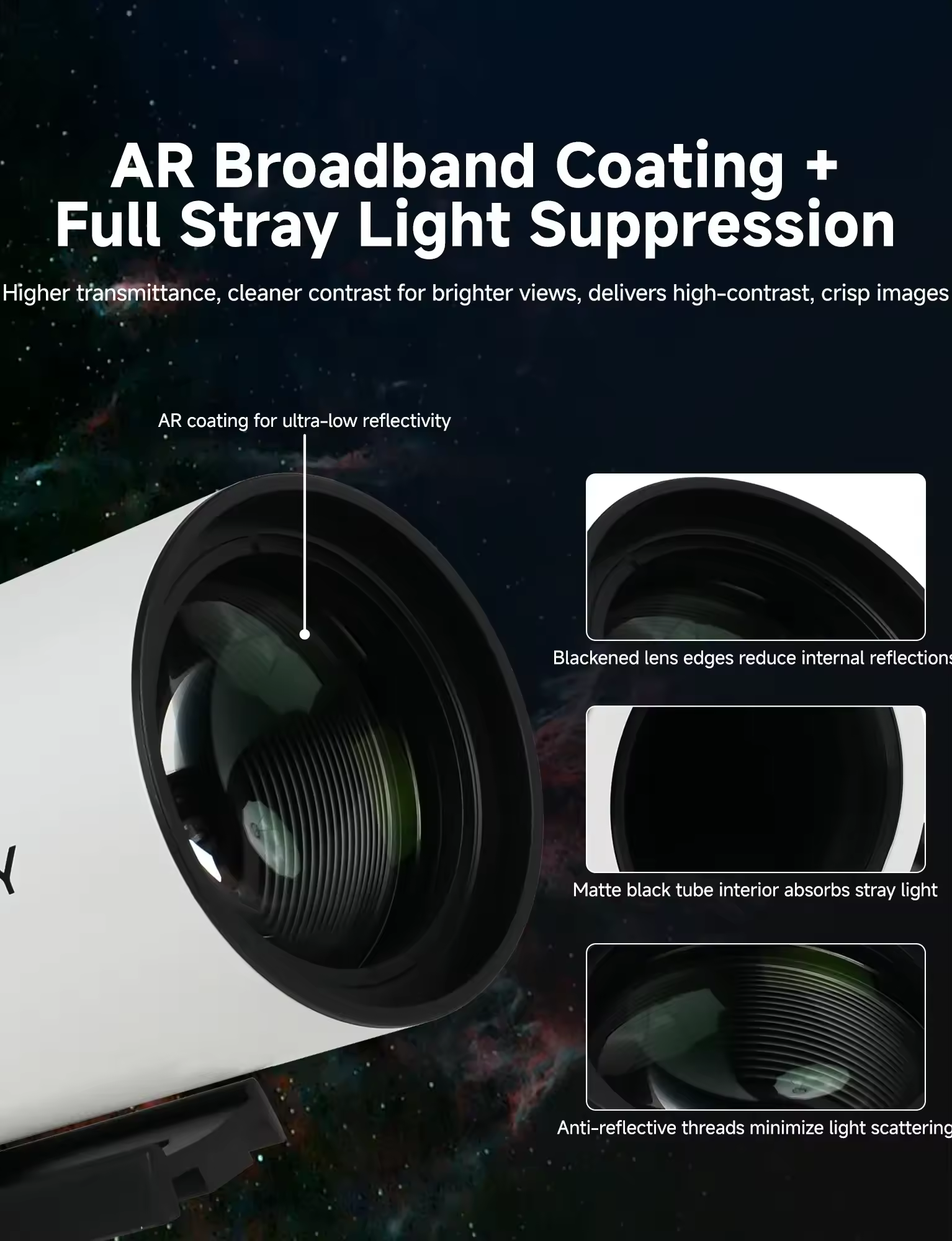

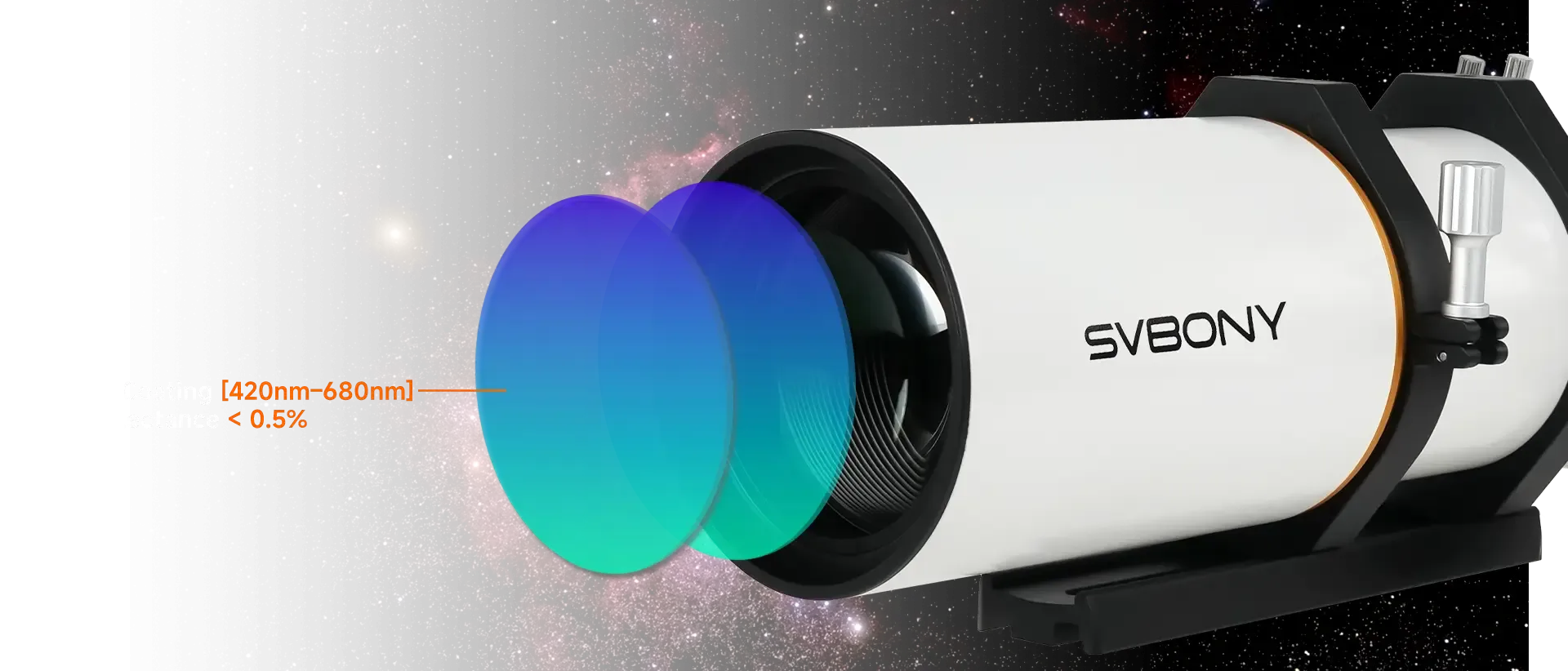

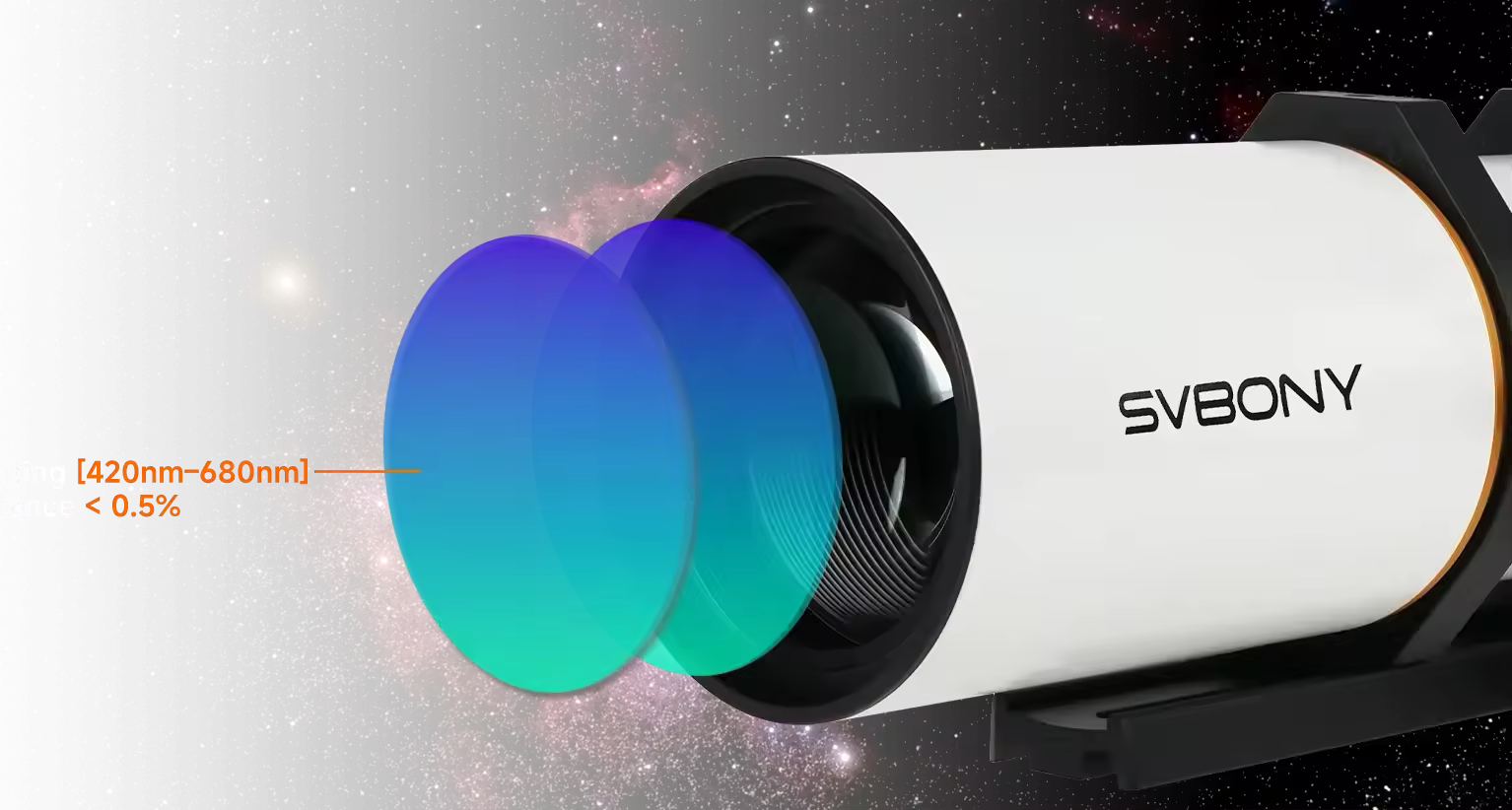

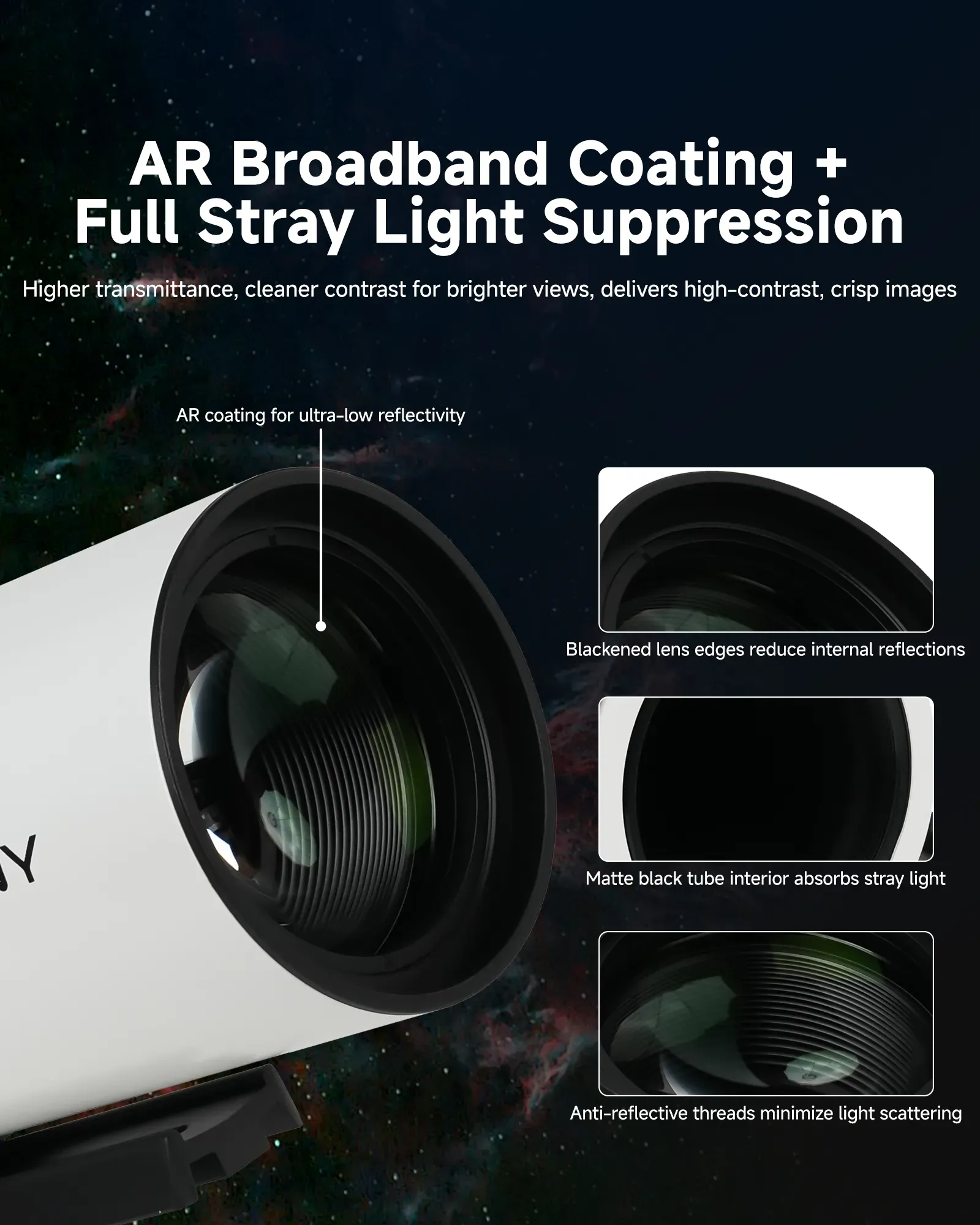

AR Coatings & Stray Light Control

Multi-layer AR coatings improve light transmission, while blackened lens edges and a matte-black interior help suppress stray light for cleaner, higher-contrast images.

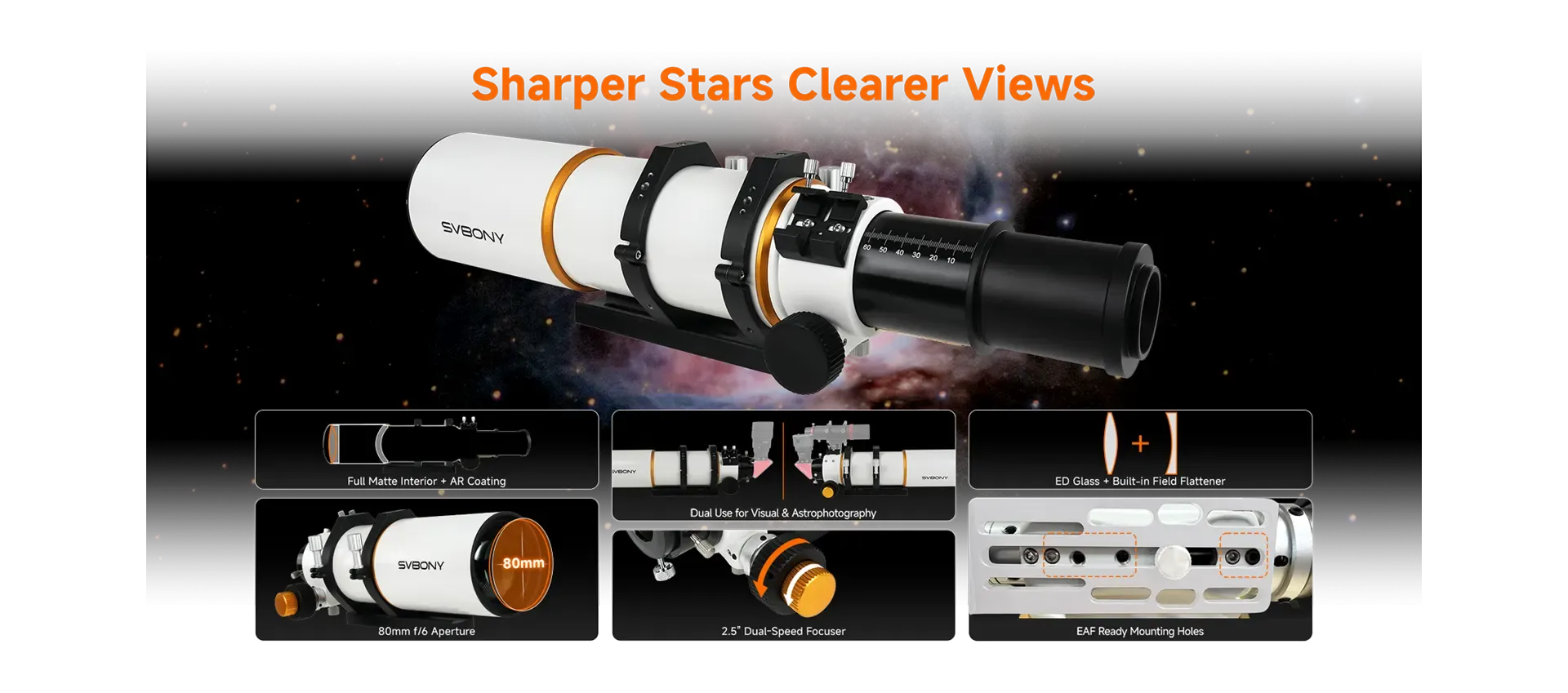

Built for Astrophotography, Ready to Grow

With ED optics, built-in field flattening, a dual-speed focuser, and EAF mounting provisions, SV530 provides a practical foundation for building a dedicated imaging setup.

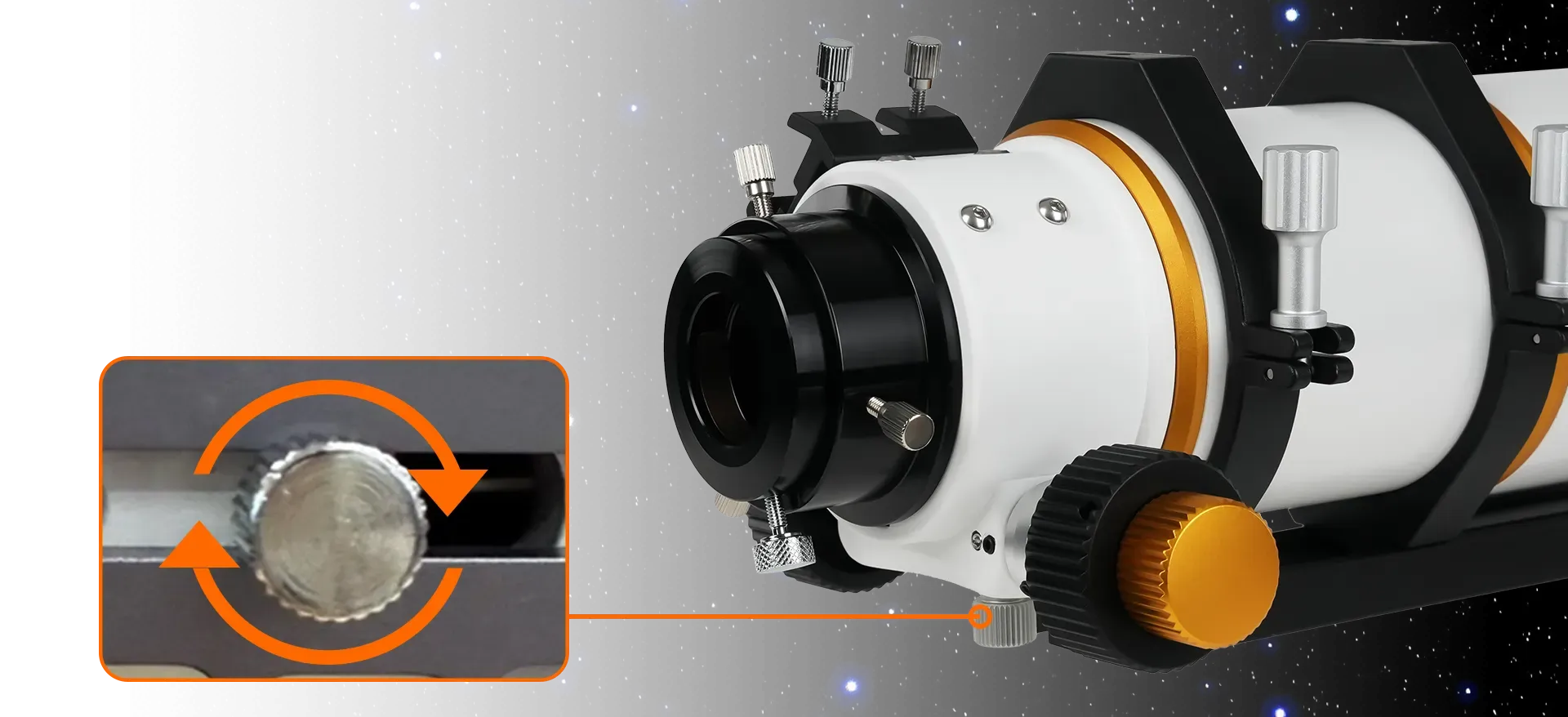

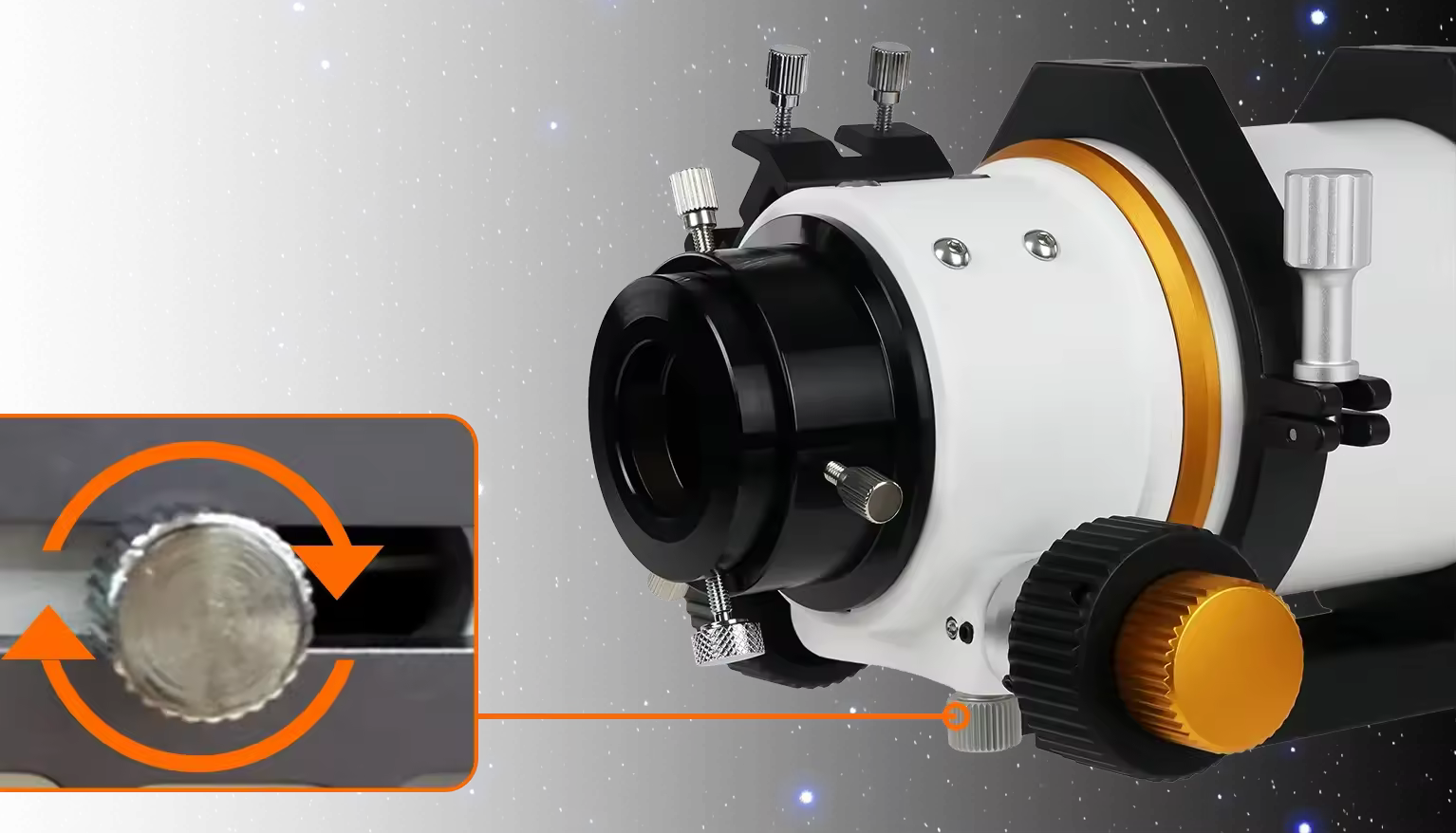

Focus Lock for More Stable Long Exposures

The adjustable tension control allows you to fine-tune the focuser feel, while the focus lock helps prevent unwanted shifts during long exposures for more reliable astroph.

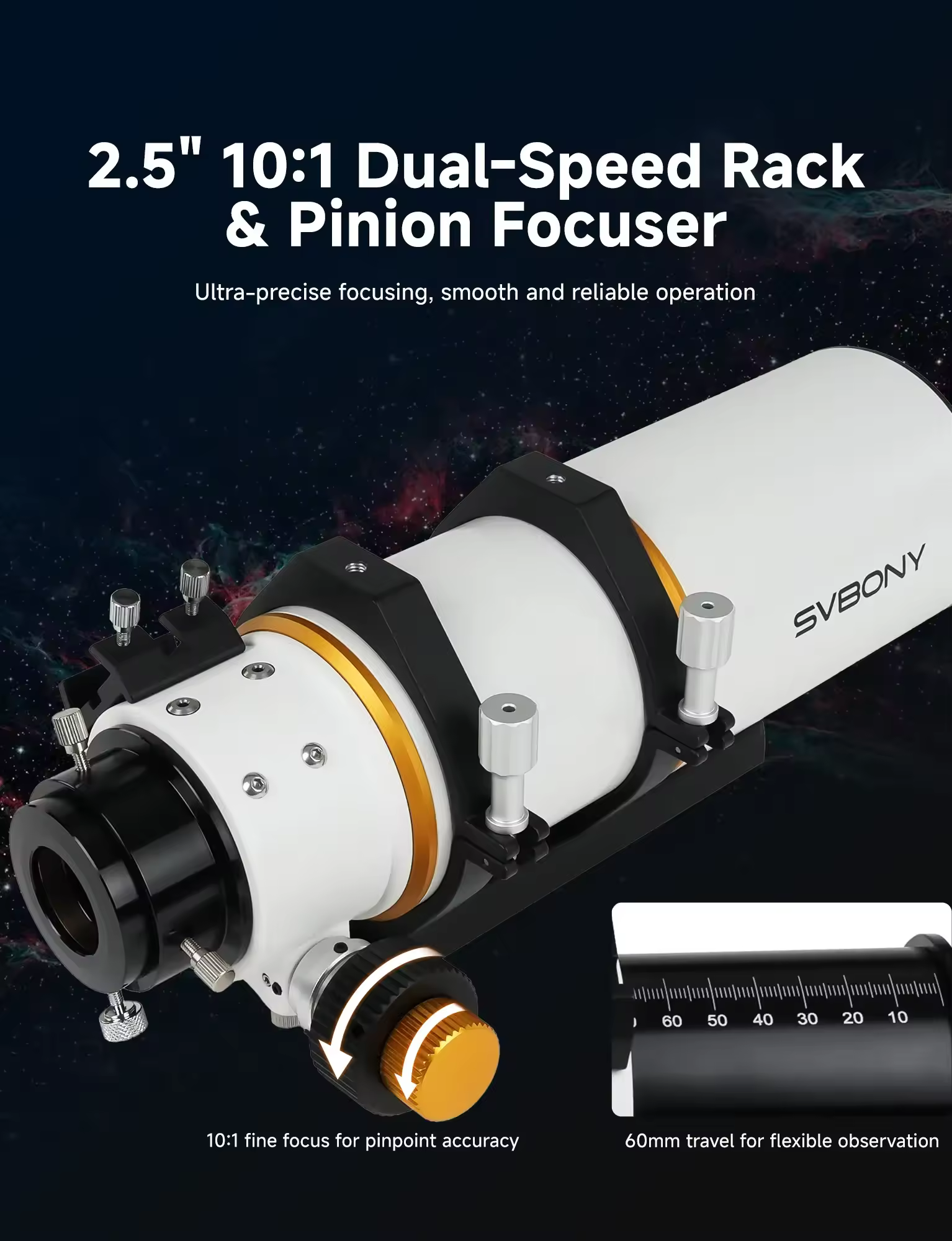

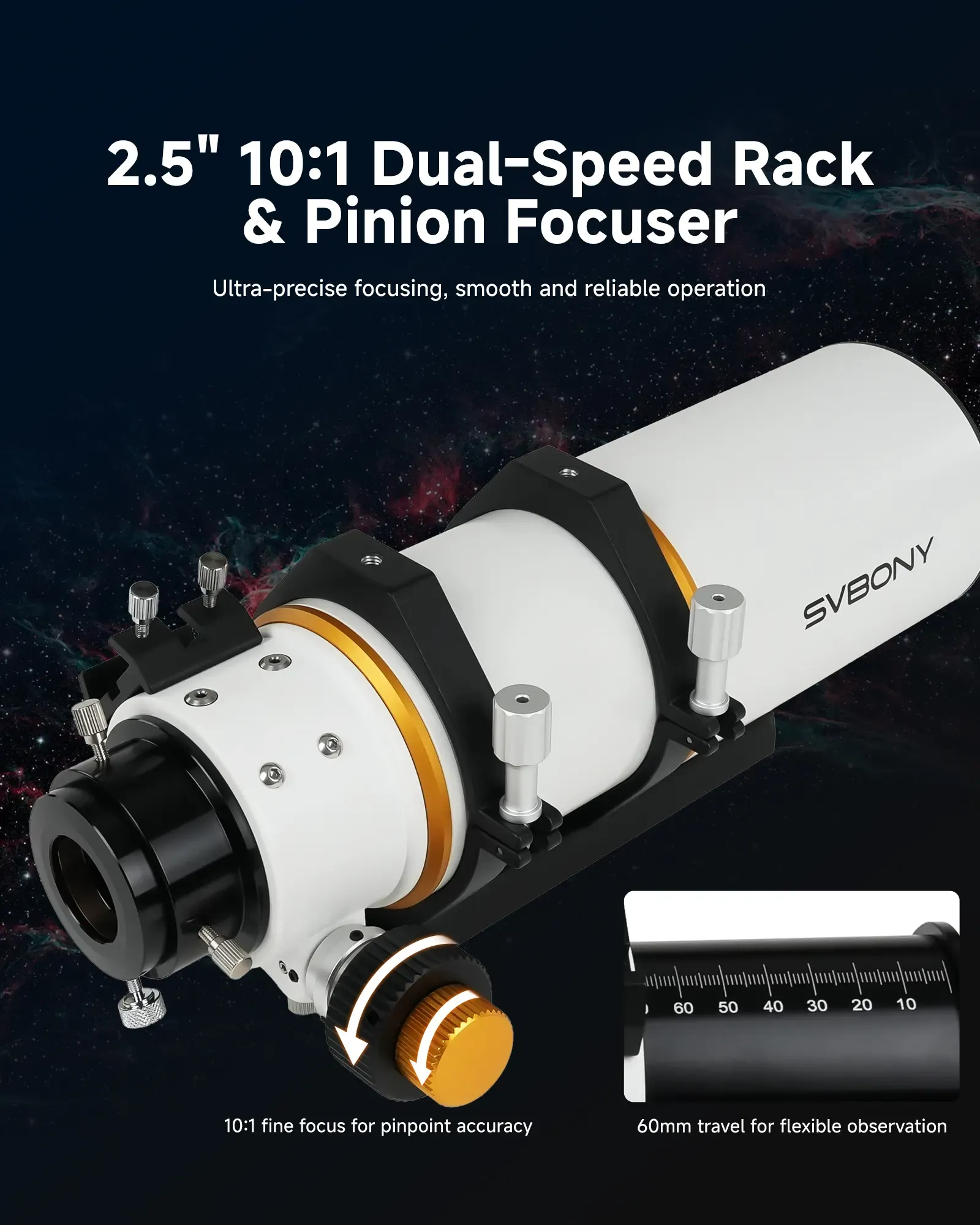

2.5" 10:1 Dual-Speed Focuser

The rack-and-pinion focuser provides smooth coarse adjustment and precise 10:1 fine focusing, with 60mm travel for flexible visual and imaging setups.

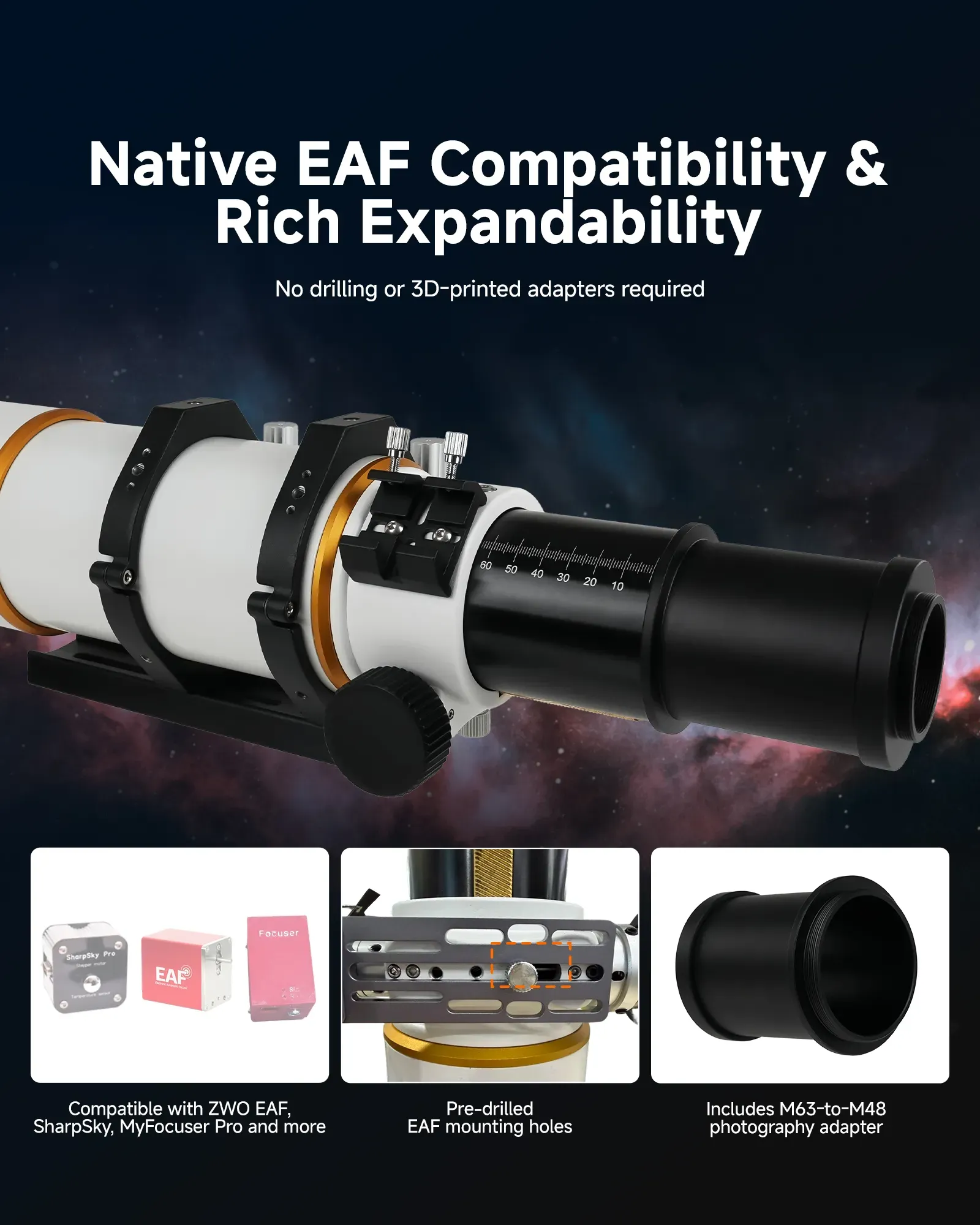

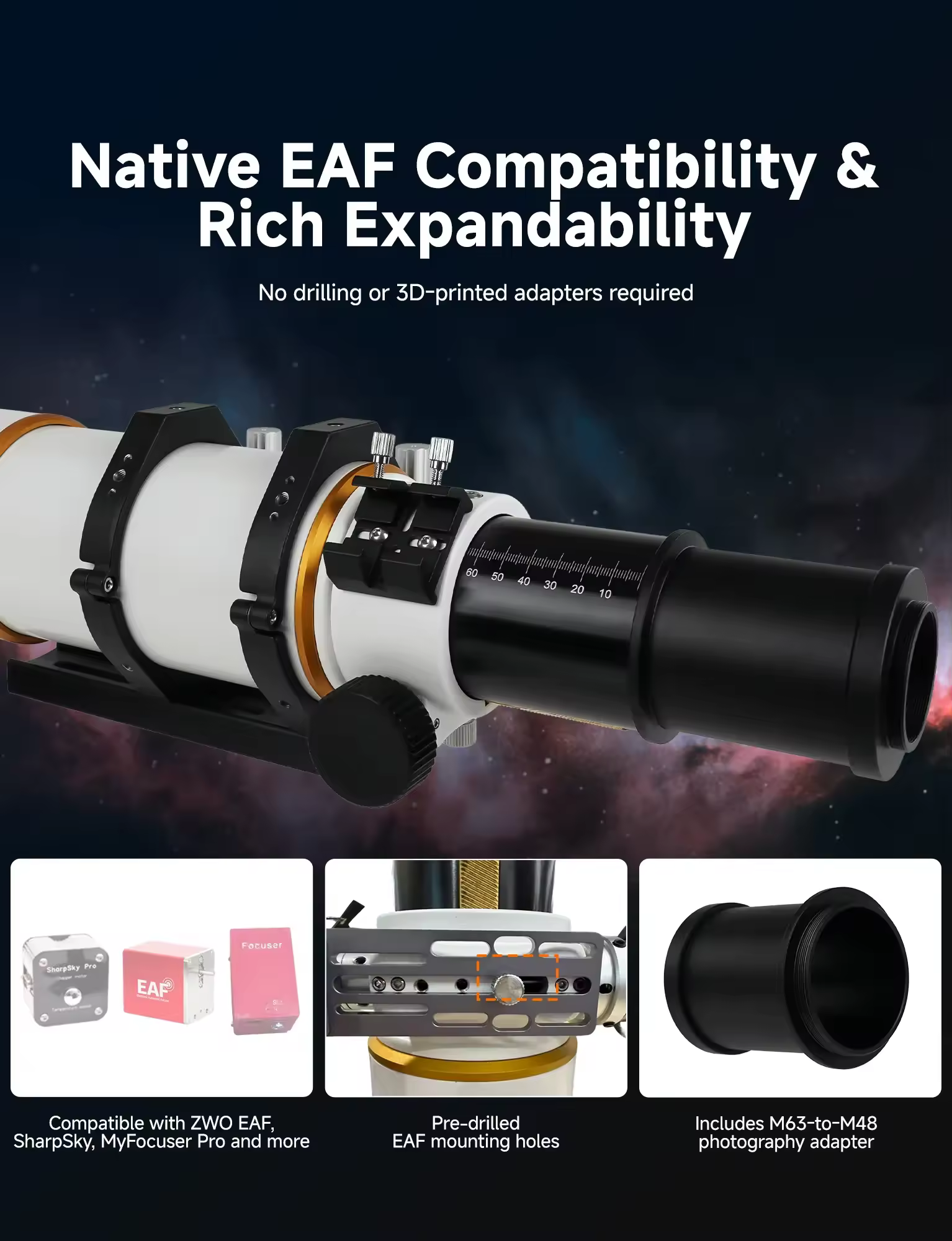

EAF-Ready Design for Easy Autofocus Upgrade

Pre-drilled mounting holes support compatible electronic focusers, while the M63-to-M48 adapter makes it easier to build a camera-based imaging setup.

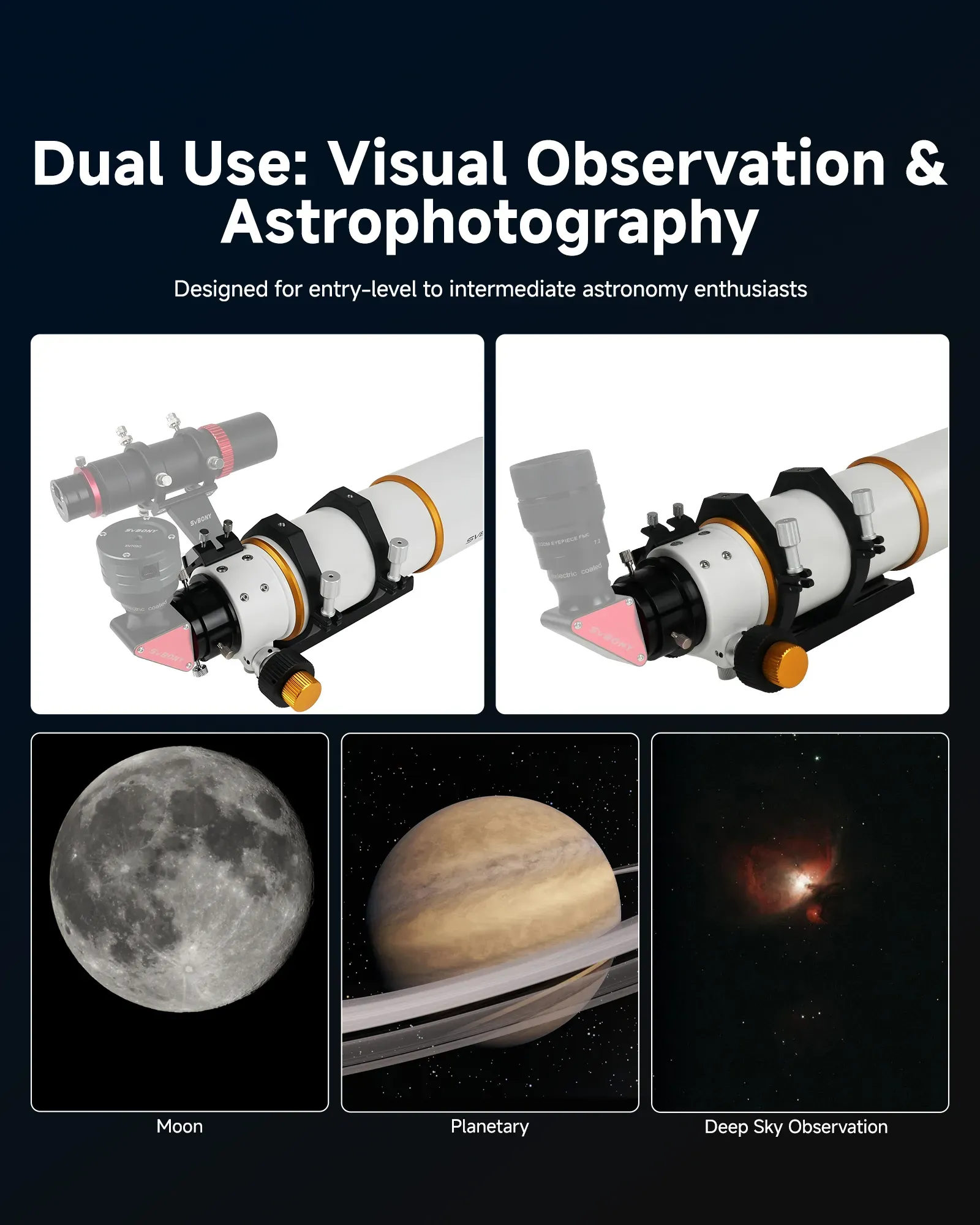

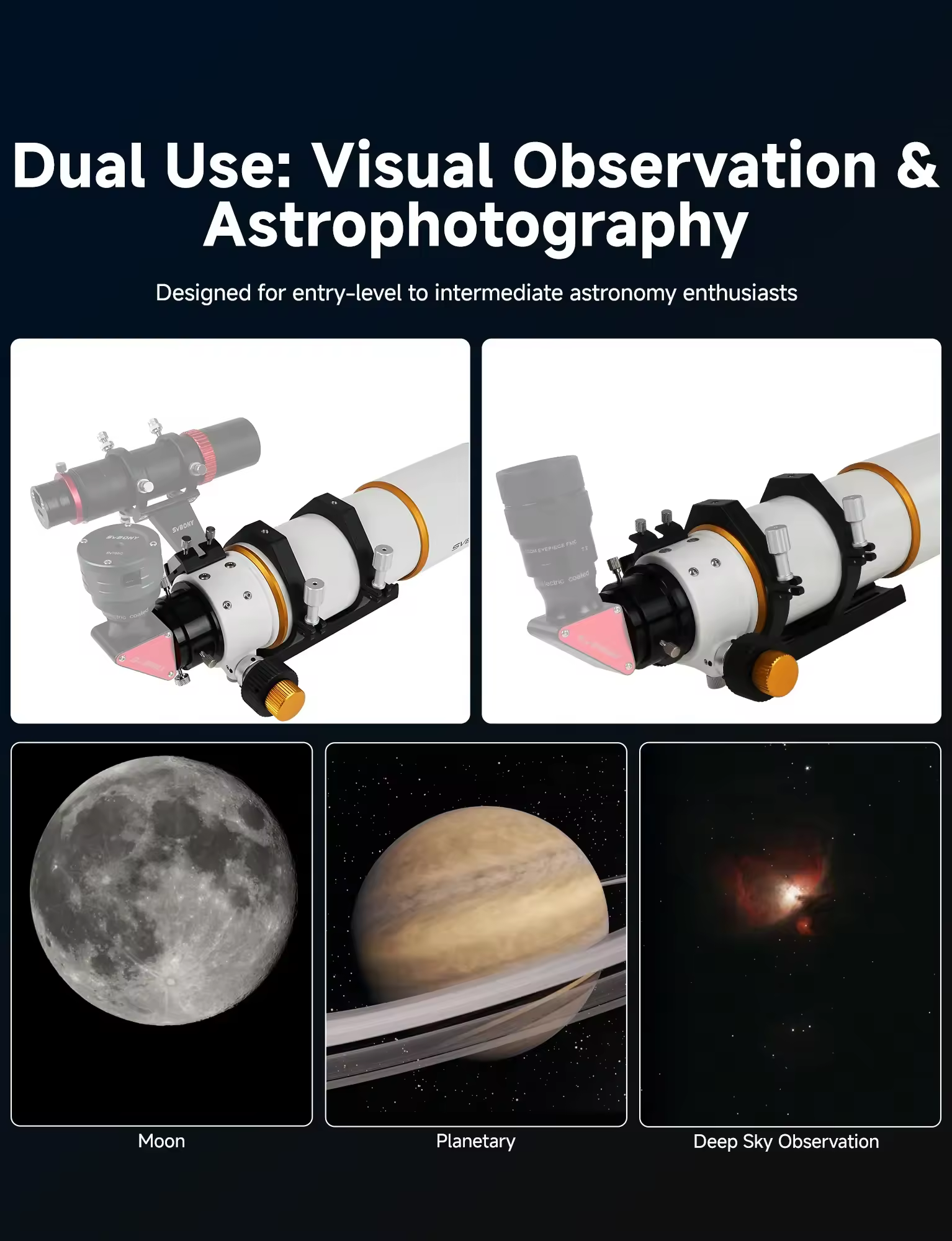

One Telescope for Visual & Astrophotography

Switch between visual observing and astrophotography with one versatile 80mm ED refractor—ideal for the Moon, planets, and deep-sky targets.

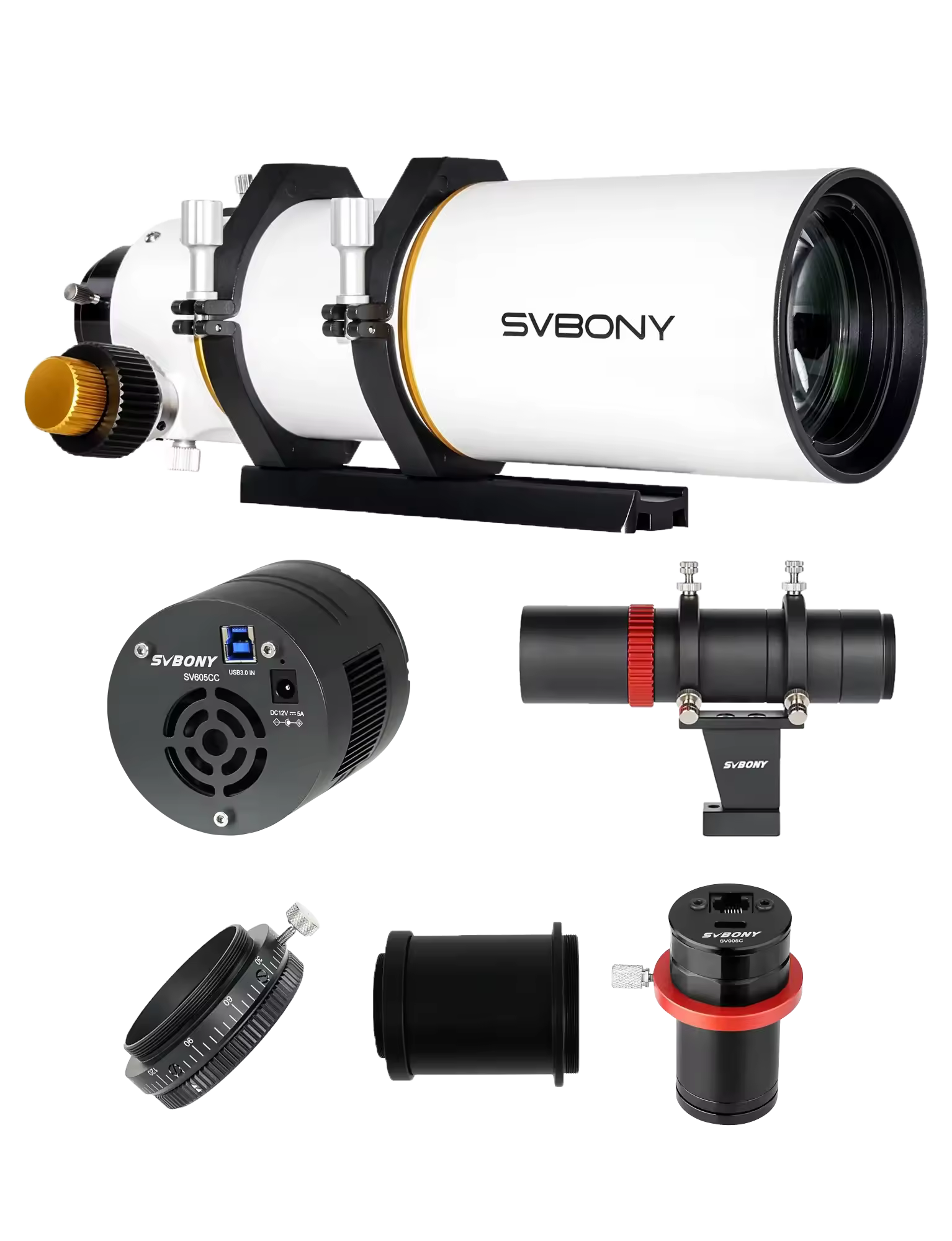

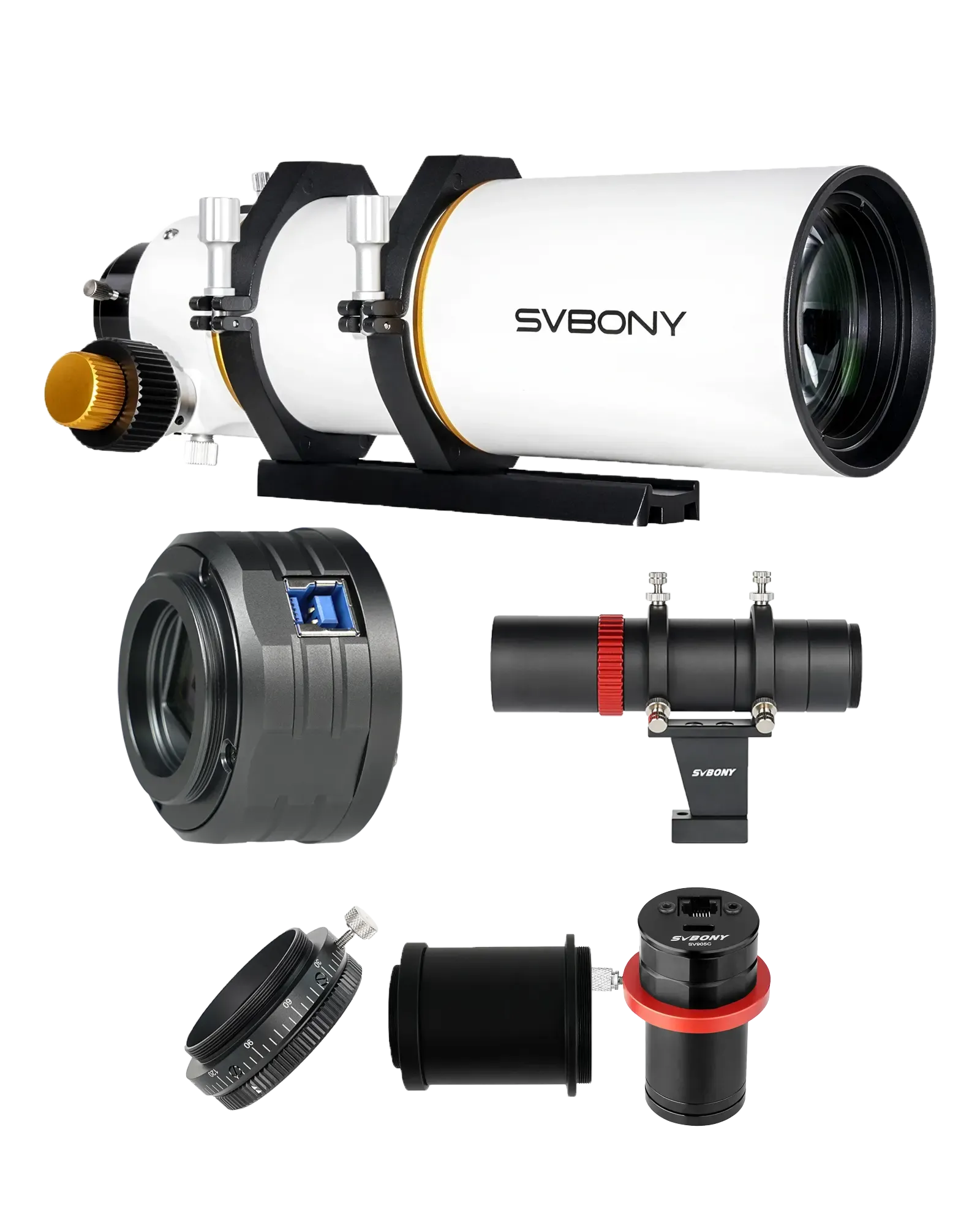

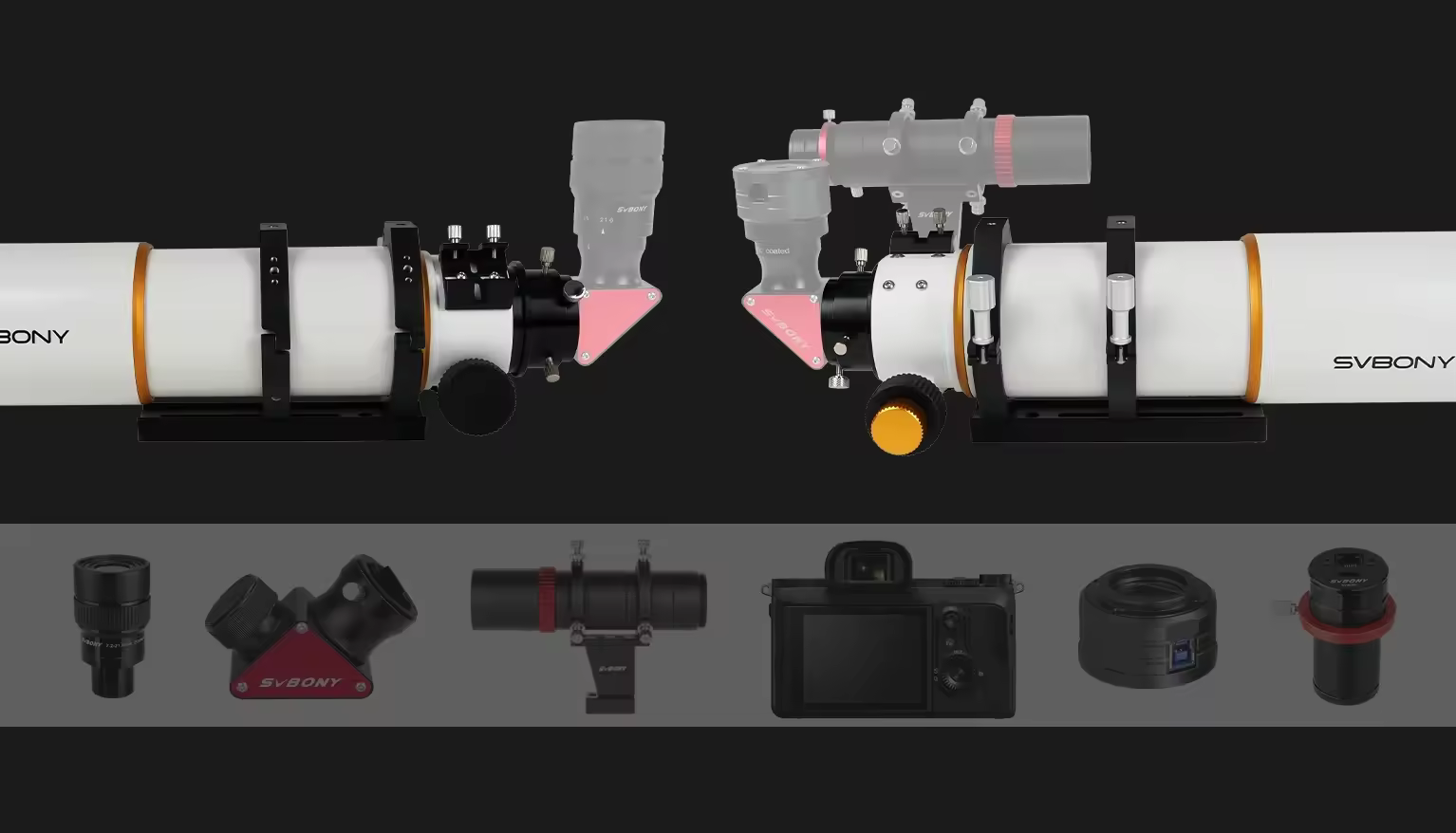

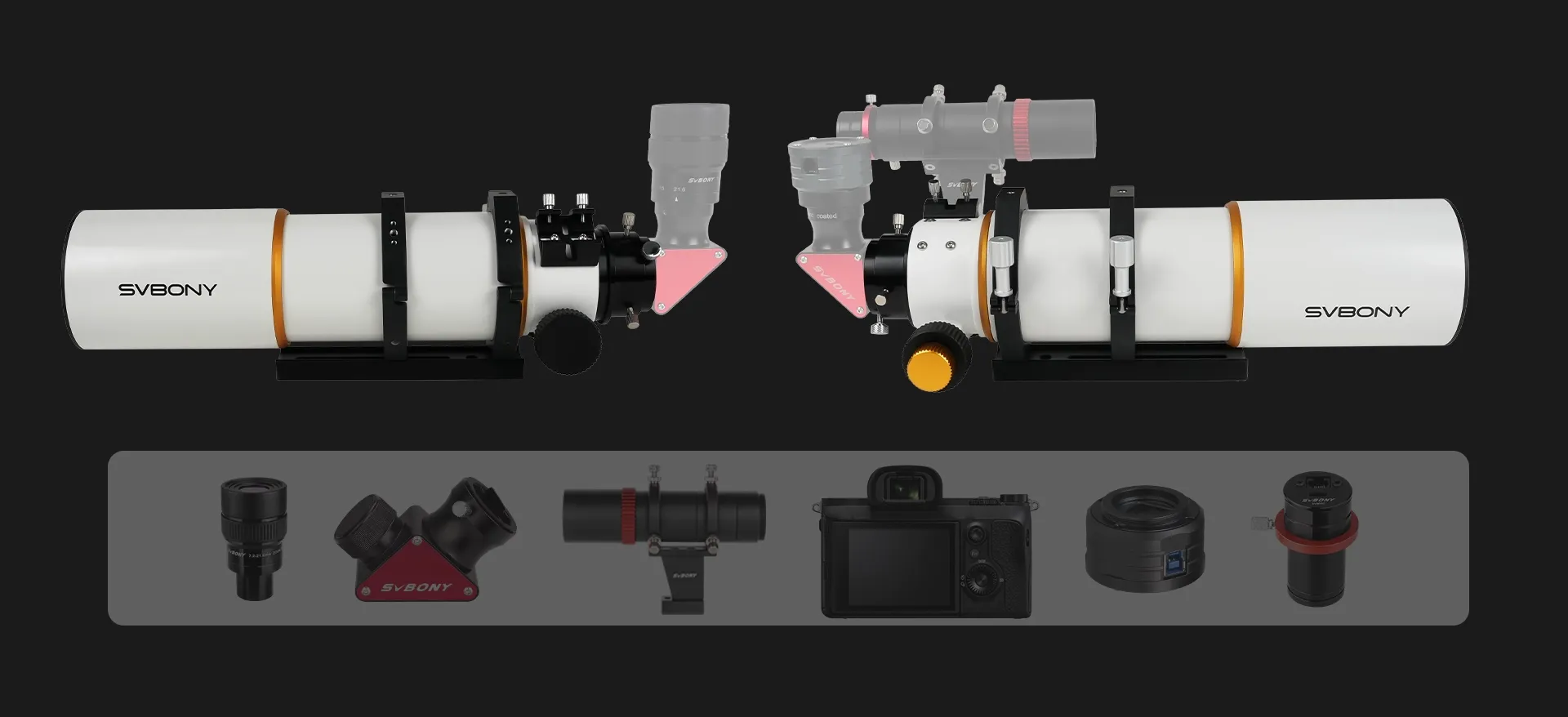

One Scope, Unlimited Possibilities

Effortlessly switch between visual stargazing and high-precision astrophotography with SVBONY's versatile accessory ecosystem.

Customer Reviews

Customer Reviews

0
Based on __COUNT__ reviews
Quality
Ship
Other
All Reviews

Loading...

Spec

Category Product Name SV530 80 F6 ED
Optical System Effective Aperture 80 mm
Focal Ratio f/6
Lens Coating AR Coating, Reflectivity <0.5%
Transmittance 60/40
Strehl Ratio 1/λ
Tube Assembly Material Aluminum Alloy
Surface Finish Baking Paint
Internal Light Suppression Matte Black Coating
Tube Ring Type Multi-point Metal Tube Ring
Focuser System Focuser Size 2.5 inch
Focuser Type Precision Focuser [1:10]
EAF Compatibility EAF Mounting Hole Supported
Focuser Travel 60 mm
Package information Package size 190*520*205mm
Weight About 4400g
