WIFI connection; connect your smartphone for remote control; suitable for bird watching photography and target training; allow you to see the surface of the target in real time on your phone; greatly improve efficiency and comfort;

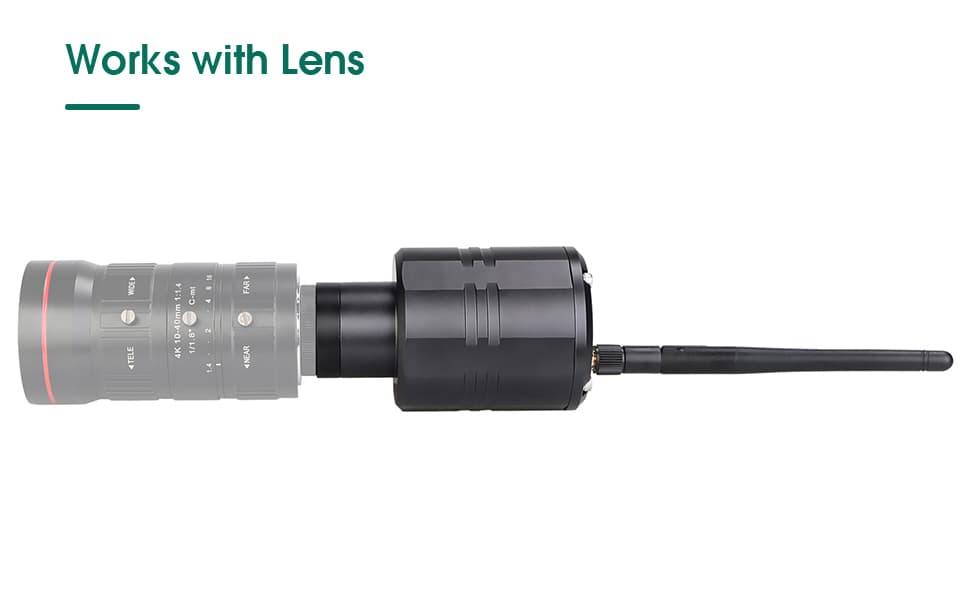

CS-C interface; the front end of the camera is CS-mount; equipped with a CS-C adapter ring; which can be used with C-mount lenses or CS-mount lenses for shooting; time-lapse shooting is possible in schedule shooting mode;
32G TF card memory; equipped with 32G large-capacity TF card; it does not occupy the storage space of the mobile phone; you can download and share photos in real time.
The camera is supported by WIFI Mode and UVC Mode. When using uvc mode, you need to use the built-in data cable, connecting the Type-C port to the device, and the USB port to the PC; Open the UVC mode software on the PC (Amcap software can be used), select UVC CAMERA, and enter the image interface.
Learn more details about how to connect SC001 camera, refer to: https://www.svbony.com/blog/how-to-use-svbony-sc001-wifi-spotting-scope-camera/
SC001 Wifi Camera

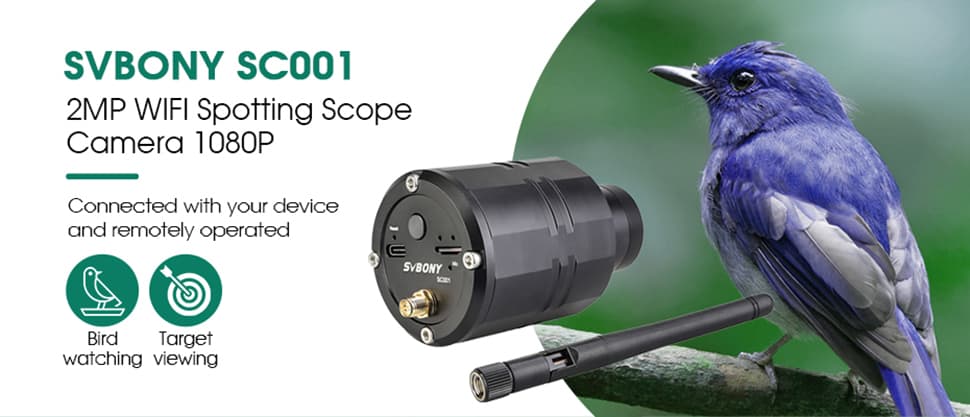

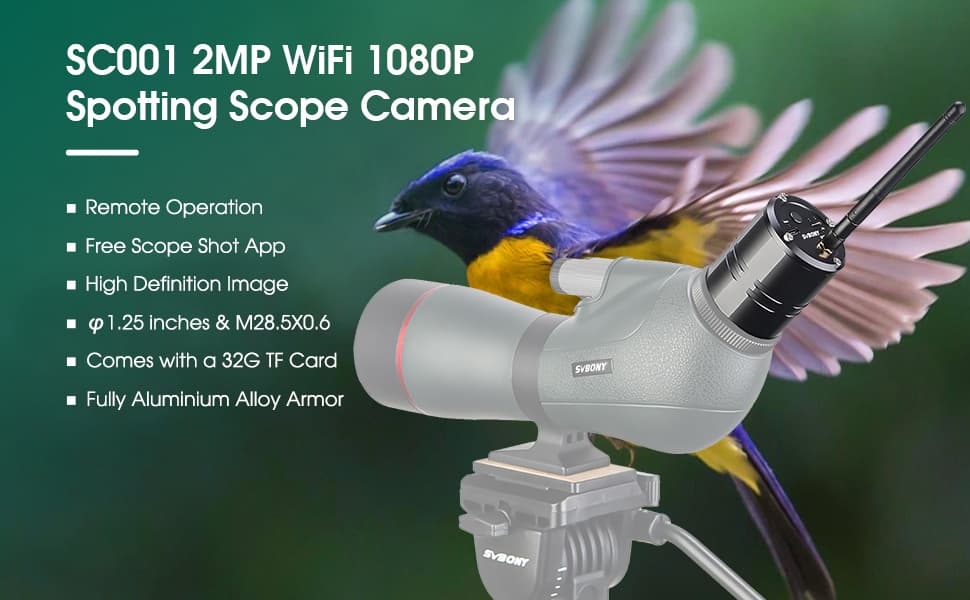

SC001 2MP WIFI 1080P Spotting Scope Camera

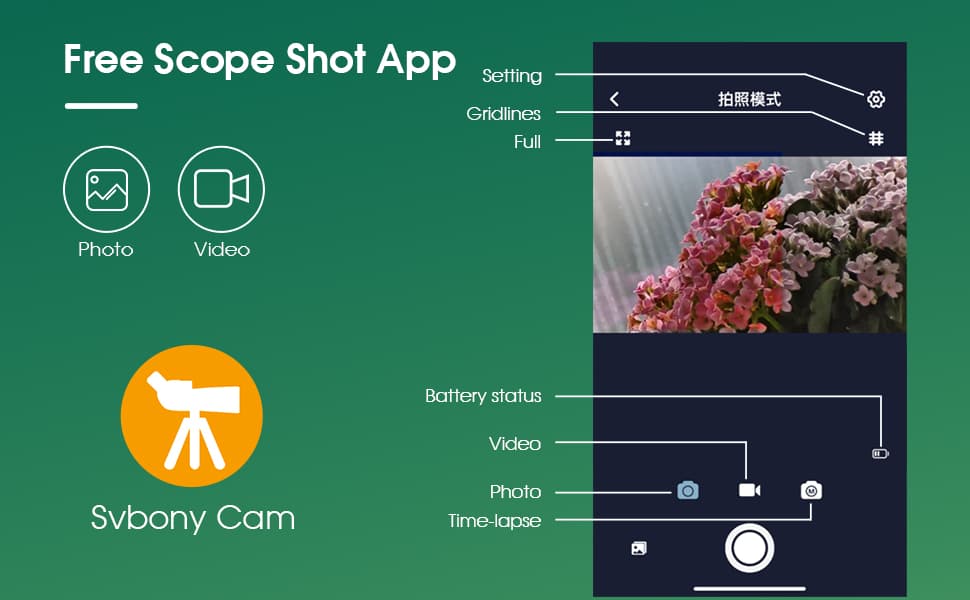

Free Scope Shot App

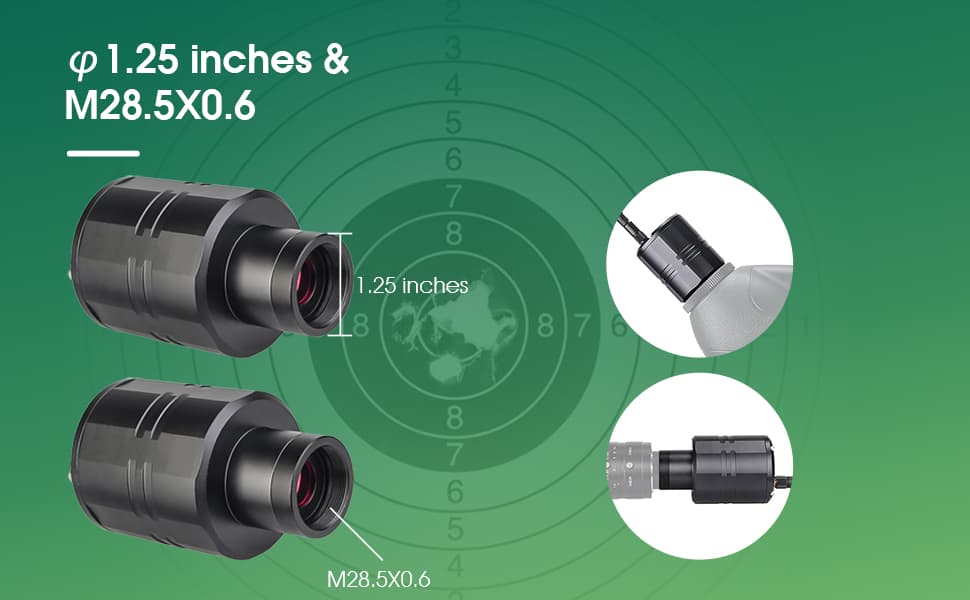

1.25 Inches and M28.5*0.6

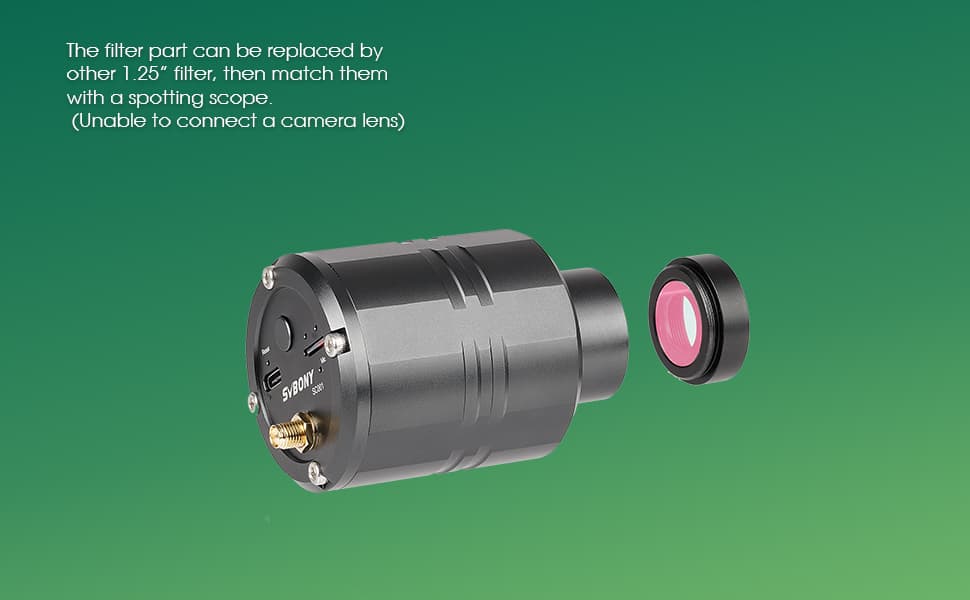

Compatible with 1.25 inch Filter
Comes With a 32G TF Card

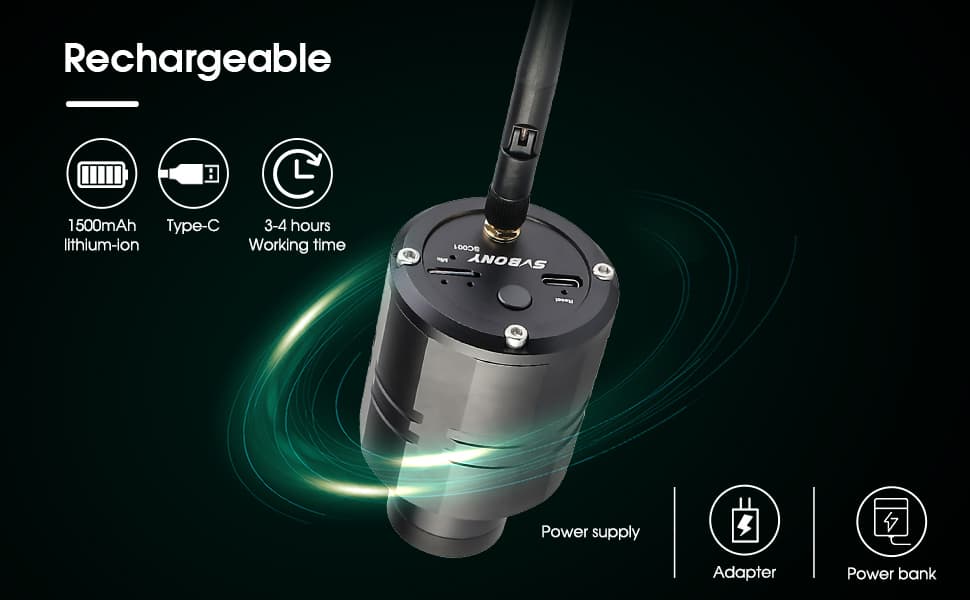

Rechargeable
High Definition Image
For Birdwatching
For Target Shooting

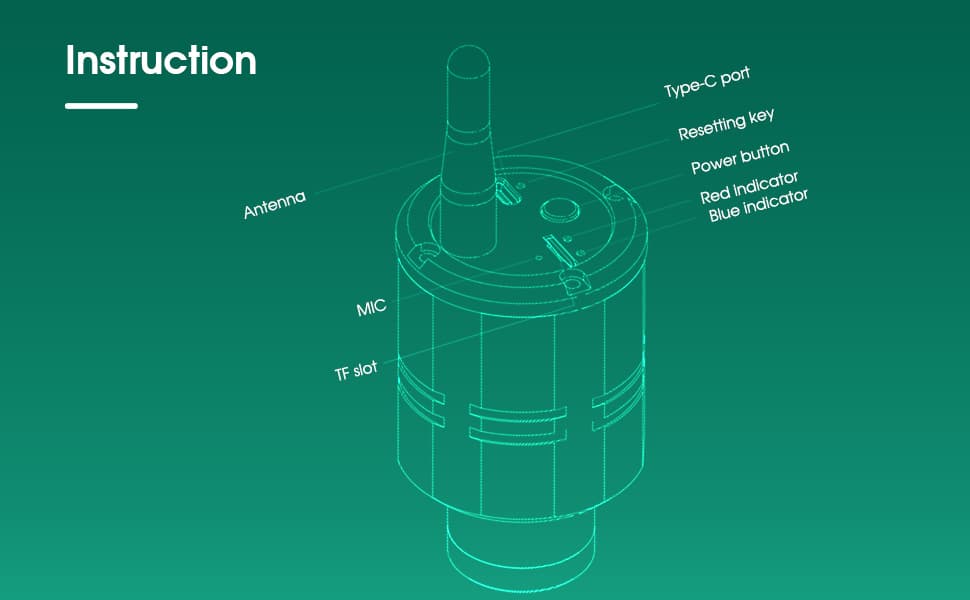

Instructions
SvBonyCam
Extremely well-designed and well-made WiFi color CCD camera!
Easiest way for digiscoping
Compatibilité
Brand | SVBONY |
Model | SC001 |
Solution | 1920*1080 |
Sensor | OV2718 |
Effective Pixels | 2M |
Wifi module | 2.4G,150Mbps |
Storage | TF Card. Max support 128G, the package includes one 32G TF card |
TF card USB Type | Type-C |
Build-In Battery | 1500 mAh |
Video | support |
Photograph | support |
Plan to take pictures | support |
Working Humidity | 20%RH-80%RH |
Storage Humidity | 20%RH-95%RH |
Operating Temperature | -10°C~50°C |
Storage Temperature | -20°C~60°C |
Weight | 184g |
Package | 150mm*132mm*70mm |
Description
Svbony SC001 is a WiFi electronic camera for spotting scopes, with generates wifi hotspot, It could be connected with mobile phone via APP, people could capture photos and video on the APP directly, and share to social media asap. The photos or videos file could be saved to the TF card included, and downloaded to the mobile phone, more convenient to edit on a mobile phone and share with your friends.(SC001WiFi camera supports Android and iPhone.)
External power supply voltage and current (DC5V 1A)
Feature
- Universal Spotting scope WIFI Camera
- The device generates its own Wi-Fi Hotspot
- Mobile phone App, the app is a full-featured software application available for free

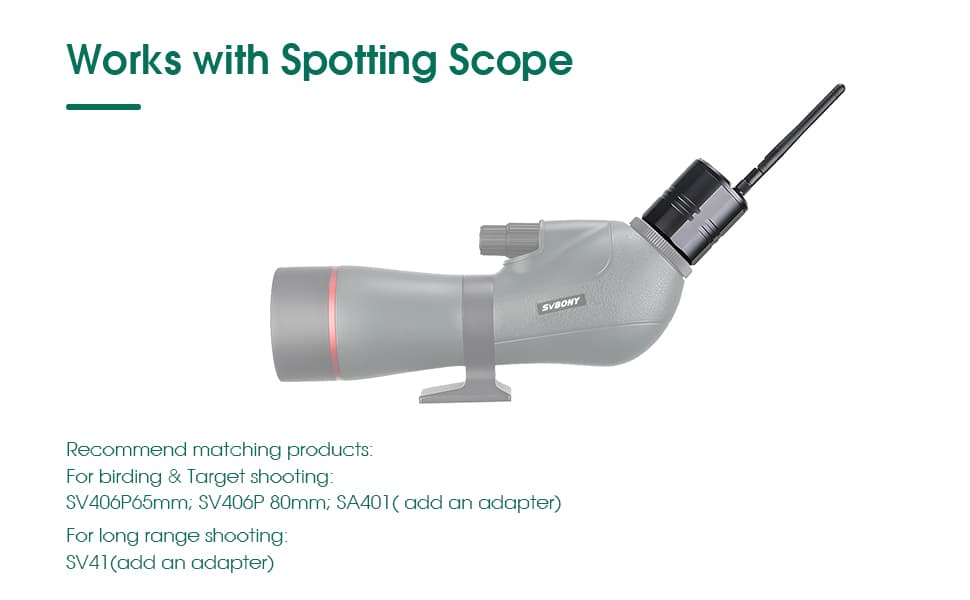

- Universally Mounts directly to spotting scopes with 1.25-inch diameter eyepiece
- Rechargeable LiPo Battery (estimated 1500mAh for 3-4 hour battery life)
- Compatible with current Svbony Camera App
- Capture pictures/videos directly through phone APP, then download and share to social media asap.
- Certificates include: FCC, MIC and CE certification.
UVC Mode Use
1.Take out the device, connect the external antenna, remove the lens cap, install the TF card, and connect your spotting scope or other external devices;
2.Use the built-in data cable, connect the Type-C port to the device, and connect the USB port to the PC;
3.Open the UVC mode software on the PC (Amcap software can be used), select UVC CAMERA, and enter the image interface.
Note: In the process of using WIFI mode, after switching to UVC mode, the device will automatically default to UVC mode. If you want to return to WIFI mode, you need to unplug the data cable connection and then reconnect the device to return to WIFI mode.

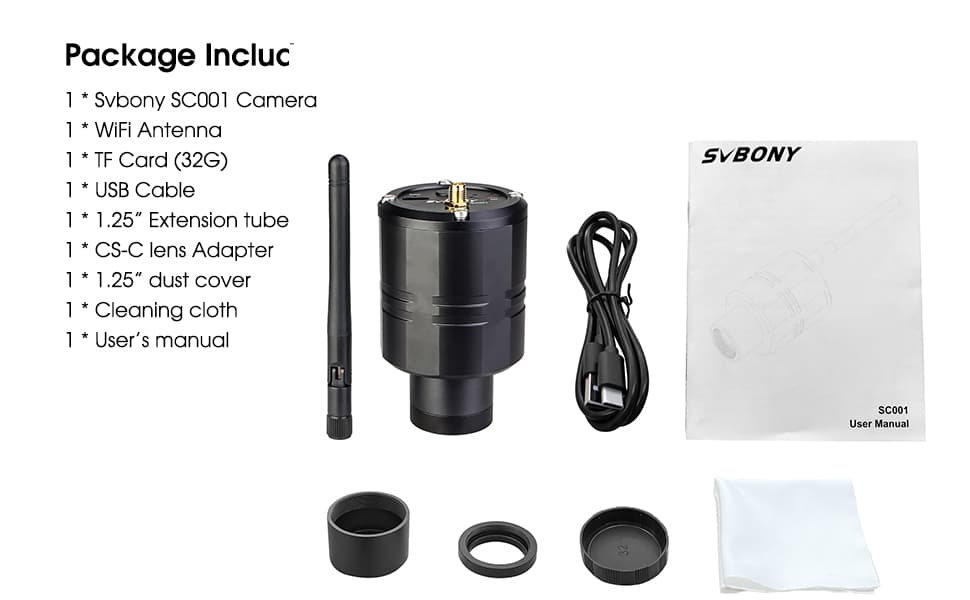

Package includes
- 1 * Svbony SC001Camera
- 1 * WiFi Antenna
- 1 * TF Card (32G)
- 1 * USB Cable
- 1* 1.25” Extension tube
- 1* CS-C lens Adapter
- 1* 1.25” dust cover
- 1* Cleaning cloth
- 1* User’s manual
