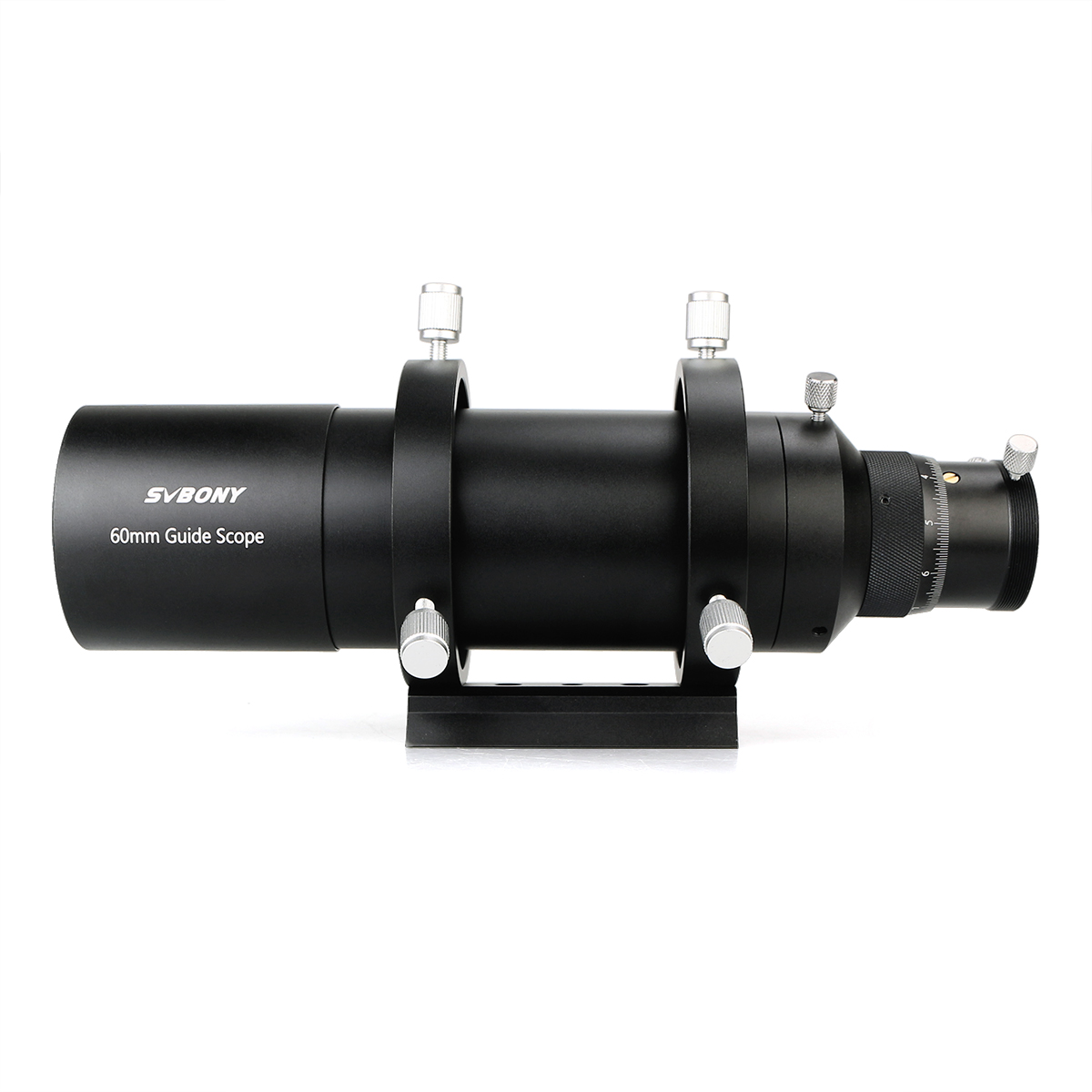

- Versatile 60mm aperture Guide Scope with a built-in helical focuser for precise focusing of potential guide stars; will help guide you to capturing higher quality astrophotos;an ideal addition to any astrophotographers collection of gear;

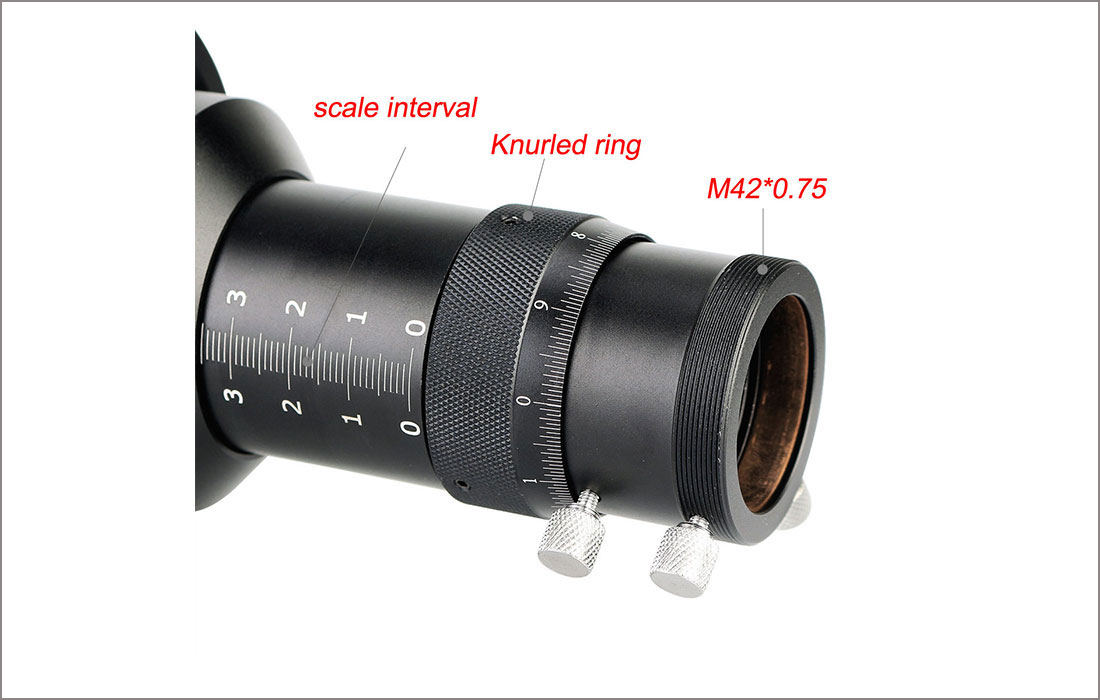

- The helical focuser simply moves the attached device inwards or outwards while maintaining its orientation;this convenient feature means your field of potential guide stars will not rotate as focus is adjusted, further increasing ease of use;
- For those nights when you don't plan to capture astrophotos exposures, this versatile Guide Scope can double as a straight-through finder scope with an optional 1.25" eyepiece installed;
- The focuser boasts 8 mm of precise helical focus travel;plus telescoping drawtube housing provides up to 35mm of additional back-travel if needed for your particular autoguider device; No extension tubes necessary; a compression ring fitting keeps any inserted autoguider cameras or eyepieces free of pesky scratches;
- The Multi-Use Guide Scope with Helical Focuser also features male T-threads on the focuser collar for secure threaded attachment of guide cameras equipped with female T-threads.
Top Christmas Gift Ideas: Perfect Presents for Everyone!
In Stock
A Good Guide Scope
I use this as my guide scope along with a camera. The focal length is more than your Verage 40mm scope and this helps in tracking. The price is not so high as to discourage the purchase. I find it was a good investment with my other SVbony accessories.
Great
The quality of the guide scope is excellent for the price. Sold identically on other sites at twice the price here.
Precise focusing is achieved using the soft focusing wheel. No trouble adjusting the alignment with a telescope, precise guidance
Nothing to complain about and therefore unbeatable value for money.
Nice little finder scope
Fit’s well on my 80mm SVBONG refractor. Focusing with a spin ring takes a little effort, but it gives a nice clear focus. The Red lock down ring holes the focus very well.
Does the job very well
I've been using the SV106 for about 6 months now. Couldn't be happier. The scope is mounted on a Meade LX200 ACF SCT 10" aperture scope. An ASI120mm mini guide camera is coupled to the SV106. My guiding is typically 0.5" to 1.0" with a 35lb package on a SkyWatcher EQ6-Ri Pro. Cant ask for better than that.
Excellent guide scope
I'm using this guide scope with az ASI120mm-mini paired with an SV503 80ED telescope. It has excellent materials and image quality, easy to focus and easy to use.
It has a focus fixing screw and I never had to refocus since my first use.
what weight ?
Hi, may i know what is its weight, completely?
thanks
a guide scope with the heart of a larger telescope
I bought the SV106 guide scope to match up with my SV305PRO guide cam ... they work well together and what more you cam image just with the sv106 ... I will be woking on andromeda galaxy and pleiades star cluster as my skywatcher telescopes don't get the wider field of view in.
The 2 part helical focuser is smooth and the 35mm slider will accommodate a camera or eyepiece.
The helical ( twist ) section adds another 10mm of fine tuning travel. Fantastic optics and a beautiful matt black finish give this scope a finishing touch, mounted in the well made supplied guide rings with nylon ended adjustment screws give the sv106 a doled mounted feel once its connected to the supplied dovetail mount... one very happy stargazer.... thanks for reading my review ( scivideos)
| Model | F9177B |
| Aperture | 60mm / 2.36in |
| Focal Length | 240mm /9.45in |
| Focal Ratio | F4 |
| Coating | Fully multi-coated |
| Best for imaging | Deep sky |
| Focuser | Helical Focuser with 8 mm Travel |
| Connection to eyepiece | 1.25inch |
| Tube diameter | 66mm |
| Dewcap diameter | 69mm |
| Total Length | 270mm |
| Tube material | Aluminum Alloy |

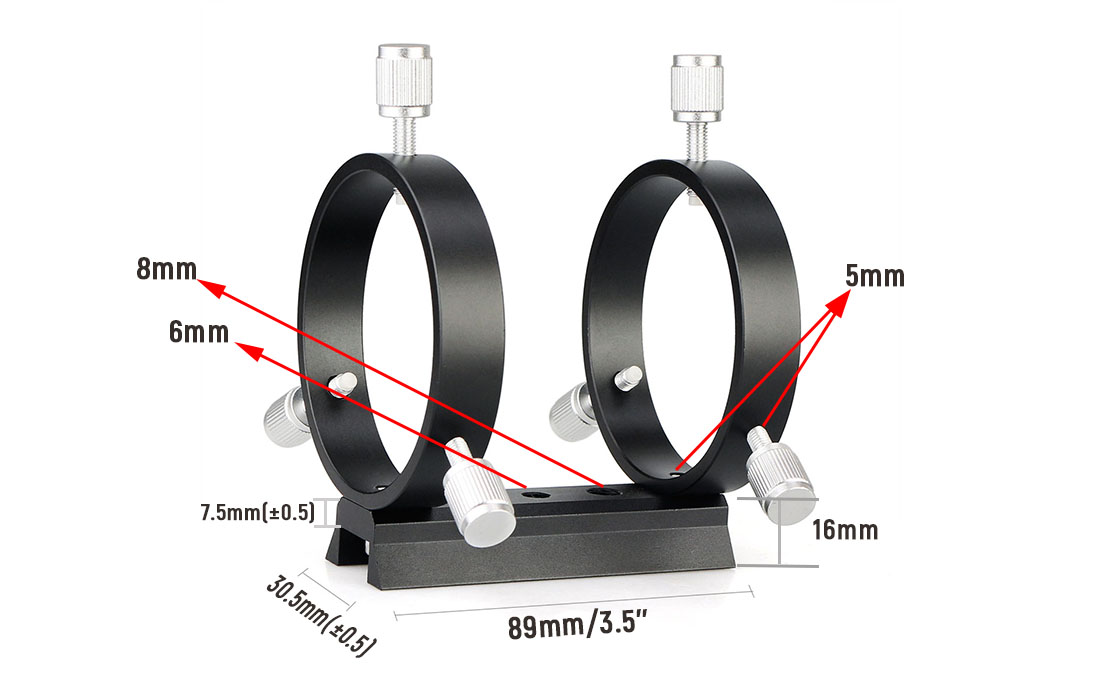

| Included accessories | Tube Rings and Dovetail Rail |
The Parameter Comparison of SV198、 SV106and SV165
| Model | SV198 | SV106 | SV165 |
| Type of Optics | Achromat Refractor | Achromat Refractor | achromatic optics |
| Lens Structure | 2-Elements/ 1Groups | ||
| Tube material | Aluminum | Aluminum Alloy | Aluminum |
| Aperture | 50mm / 1.97in | 60mm / 2.36in | 30mm/1.18in |
| Focal ratio | f/4.1 | f/4 | f/4 |
| Focal Length | 206.6mm / 8.13in | 240mm /9.45in | 120mm |
| Coating | Fully multi-coated | Fully multi-coated | Fully multi-coated |
| Blackened Lens Edges | Yes | Yes | |
| Focuser | Dual Helical + Telescopic Design | Helical Focuser with 8 mm Travel | Helical Focuser |
| Connection thread to Eyepiece | 1.25" and T2 | 1.25inch | 1.25in and M42*0.75 |
| Base installation type | Vixen standard interface | Versatile | Vixen standard interface |
| Tube diameter | 55.5mm | 66mm | 45mm |
| Dew cap diameter | 58mm | 69mm | 48mm |
| Total Length | 223mm | 270mm | 112mm |
| Net Weight | 770g | 790g | 342g |
| Back Focal Length | - | 220mm | - |
- 1. Svbony SV106 Guide Scope is designed for use with the guider CCD astronomy camera or eyepiece. Helical focuser collar will not rotate attached autoguider devices during focus adjustments. This SV106 is used as a deluxe straight-through finder scope with optional 1.25" eyepieces installed (eyepieces sold separately)
- 2. Svbony SV106 60mm finder achromatic refractor with helical focuser
- 3. SV106 has FMC (fully- multi-coated) green coating, which can enhance the light transmittance and accurately track the celestial body being photographed

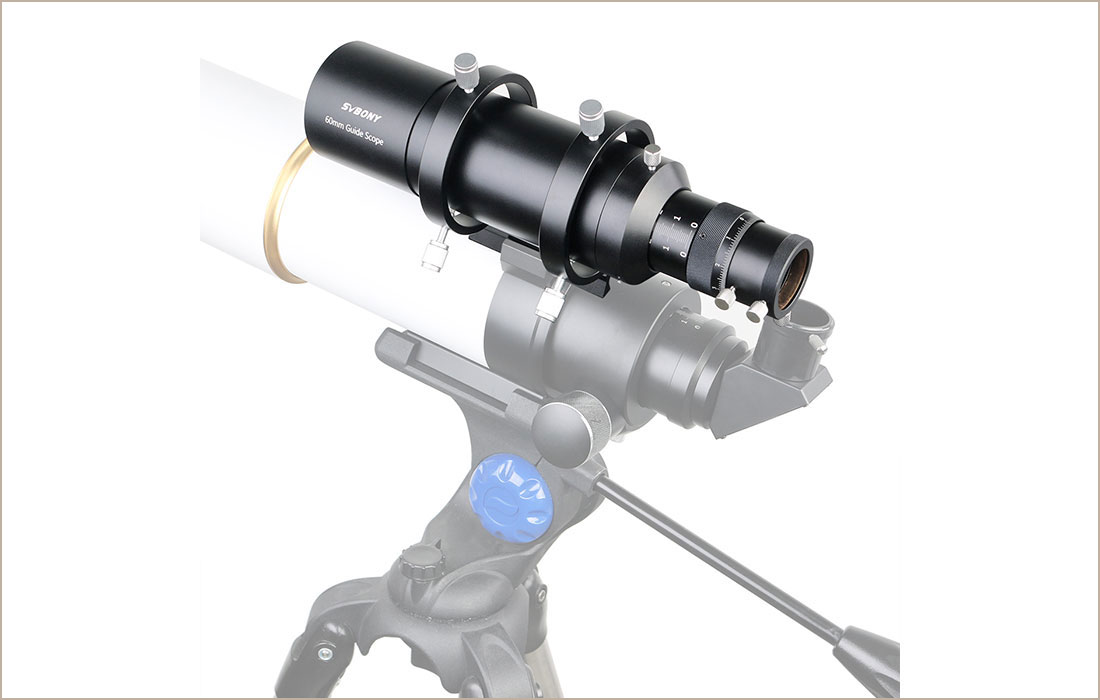

- 4. How to mount the SV106 to your OTA?
