- SVBONY 1.25-inch Prosser eyepiece is suitable for observing weak-light and dim celestial bodies such as nebulae, star clusters, comets, etc. The field of view is clear and bright, and observation is comfortable;
- Adopting true FMC full-bandwidth multi-layer coating, ensuring that each glass surface has multiple layers of coating for better image quality and the edge of the lens is matt blackened to prevent stray light interference for bright and clear views;
- M28.5*0.6 standard thread size, supports standard 1.25-inch filter adapter ring installation, with wide applicability. Standard Prosser eyepiece structure: 2 groups of 4 optical structures to ensure observation effect;
- 19mm shooting distance, convenient for long-term observation without fatigue. The inner wall of the foot cover has two matte threads, and the outer wall is chrome-plated, with a bright and smooth appearance;
- All-metal mirror structure, delicate texture, fine workmanship. Humanized environmentally friendly rubber anti-slip ring design to prevent accidental crushing.
In Stock
Superb!
I bought a pair of these eyepieces to use with my 100mm objective binoculars. I was skeptical that they would focus properly, but that was not a problem! The 32mm focal length of the eyepieces and the 525mm objective focal length provided a 16X power and a terrific apparent wide field of view due to the plossl design of the eyepieces. The only chromatic aberrations are those of the objective lenses. The eyepieces that came with the binoculars provide 20X and 40X magnification which yield a 5mm and 2.5mm exit aperture (respectively). These new plossl eyepieces give me a very comfortable 6.6mm exit aperture with sufficient eye relief to permit using my eyeglasses.
it's in my scope all the time.
I start out with this eyepiece on a lot of my scopes. for the cost it's got a good field of view and the stars are good most of it.
Better than expected
I use this for my wide field views. It is a quality eyepiece all round, and along with my 15mm 68 degree, my most-used eyepiece. I believe the AFoV is between 50 and 54 degrees, I could be wrong, but it doesn't look like a 46 degree eyepiece to me. The field stop diameter agrees. Being a Plossl, it is also quite light. A really great eyepiece I can't imagine not having.
Specifications

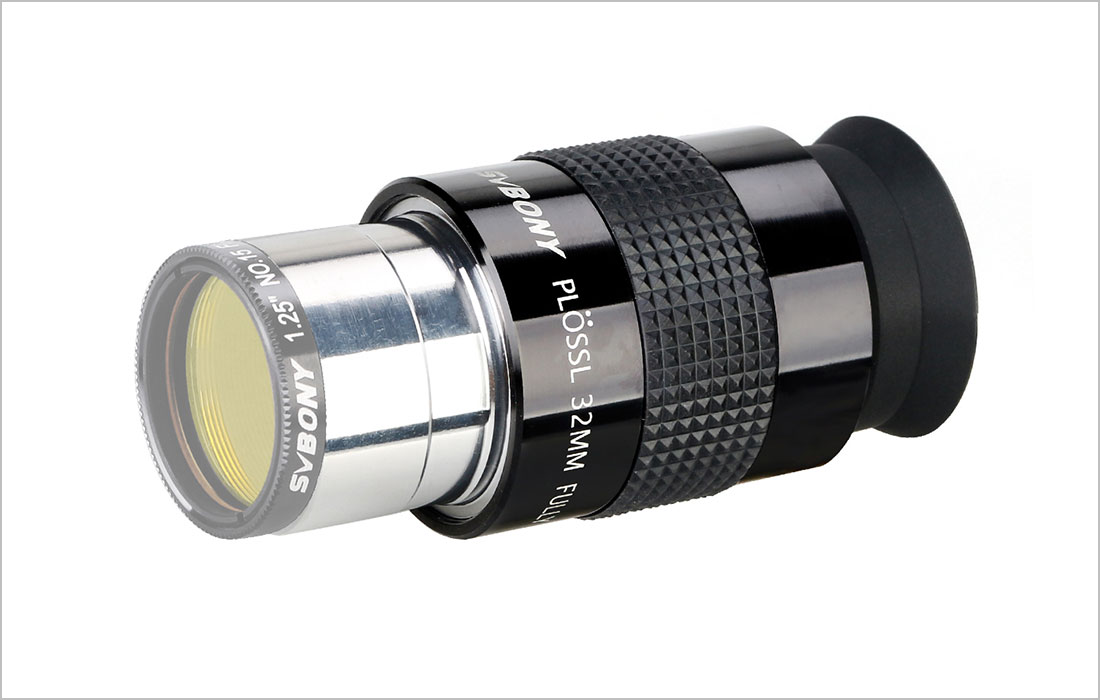

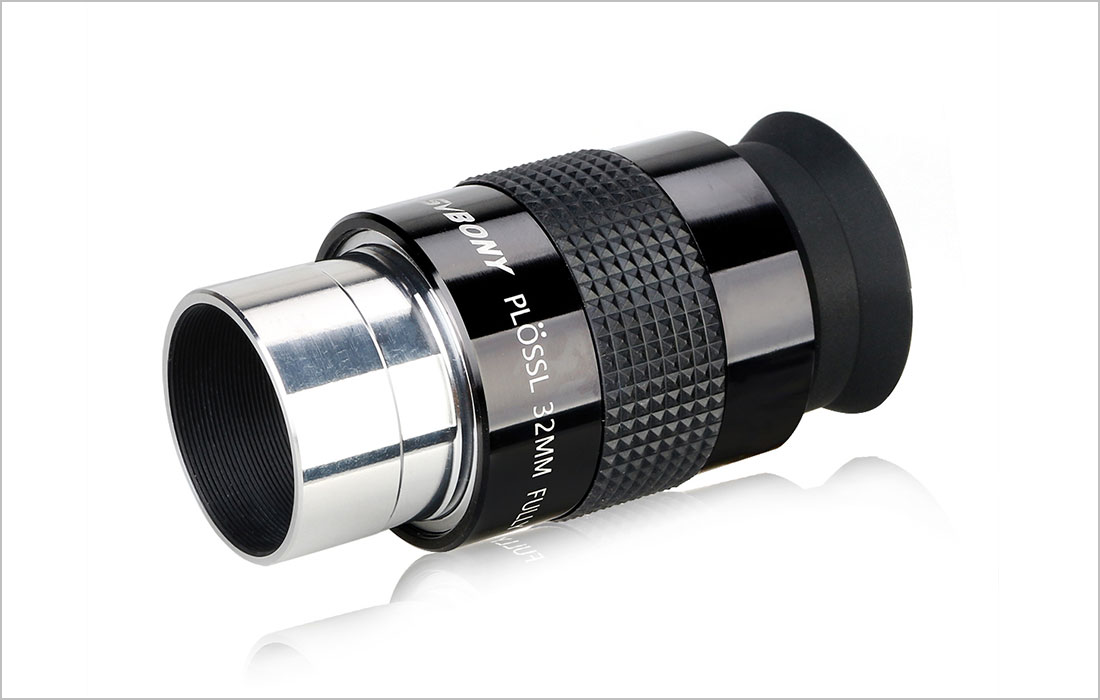

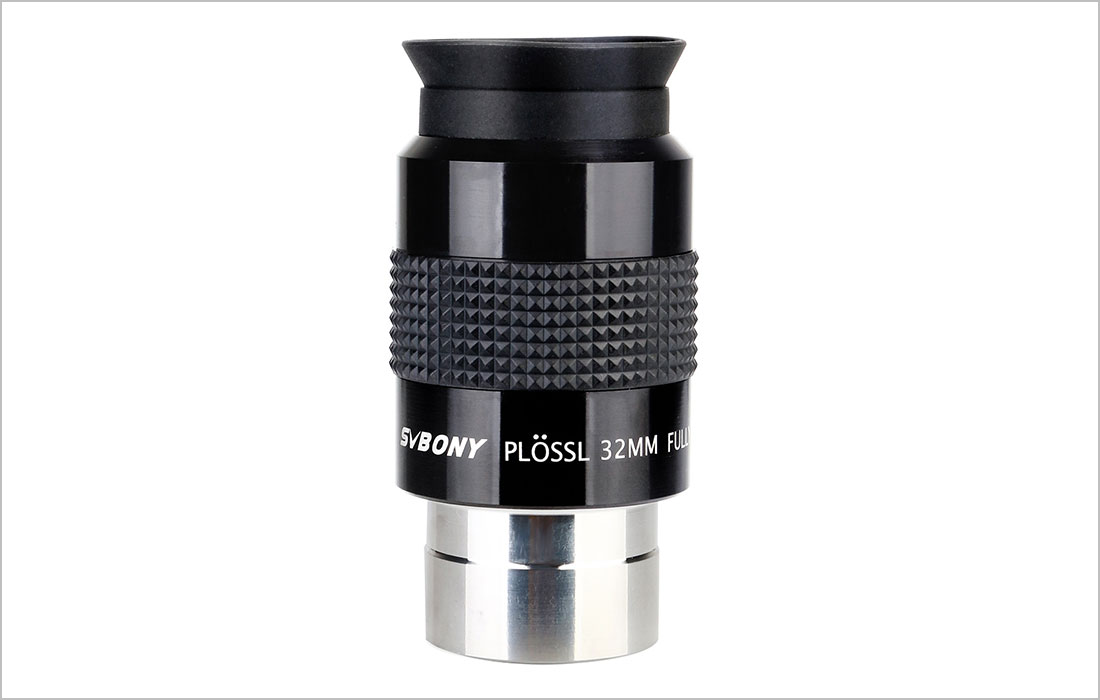

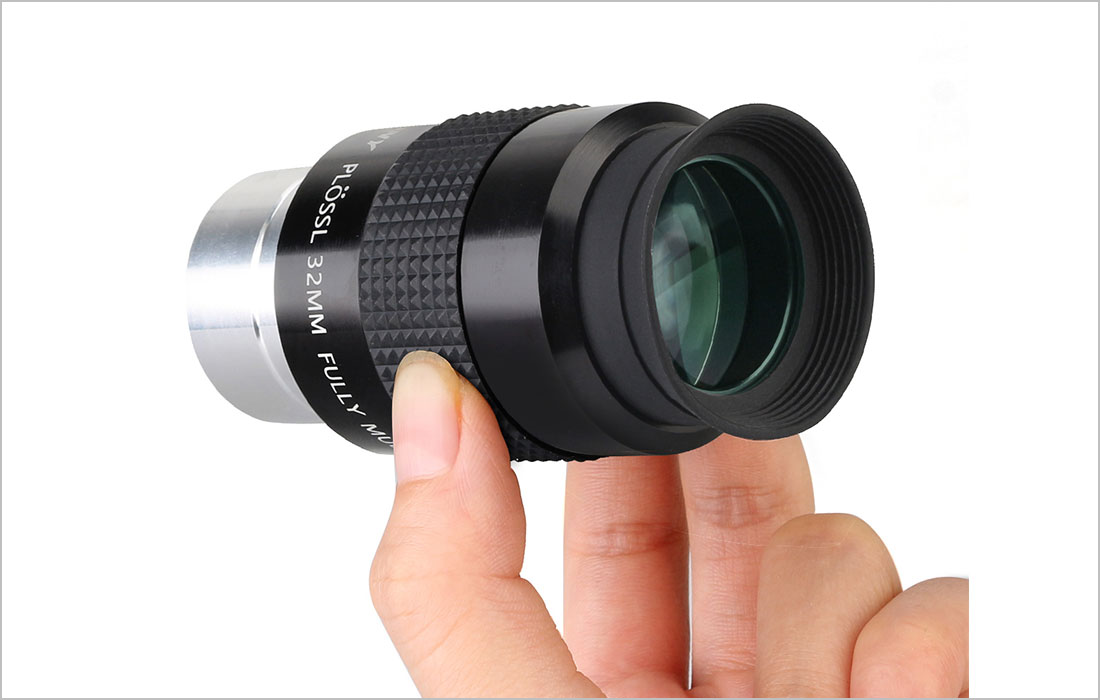

| Model | Svbony SV131 |
| Eyepiece Type | Plossl Eyepiece |
| Focal length | 32mm |
| Field of View | 48 Degree |
| Exit Pupil | 23mm |
| Eye Relief | 19mm |
| Field Stop Diameter | 25mm |
| Lens group | 2 Group / 4PCS |
| Lens coating | FMC |
| Side of the lenscoate | Matt Blackened |
| Meterial | Metal & Optic Glass |
| Thread size | M28.5*0.6 for 1.25 inch filters |
| Eyecup type | Rubber |
| Non-slip Cover | Yes |
| Net Weight | 116.5 g/4.11oz |
| Dimension | Ø61X104mm |
- Features:
1. Fixed folding rubber eyecup allows easy use with or without eyewear
2. Svbony eyepiece body is made of aluminum. A two-step anodizing process results in a beautiful matte finish that resists reflections and glare
3. Sturdy anodized aluminum barrels are threaded for any Svbony 1.25" filters.
4. The edges of the optics are blackened for increased contrast, and prevent internal reflections
5. Anti-reflection fully multi-coated optics ensure bright and clear high-images at any magnification, with true color rendition
