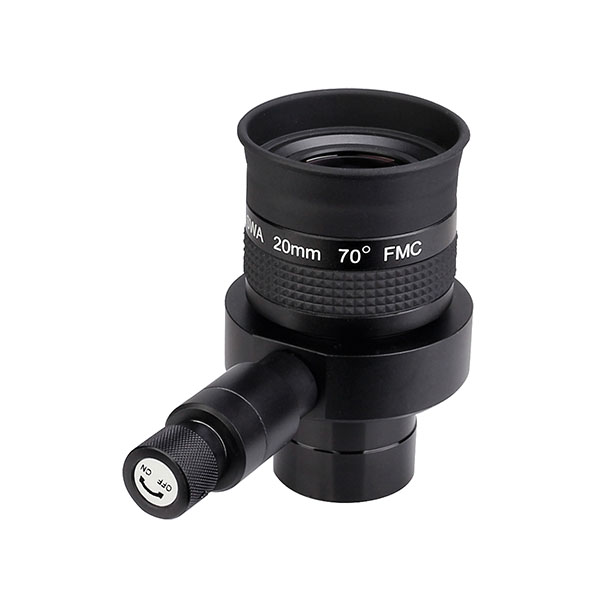

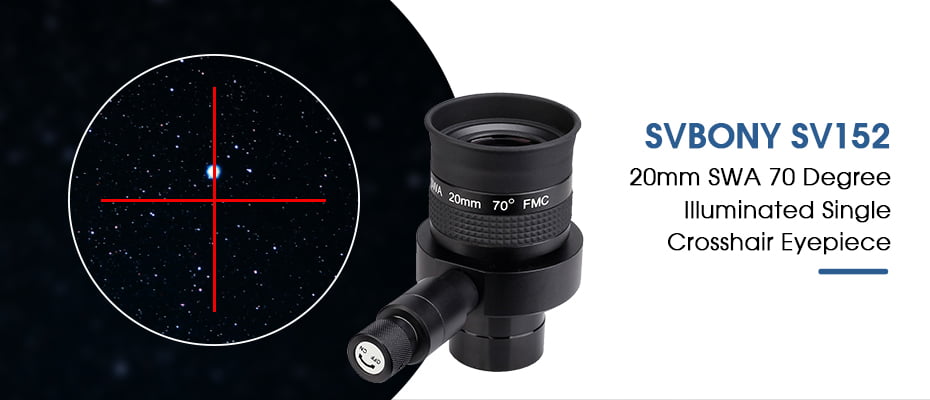

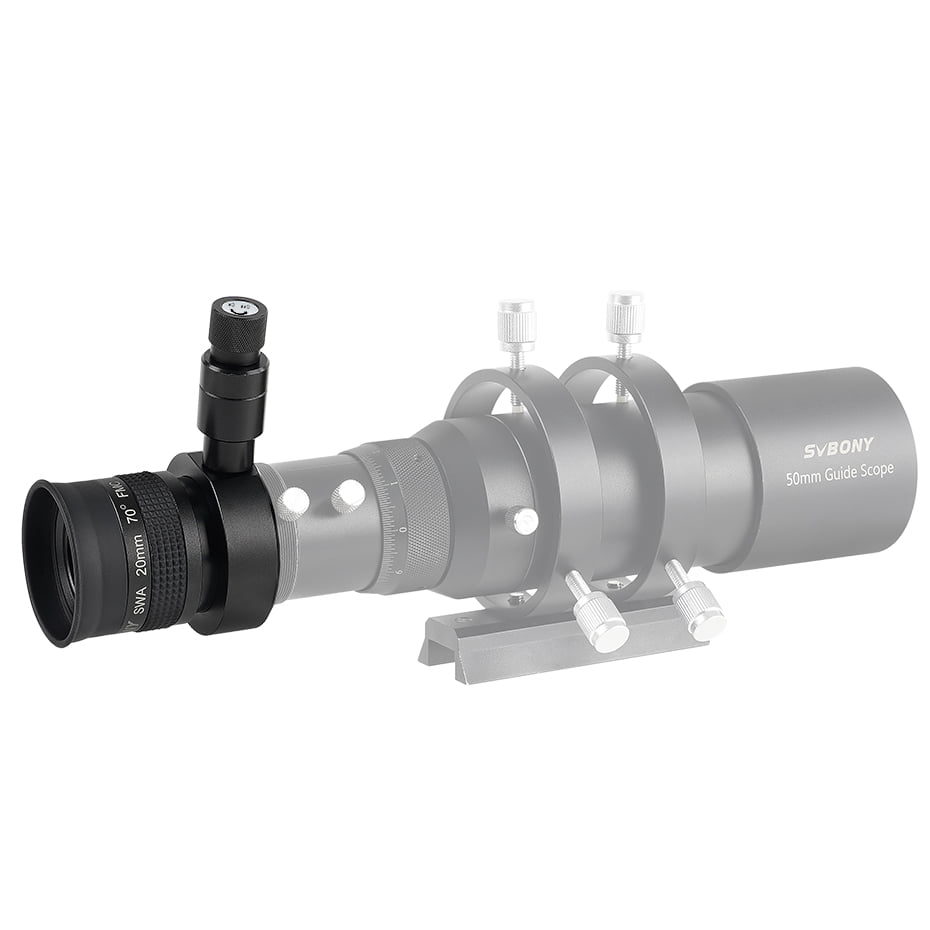

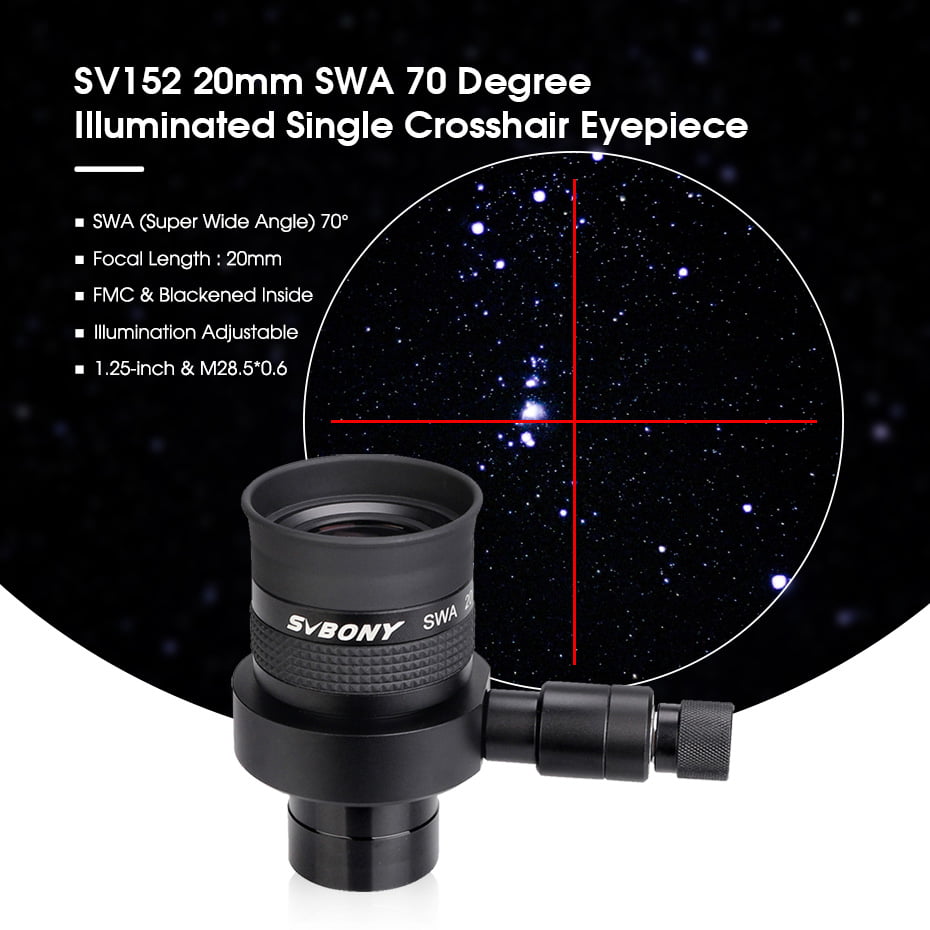

- The SV152 crosshair eyepiece is ideal for guiding astrophotos when used in off-axis guiders or guide scopes. The illuminated crosshairs eyepiece is precisely located in the center of the eyepiece field of view, providing accurate results that allow you to easily track the guide;

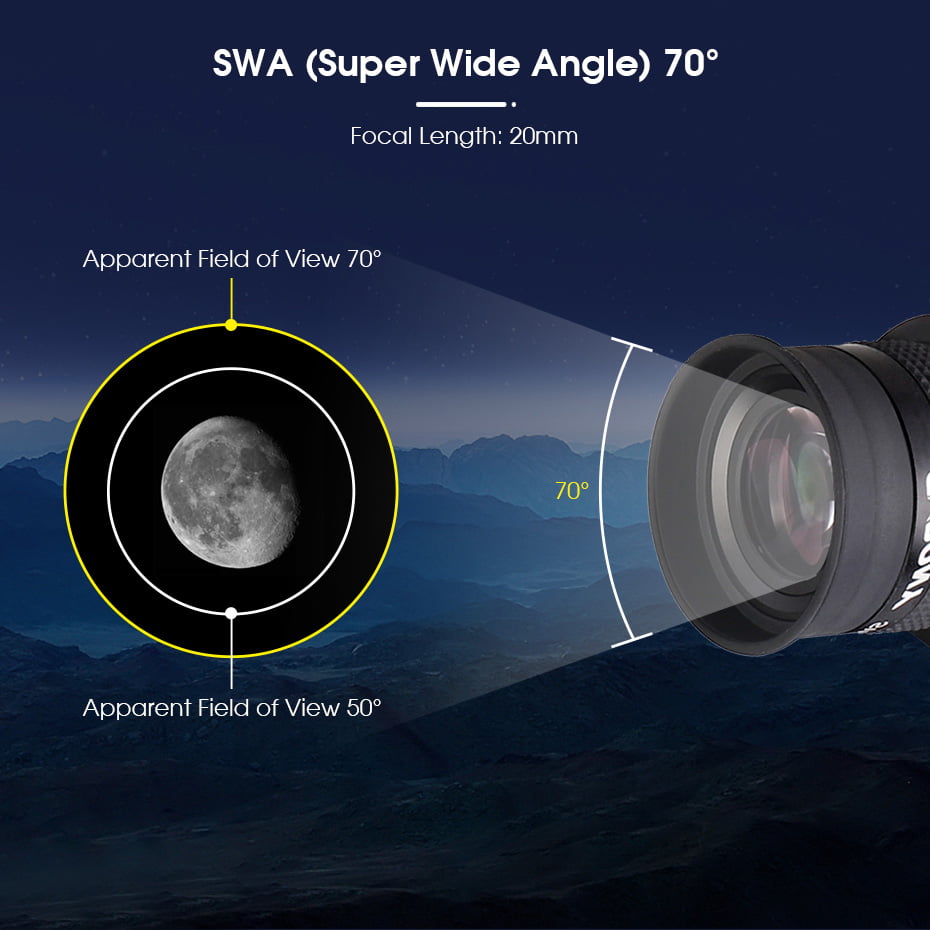

- The SV152 cross-eyepiece has a wide 70-degree field of view, making it a breeze to acquire and focus on target objects;

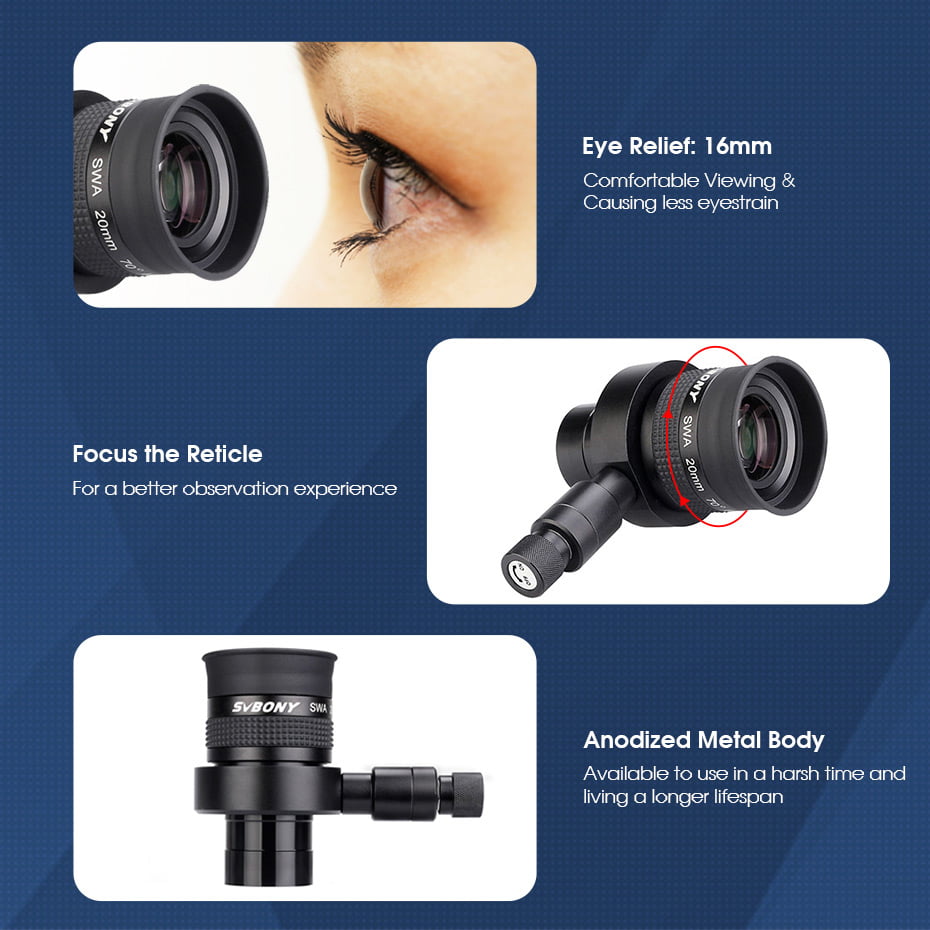

- Comfortable 16mm eye relief means you don't have to worry about your target disappearing quickly;

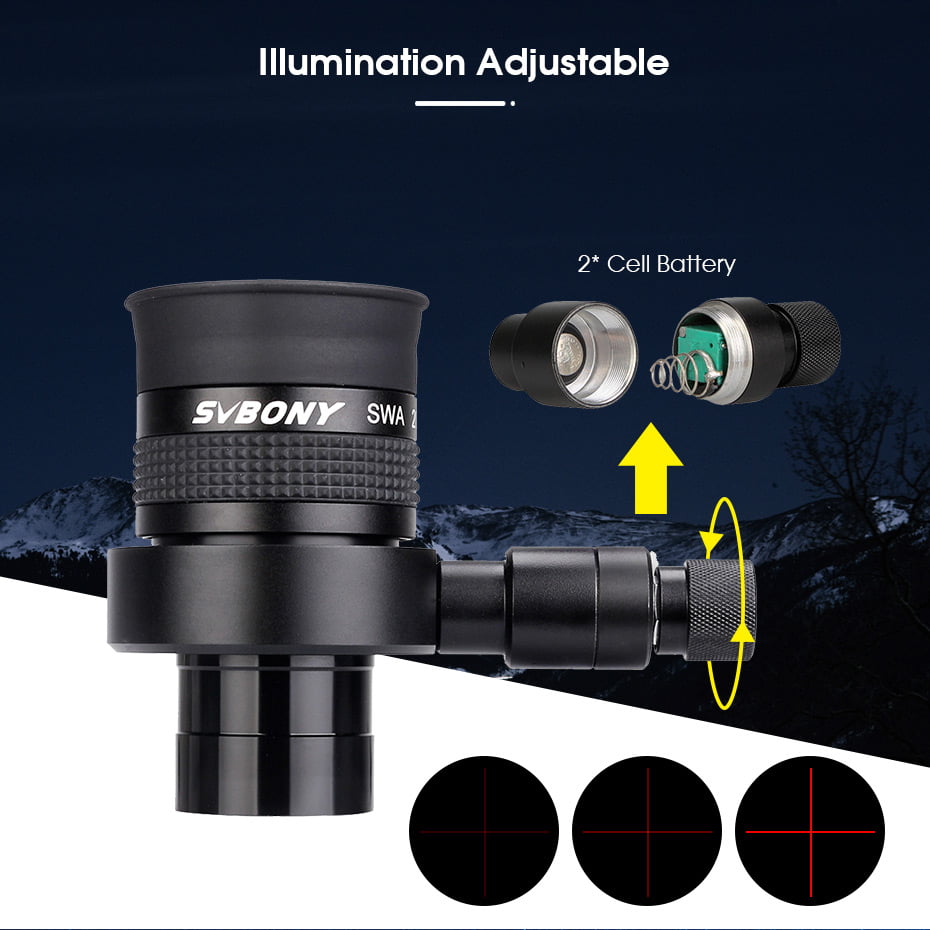

- This SV152 illuminated single reticle eyepiece has adjustable brightness. Relatively low energy consumption at lower brightness can extend the life of the illuminator;

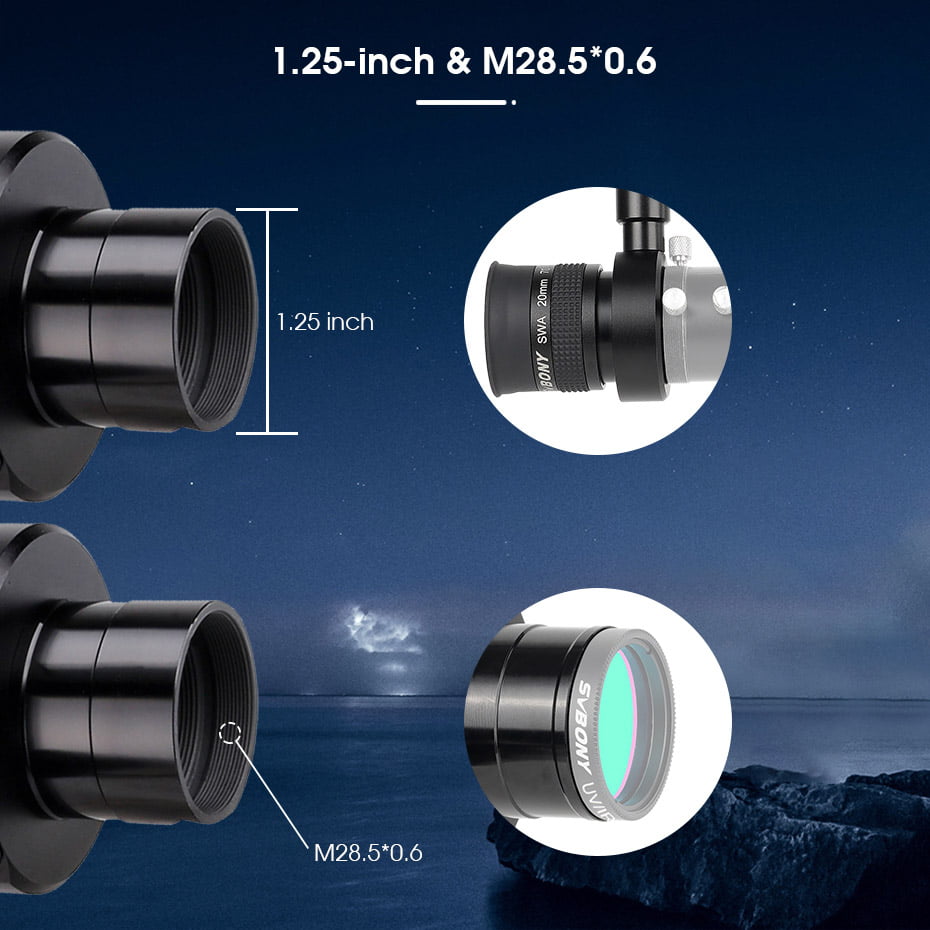

- The standard 1.25" filter thread is compatible with all 1.25" standard equipment. The thread matte inside the eyepiece can well suppress the reflection of internal stray light, giving you a bright high-contrast view.
In Stock
Better than the 'Super Plossils' that came with the telescope.
Surprising that an eyepiece that is supposedly just for alignment turned out to be better than the ones that came with my 10" Newtonian. Does the job and I use it for other things as well.
Have to give a should out to SvBony customer support. I dropped the illimitation tube and then stepped on it. When I contacted the company to buy a replacement, they replaced it for free and only had me pay the shipping costs. And they knew that the reason it broke was because I stepped on it and I offered to pay for the replacement.
Five stars for this level of support.
Works Well and Solidly Built
This eyepiece was just what I needed in order to more accurately align my telescope to the stars when starting an observing session. This is well designed for this purpose, and it gave me excellent results in my first use for this. The illuminated crosshairs nearly eliminate parallax and other visual accuracy issues which occur when centering a star in an eyepiece during alignment.
The wide field of view is helpful when initially looking for the target star. The optics are bright and clear. The crosshair illumination is variable over a very wide range, and gets quite dim at the lower end, so that dimmer stars may be seen. They are also bright enough to use in daylight at the upper end of the range. The crosshairs are narrow and well defined, which helps with precision.
Overall build quality is very good. I am very pleased with this purchase.
Excellent Reticule Eyepiece
This is one of the first eyepieces that I ever bought. Unlike many others, this one I continue to use routinely. It is an excellent value, giving wide field of views and sharp clear images. The adjustable reticule crosshairs are straight and as bright as you want to make them. I think this is an indispensable tool for any visual astronomer or planetary photographer. I highly recommend this high performance reticule eyepiece!
Specifications:
| Model | SV152 |
| Eyepiece port | 1.25" |
| Focal length | 20mm |
| Lens Coated | FMC |
| Reticle | Single Crosshair |
| Lens group | 4 Group / 5PCS |
| Eye Relief | 16mm |
| Field of view | 70-Degrees |
| Field Stop | 25mm |
| Thread | M28.5*0.6 |
| Material | Metal |
| Eyecup type | Rubber |
| Illuminator type | LED Brightness Adjustable |
| Power | 2PCS 1.5V |
| Net Weight | 221g/ 7.8oz |
| Dimension | 75*53*102mmmm |
Features:
Adjustable red LED light brightness control to illuminate crosshairs and preserve night vision
2. Single crosshair reticle for accurate centering and guiding of stars and astrophotography target objects

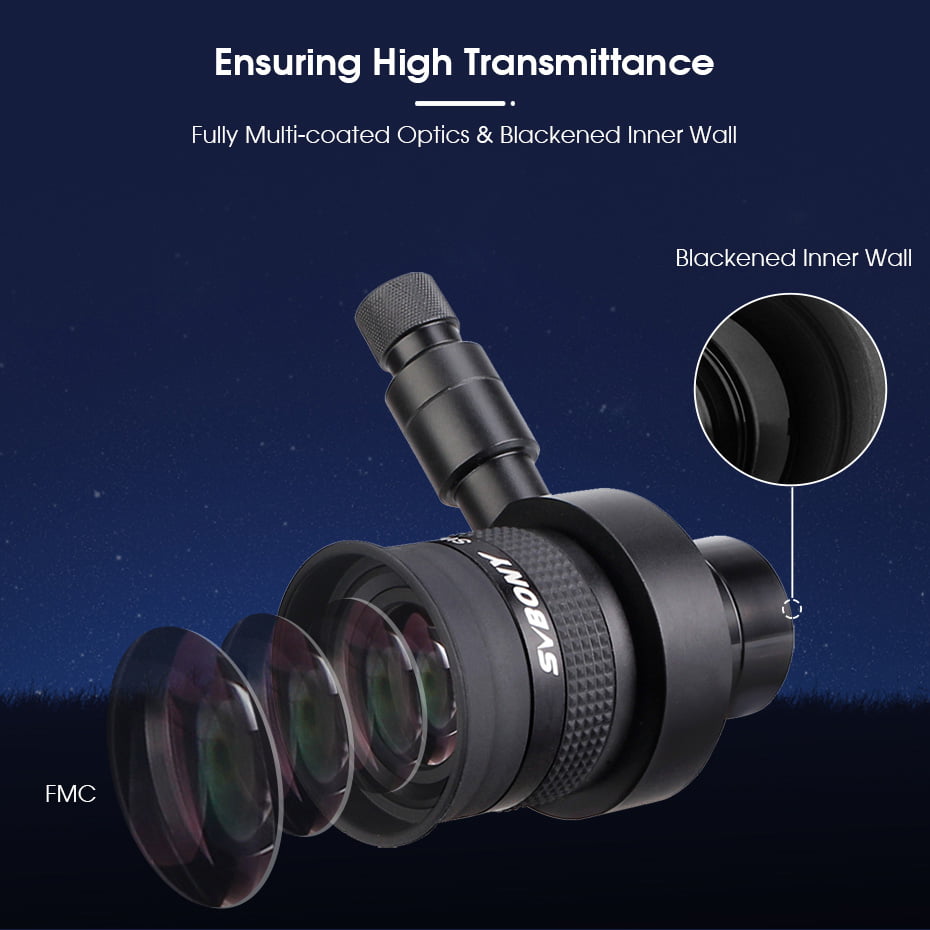

3. Fully coated optics for excellent light transmission on faint stars
4. The edges of the optics are blackened for increased contrast, and prevent internal reflections
5. Eyepiece body is made of aluminum. A two-step anodizing process results in a beautiful matte finish that resists reflections and glare
6. Filter thread of standard 1.25 inch can be compatible with 1.25'' focuser

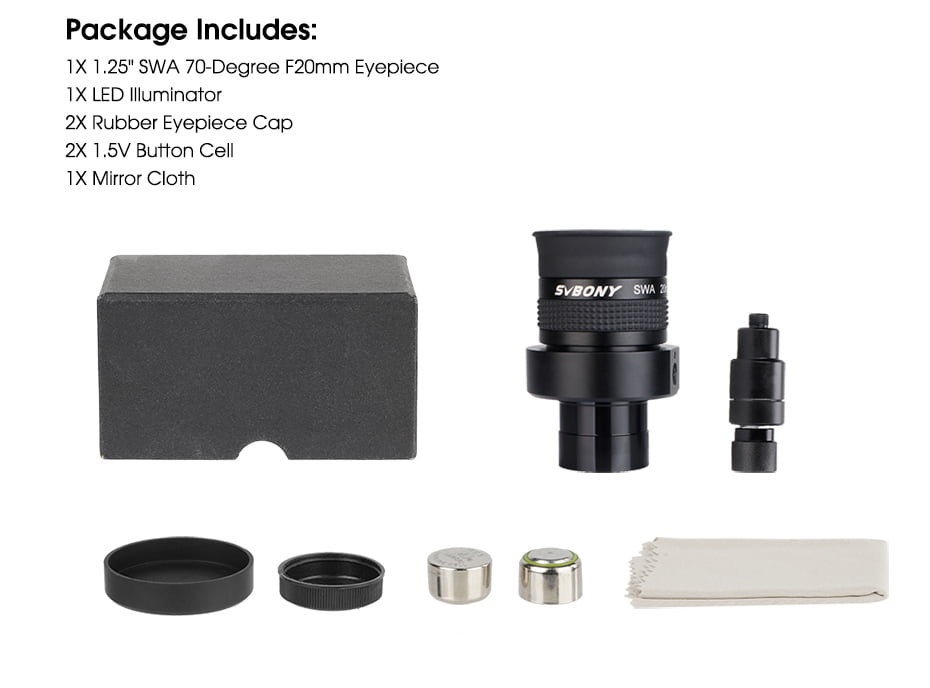

Package Includes:
1X 1.25"SWA 70-Degree F20mm Eyepiece
1X LED Illuminator
2X Rubber Eyepiece Cap
2X 1.5V Button Cell
1X Mirror Cloth
