- Suitable for OTA with focal length within 700mm; SV165 compact mini guide scope can be used with astronomical telescopes with focal length within 700mm;
- Clear and sharp vision; fully multi-coated and achromatic optical glass brings you clearer and sharper vision in astronomical observation and astrophotography;
- Compatible with guide cameras; the 1.25-inch and M42 threaded interface is compatible with SV305 Pro and Orion ZWO QHY and so on auto guiding cameras; guidescope with two T2 extension tubes can assist focusing;
- Front focuser with scale; it is convenient to mark the focus position to improve the efficiency of Repeating focusing; Locking ring can ensure that the focus position does not change during use;
- Six-point guide ring; the angle-adjustable six-point fixation method can adjust the coaxiality of the guide scope and the main telescope according to the needs.
In Stock
Très bonne lunette de guidage
Possédant ce modèle depuis un petit moment utilisé comme lunette de guidage avec caméra ZWO ASI 224MC franchement très bien bonne image juste petit conseil supplémentaire utilisé le focusseur manuel qui permet une mise au point parfaite.
Great Guiidinding scope for Deep Sky Imaging Astronomy/Astrophotography Purposes
I have used this as a guiding scope for my telescope for Deep Sky Objects Imaging and it has worked well so far for multiple objects. It is also relatively light and not too hard to install as well. The field of view is great for tracking the mentioned Deep Sky Objects. It also seems well built and I expect it to last for a long time as well.
A telescope finder is essential, but it doesn’t have to be massive
This finder is meant for small telescopes used for astronomy photography. It’s compact enough that you don’t notice the weight, but provides plenty of field of view for find or tracking celestial objects. Can be used visually with an eyepiece or diagonal and eyepiece for viewing objects terrestrial or celestial objects. It is well built and made with quality metal parts that Will not break like plastic ones. It’s also not expensive for the use and build quality given the price. 👏
| Brand | SVBONY |
| Model | SV165 |
| Aperture | 40 mm / 1.57 inch |
| Focal Length | 160 mm / 6.30 inch |
| Focal Ratio | f/4 |
| Lens | 2-Element Lens w/ Fully multi-coating |
| Connection | 1.25" & T2 |
| Focuser Type | Front Part Focuser |
| Back Focus | 12.5mm |
| Tube Travel | 15mm |
| Surface technology | Sandblasting oxidation |
| Material | Aluminum |
| Net Weight | 449.8g / 15.87oz |

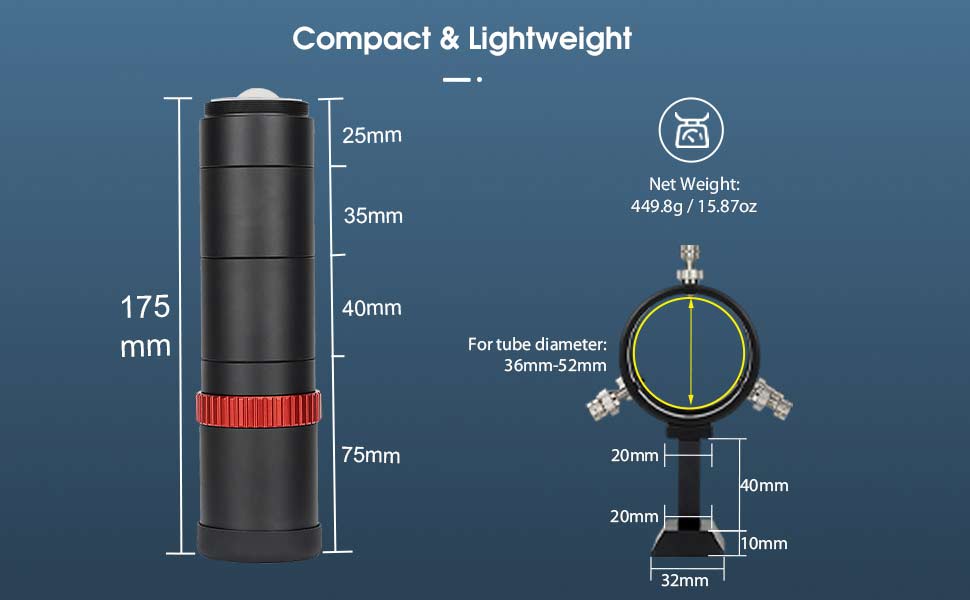

| Body Size | 179x114x59mm / 7.05x4.49x2.32 inch |
- Suitable for OTA with focal length within 700mm; SV165 compact mini guide scope can be used with astronomical telescopes with focal length within 700mm
- Clear and sharp vision; fully multi-coated and achromatic optical glass brings you clearer and sharper vision in astronomical observation and astrophotography
- Compatible with guide cameras; the 1.25-inch and M42 threaded interface is compatible with SV305 Pro and Orion ZWO QHY and so on auto guiding cameras; guidescope with two T2 extension tubes can assist focusing
- Front focuser with scale; it is convenient to mark the focus position to improve the efficiency of Repeating focusing; Locking ring can ensure that the focus position does not change during use
- Six-point guide ring; the angle-adjustable six-point fixation method can adjust the coaxiality of the guide scope and the main telescope according to the needs
