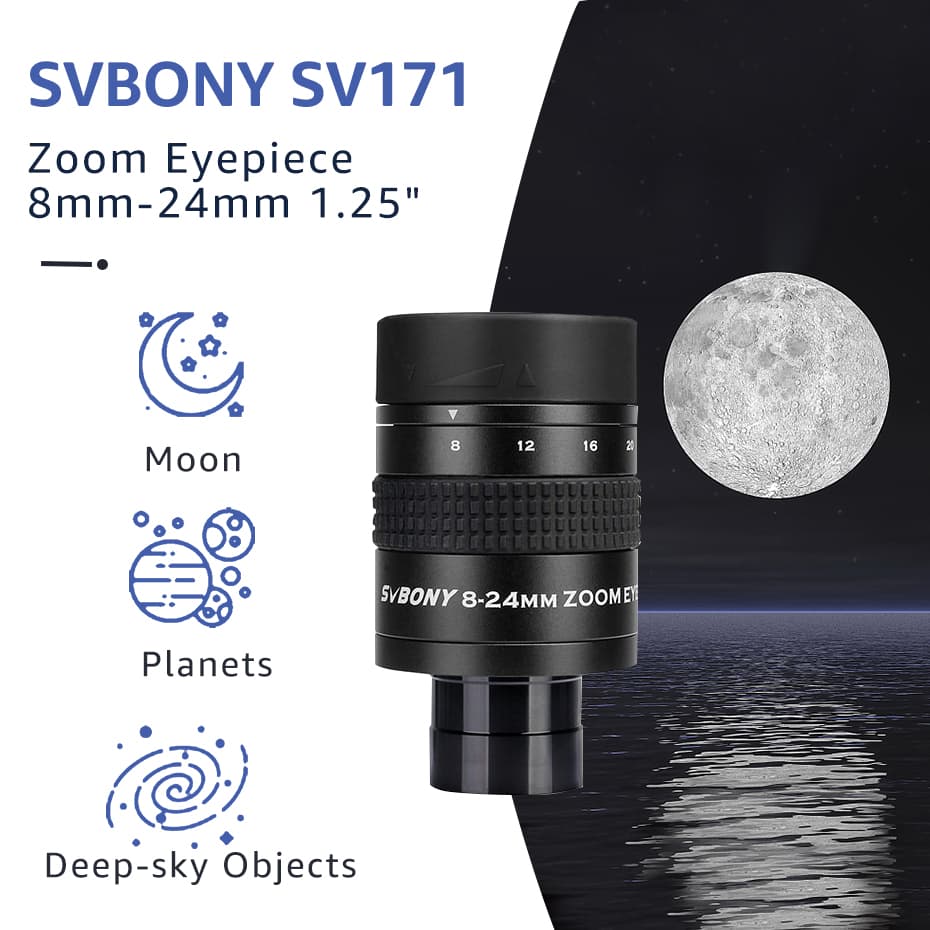

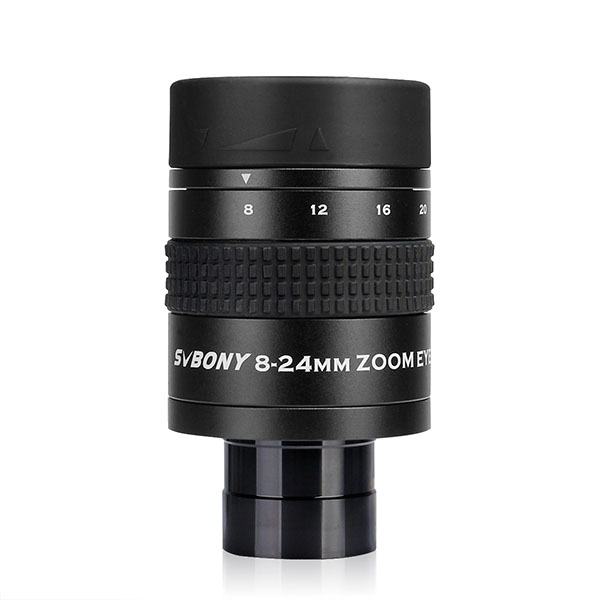

Svbony SV171 Zoom Eyepiece 1.25'' 8mm-24mm for Telescope

SKU: W9131A-
US$ 79.99
  • SV171 Super-wide Angle 1.25" 8mm-24mm zoom eyepiece;SV171 zoom eyepiece allows you to change magnification power without swapping out eyepieces

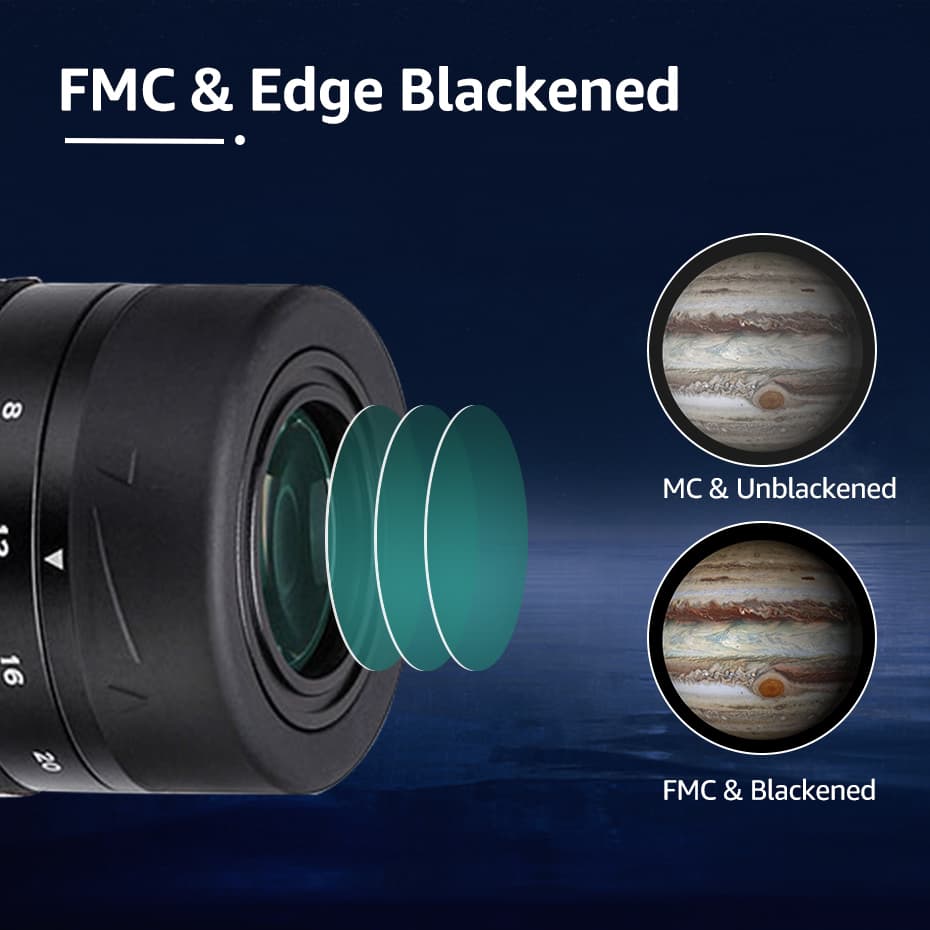

  • FMC glass lens; Fully multi-coated glasses for excellent image contrast and light transmission; Sharp optimal performance with low chromatic aberration

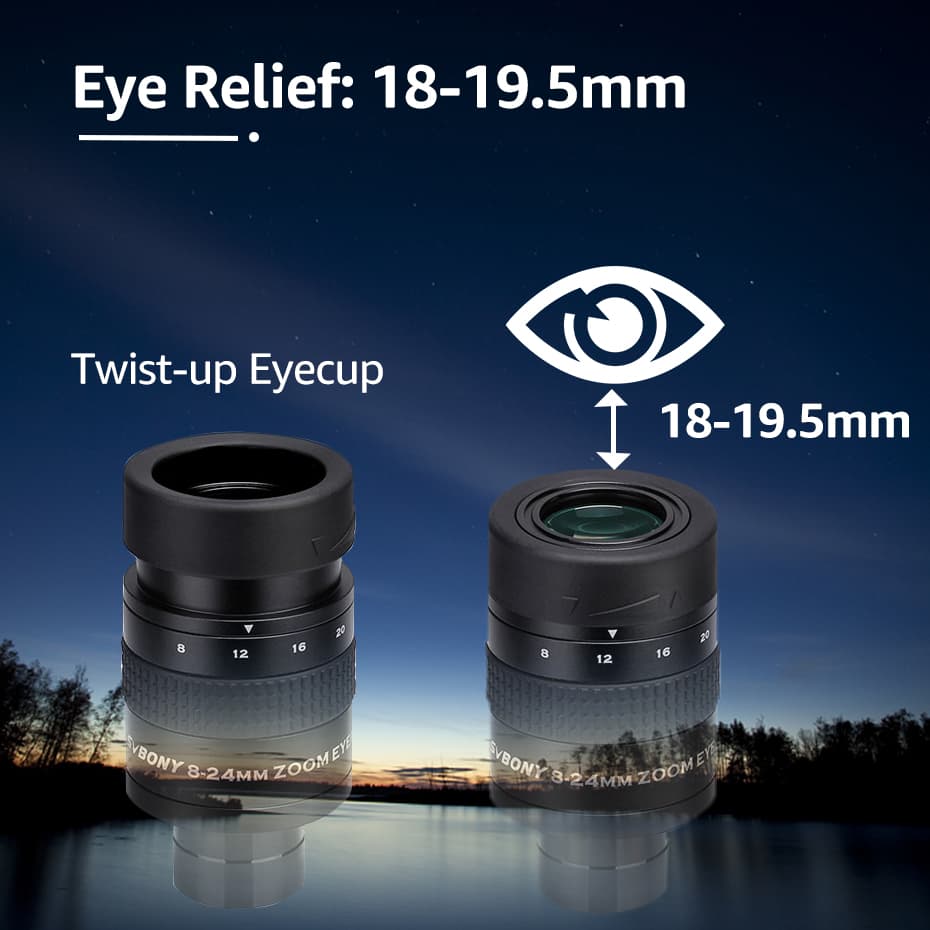

  • Comfortable long eye relief design; Exceptionally long 18mm-19.5mm eye relief range allows eyeglass wearers to enjoy the entire field of view without needing to remove their glasses

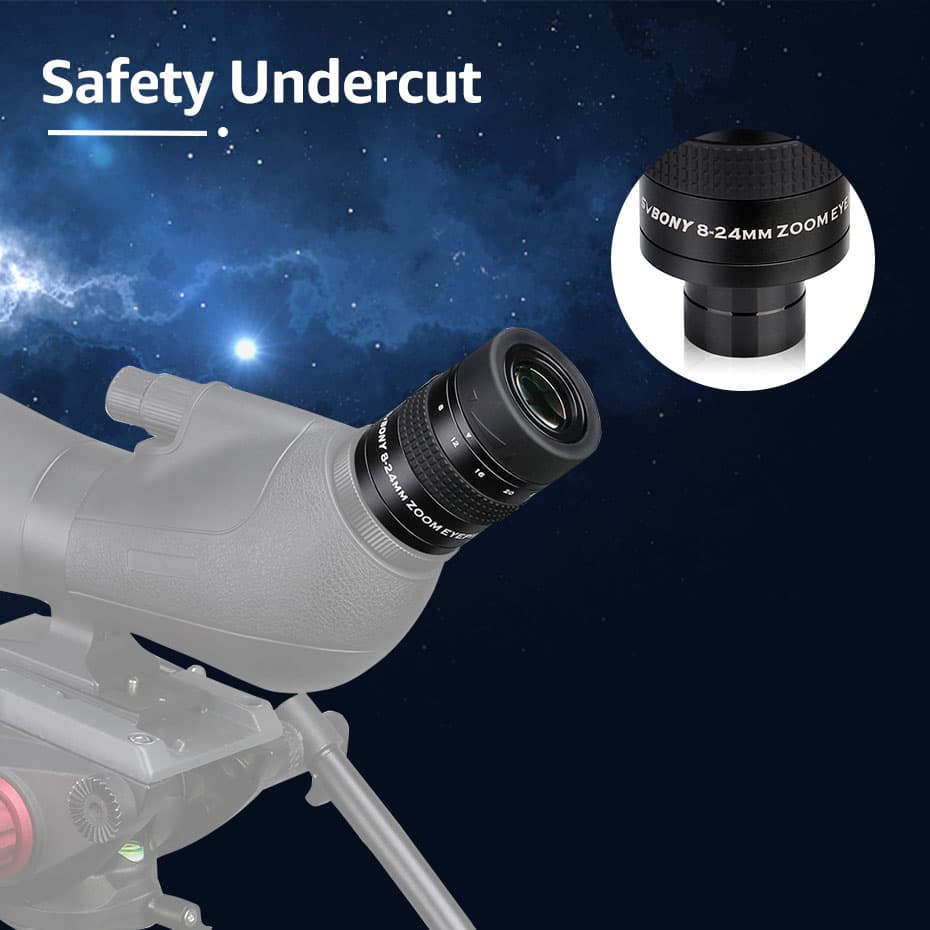

  • Unique humanized design;Sleek black barrel with safety undercut to reduce the possibility of the eyepiece slipping out of the focuser or diagonal

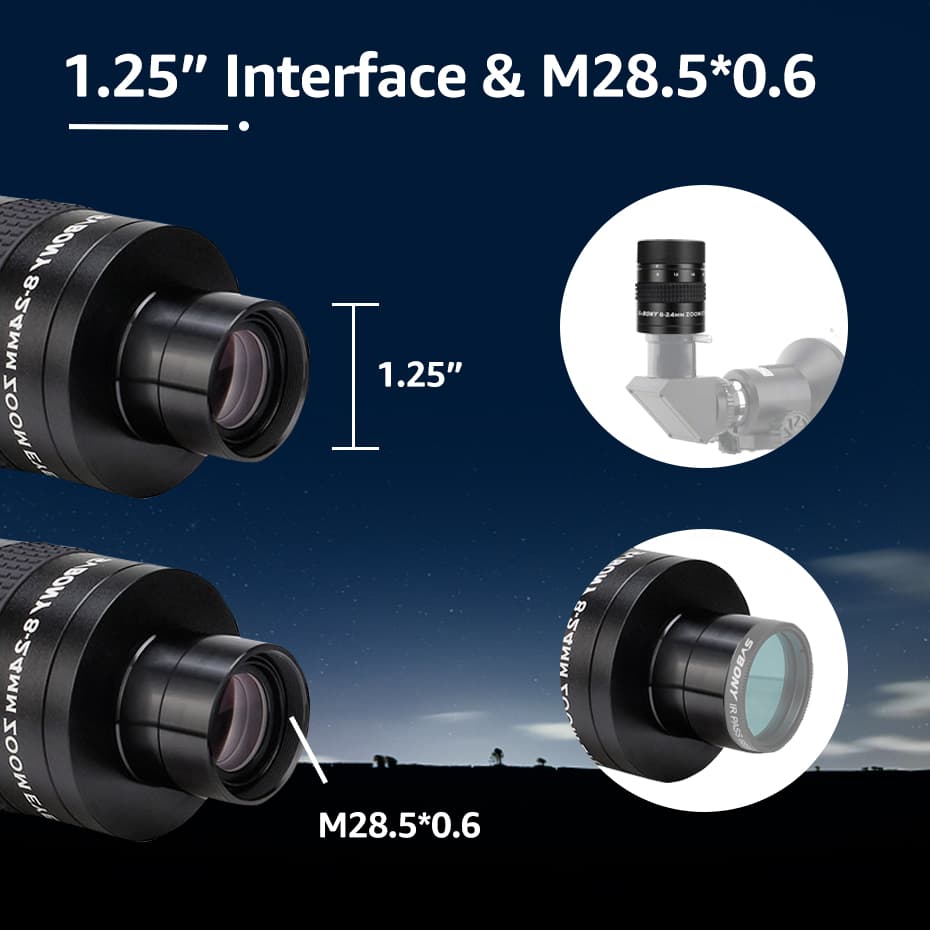

  • Standard 1.25" fitting diameter compatible with any astronomical telescope with 1.25" focuser;The bottom M28.5 x 0.6 thread can also be used with standard 1.25" Filter
In Stock Out Of Stock

Special offers and product promotions

Svbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for TelescopeSvbony SV171 Zoom Eyepiece for Telescope

2 reviews

Write a review

The only eyepiece you'll ever need?

Zoom eyepieces made today are so good that I'm inclined to say that a zoom and a Barlow are all you really need. Sure, if you're in the league of exceptional ($$$) amateurs doing serious observing, that won't be true, but for hobby astronomers on a budget, I think a case can be made. First impression of this zoom eyepiece, out of the box: It's huge! With seven big pieces of glass in four groups, the SV171 is a 'serious piece of kit’. What that gets you, though, is very good optics with very good eye relief at a modest price. To be clear, this eyepiece is not suitable for small telescopes because of its size and weight (the Svbony 7-21mm zoom is what you need), but if you have a sturdy astrophotography mount it'll handle it fine. It weighs less than most cameras, after all. I went looking for optical problems but didn't find much. It's parfocal from end to end, and the eye relief is comfortable (spec says 19.5 to 16mm). I found only slight astigmatism (predictably a bit more on my ƒ/4 newt than my ƒ/10 refractor) but it wasn't enough to detect in either scope while observing the moon. Brightness, contrast, and color fringing are comparable and perhaps a little better than my Meade Series 4000 fixed focal length oculars. Using a building with lots of windows and railings about a mile away I didn't see any evidence of distortion, and when I panned across Jupiter with it at the edge of the field the planet didn't show any elongation. Two minor complaints: the twist zoom is ra

4.5/5 high quality, good bang for buck

The field of view is narrow if you're used to wider field single focal length eyepieces, but it's no problem to get used to. The construction is really good quality, and the quality is really great. I only found the view to be a little soft at either end of the zoom range, but otherwise really sharp. This eyepiece is heavy and big. When it's fully in the focuser, it can interfere with the thumb screw. The solution is easy, just use a smaller-radius thumb screw, or pull the eyepiece out slightly.

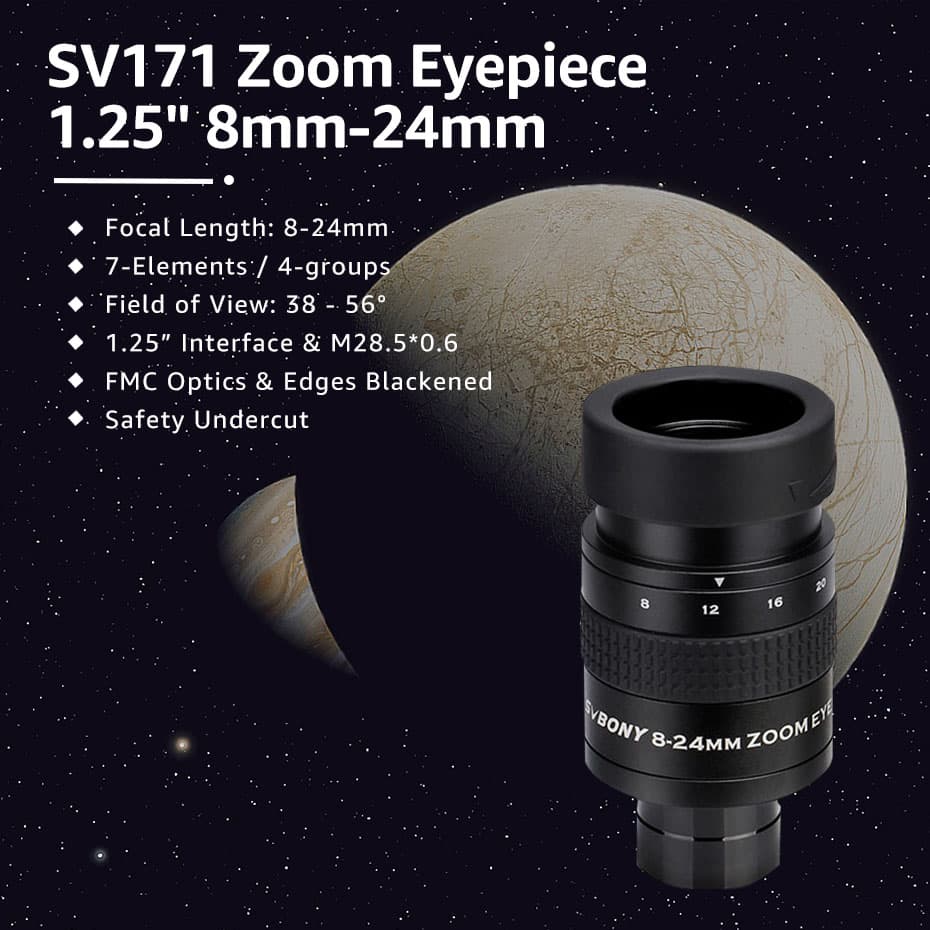

Model SV171

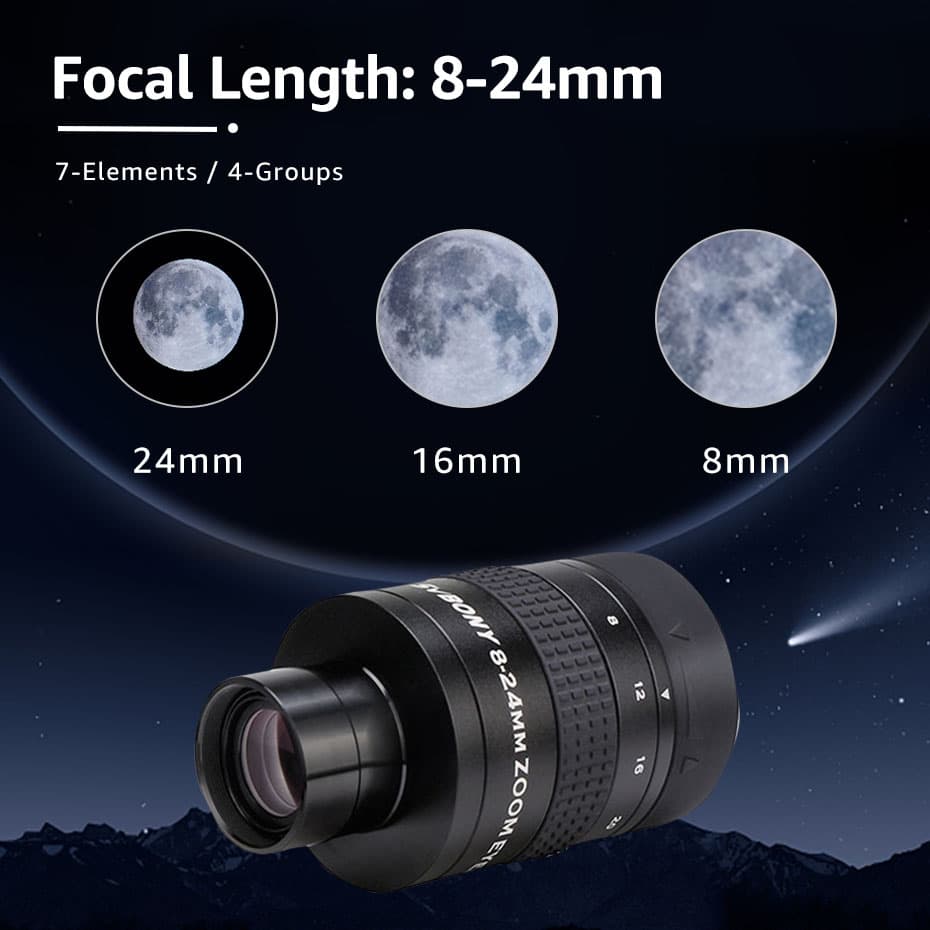

Focal Length 8-24mm
Eye Relief 18-19.5mm

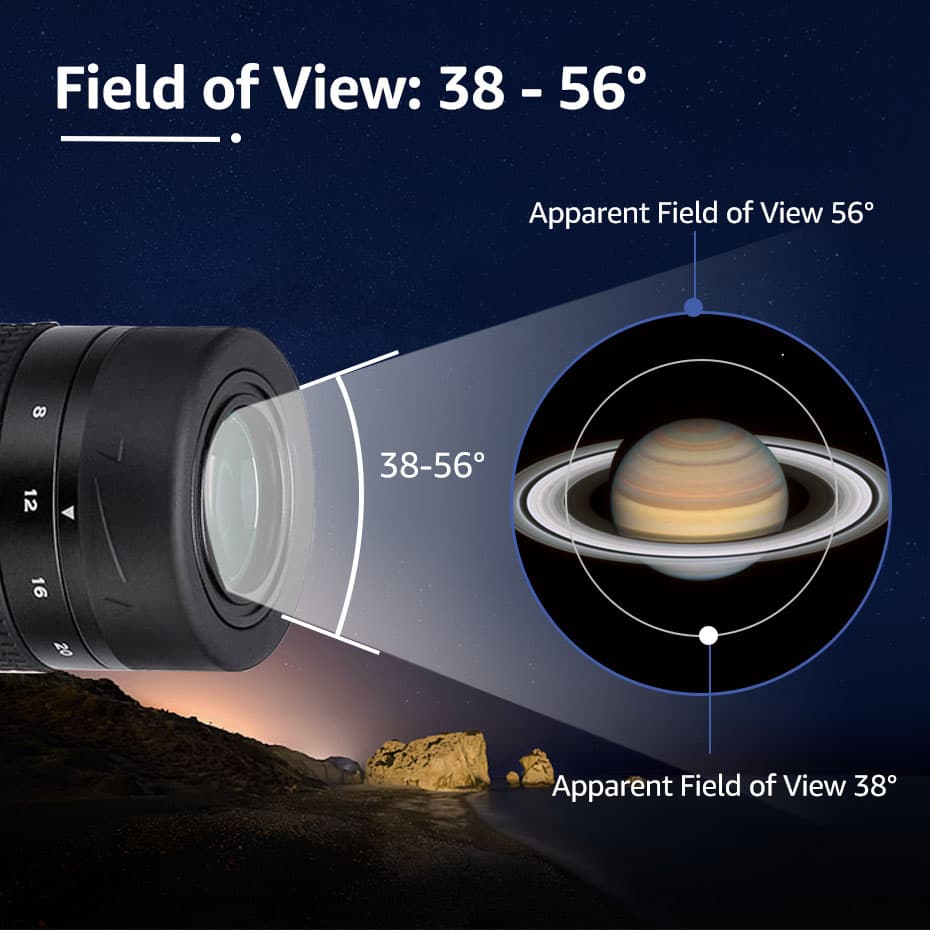

Apparent Field of View 38°-56°
Barrel Size 1.25inch
Lens Structure  7-Elements/4-Groups
Filter Threads Standard 1.25"(M28.5 x 0.6)
Coatings Fully Multi-Coated
Blackened Lens Edges Yes
Barrel Safety Recess Yes
Eyecups Twist-Up
Eyecups Material Metal

1. Svbony super-wide angle 1.25'' zoom eyepiece 8-24mm allows you to change magnification power without swapping out eyepieces

2. Suitable for 1.25'' focuser or telescopes, can support 1.25'' filters

3. 7-elements/4-groups made of high index glass deliver sharp, high contrast vistas

4. Exceptionally long 18-19.5mm eye relief range allows eyeglass wearers to enjoy the entire field of view without needing to remove the glasses

5. Sleek black barrel with safety undercut to reduce the possibility of the eyepiece slipping out of the focuser or diagonal
