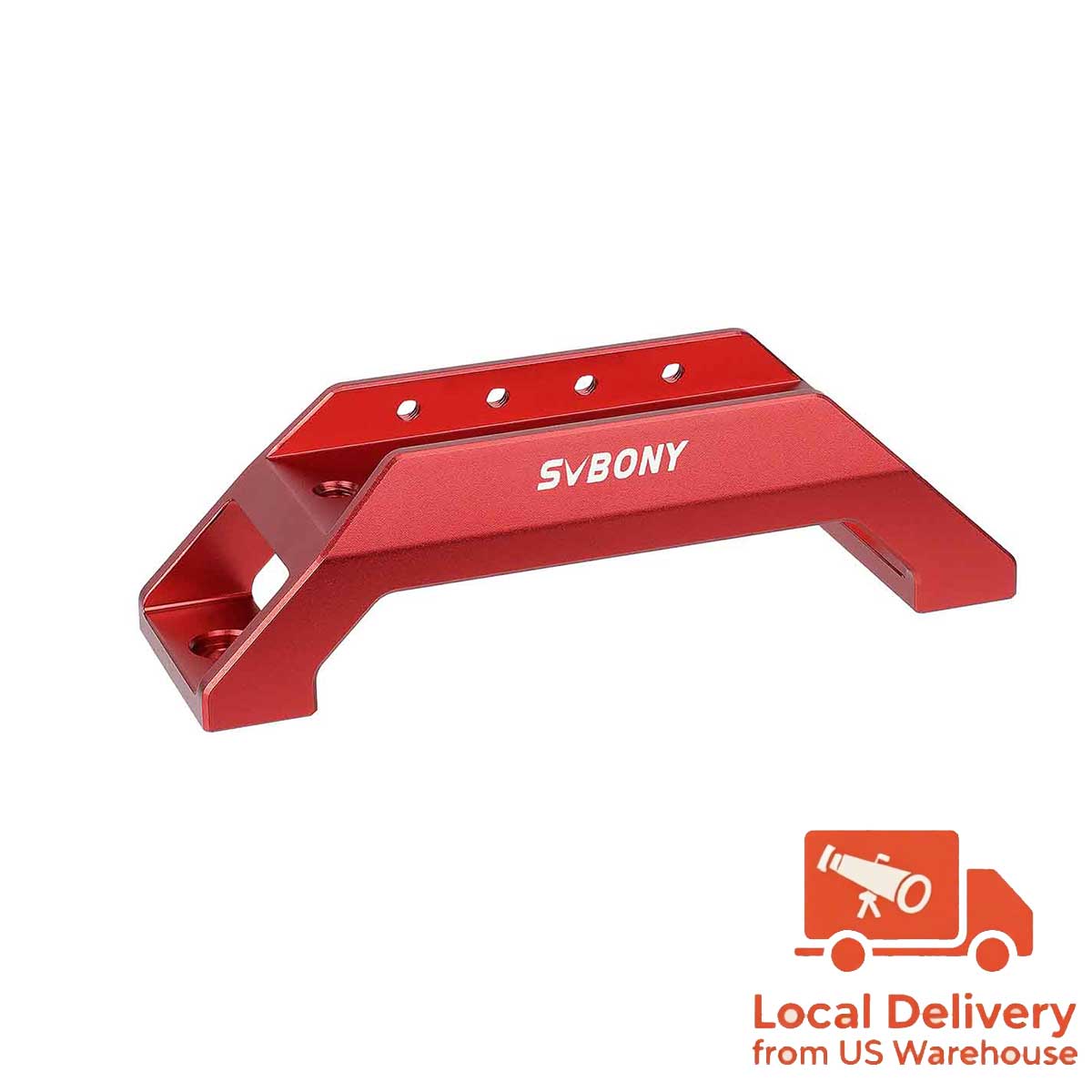

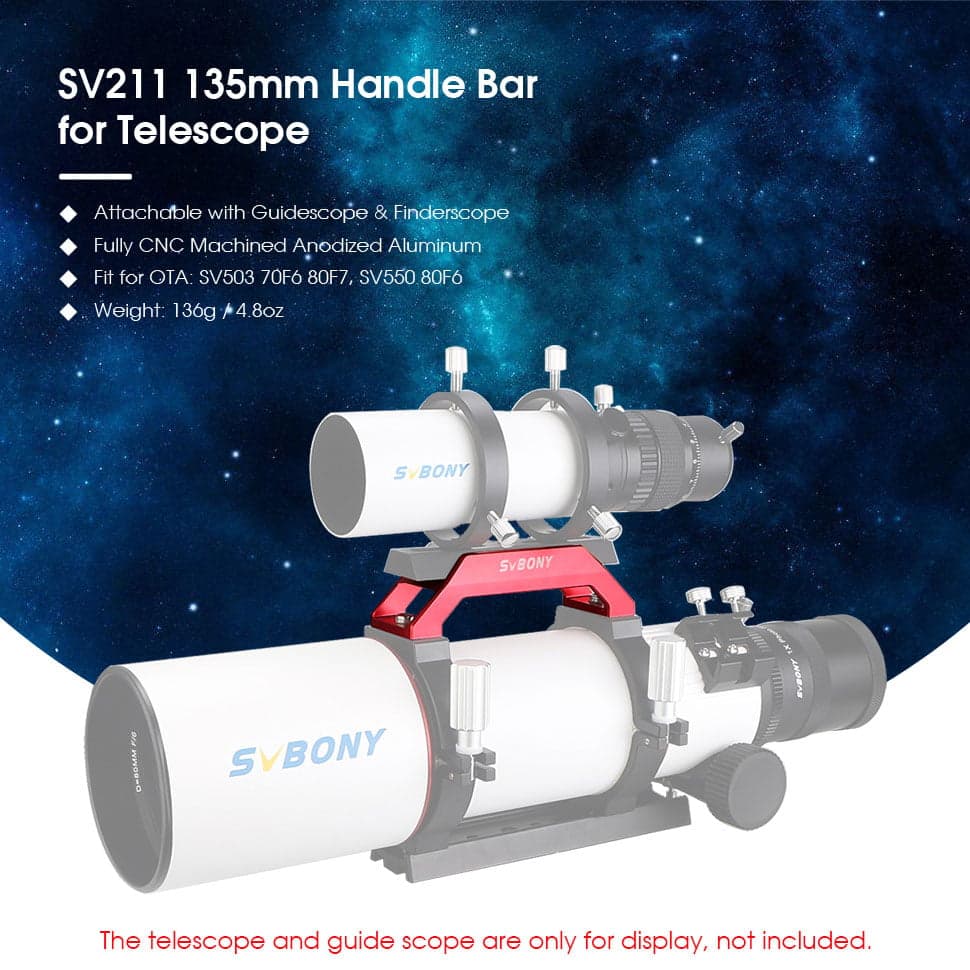

- This SV211 handle 135mm is suitable for OTA SV503 70F6, SV503 80F7 and SV550 80F6. Adjust the position of the handle, improve the safety factor of the product installation process;

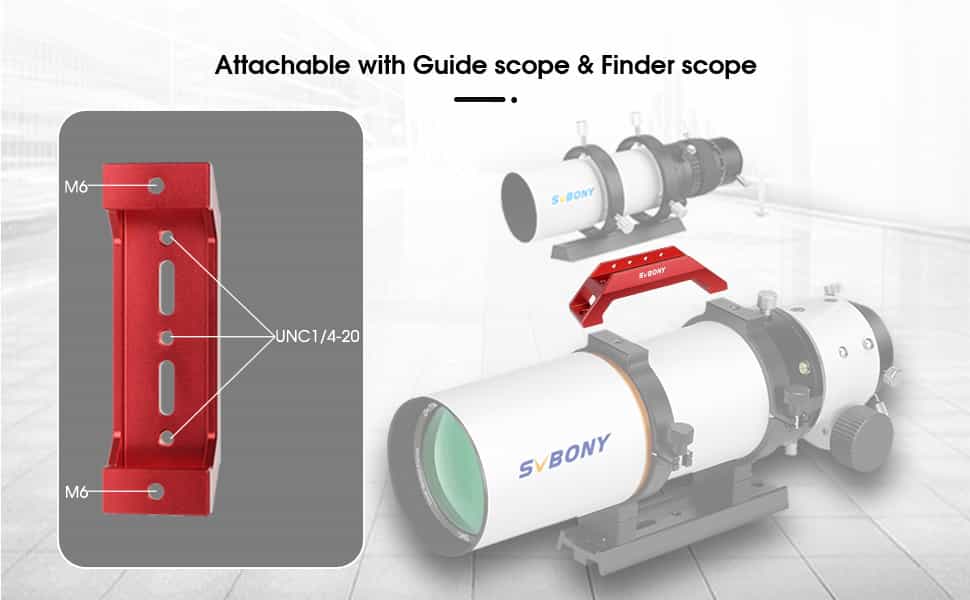

- SV211 handle fits SV198 or other guide mirrors and viewfinders, provides a guide scope and finder scope mounting platform for easy installation of accessories;
- Fully CNC integrated finishing anodized aluminum, strong and durable, the handle will not be easily damaged for long service life;

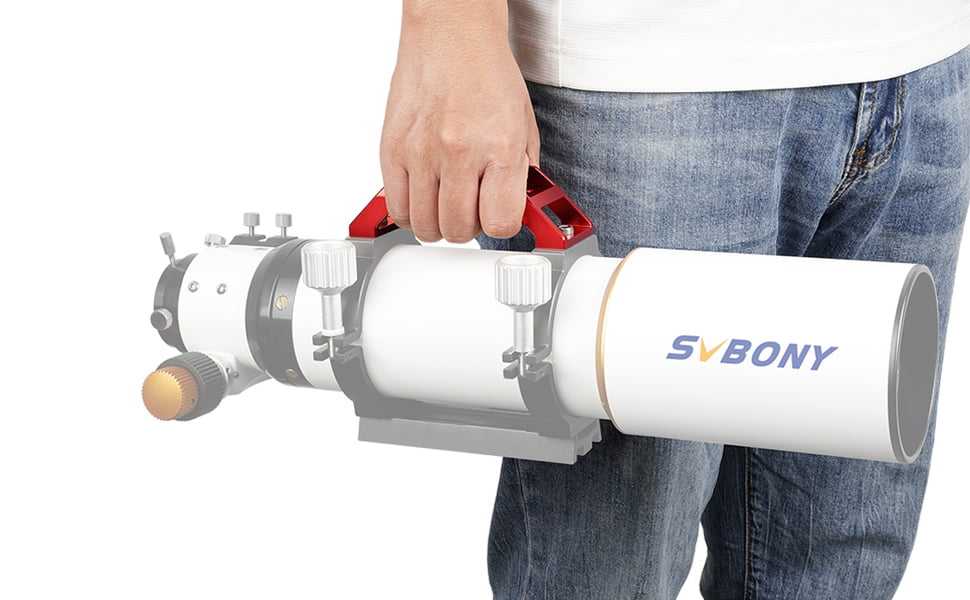

- SV211 handle is easy to carry when traveling and going out, no pressure to hold. Suitable for carrying and protecting telescopes at short distances;

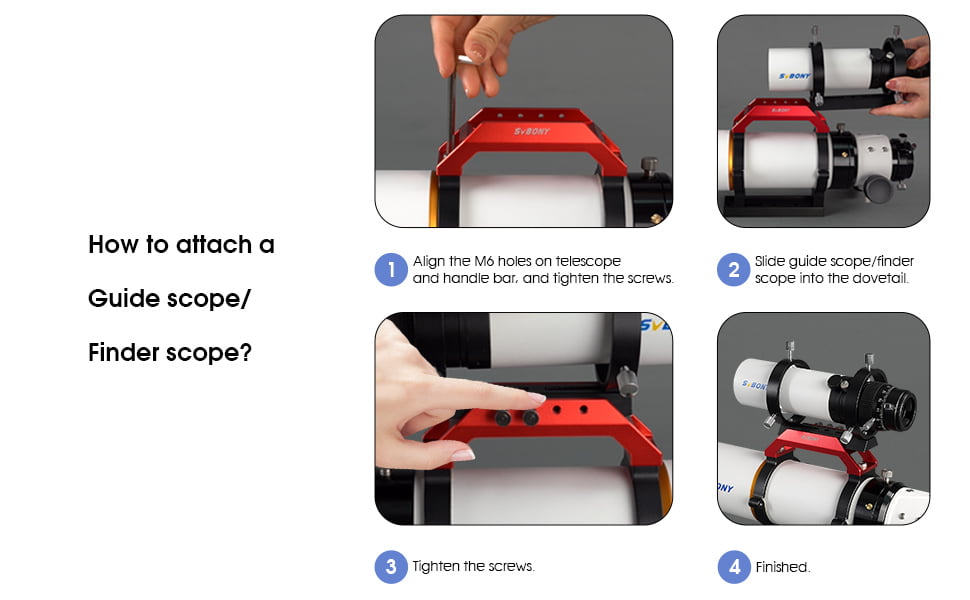

- 2 M6 mounting screws, 4 M4 set screws, unified interface type, strong matching type, easy to install and remove.
In Stock
Must have for you SV550
Given that the weight of the SV550 is 5kg (11 lbs), I can't imagine trying to mount the OTA repeatedly without the add of this handle. And of course bonus is you can mount your guidescope to the handle, if you so choose. It was a no-brainer to me. At 135mm long, I found I had to reposition the front OTA ring and this resulted in the dew shield not being able to retract all the way (with caps in place the dew shield retracted, the OTA is now approx. 353mm). All in all what I would consider an essential upgrade to your SV550.
Useful, but not for the 70ED
I was excited to try this in my sv503 70mm ED but quickly discovered that mounting it produces other issues.
In order to mount it, one would need to permanently keep the dew shield fully extended and modify the dovetail mount. Keeping a good balance with my DSLR connected means that the current stock dovetail would be shifted too far forward and would throw it off balance. I would need to upgrade the dovetail to a much longer one to make it work.
| Brand | SVBONY |
| Model | SV211 |
| Suitable OTA | SV550 80 APO, SV503 80ED |
| Material | 6061T Aluminums |
| Color | Red |

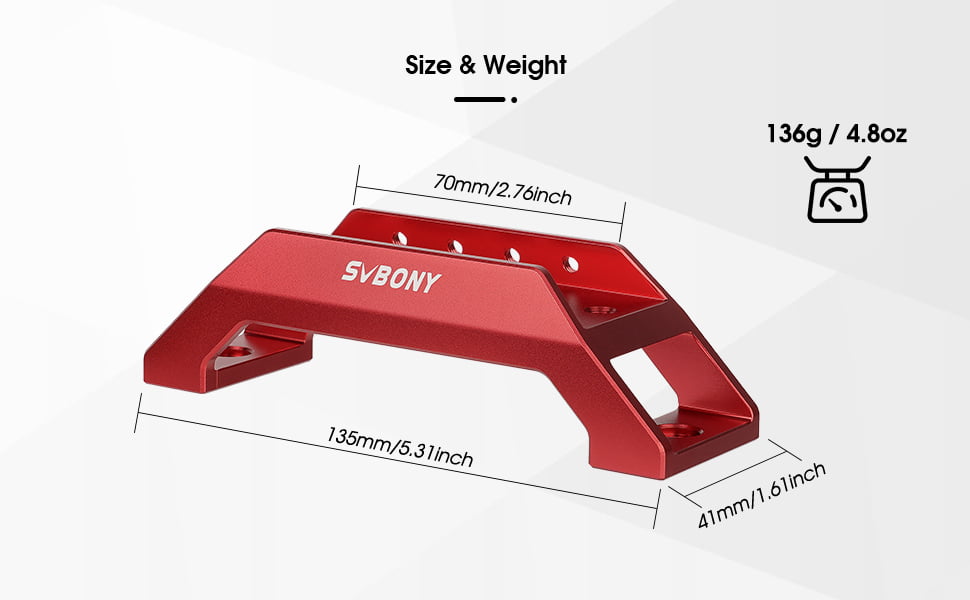

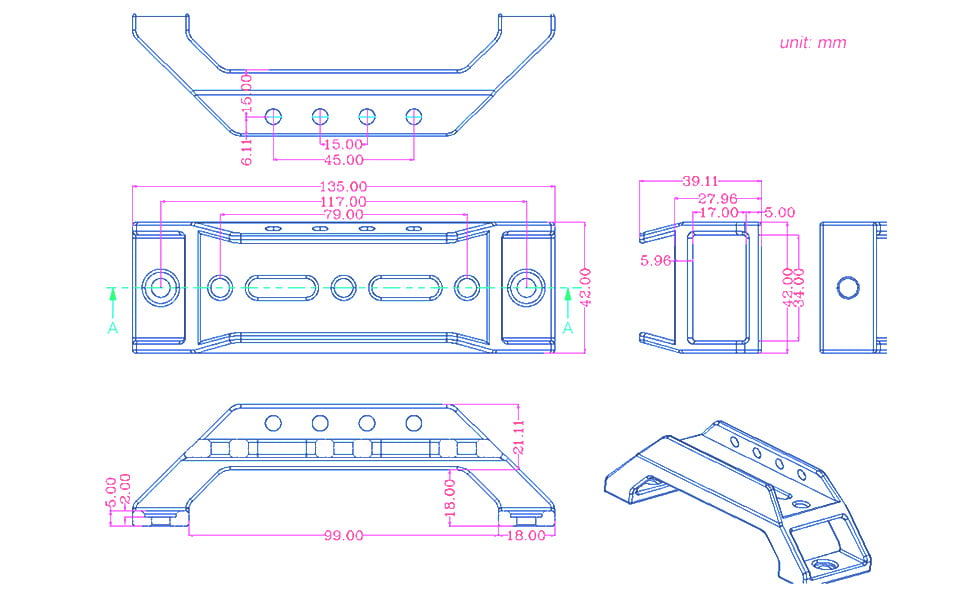

| Length | 135mm |
| Width | 42mm |
| Height | 39mm |
| Net Weight | 136g / 4.8oz |
-
Features
- The sv211 make a comfortable and convenient carry handle but also has a neat integrated saddle designed to accept SV198 or other brands guide scope and finder scope;

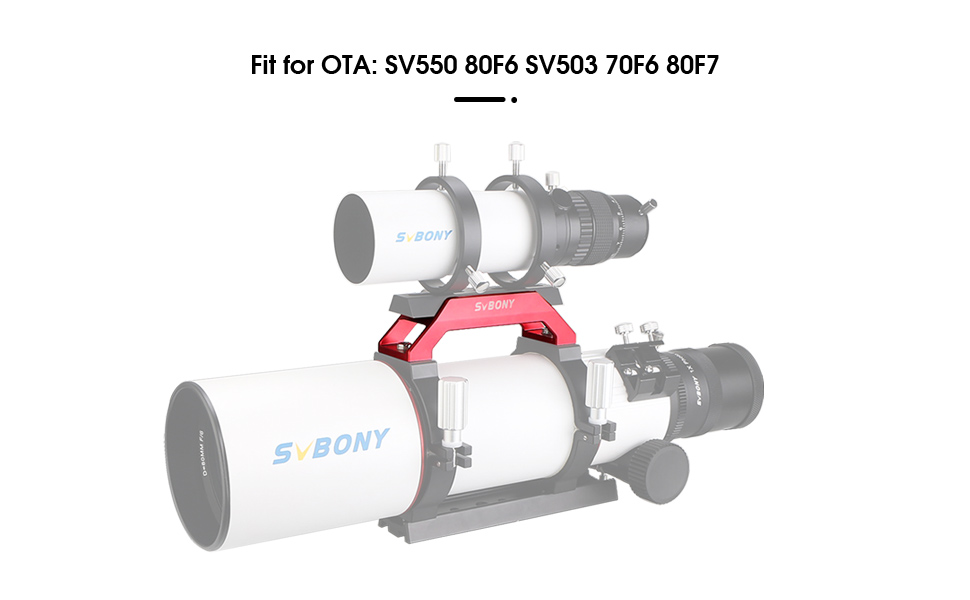

- Fit for OTA: SV503 (70F6 80F7) SV550 (80F6);
Package includes:
- 1PCS Handle Bar
- 2PCS M6 mount screws
- 4PCS M4 Set Screws
- 1PCS M5 Wrench
