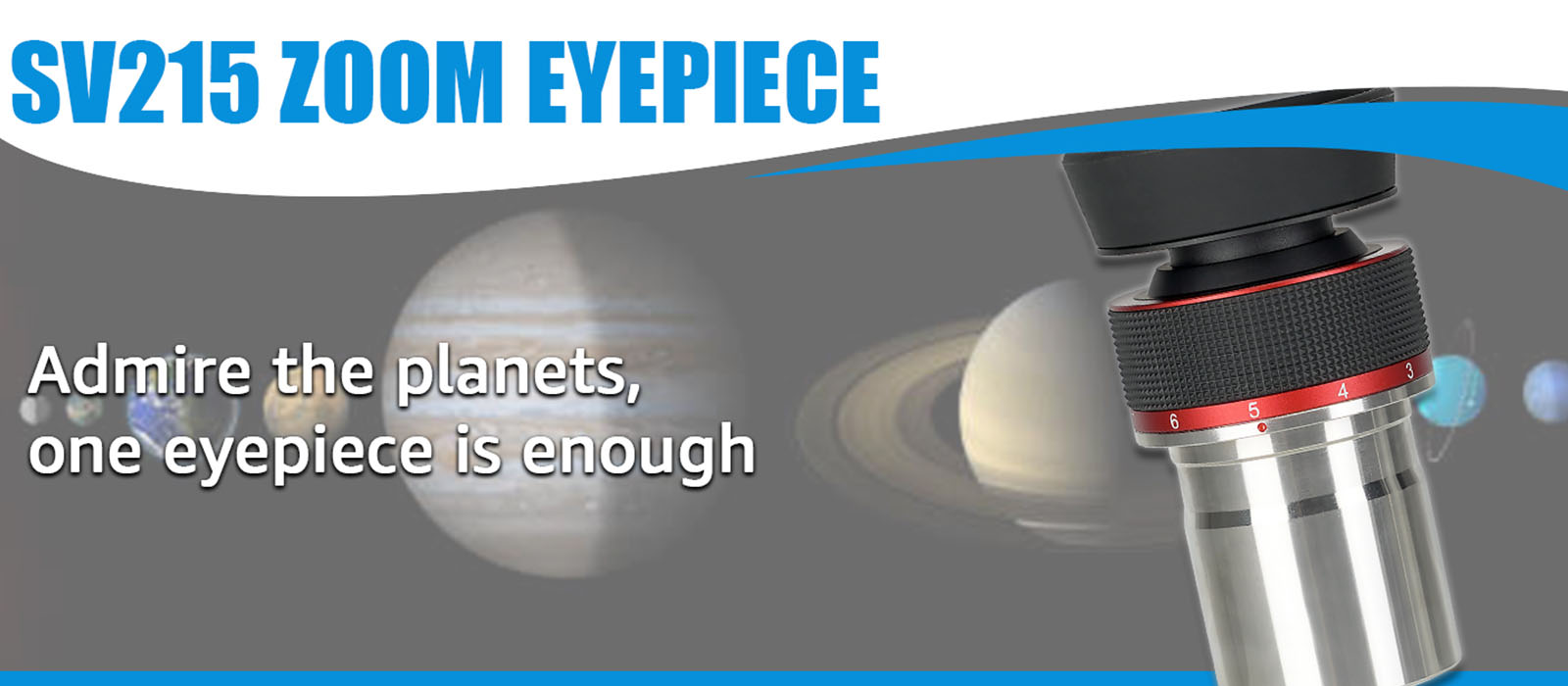

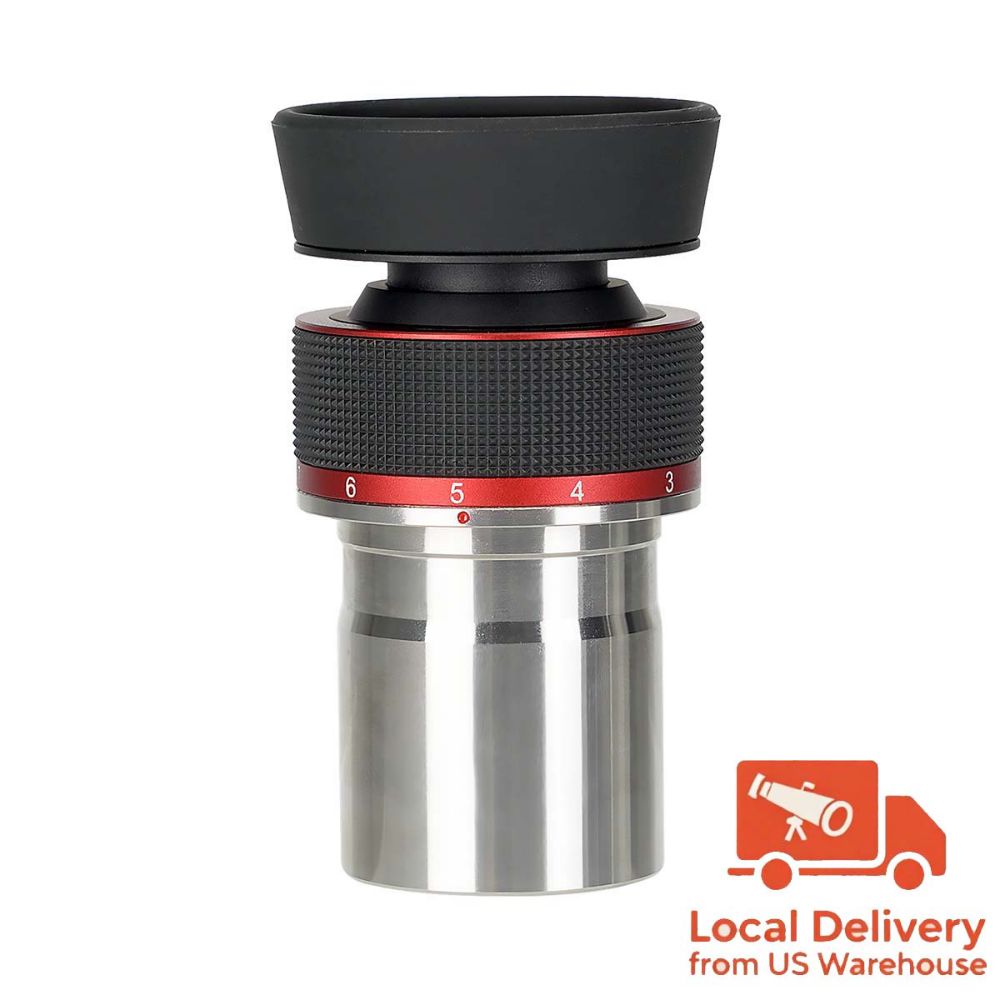

- SV215 zoom eyepiece is a good assistant for you to observe and take pictures of the planets; it is a good helper for the amateur astronomers to observe Venus; Mars; Jupiter; Saturn etc;
- Adjustable focal length; SV215 3 mm to 8mm zoom eyepiece equivalent to multiple eyepieces; this helps you to zoom in and out rather than changing lens;
- Parfocal across the entire zoom range; minor tweaking may be necessary; you do not need to refocus every time you change the focal length;
- Constant field of view and eye relief; the apparent field of view and the usable eye relief to stay the same as the focal length changes;
- Click and stops design; there are clicks and stops as you pass through the marked zoom levels; easy to use even in the dark
- Zoom ring moves smoothly; the zoom is smooth and gradual as you twist the eyepiece;
- 6-element of 4-group lens structure; fully multi-coated optics for remarkable sharpness; contrast and color correction.
Note: The front focal point of the SV215 is located inside the eyepiece body. It requires a main mirror with sufficient focusing range to ensure smooth and focused imaging. Iis not suitable for 1.25-inch interface birding scopes.
Top Christmas Gift Ideas: Perfect Presents for Everyone!
In Stock
Special offers and product promotions
The SV215 zoom eyepiece is designed to provide the good balance of contrast, comfortable eye relief, and resolution for the critical planetary observer, particularly those with ultra-premium short focal length refractors.

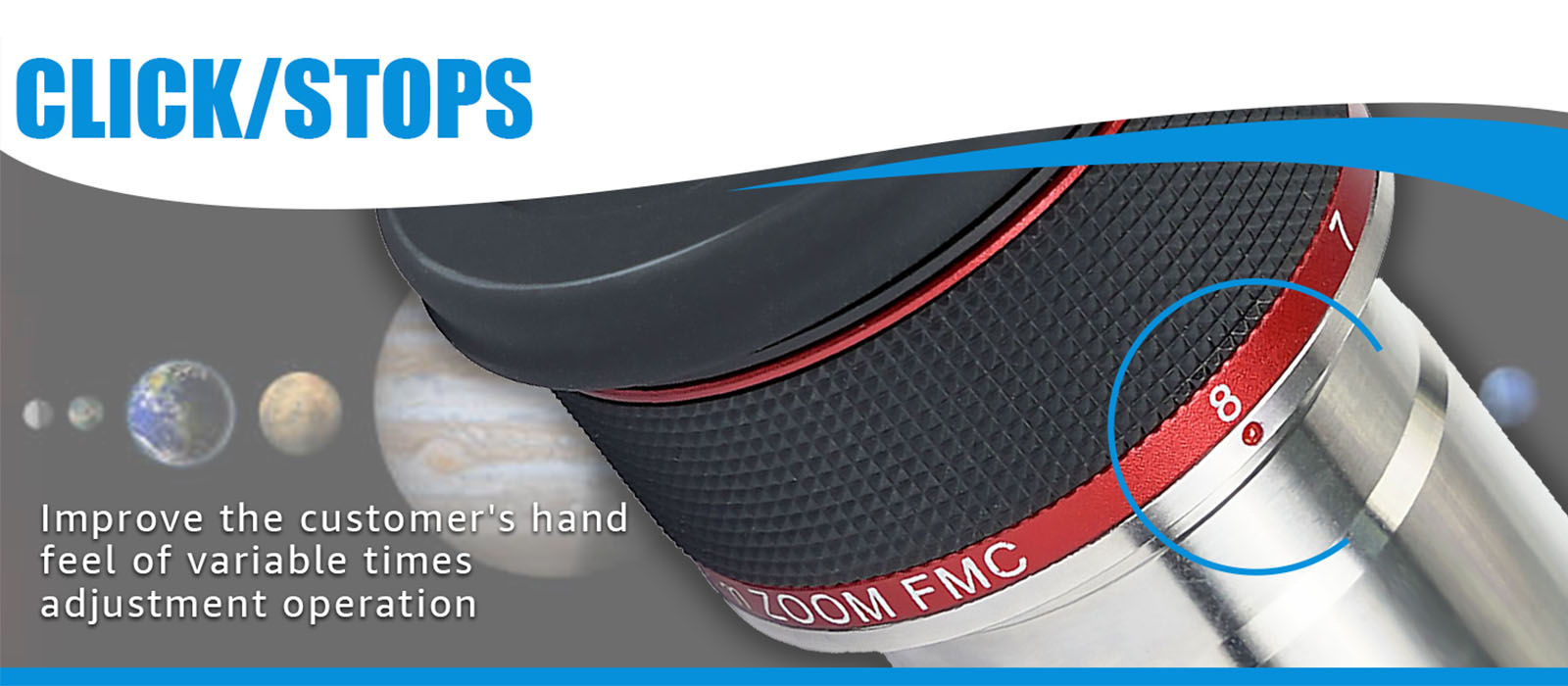

Clickstop Mechanism
The SV215 eyepiece brings a whole range with focal lengths from 3mm to 8mm in a single high-quality eyepiece! It lets you continuously zoom with Click-stops at 8, 7, 6, 5, 4 and 3 mm.
The field of view will not change with the change of focal length, the process of doubling to give customers a fixed point to pull into the visual enjoyment.

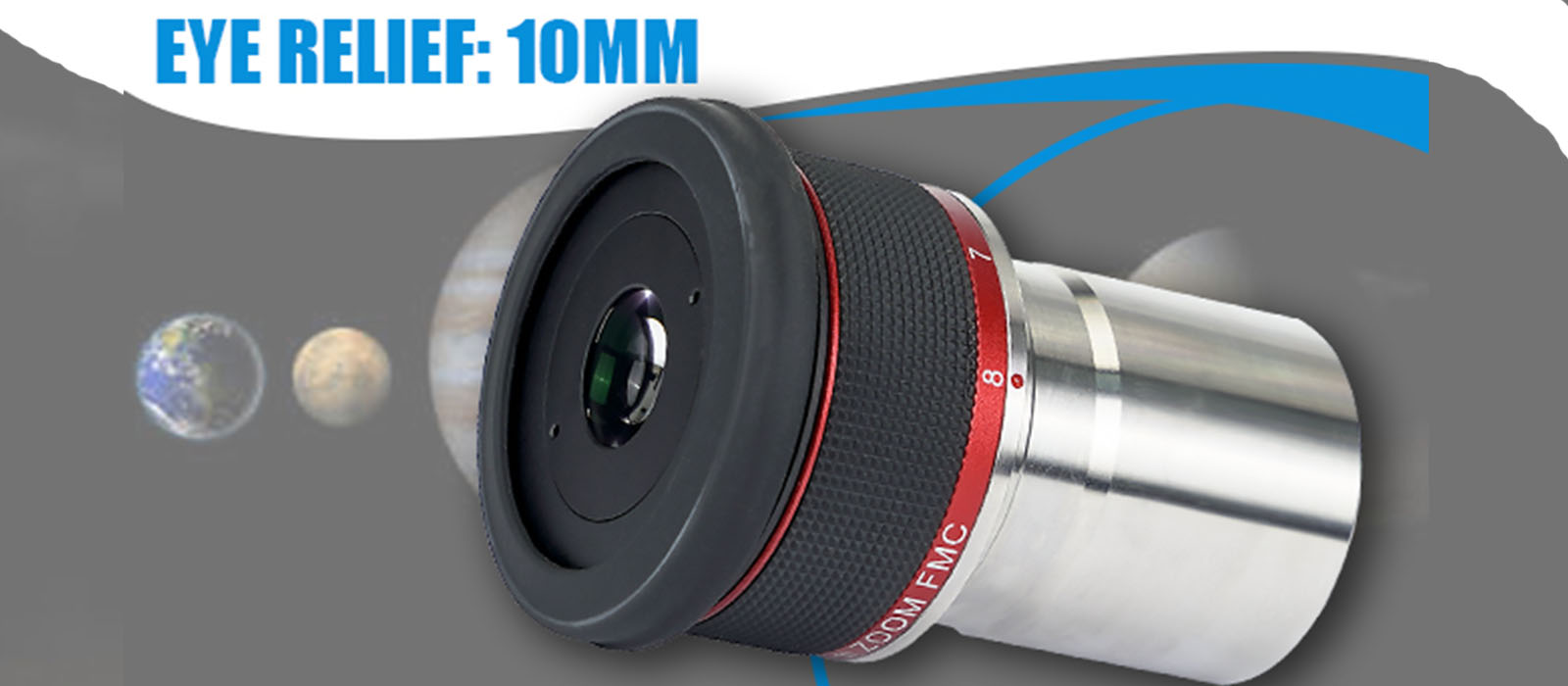

Eye Relief: 10mm
The transformation ratio customers do not need to adjust the distance of exit pupil, so as to adapt to the observation environment again and improve the observation comfort.
3to8 zoom
Nothing better on the market .
Exceptional edge to edge sharpness
I absolutely love this eyepiece. It is the highest quality eyepiece I have ever looked through. With my SV503 it allowed me to exceed the theoretical maximum magnification and still give a useful result rather than just magnifying the image. It is sharp edge to edge and reminds me of the SV207 Plossls. It does have its quirks, but I will take those any day to get this quality.
1. It is not parfocal. It is close, but not quite.
2. It needs to be further in to get focus than other eyepieces. I built my own Dobsonian and it doesn't come to focus with my 2" to 1.25" adapter. Thankfully I have another adapter which is shorter and this eyepiece manages to get focus in that.
3. The eye-relief is not the best. It's like looking through a shorter focal length Plossl. It's not terrible, but you still need to get fairly near to the eye lens.
That said, it snaps to focus beautifully, gives a consistent wide field of view, and as I said, it's razor sharp.
Amazing Performance
The performance of this eyepiece is outstanding. I had a selection of eyepieces to compare with the Svbony zoom, i.e., 3, 4, 5, 6, 7, and 8 mm. Some were high-end eyepieces, including orthoscopics, Plossls, Televue Radians, and Delos. After an hour of observing, I could not see any significant differences in the image quality of the Svbony compared to the other eyepieces. In a few cases, the expensive widefield eyepieces with many lens elements faired worse in detail. While image brightness and contrast were good, the definition of delicate structures in Jupiter’clouds was lacking.
Zoom eyepieces usually require refocusing when switching focal lengths. My sample was parfocal. Depending on the seeing, when focused at the shortest focal length, 3 or 4 mm, there was no need to refocus at the 5, 6, 7, and 8 mm settings.
In summary:
Likes: Cost. Functionality (beats switching eyepieces). Mechanical quality (parfocal, click stops). Optical quality (sharpness, contrast, flat field)
Dislikes: Heavy (built like a tank). Tapered eyepiece barrel (hard to clamp with compression ring). The eyepiece barrel length is too long. The barrel cap keeps falling off.
A good analogy between a zoom eyepiece and a fixed focal length eyepiece is a Swiss army knife compared to a hunting knife. Svbony has managed to even the playing field. I highly recommend this eyepiece for owners of short focal length refractors (less than 800 mm).
Best planetary zoom eyepiece
This zoom is amazing. I have put it up against the Orion planetary eyepieces all focal lengths, televue delight 4mm, TMB planetary 7.5-3.2mm, Orion 21-7.2 zoom with 2x Barlow and the baader mark IV Zoom with 2.25 baader Barlow and this Svbony might be slightly better than all of them. The field of view is great for a zoom with this focal ratio. The contrast on the planets are some of the best I've ever seen. I can see amazing details on Jupiter and Saturn. Double stars are easy to split and the zoom is sharp to the edge. I don't know what else to say but WOW. I wish I would have bought this before I got all the other planetary eyepieces. I could have saved a lot of money. I bought 2 of these zooms to use in my binoviewer and they work great together. Thank you SVBONY for such a great eyepiece.
Great eyepiece!
I recently received this beautiful little eyepiece, however I realised (silly me) that it doesn't focus to infinity on my spotting scope which is an SA401 also by Svbony...So it looks like I may need to start learning astronomy!!!
It came very well packed and protected in its foam padded box. Included in the pack is both a cleaning cloth and 2 lens caps for both lenses.
Pulling the eyepiece out of the box I was surprised by how high quality it feels, all metal...No plastic here. Zoom adjustment has no play and has a lovely click when adjusting that feels good and has a rubber grip so it's easy to grip. The eyecup is rubber and comfortable for the eye. An adjustable eyecup might have been better here, but that is personal preference.
I decided to test its capabilities on my scope, which was limited to approximately 25 metres unfortunately with it not being an astronomical scope. Still, I noted when looking through it for the first time it is incredibly sharp across the field.
Fixing it on a nearby palm tree I was able to see veins clearly within the leaves (see photo - taken on an Oppo Find X5 Lite). A nearby spiderweb was also clearly visible and individual fibres of the silk web could be made out with ease. Also looking at a nearby conifer tree, I was able to see the sharpness across the field and the very nice, natural colour reproduction this eyepiece has.
EXCELLENT
J'ai comparé cet oculaire à d'autres (SIEBERT 3.9, SIEBERT 4.9, SIEBERT 7mm, EDMUND OPTIC 8mm et TMB monocentric 10mm et barlow 2X, et bien ce zoom est excellent optiquement et est comparable à des oculaires haut de gamme ; seul le 3mm soit 2D sur ma lunette TMB/LZOS 130/780 apo est plus difficile. Le relief d'oeil est aussi plus court que les SIEBERT par exemple qui ont une barlow intégrée et cela occasionne une salissure plus rapide de la lentille frontale. Autre point positif, l'aspect agréable et solide du zoom.
Magnifique zoom qui complète ma collection ( environ 40 oculaires) et est maintenant le préféré dans ces focales.
Great quality, but difficult insight at highest magnification
I had the chance to test the zoom eyepiece yesterday evening on my 10" dobsonian. Generally, the manufacture quality is excellent. The rubber grip has a nice, soft touch, but also enough grip to safely rotate the zoom-ring. The rotation needs quite a lot of force, but it's still okay to handle. You only have to make sure, the eyepiece is clamped stron enough in the focuser.
The view through the eyepiece is crystal clear with almost no fringing or abberation towards the edge of the field of view.
Only critical point is, that the insight at 4mm and 3mm is quite difficult. No chance to get an insight when you wear glasses. The eyeball is almost touching the lens of the eyepiece.
But in genearal, the eyepiece is excellent for it's price!
Fantastic Eyepiece
Purchased this eyepiece splendid with my 10inch skywatcher a little bit powerful at 3mm I'm sure would be good if weather was clearer as I tested while there was a bit of haze but first night seeing Jupiter with its Ganyemed moon and red spot crystal clear also tested it on my Gso c6 f/12 also fantastic as for postage ultra fast just 10 days on standard shipping to Aus Svbony is a pleasure to do business with can count on there affordable and quality products keep them coming!!!!
| Scenes | observe Venus: Mars; Jupiter; Saturn and so on |
| Target | amateur astronomers |
| Apparent Field of View | 56° |
| Coatings | Fully Multi-Coated |
| Blackened Lens Edges | Yes |
| Eye Relief | 10mm |
| Focal Length | 3-8mm |
| Filter Threads | M28.5x0.6 |
| Barrel Size | 1.25" |
| Lens Elements | 6 |
| Lens Groups | 4 |
| Barrel Type | With safety undercut |
| Rubber Eye Guard | Yes |
Features
- 1. SV215 zoom eyepiece is a good assistant for you to observe and take pictures of the planets; it is a good helper for the amateur astronomers to observe Venus; Mars; Jupiter; Saturn and so on
2. Adjustable focal length; SV215 3 mm to 8mm zoom eyepiece equivalent to multiple eyepieces; SV215 eyepiece is much better than the kit eyepieces; this helps you to zoom in and out rather than changing lens
3. Parfocal across the entire zoom range; minor tweaking may be necessary; you do not need to refocus every time you change the focal length
4. Constant field of view and eye relief; the apparent field of view and the usable eye relief to stay the same as the focal length changes
5. Click and stops design; there are clicks and stops as you pass through the marked zoom levels; easy to use even in the dark
6. Zoom ring moves smoothly; the zoom is smooth and gradual as you twist the eyepiece; it is very hand-friendly
7. 6-element of 4-group lens structure; fully multi-coated optics for remarkable sharpness; contrast and color correction - 8. Smooth zoom action with click-stops at 3, 4, 5, 6,7 and 8mm for quick changes to precise preset magnifications
9. Parfocal across the entire zoom range (minor tweaking may be necessary, however).
