- 1.25" diameter; SV223 diagonal adapter can be combined with 1.25" eyepieces and barlow lens; suitable for any 1.25" telescope accessories;
- Stable installation; the SV223 dielectric mirror has a clicklock locking mechanism; which can realize ultra-fast clamping action and ensure the stable installation and use of the eyepiece; SV223 star diagonal not easy to fall off
- Image is clear and bright; High precision 11.5mm thick mirror substrate flat for optimal image stability. the SV223 dielectric mirror is equipped with a thick precision optical flat mirror with an enhanced 99% reflective dielectric coating; which has a large amount of light transmission and a good imaging effect
- High-quality aluminum material; internal antireflection baffling for highest contrast; which is light and stable; ensuring that the star diagonal is durable and can reduce the weight of the equipment without affecting the balance of the equipment
- Enhanced Protection Features: Internal safety stop prevents barrels from hitting the mirror. Stainless Steel compression rings (both on diagonal and adapter) to prevent barrels from marring.
Top Christmas Gift Ideas: Perfect Presents for Everyone!

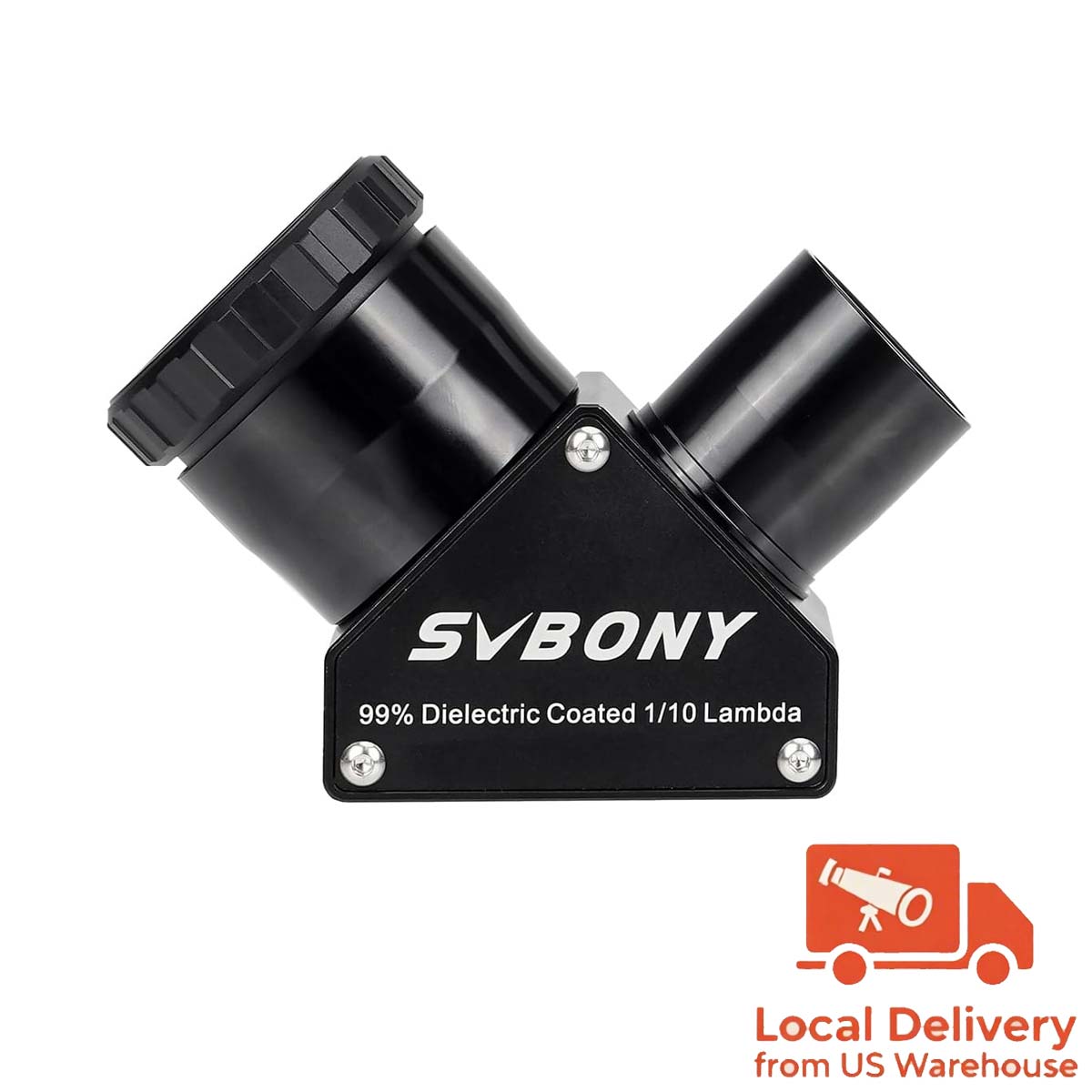

SV223 1.25 inch 90-degree Clicklock 99% Reflective Dielectric Coating Mirror Diagonal
SV223 diagonal can be combined with 1.25" eyepieces and barlow lens; suitable for any 1.25" telescope accessories. SV223 diagonal is used in conjunction with astronomical telescopes and can be used for astronomical scene observations such as planets and deep space.
Clicklock Locking Mechanism
The SV223 diagonal has a clicklock locking mechanism; which can realize ultra-fast clamping action and ensure the stable installation and use of the eyepiece; which is not easy to fall off.
99% Reflectivity Glass
The SV223 dielectric mirror is equipped with a thick precision optical flat mirror with an enhanced 99% reflective dielectric coating; which has a large amount of light transmission and a good imaging effect.
Brass Pressure Ring
SV223 has a brass compression ring on the diagonal; which provides a uniform pressure area when holding the eyepiece; can firmly fix the eyepiece, and is not easy to damage the eyepiece and other telescope accessories.
Carbon Fiber Cover
SV223 diagonal is made of carbon fiber material; which is light and stable; ensuring that the zenith mirror is durable and can reduce the weight of the equipment without affecting the balance of the equipment.
Before & After Use
SV223 adopts a 90 degrees design; which can provide you with a better observation experience during visual observation.
Suitable For Many Occasions
Excellent Diagonal!
| Brand | SVBONY |
| Model | SV223 |
| Size | 1.25inch |
| Optical Design | Mirror Diagonal |
| Inner Connection (Lens Sided) | Thread M28.5x0.6 |
| Outer Connection (Lens Sided) | Barrel 1.25inch |
| Inner Connection (Eyepiece Sided) | Clamp 1.25inch |
| Reflection Surface | Dielectrically Coated |
| Reflectivity | >99% |
| Image Orientation | Erect image, Mirror Inverted |
| Optical Length | appr. 85.5mm |
| Clamping System | Clicklock |
| Deflection Angle | 90° |
| Clear Aperture | 25mm |
| Material | Metal |
| Thickness of Mirror | 11.5mm |
| Net Weight | 249g/8.78oz |
Features
1. The diagonal comes with a thick, precision, optical flat mirror with an enhanced 99% reflective dielectric coating
2. Dielectric 1/10 lambda levels substrate with 85.5mm optical length
3. Clicklock clamp for ultrafast clamping action
4. High precision 11.5mm thick mirror substrate flat for optimal image stability
5. Internal safety stop prevents barrels from hitting the mirror
6. Stainless Steel compression rings (both on diagonal and adapter) to prevent barrels from marring
7. High-quality machining out of the aluminum, internal antireflection baffling for highest contrast
8. Provides higher contrast and resolution during critical planetary, lunar and binary star observations
Package Includes
SV223 1.25" 90 Degree Clicklock Dielectric Diagonal Mirror
1PCS M4 Screws
1PCS Dust Cap
1PCS Dust Plug
