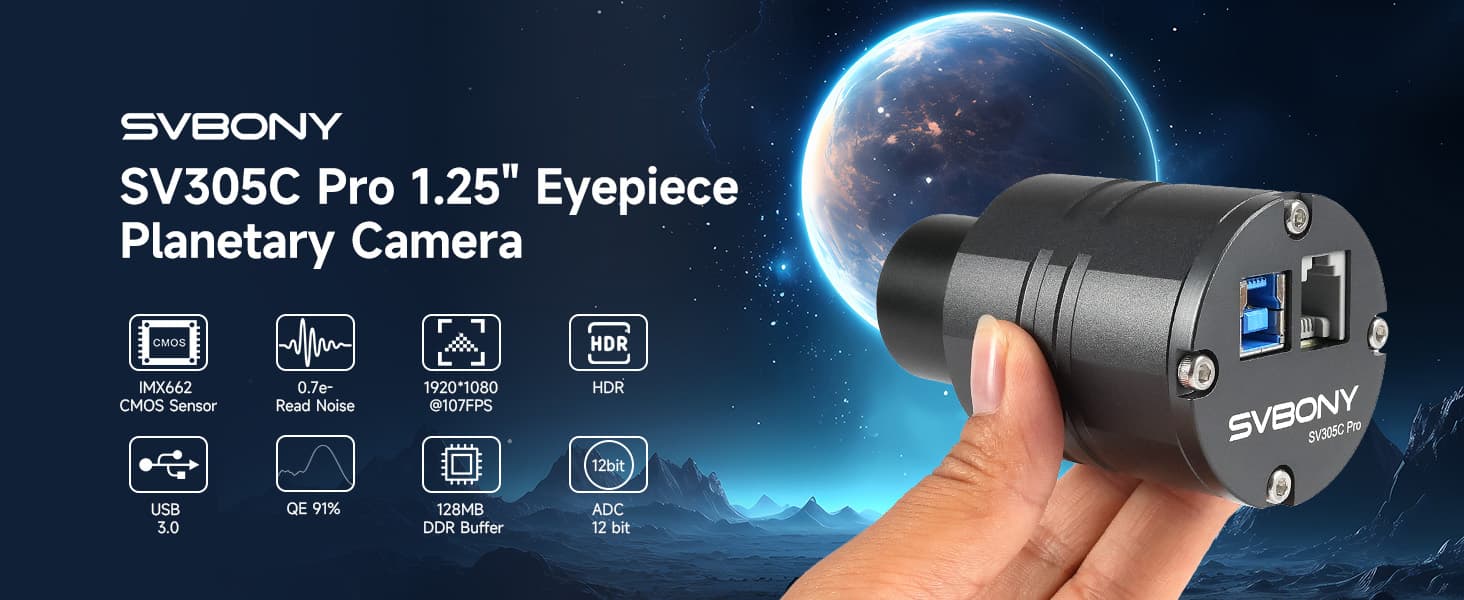

SV305 Pro Camera 2MP USB3.0 Guiding Camera

SKU: F9198B-

US$ 212.99

ST4 Guiding; SV305 Pro camera is designed with ST4 guiding port, supporting the PHD2 software, and works with ASCOM plate form;
1ms to 30min long exposure; Long exposure can reach 30 minutes, you can use it for planetary imaging, lunar imaging and some bright deep space objects imaging;

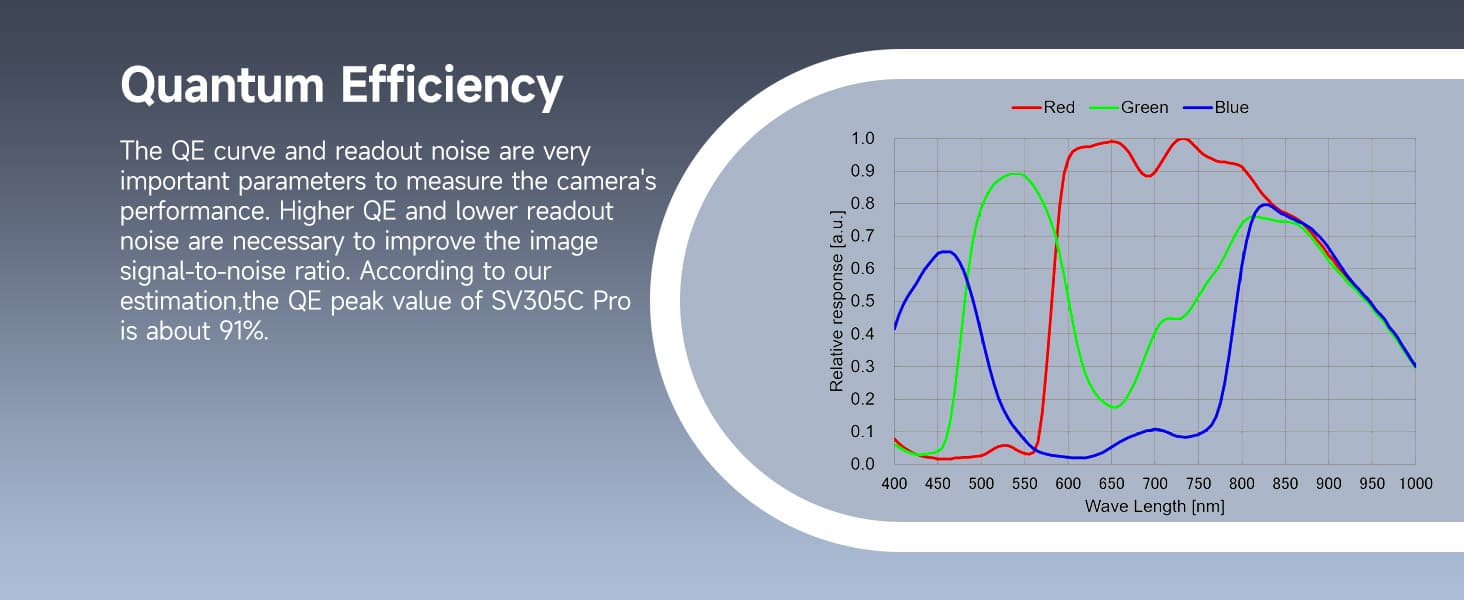

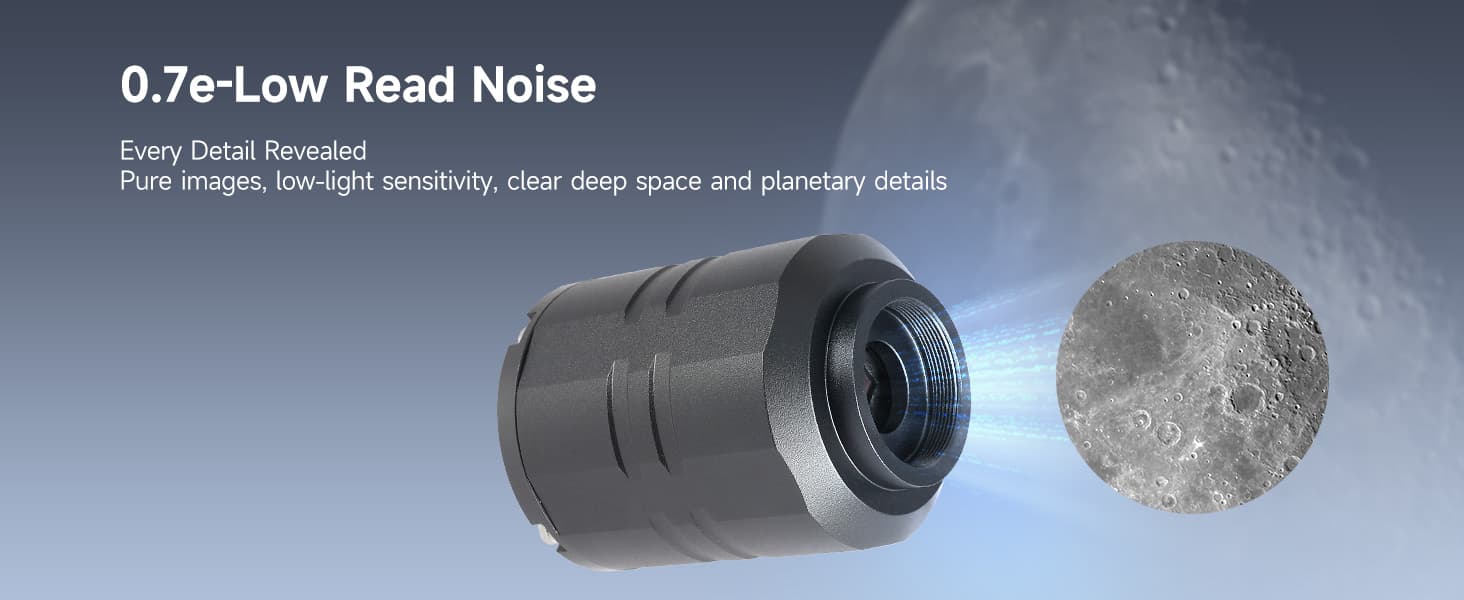

Back-illuminated CMOS Sensor; The SV305 Pro uses an extremely sensitive IMX290 CMOS sensor, this sensor has very high QE and very low 0.7e- read noise, which improved sensitivity in the visible-light and near infrared light regions for industrial applications;
128MB DDR Buffer; This buffer also allows a slower computer with USB 3.0 socket to capture every frame without loss even if the USB socket is occasionally busy with other peripherals. This buffer also makes it possible to run multiple cameras using one computer without USB transfer problems;
Any Area ROI Support; A smaller region of interest ROI is read out from the sensor, leaving the image scale of the object being imaged unchanged. Allow arbitrary resolutions to be set.

In Stock

Add to Wishlist

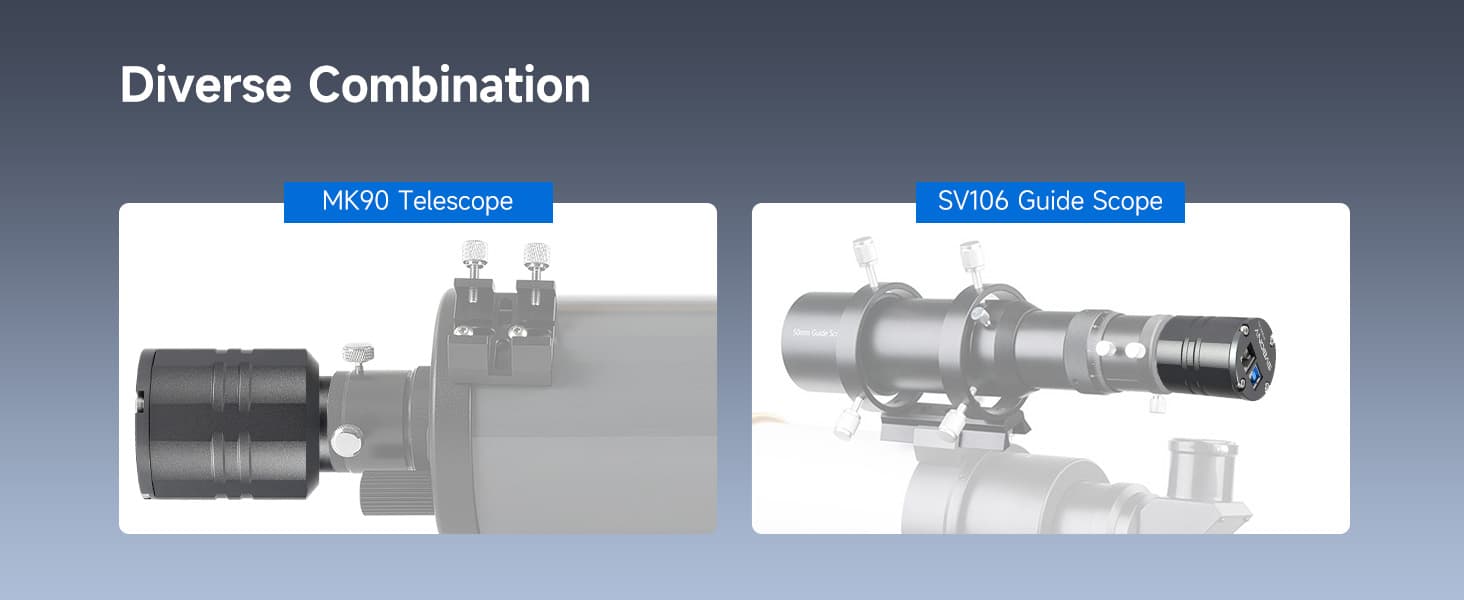

SV305 Pro SV305 Pro-SV106 Guide Scope

Product Details
Product Reviews
SPEC
feature

6373509111867294065638646 (1).jpg

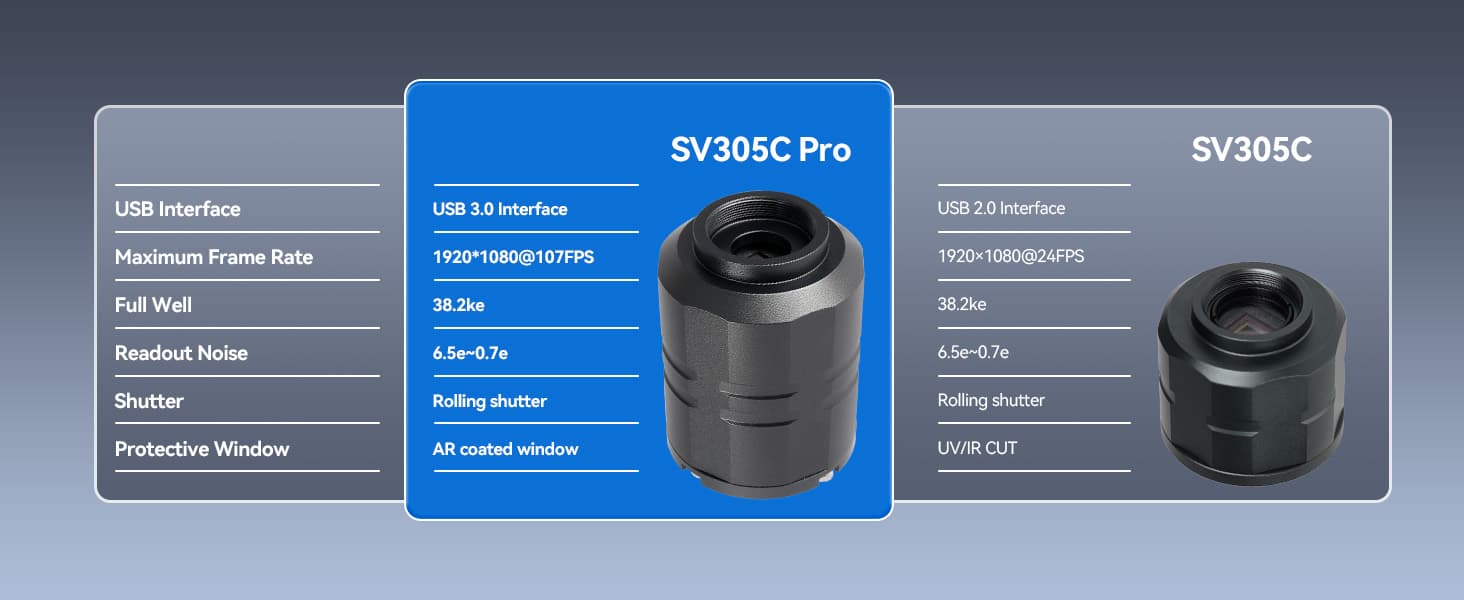

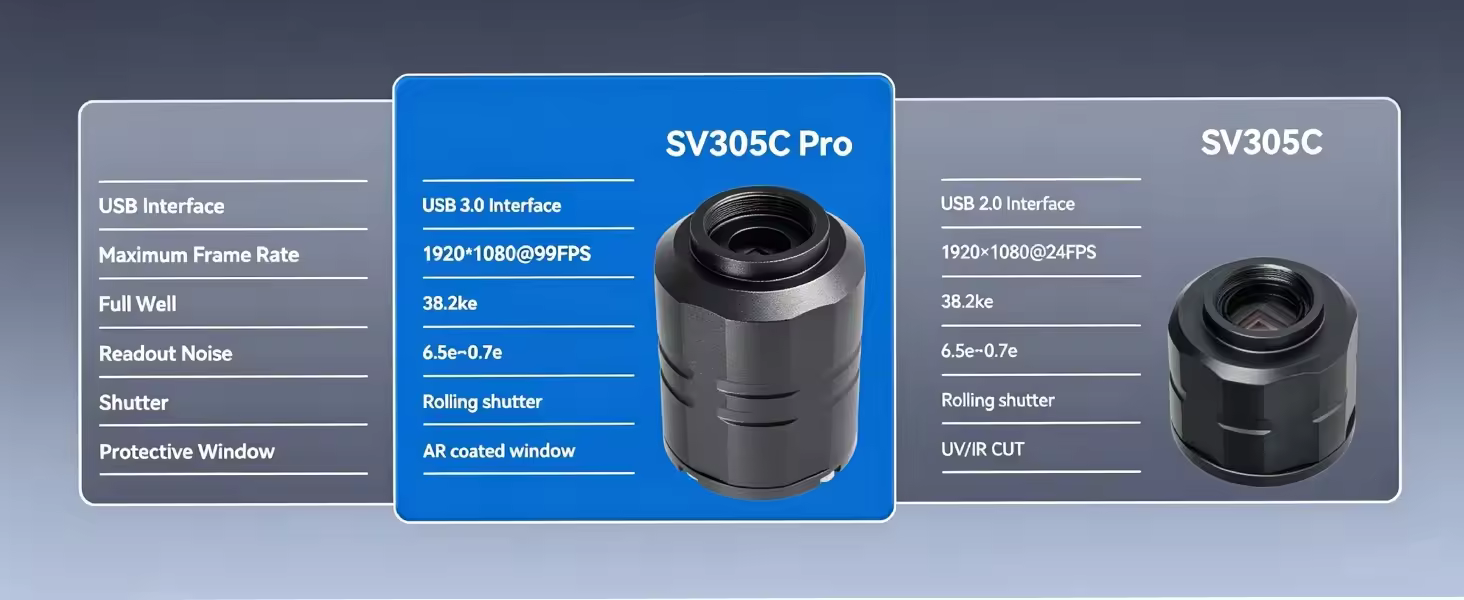

SKU	Model	CMOS Sensor	Classification	Pixel Size	Resolution	USB Type
F9198A	SV305	IMX290	Color	2.9μm x 2.9μm	2MP	USB 2.0
F9198B	SV305 Pro	IMX290	Color	2.9μm x 2.9μm	2MP	USB3.0
F9198C	SV305Pro AR	IMX290	Color	2.9μm x 2.9μm	2MP	USB3.0
F9198D	SV305M Pro	IMX290	Monochrome	2.9μm x 2.9μm	2MP	USB3.0
F9198L	SV305C	IMX662	Color	2.9μm x 2.9μm	2.1MP	USB2.0
F9198G	SV905C	IMX225	Color	3.75μm x 3.75μm	1.2MP	USB2.0
F9198H	SV505C	IMX464	Color	2.9μm x 2.9μm	4.2MP	USB3.0
F9198J	SV705C	IMX585	Color	2.9μm x 2.9μm	8.3MP	USB3.0
F9384A	SC311	IMX662	Color	2.9μm X 2.9μm	2.1MP	Type-C

6 reviews

Write a review

Name

Rating

Review Title

Body of Review (1500)

Excellent for guiding, and also for the moon and planets

Wilbur on Oct 11,2024

The SV305 is a great camera. Excellent for guiding, and also for the moon and planets, although I would strongly recommend the SV305pro as it has USB3, which is very important for taking pictures of planets.

Good camera for beginners.

AZ on Jun 21,2024

I think this is good camera for first time buyer like me. ST4 port is good option for the future upgrade.

exellent rapport qualité prix

bigand robert on Apr 08,2022

this camera is excellent value for money ideal for planetary photography with sharpcap and autoguiding with PHD2, you can also do some nebulae provided you respect the back-focus of the camera which I measured at 11 mm +/- 15% from the edge of the camera but it is 6 mm if you put the camera in abutment on the shoulder + of course you have to add the back-focus of your focal reducer if you have an SCT etc for example a 6.3 focal reducer its back-focus is 105 mm +/- 15% so you need the length of your 50 mm photo adapter + several rings to reach 100 mm plus the 6 mm or 106 mm of back focus is good. Be careful to check the back-focus of your focal reducer with your dealer!! It can vary from 55 mm to 85 mm to 105 mm depending on the model.

no consigo ver nada

MARIA LUISA on Sep 12,2021

sigo las instrucciones y veo jupiter con mi telescopio, pero la camara solo reproduce un circulo rojo y azul que no tiene definicion ¿que hago mal?

Great camera for a great price

Falko Schulz on Aug 19,2021

Have to be honest - I have been a bit skeptical about the camera given it's rather low price compared to similar spec'd brands. However, you will be surprised not just about the performance but also about the build-quality. Sealed in a metal frame, it feels solid and indestructible. It comes securely packaged along with all cables and additional spacers. With recent driver updates, you can connect the camera to any software package including any ASCOM compliant client. I tested with SharpCap as well as N.I.N.A - both work great. Together with the SV503 80mm refractor - it produces beautiful and sharp results. Given it's HD resolution you are probably restricted to planetary captures but given it also supports the ST4 auto guider port - it represents a great alternative as guide scope as well. I tested with PHD2 and star detection and tracking work great. Overall - great camera for a great price!! Clear skies everyone.

everything in one box

on Nov 25,2020

I bought the sv305pro as I wanted a guide scope/ imaging camera for my skywatcher startravel 150 and explorer 130 pds... let me tell you it hasn't disappointed... works well with sharpcap and the buffer helps with slower usb connections .... I would recommend this or the sv305 if you don't need the guide features ... its worth the little bit more to have them though.... this astrophotography aid has been a game changer for me and has revitalised the stargazing hobby for me .... Happy imaging and clear sky's... barry

Brand	SVBONY
Model	SV305 Pro
Sensor	1/2.8" CMOS Color
Sensor Model	SONY IMX290
Pixel Size	2.9µmx2.9µm
Resolution	2MPixels(19201080@120FPS)360240@260fps
USB Type	USB3.0
Shutter	Electronic Rolling Shutter
Exposure Time	1ms~30min
Gain	Automatic/Manual
Maximum Frame Rate	120FPS(1920*1080)
ADC	10 bit/12 bit Out 8 bit/12 bit
Filter	IR CUT filter
Support OS	Windows, Linux, Raspberry Pi & Mac OS

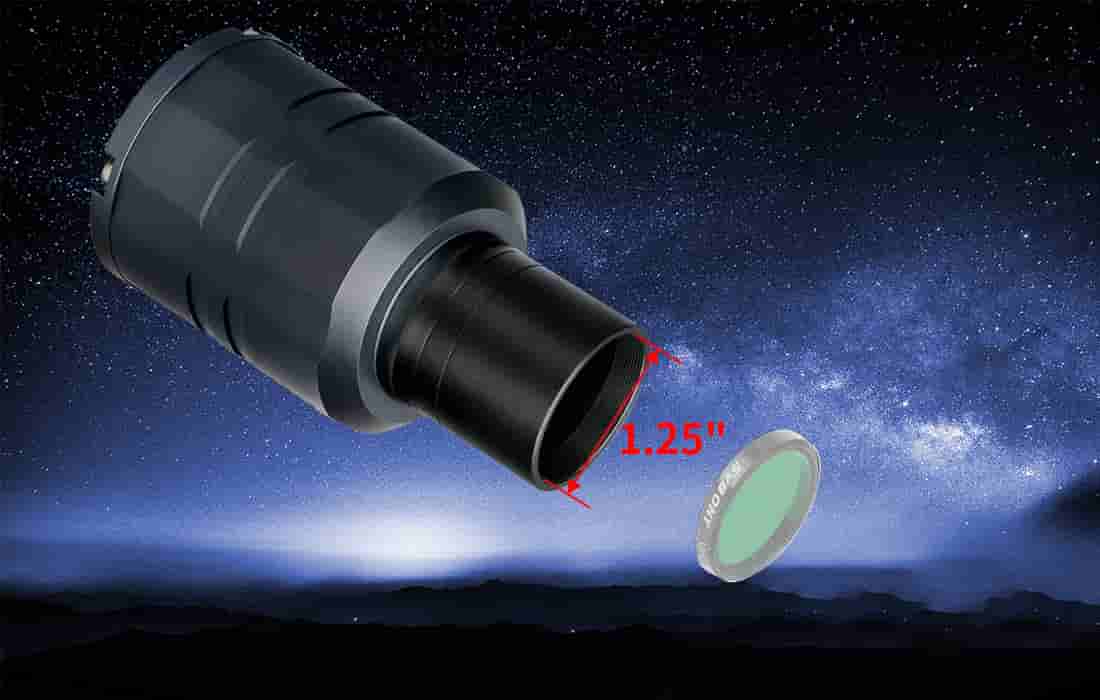

Support Telescope	Telescope with 1.25'' diagonal base hole
Power Consumption	230mA@5V
Cable Length	2m
Working Humidity	30%-80%
Storage Humidity	20%-90%
Operating Temperature	-10°C~50°C
Storage Temperature	-20°C~60°C
Weight	135g
Package LengthWidthHeight	Ø49.565mm

Svbony SV305 Pro works with Windows, Linux, Mac OS and Raspberry Pi system.

>Windows system with Sharpcap software 3.2.6433 and latest version

https://www.sharpcap.co.uk/sharpcap/downloads

>Linux system with AstroDMx capture for Linux & Raspberry Pi, Version 0.78.3 and Latest Version

https://www.astrodmx-capture.org.uk/astrodmx-capture-downloads/

>PHD2 Software for Guiding, Version v2.6.9dev1 and Latest Version

https://openphdguiding.org/downloads/

> Mac OS with AstroDMx capture for Linux (version 0.84.7 )

https://www.astrodmx-capture.org.uk/astrodmx-capture-downloads/

------------------------------------------------------------------------------------------------------

128MB DDR Buffer

The SV305 Pro has a built-in 128MB DDRII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, and the frame will not be lost or corrupted. This buffer also allows a slower computer with USB 3.0 socket to capture every frame without loss even if the USB socket is occasionally busy with other peripherals. This buffer also makes it possible to run multiple cameras using one computer without USB transfer problems.

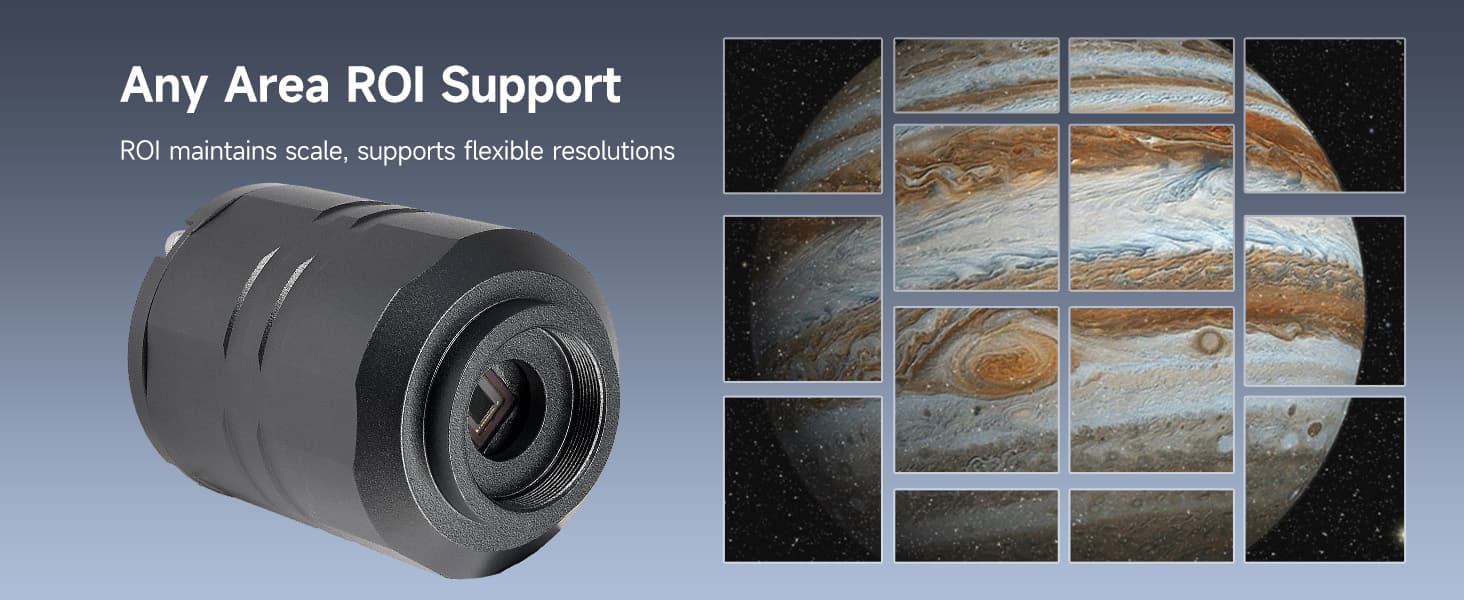

Any Area ROI Support

The SV305 Pro has ROI function. A smaller region of interest (ROI) is read out from the sensor, leaving the image scale of the object being imaged, unchanged. Allow arbitrary resolutions to be set.

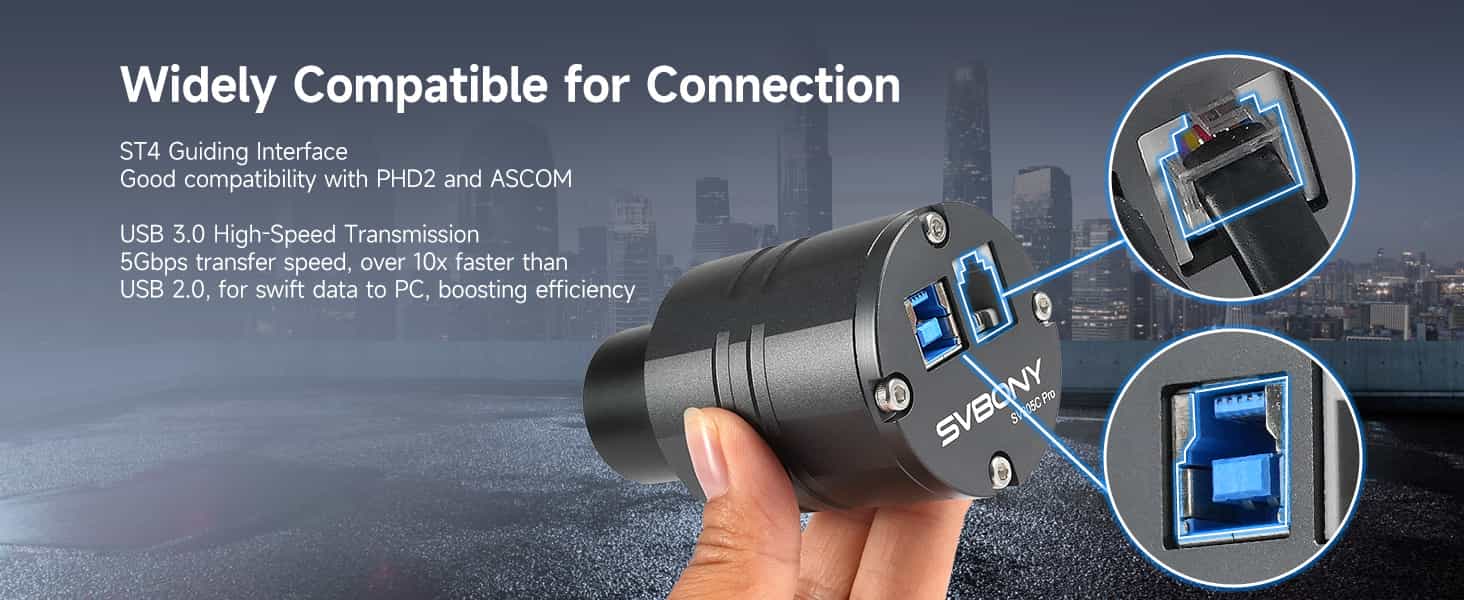

ST4 Guiding

SV305 Pro camera is the first guiding camera of Svbony brand.
It is designed with ST4 guiding port. Supporting the PHD2 software, and works with ASCOM plate form. You can use the computer to control telescope mounts have an autoguiding port that connects directly to the autoguider (usually referred to as an ST-4 port, which works with analog signals).

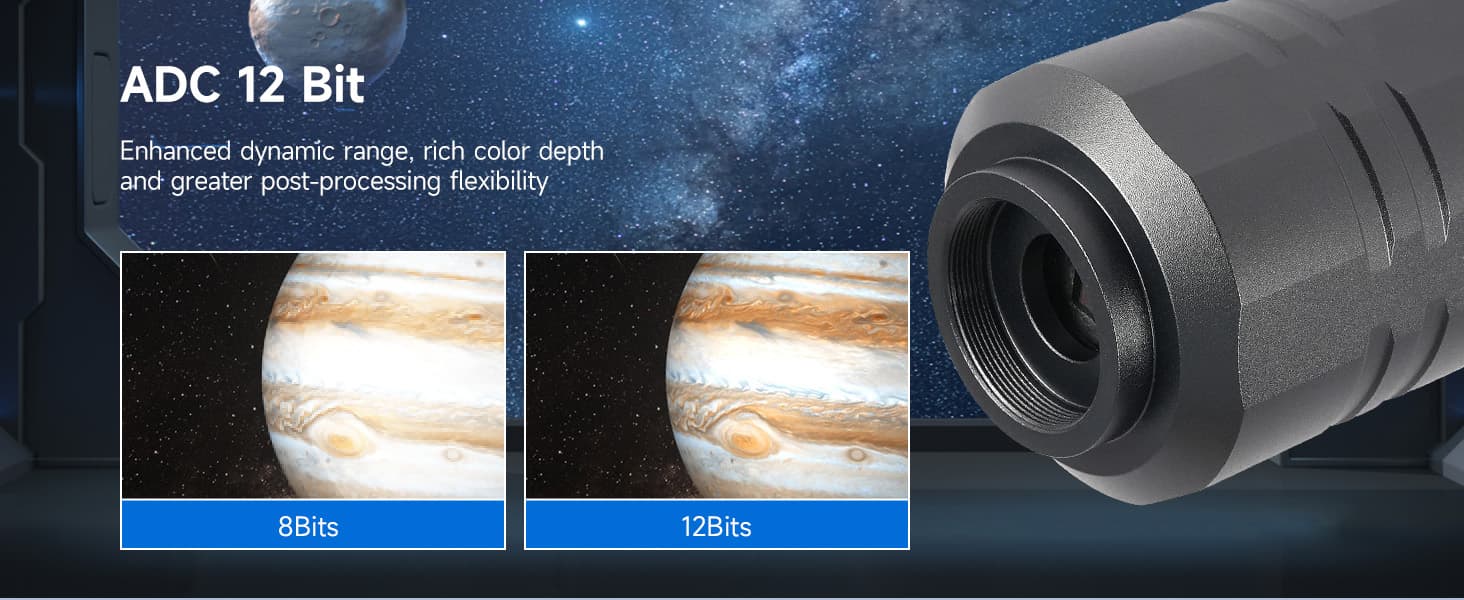

ADC 12bit

The SV305 Pro camera offers 8 bit RAW output or 12 bit.

(Rear focal length:7.5mm)
