SV405CC Cooled Color OSC Camera for Deep Space Astrophotography IMX294
32 | ReviewsOfficial Store Exclusive – Buy now to earn points for a limited time.+66 Points
Key Features
Equipped with the IMX294 color CMOS sensor, the camera offers 4/3 format and delivers true 4K output at 120 frames per second, ensuring sharp, high-resolution images.
With a USB 3.0 interface, the SV405CC supports 5GB bandwidth, enabling 19 fps in raw8 mode and 16 fps in raw16 mode at full resolution (11.7 million pixels) for smooth, high-speed image capture.
The two-stage TEC cooling system lowers the CMOS sensor temperature by 86°F below ambient, reducing dark current and sensor noise, even during long-exposure astrophotography.

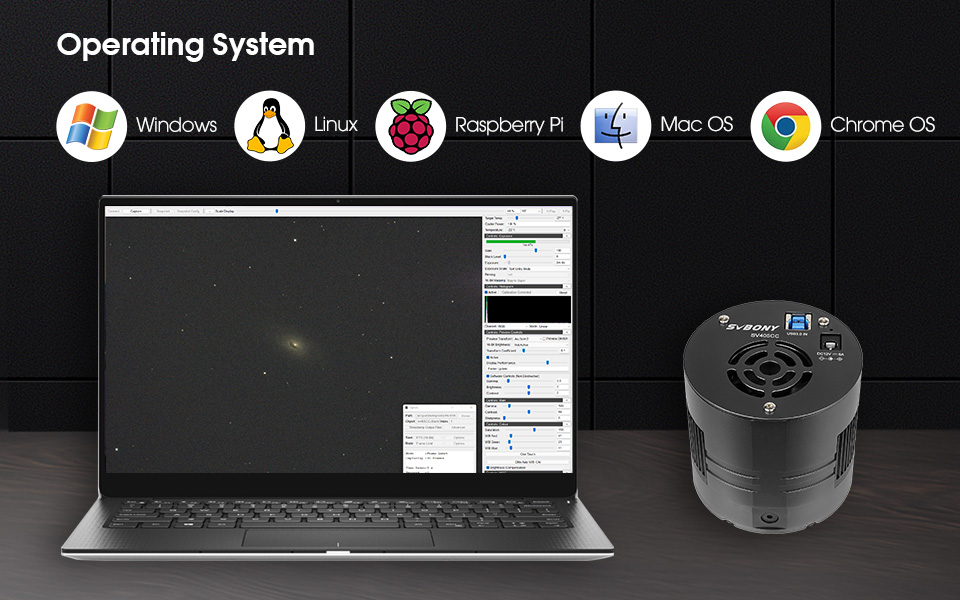

The SV405CC is compatible with Windows, Linux, Mac OS, Chrome OS, and Raspberry Pi, supporting popular software like Sharpcap, N.I.N.A., and TheSkyX through the ASCOM platform. Free shipping and duty-free included!
The SV405CC is perfect for deep-sky astrophotography, capturing stunning images of nebulae, galaxies, star clusters, and multiple star systems with excellent color accuracy and detail.

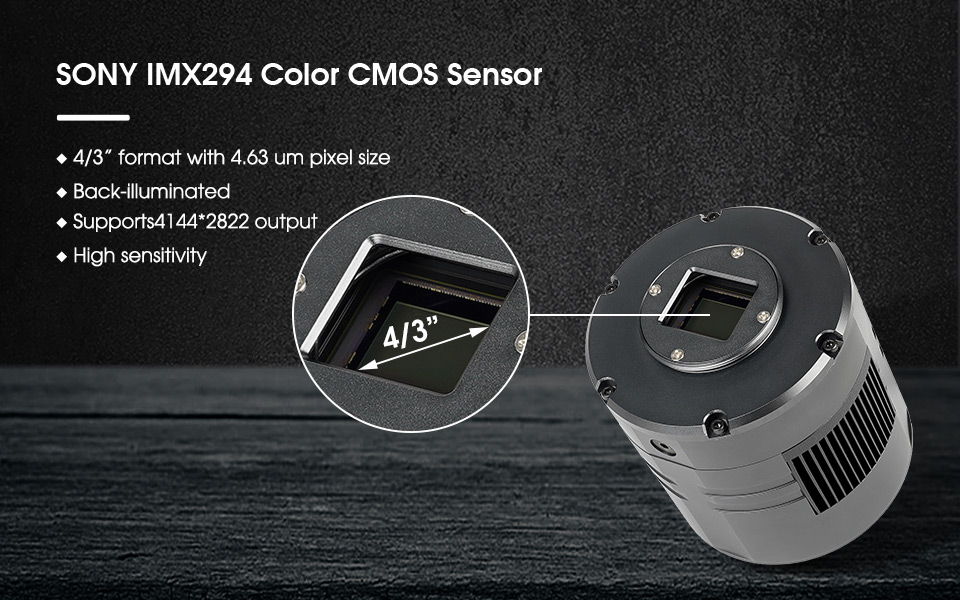

2. High-Resolution IMX294 CMOS Sensor
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
Secure Payments | SSL Encrypted
Fast, Free Shipping
30-Day Money-Back Guarantee
Hassle-Free Warranty | No Hidden Fees
Lifetime Technical & Customer Support
Payment Methods
Payment Methods

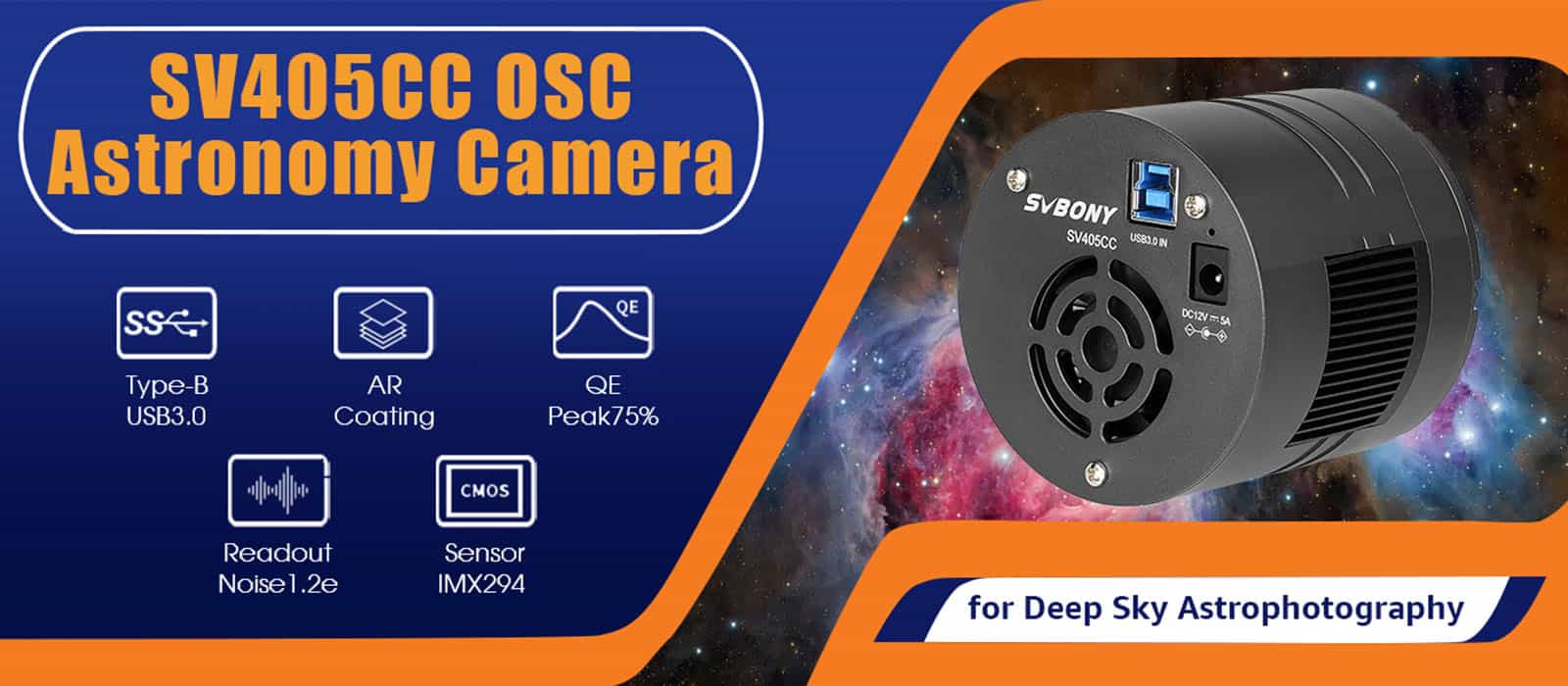

SV405CC OSC Astronomy Camera IMX294 for Deep Sky Astrophotography

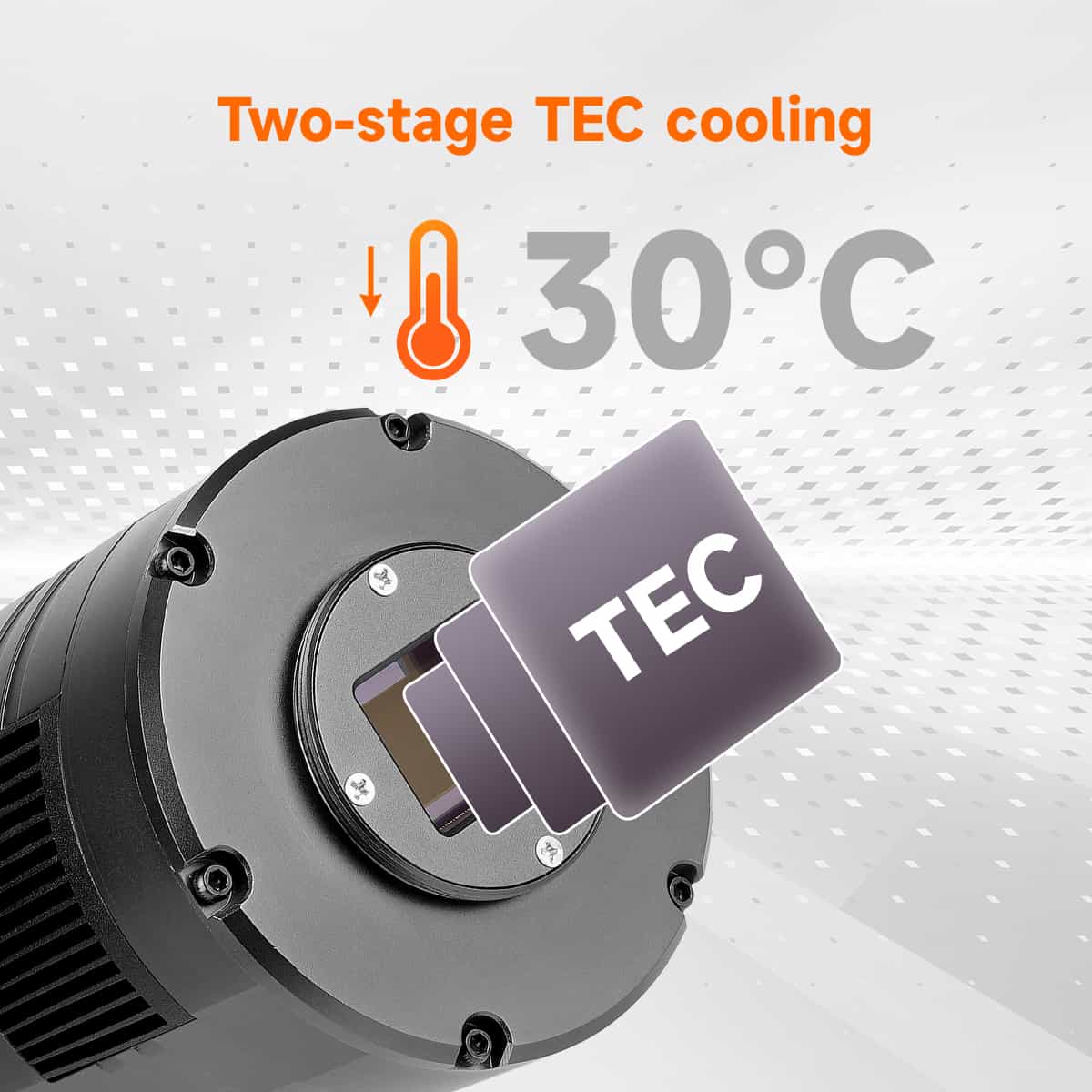

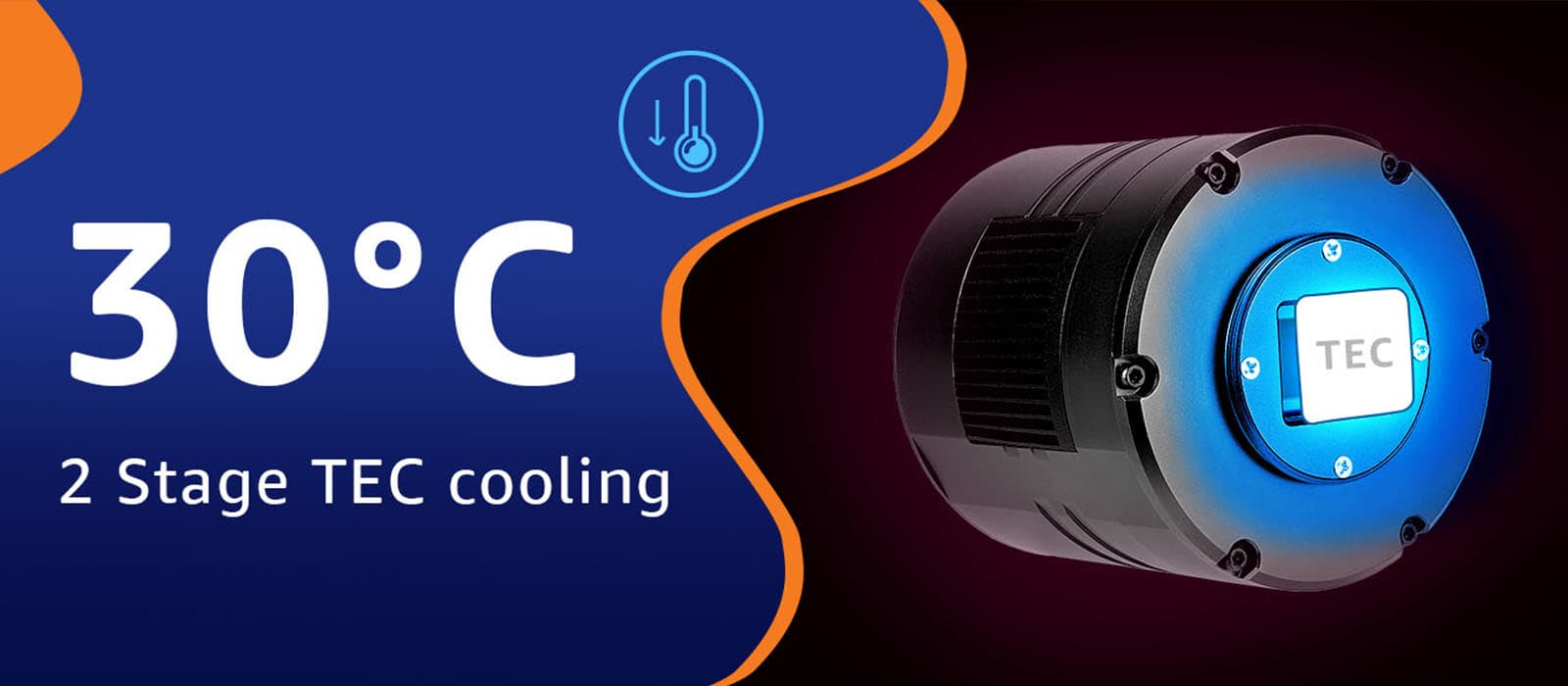

2- Stage TEC Cooling

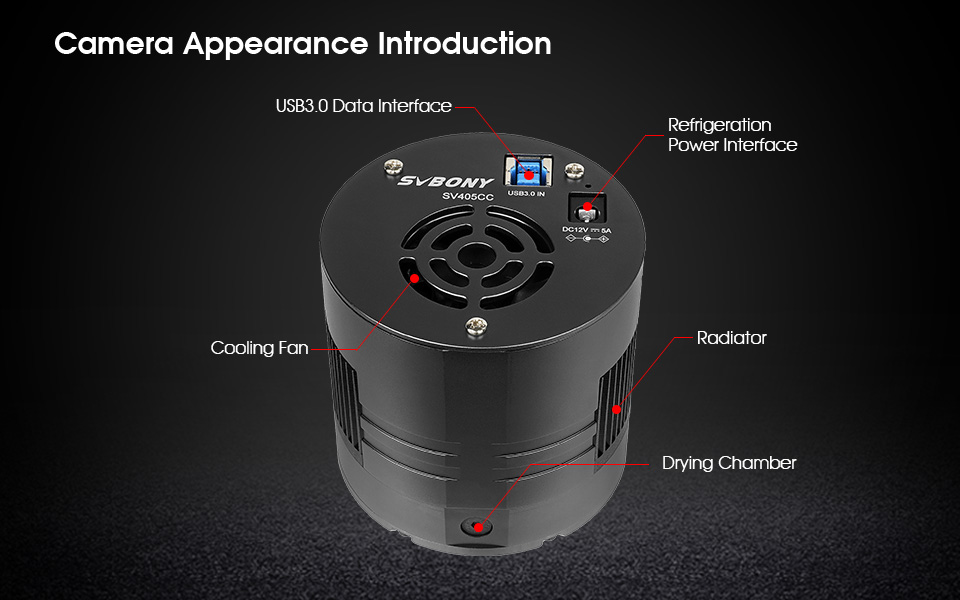

Cooling System: The two-stage TEC cooling, the SV405CC cooled color astronomy camera can lower the CMOS sensor temperature to 30°C Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during longer exposure times.

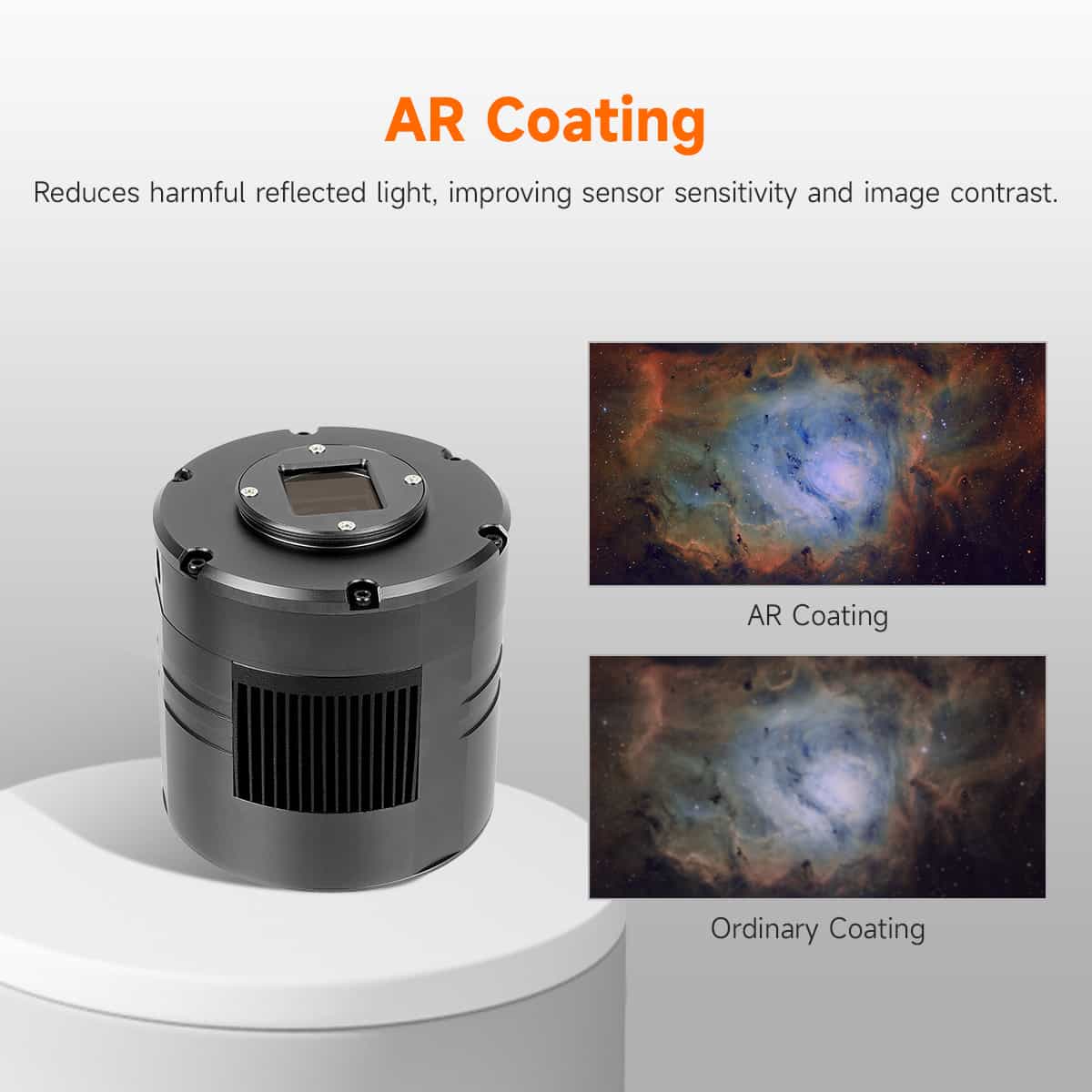

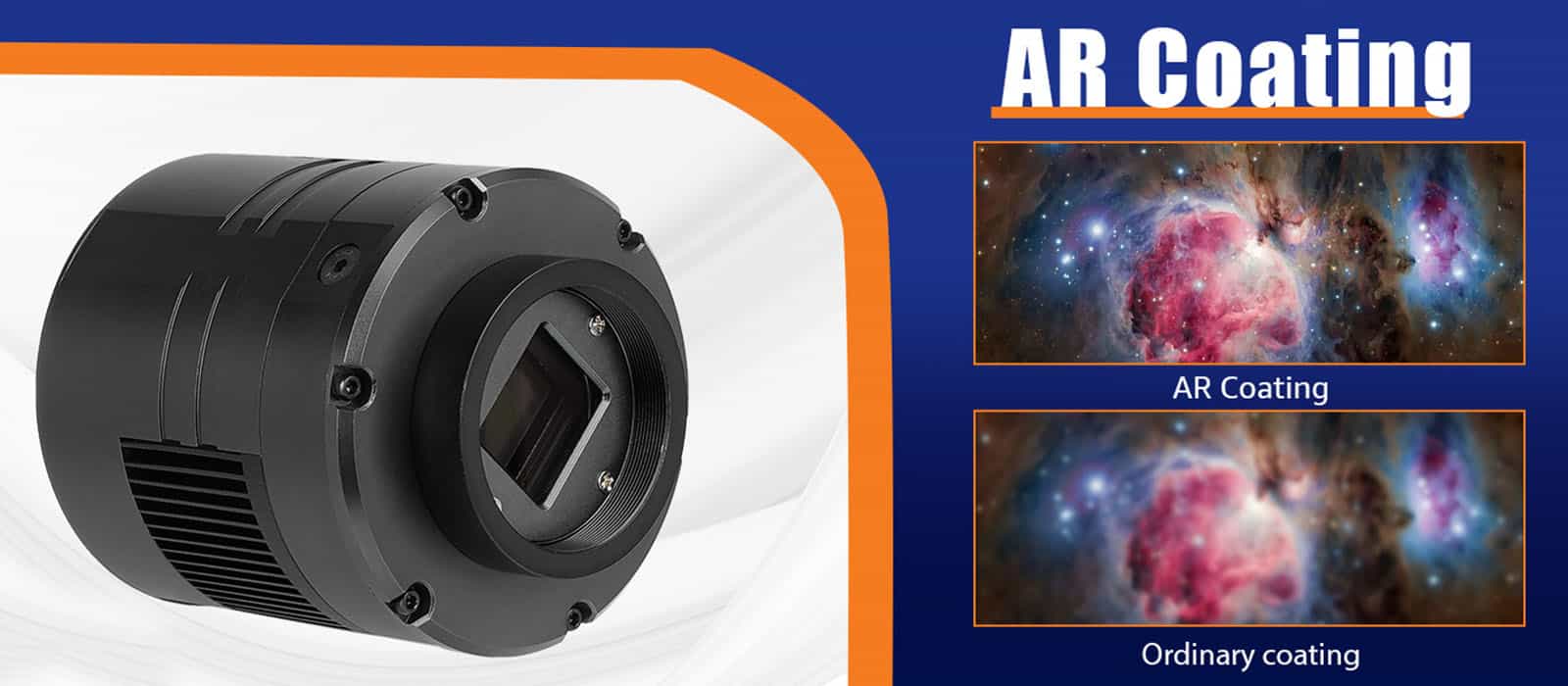

AR Coating
The coating of the protective glass increases the transmittance of the infrared band.

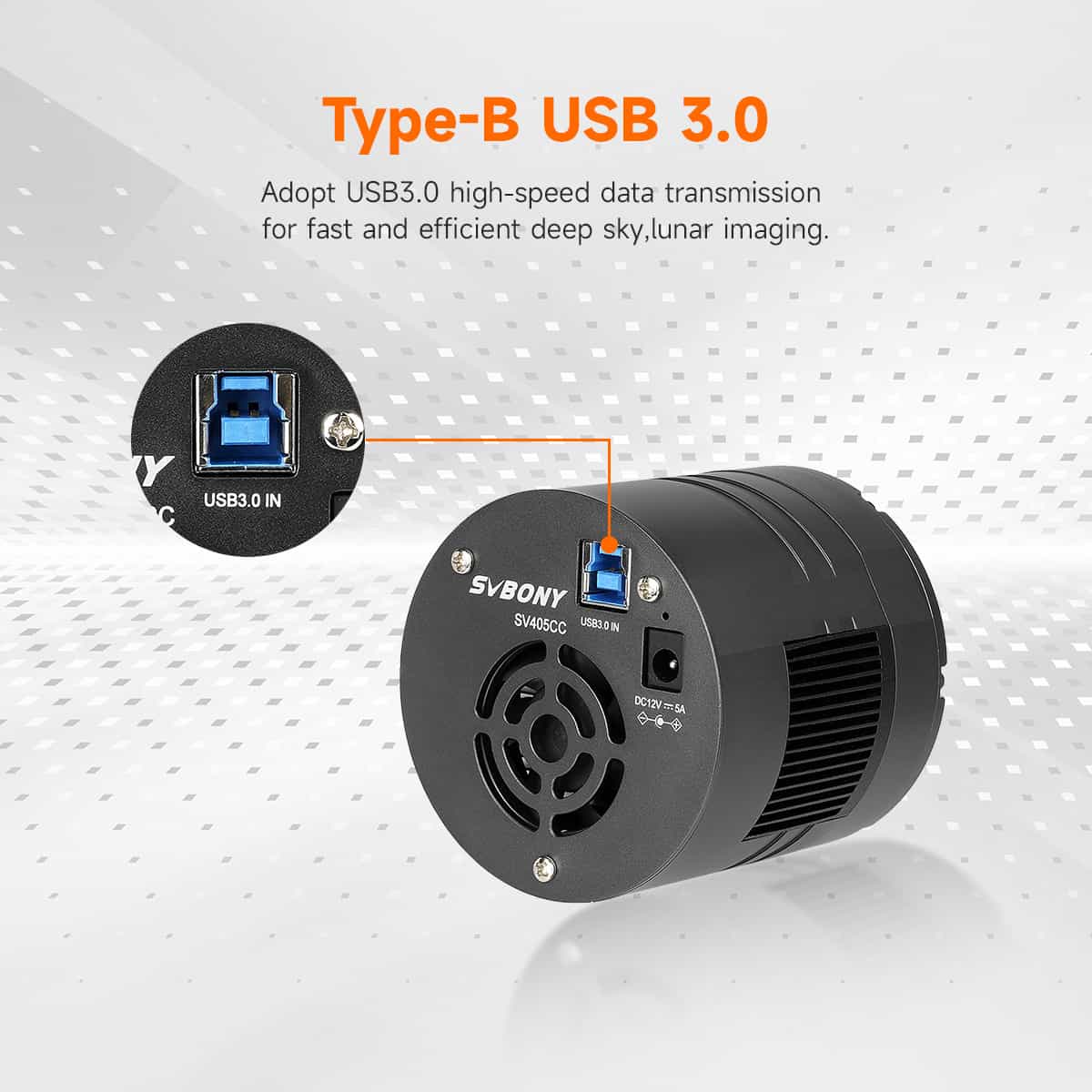

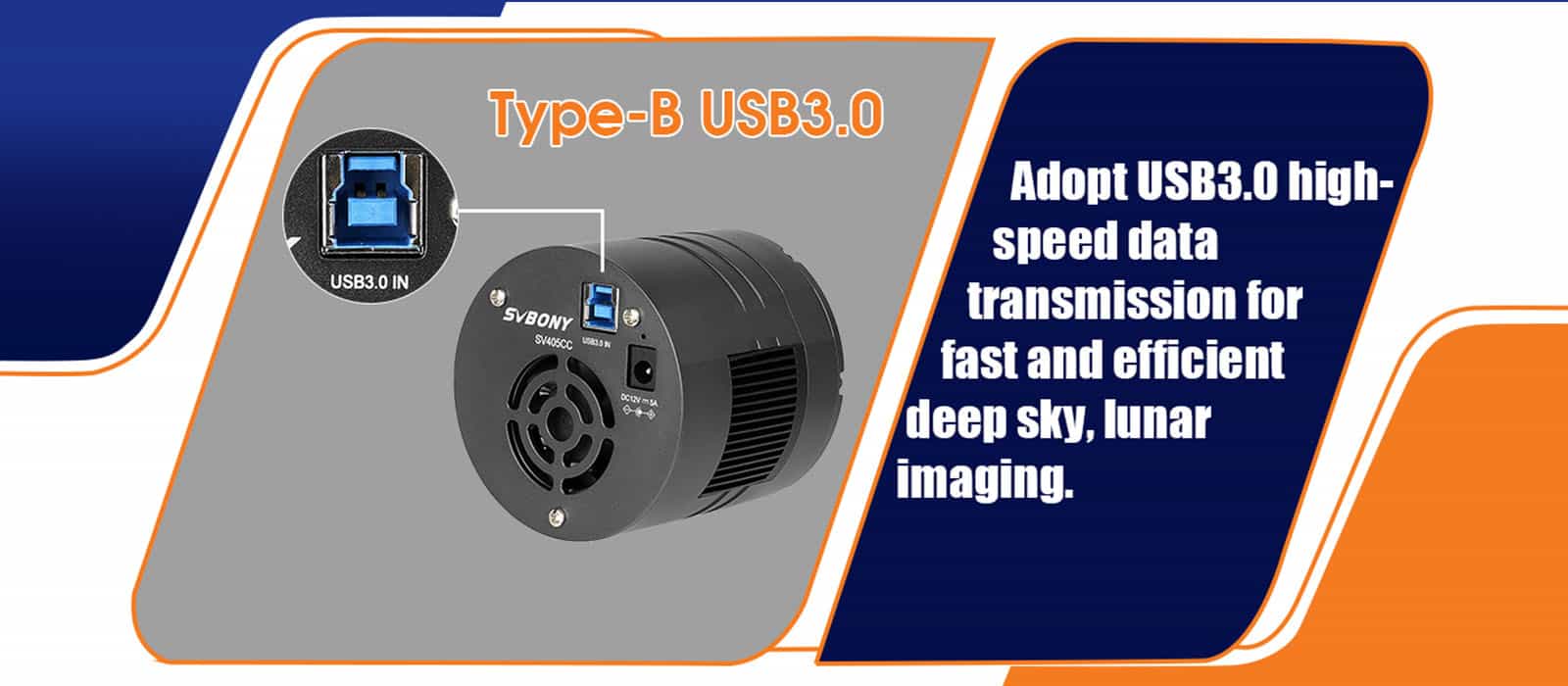

Type-B USB 3.0

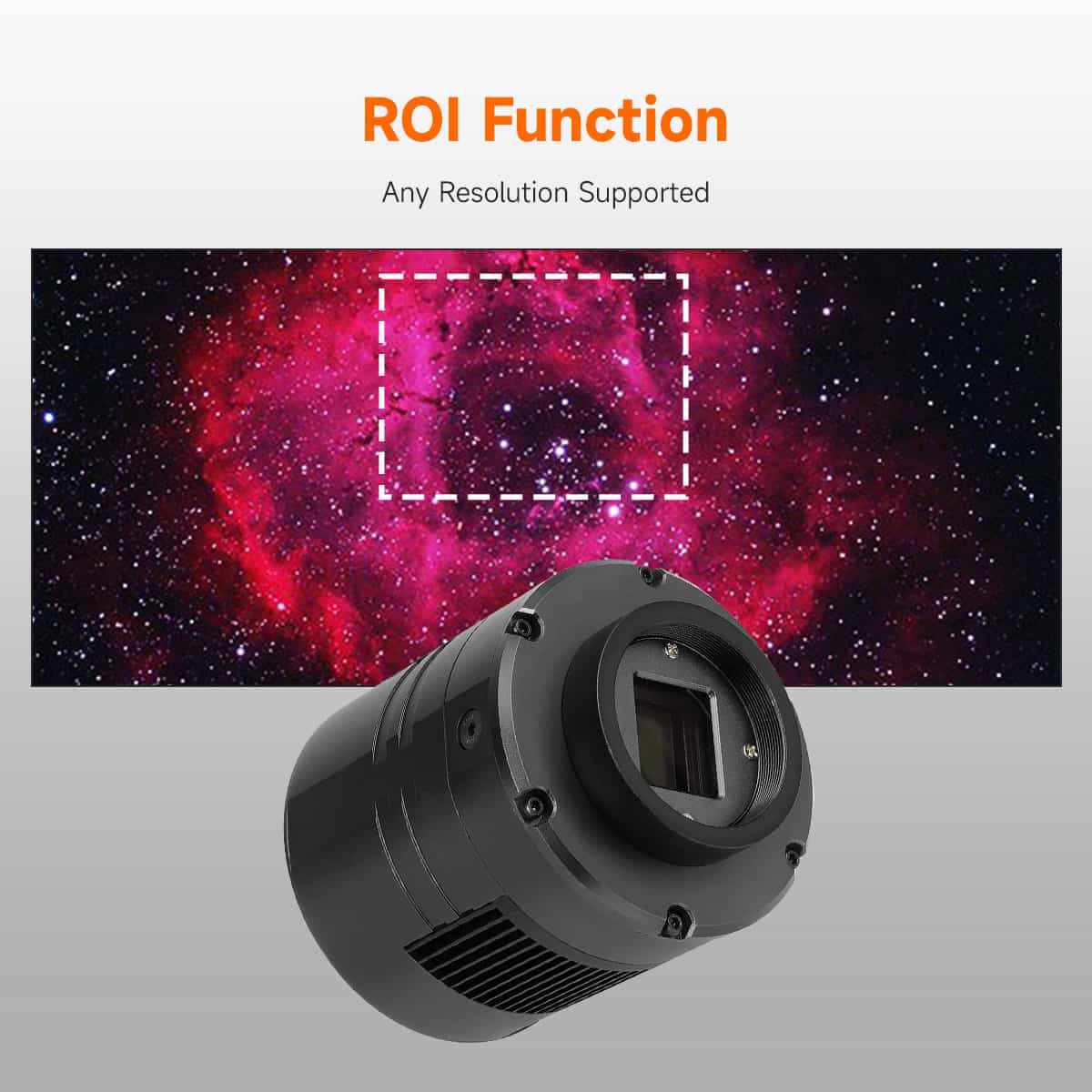

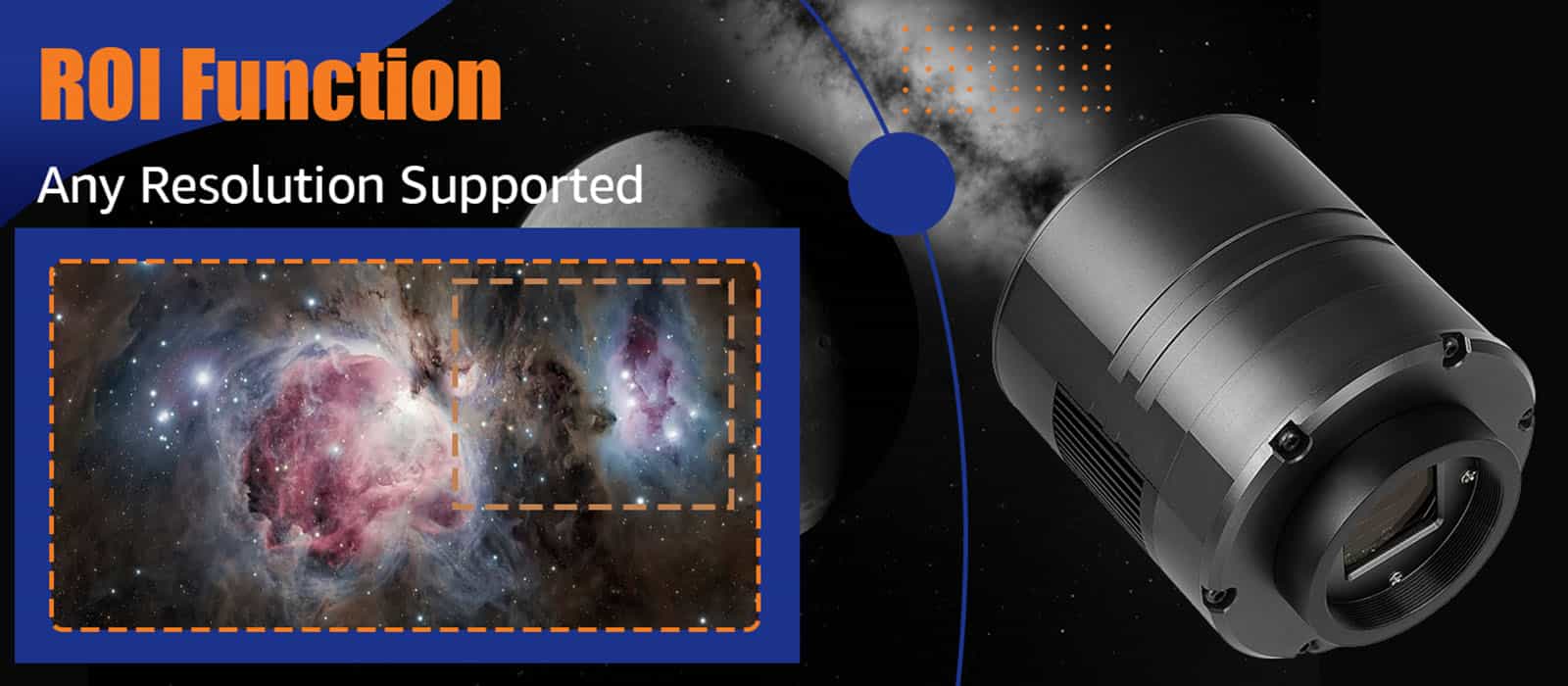

ROI Function - Any Resolution Supported

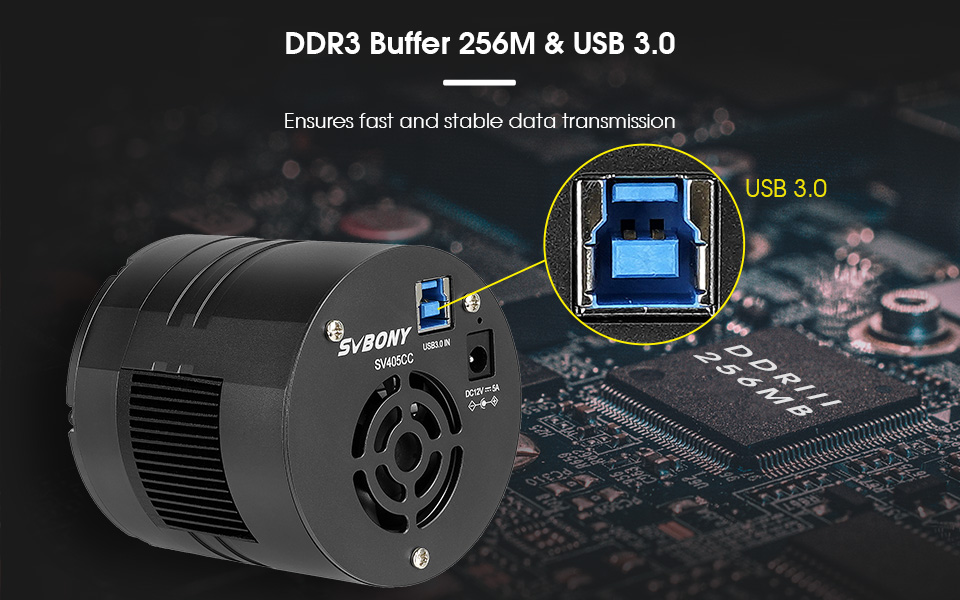

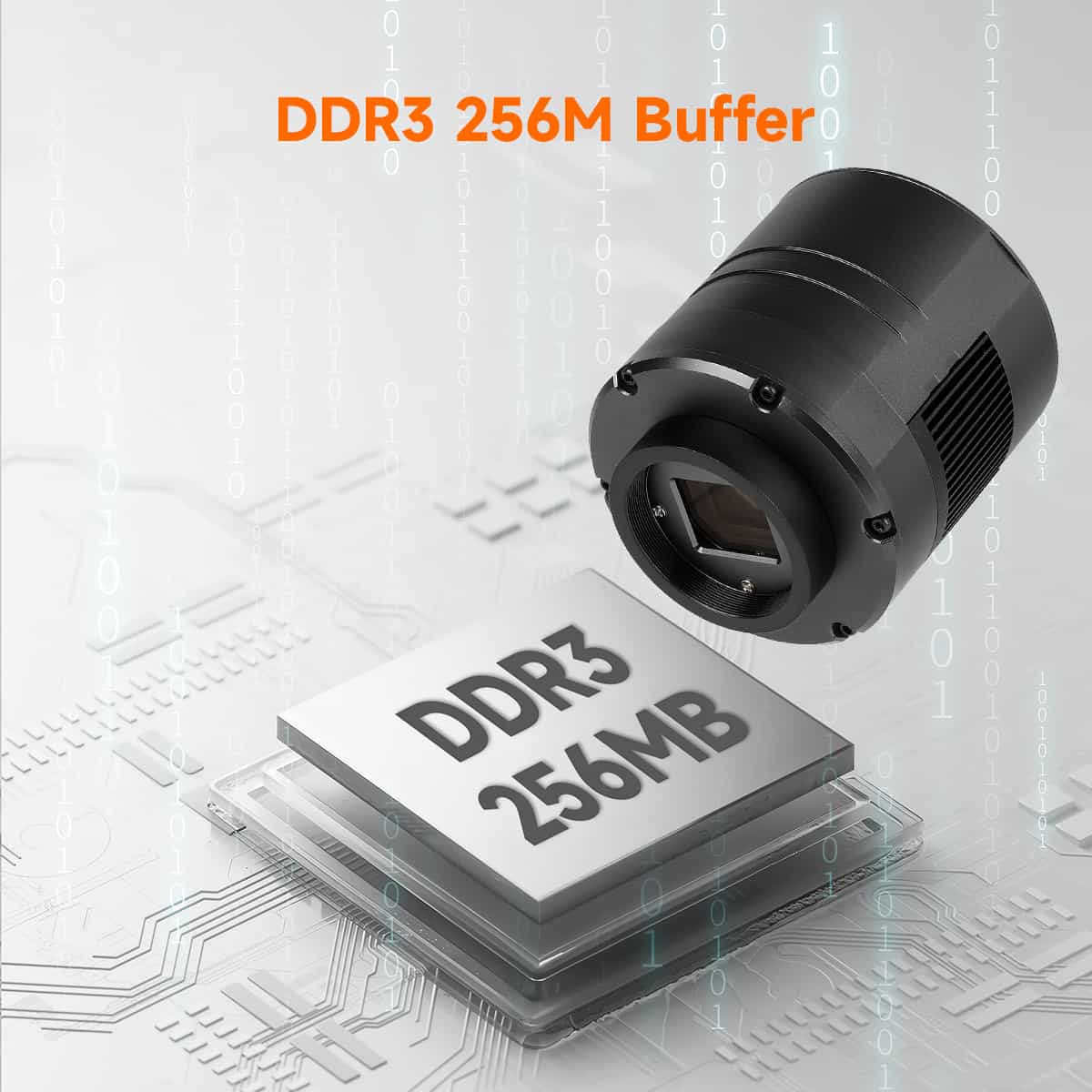

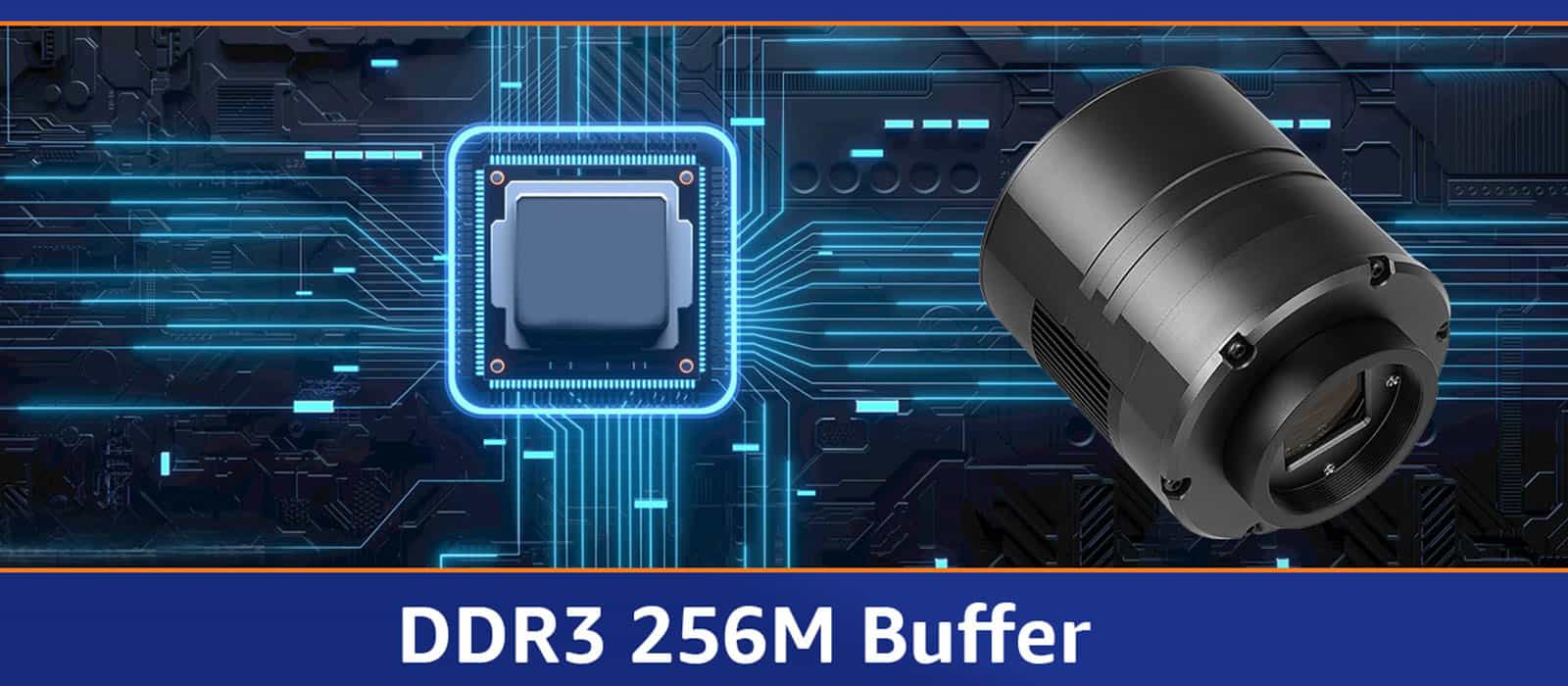

DDR3 256M Buffer

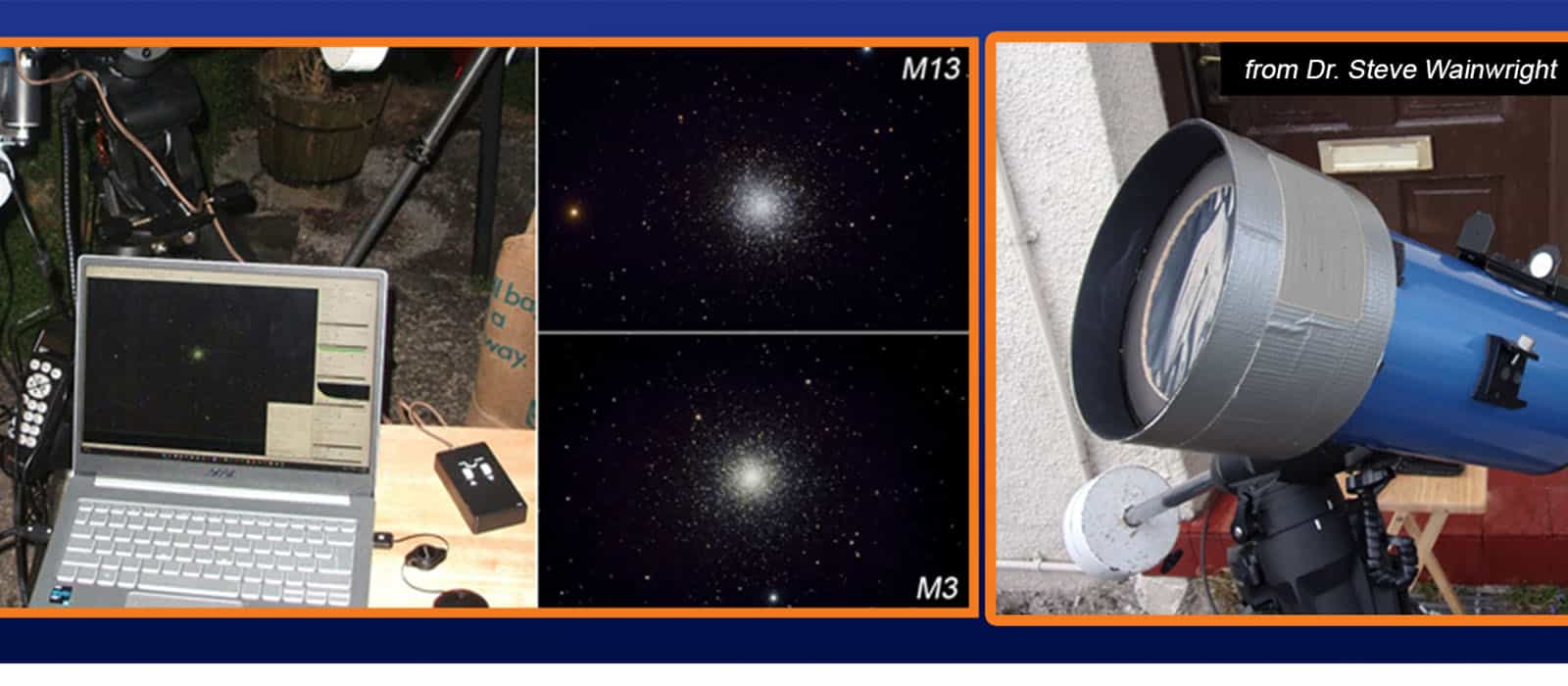

The Image Captured With SV405CC
| SKU | F9198E | F9198F | F9198K | F9387A |
| Model | SV605MC | SV405CC | SV605CC | SC432M |
| Sensor | IMX533 | IMX294 | IMX533 | IMX432 |
| Classification | Monochrome | Color | Color | Monochrome |
| Shutter Type | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter |
| Pixel Size | 3.76μm X 3.76μm | 4.63µm | 3.76μm X 3.76μm | |
| Resolution | 9MP | 11.7MP | 9MP | |
| Diagonal Length | 15.968mm | 23.2mm | 15.968mm | 17.5mm |
| USB Type | USB3.0 | USB3.0 | USB3.0 |

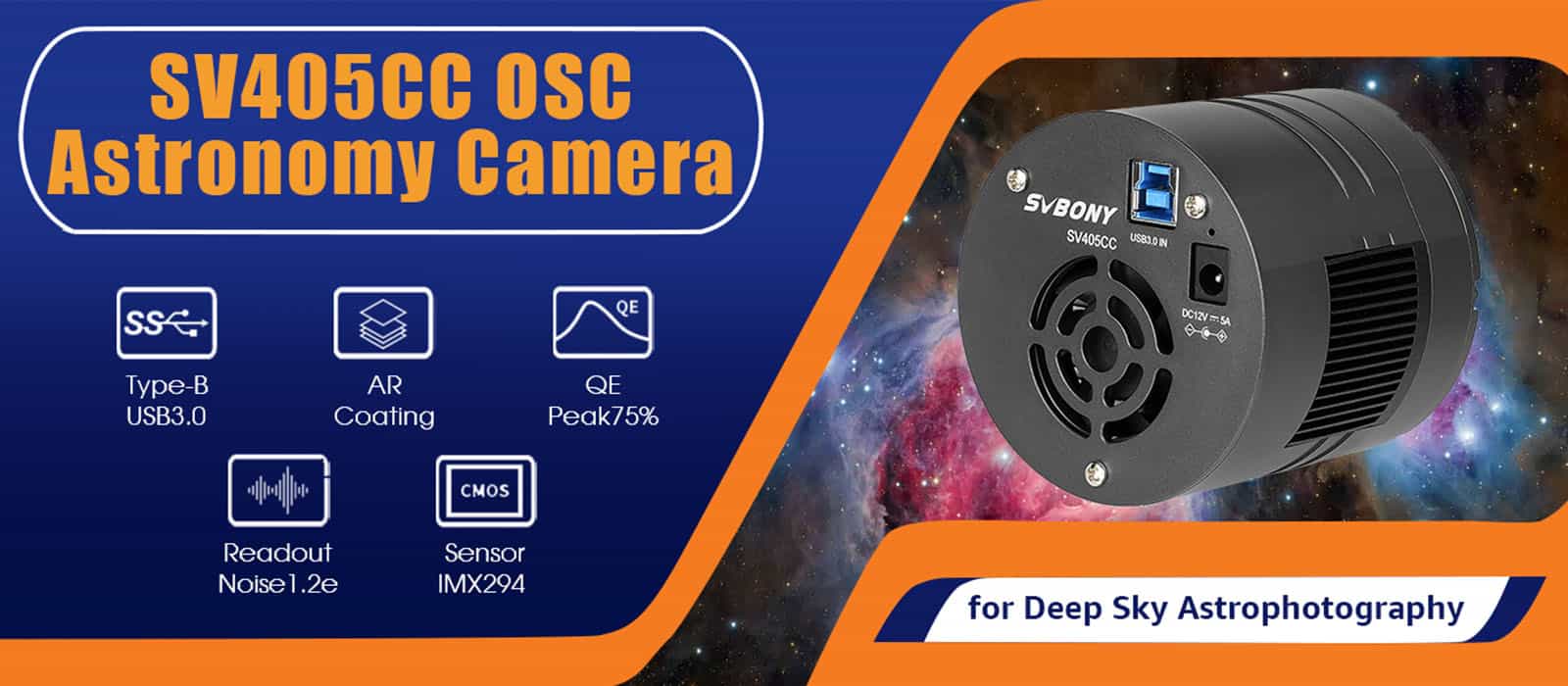

SV405CC OSC Astronomy Camera IMX294 for Deep Sky Astrophotography
2- Stage TEC Cooling
Cooling System: The two-stage TEC cooling, the SV405CC cooled color astronomy camera can lower the CMOS sensor temperature to 30°C Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during longer exposure times.
AR Coating
The coating of the protective glass increases the transmittance of the infrared band.
Type-B USB 3.0
ROI Function - Any Resolution Supported
DDR3 256M Buffer
The Image Captured With SV405CC
| SKU | F9198E | F9198F | F9198K | F9387A |
| Model | SV605MC | SV405CC | SV605CC | SC432M |
| Sensor | IMX533 | IMX294 | IMX533 | IMX432 |
| Classification | Monochrome | Color | Color | Monochrome |
| Shutter Type | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter |
| Pixel Size | 3.76μm X 3.76μm | 4.63µm | 3.76μm X 3.76μm | |
| Resolution | 9MP | 11.7MP | 9MP | |
| Diagonal Length | 15.968mm | 23.2mm | 15.968mm | 17.5mm |
| USB Type | USB3.0 | USB3.0 | USB3.0 |
Realistic works captured with this device
5
Customer Reviews
All Reviews
Loading...
| Model | SV405CC |
| Sensor | IMX294 |
| CMOS Image Resolution | 4144*2822 |
| Total Pixels | 11.7 megapixel |
| Pixel Size | 4.63µm |
| Target Size | 19.2mm*13mm |
| Diagonal | 23.2mm |
| Maximum Frame Rate | 19FPS |
| Shutter Type | Rolling Shutter |
| USB Type | Type-B USB 3.0 |
| DDRIII Buffer | DDR3 256M |
| Exposure | 0.05ms-2000s |

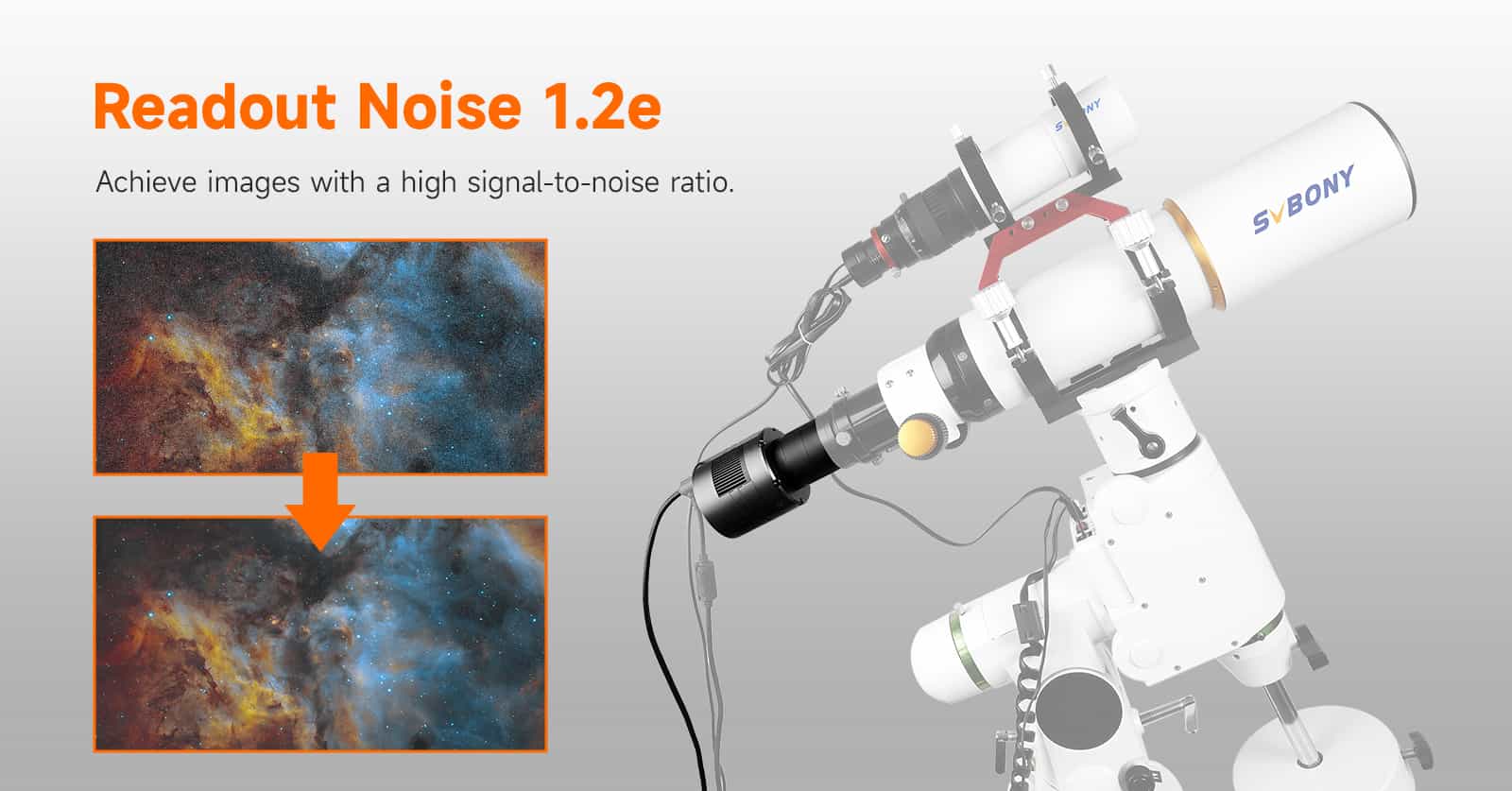

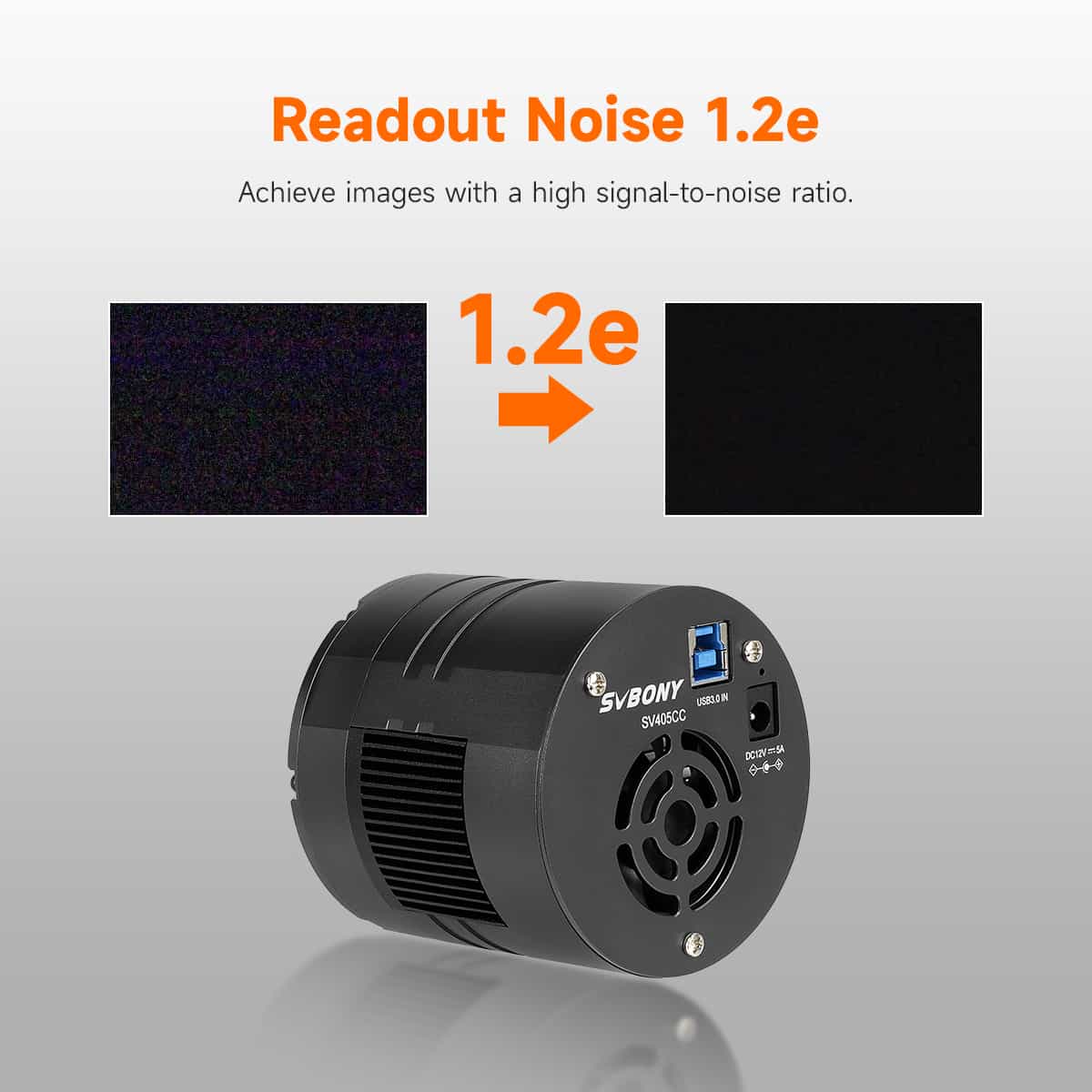

| Readout Noise | 1.2e |

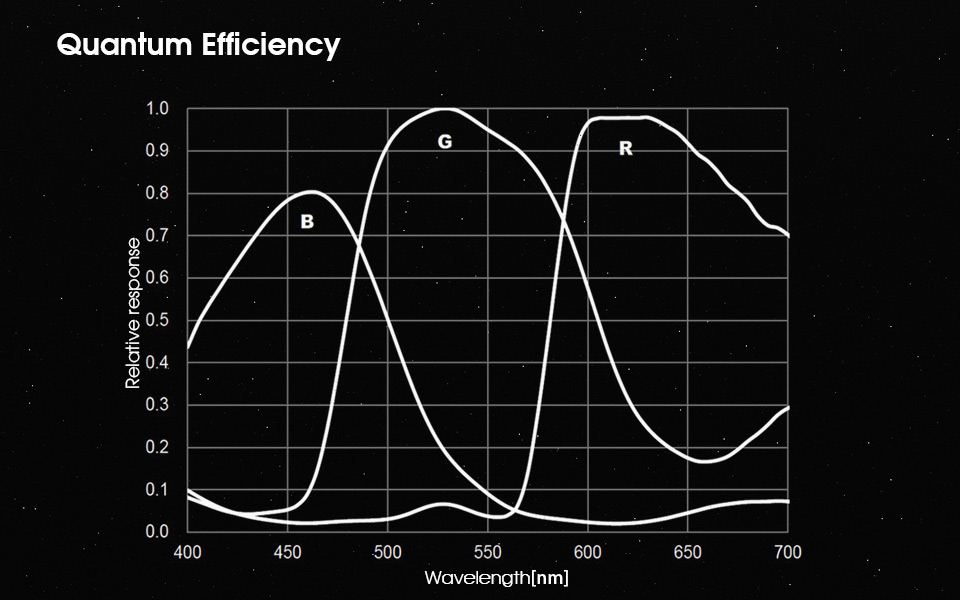

| QE Peak | 0.75 |
| Full Well | 63ke |
| ADC | 14bit |
Features
- 1. Back-illuminated sensor – improving sensitivity and reducing noise. Excellent micro-4/3 CMOS sensor with 4144x2822 (11.7 megapixel) resolution to capture fine details in astronomical objects.
- 2. With ADC 10-bit output mode, the SV405CC can run up to 19fps at 4k format when used with USB 3.0

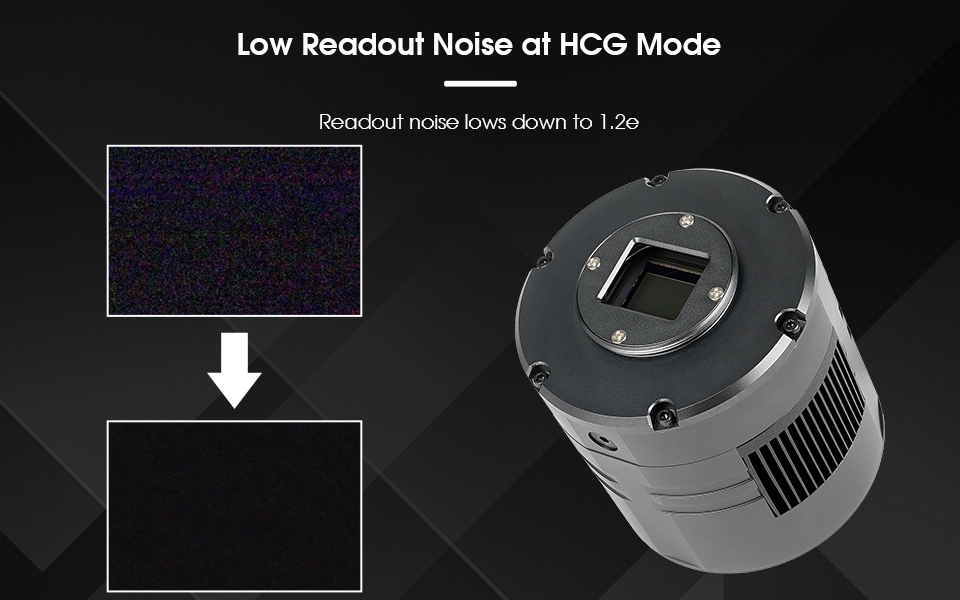

- 3. HCG mode--When set the gain at 120 or higher, the HCG mode is automatically enabled, and reduce the read noise to even lover levels without loss the dynamic range.
- 4. Exceptuinal low-illumination performance of SNR1s：0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 4.63um.
- 5. With AR coating, SV405CC can be obtained by shooting visible light with an IR CUT filter; infrared shooting with different filters, such as IR685, IR850.
The Real Shot Image by SV405CC Astronomy Camera

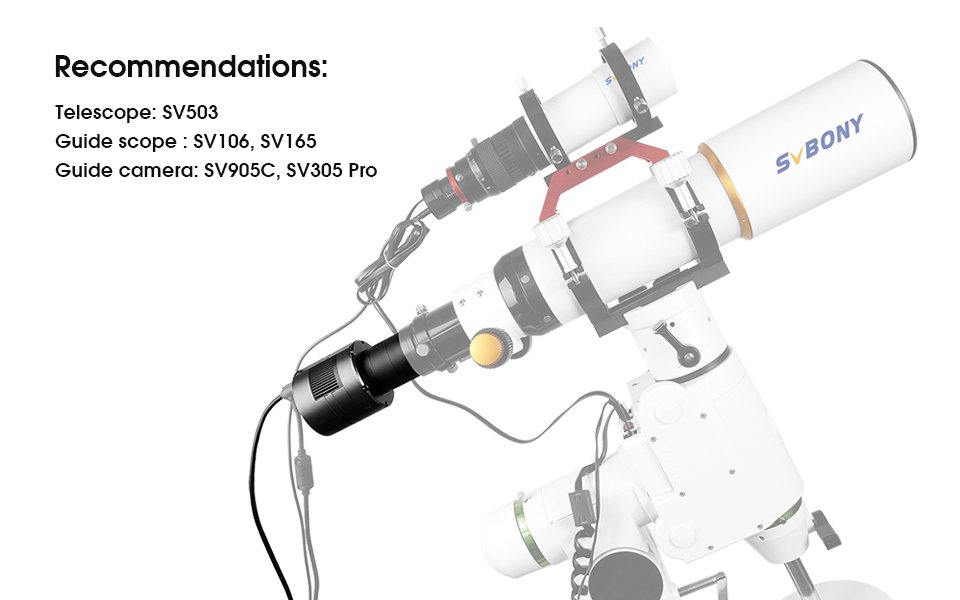

The Bundle Set of Telescopes with SV405CC by Our Clients
The Unboxing of SV405CC Astronomy Camera by Our Clients

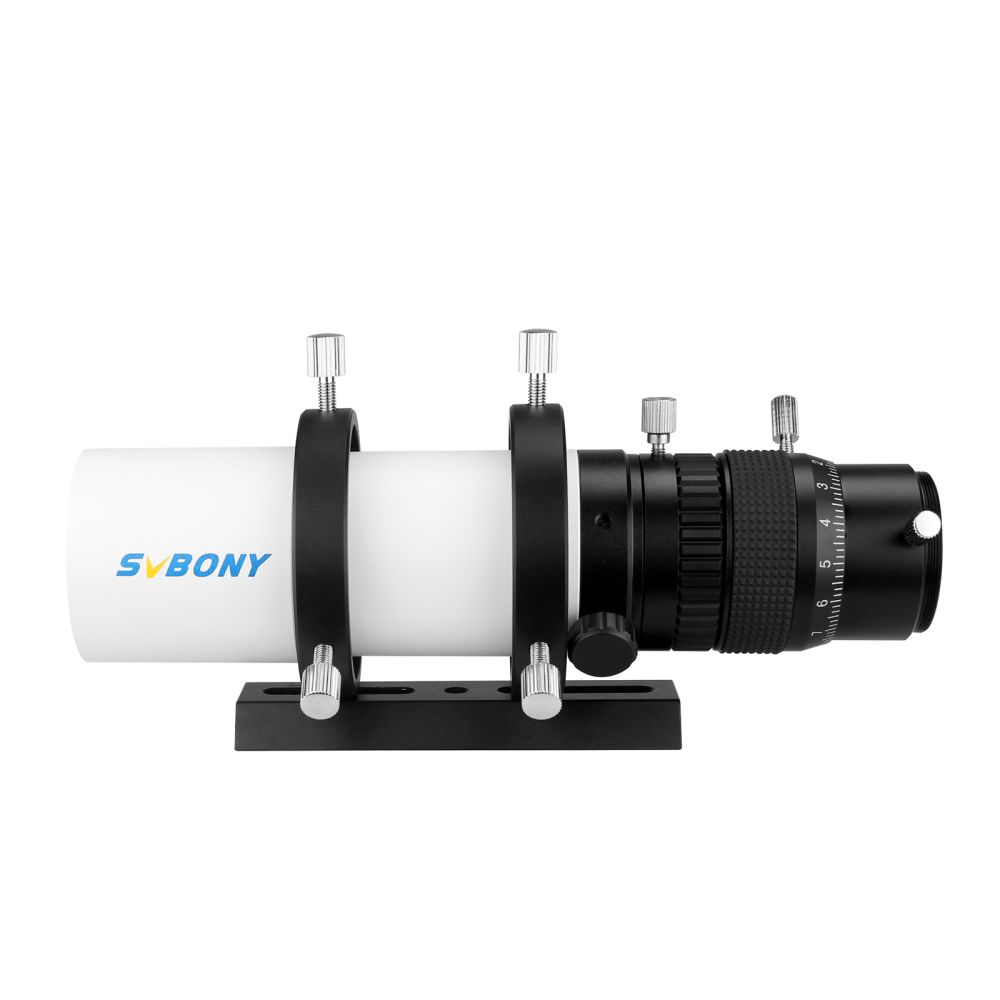

Related Products
