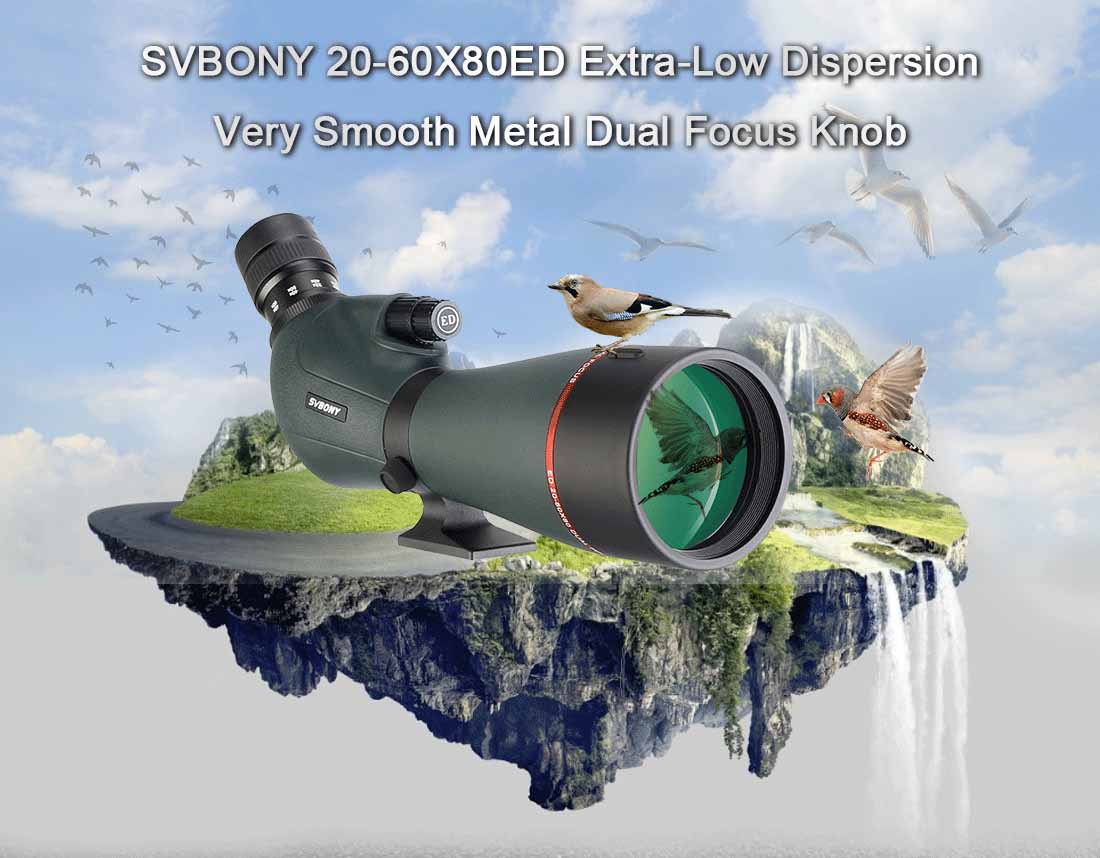

- SV406P 20-60X80 Angled ED Extra-Low Dispersion Dual Focus Spotting scope for Bird Watching is designed with extra-low dispersion glass to maintain color authenticity;
- Dual focus makes you to focus more precisely and give you the most perfect experience;
- BAK4 prism and FMC (Fully Multi-Coated) optics, increasing light transmission through the optical path to deliver sharp, crisp and high contrast images;
- Nitrogen-filled, completely waterproof and fogproof;
- You could enjoy hunting, bird watching interest even in wet weather. It is suitable for nature lovers and birdwatchers.
Learn more about how to connect SV406P with 1.25-inch astronomical eyepieces
Special offers and product promotions
Very good!
Sharp image, well worth the price.
Specifications
Model | SV406P |
Power | 20x-60x |
Objective Diameter | 80mm |
Objective Material | Extra-Low Dispersion Glass |
Focal Length | 430mm |
Objective Lens structure | 3-Elements / 3Groups |
Eyepiece Diameter | 24mm |
Barrel Size of Eyepiece | 1.25inch |
Zoom Eyepiece Lens structure | 7-Elements / 4Groups |
Type of Prism | BaK-4 |
Prism Coating | FMC |
Lens PCS/Groups | 10Pieces / 7Groups |
Real Field of Angle (Degree) | 2.1°- 1.1° |
Apparent Field of View | 42°- 66° |
Field of View (ft/1000yds) | 108ft - 60ft |
Field of View (m/1000m) | 36m – 20m |
Resolution (") | 2.0" |
Near Focus | 18ft / 5.5m |
Relative Brightness | 16@20x / 1.69@60x |
Exit Pupil (mm) | 4mm-1.33mm |
Eye Relief (mm) | 20mm-18mm |
Lens Coating | Fully Multi Coated |
Focus System | Dual Focus Mechanism |
Focus Type | Internal Porro Prism |
Nitrogen Filled | Yes |
Water Proof | IPX7 |
Nitrogen Filled | Yes |
Eye Cup Type | Twist-up |
Net Weight | 1625g / 3.58lb / 57.32oz |
Dimension | 405x180x120mm |
The Parameter Comparison of SV406P and SA405 Spotting Scope
Model | SV406P | SA405 | SA405 |
SKU | F9355B | F9383A | F9383B |
Magnification | 20x-60x | 20-60X | 20-60X |
Objective Diameter | 80mm | 85mm | 85mm |
Objective Material | Extra-Low Dispersion Glass | Extra-Low Dispersion Glass | High Definition Glass |
Focal Length | 430mm | 482.6mm | 482.6mm |
Eyepiece Diameter | 24mm | 28mm | 28mm |
Objective Lens structure | 3-Elements / 3Groups | 3-Elements /2Groups | 2-Elements /2Groups |
Zoom Eyepiece Lens structure | 10pieces/7group | 7pieces/4group | 7pieces/4group |
Prism Coating | FMC | FMC | FMC |
Barrel Size of Eyepiece | 1.25inch | 1.25inch | 1.25inch |
Real Field of Angle (Degree) | 2.1°-1.1° | 1.92°- 0.93° | 1.92°- 0.93° |
Field of View (ft/1000yds) | 108ft-60ft@1000yds | 102-48ft@1000yds | 102-48ft@1000yds |
Near Focus | 18ft / 5.5m | 12m | 12m |
Exit Pupil (mm) | 4mm-1.33mm | 4-1.35mm | 4-1.35mm |
Eye Relief (mm) | 20mm-18mm | 19.5-18mm | 19.5-18mm |
Lens Coating | Fully multi-coated | Fully multi-coated | Fully multi-coated |
Focus System | Dual Focus Mechanism | Helical Focus Wheel | Helical Focus Wheel |
Nitrogen Filled | Yes | Yes | Yes |
Waterproof | IPX7 | IPX6 | IPX6 |
Eye Cup Type | Twist-up | Twist-up | Twist-up |
Dimension | 405x180x120mm | 430x103x173mm | 430x103x173mm |
Armor material | Rubber | Rubber | Rubber |
Field of View (m/1000m) | 36m – 20m | 34m -16m | 34m -16m |
Resolution (") | 2.0" | ||
Relative Brightness | 16@20x / 1.69@60x | ||
Apparent Field of View | 42°- 66° | 45° | 45° |
Type of Prism | BaK-4 | K9 | K9 |
Color | Army Green | Army Green | Army Green |
Net Weight | 1625g / 3.58lb / 57.32oz | 2100g | 2020g |
1.First Svbony ED Spotting Scope, which has Extra-Low Dispersion to maintain color authenticity.
2.Its eyepiece is removable and can be replaced with a 1.25-inch astronomical eyepiece.
3.Dual focus makes you to focus more precisely and give you the most perfect experience.
4.It is nitrogen-filled, completely waterproof and fogproof. You could enjoy hunting, bird watching interest even in wet weather.
5.BAK4 prism and FMC (Fully Multi-Coated) optics, increasing light transmission through the optical path to deliver crisp, high contrast images
6.It has a 80mm caliber to give you a clear and bright field of vision.
