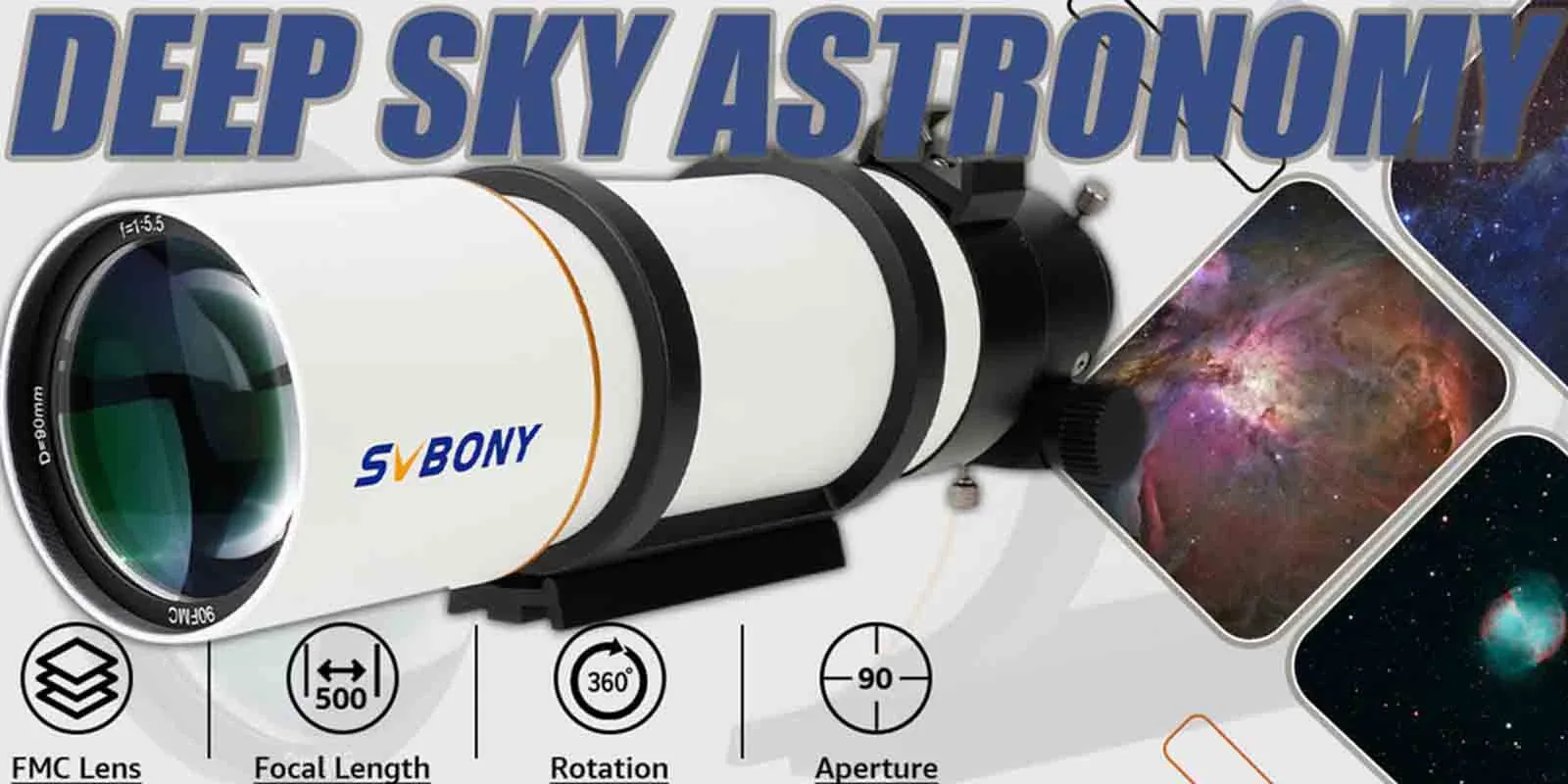

This SV48P Refractor OTA 90mm F5.5 Telescope Set includes SV48P refractor OTA, SV182 finder scope, SV188 diagonal, SV170 eyepiece and a SA402 tripod, which is suitable for Visual Astronomy.
In Stock
Specifications
| Brand | SVBONY | Model | SV188 | |
| SKU | F9341A | SKU | F9171A | |
| Model | SV48P | Connection eyepiece | 1.25" | |
| Aperture | 90mm | Connecting telescopic | 1.25" & 2" (2" need adapter) | |
| Optic Coated | FMC | Clamp | 1 screw | |
| Objective Lens | Doublet air spaced achromatic design | Reflectivity | 0.9 | |
| Focal Length | 500mm | Housing material | Metal | |
| Focal Ratio | F/5.5 | Suitable for | Refractors | |
| Eyepiece Barrel Diameter | 2-inch (1.25-inch adapter) | Not suitable for | Newtonians | |
| Focuser | 2-inch RAP Double-speed Focuser | |||
| Net Body Weight | 2730g / 96.3oz | |||
| Packing | 490*215*230mm |
| Model | SV170 | Brand | SVBONY | |
| SKU | W9130A | SKU | W9141B | |
| Focal Length | 10-30mm | Model | SV182 | |
| Eye Relief | 17-18.5mm | Lens Diameter | 30mm | |
| Apparent Field of View | 33°-51° | Focal Length | 120mm | |
| Barrel Size | 1.25inch | Magnification | 6x | |
| Lens Structure | 5 -Elements/-3Groups | Eye Relief | 15mm | |
| Filter Threads Standard | 1.25" (M28.5 x 0.6) | Exit Pupil | 5mm | |
| Coatings | Fully Multi-Coated | Field of View | 7.5° | |
| Blackened Lens Edges | Yes | Lens coating | FMC | |
| Barrel Safety Recess | Yes | Image Orientation | Correct-image | |
| Eyecups | Twist-Up | Reticle | Single crosshair | |
| Eyecups Material | Metal | Adjustment System | Spring-loaded X-Y | |
| Objective | Achromatic 2-Element | |||
| IIIuminated | No | |||
| Adjustable focus | Yes | |||
| Viewing angle | 90 Degree | |||
| Net Weight | 295g / 0.651b / 10.41oz |
| Model | SA402 |
| SKU | W9159A |
| Installation interface | UNC 1/4" Screw |
| Max length | 164cm / 64.56in |
| Folded Length | 70cm / 27.56in |
| Max. Tube width | 30mm / 11.81in |
| Spirit Level | 1pcs |
| Leg Section | 3 |
| Max Loading Capacity | 6kg/13.2Ib |
| Material | Aluminum Alloy & ABS |
| Net weight | 2200g / 4.85lb |
| Package Size | 715x130x130cm |
| Four-level Expansion | 153CM |
| Axis Expansion | 189CM |
