Photography Set Includes:

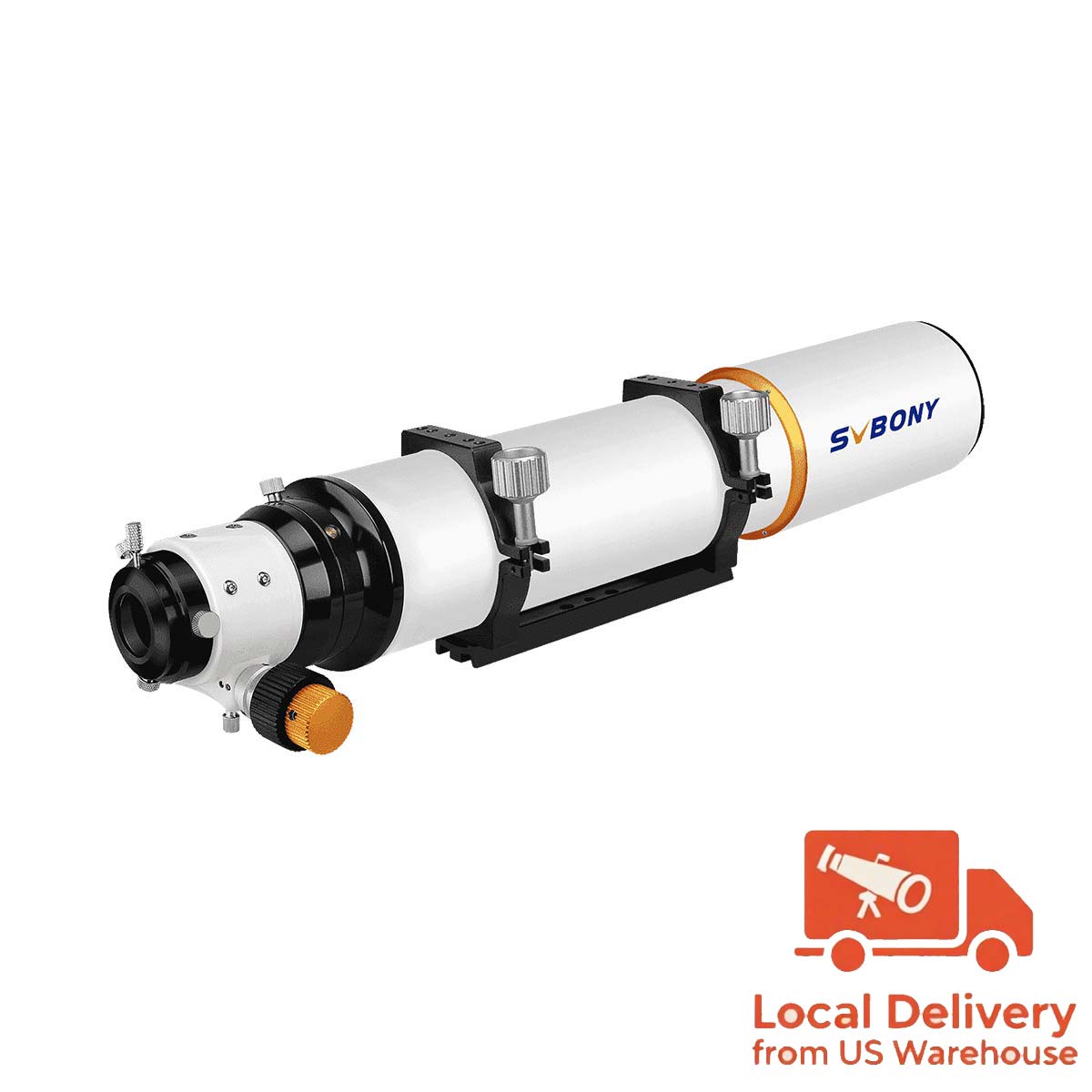

- SV503 102ED Telescope, SKU: F9359D

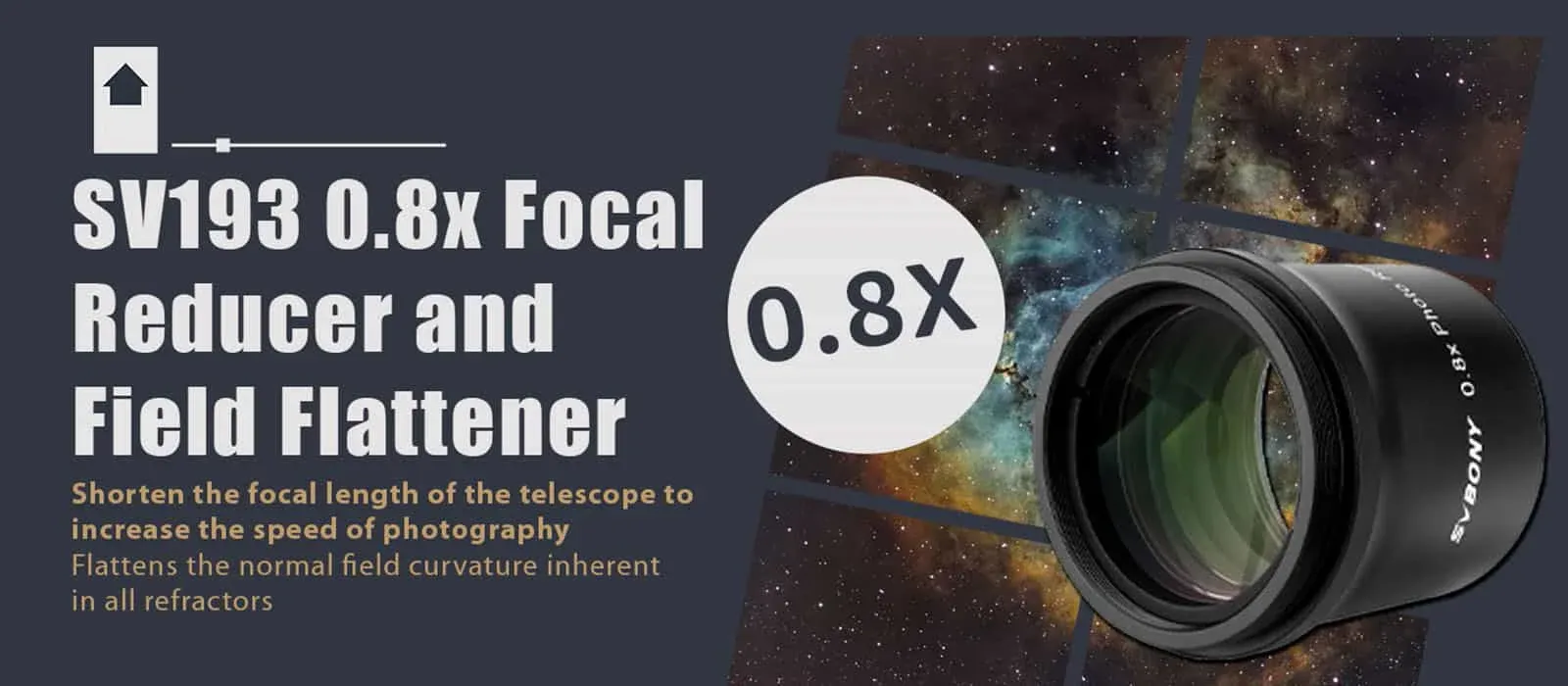

- SV193 2-Inch 0.8x Focal Reducer / Filed Flattener, SKU: W9152D

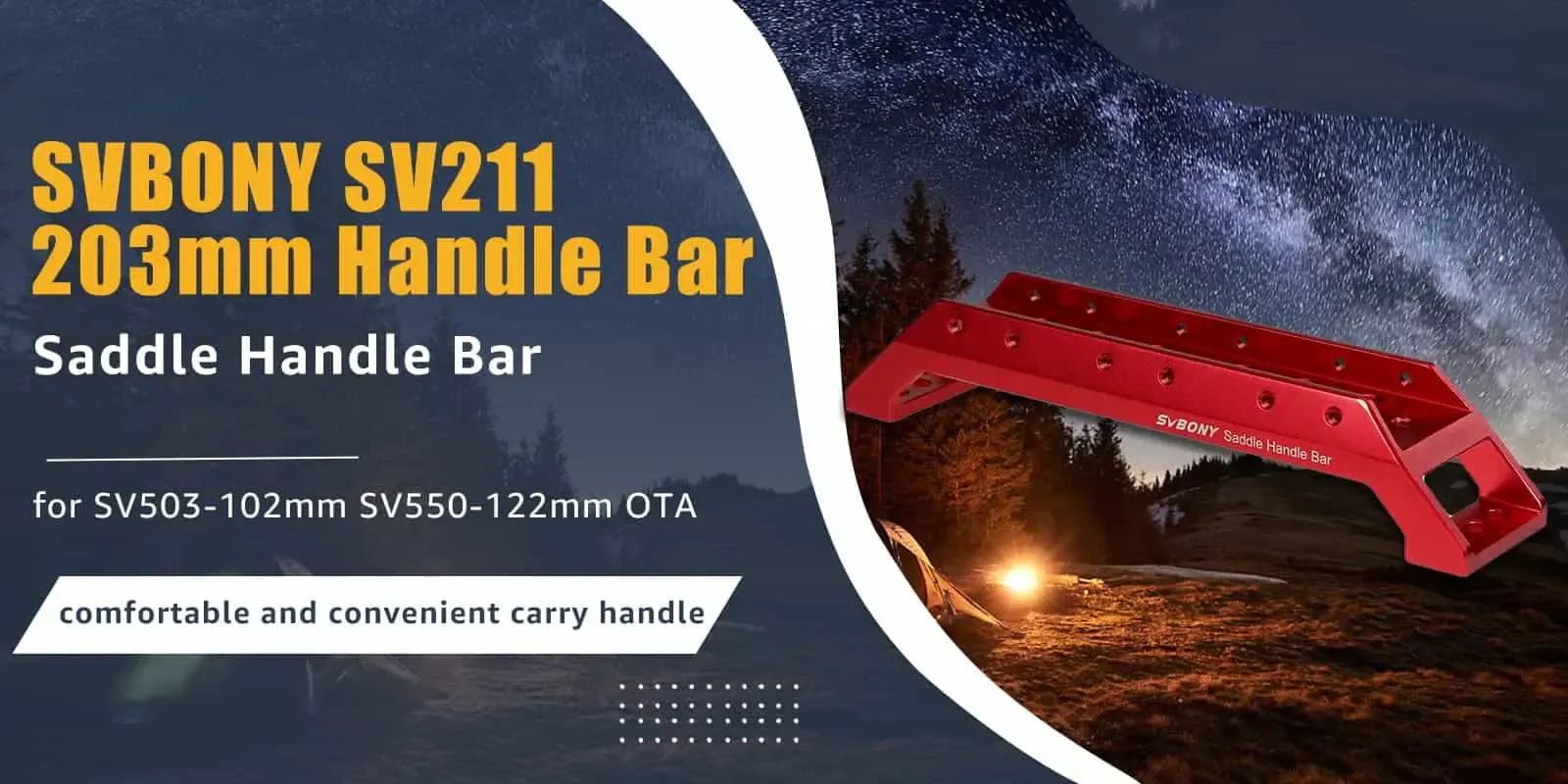

- SV211 203mm Telescope Handle Bar, SKU: W9163B

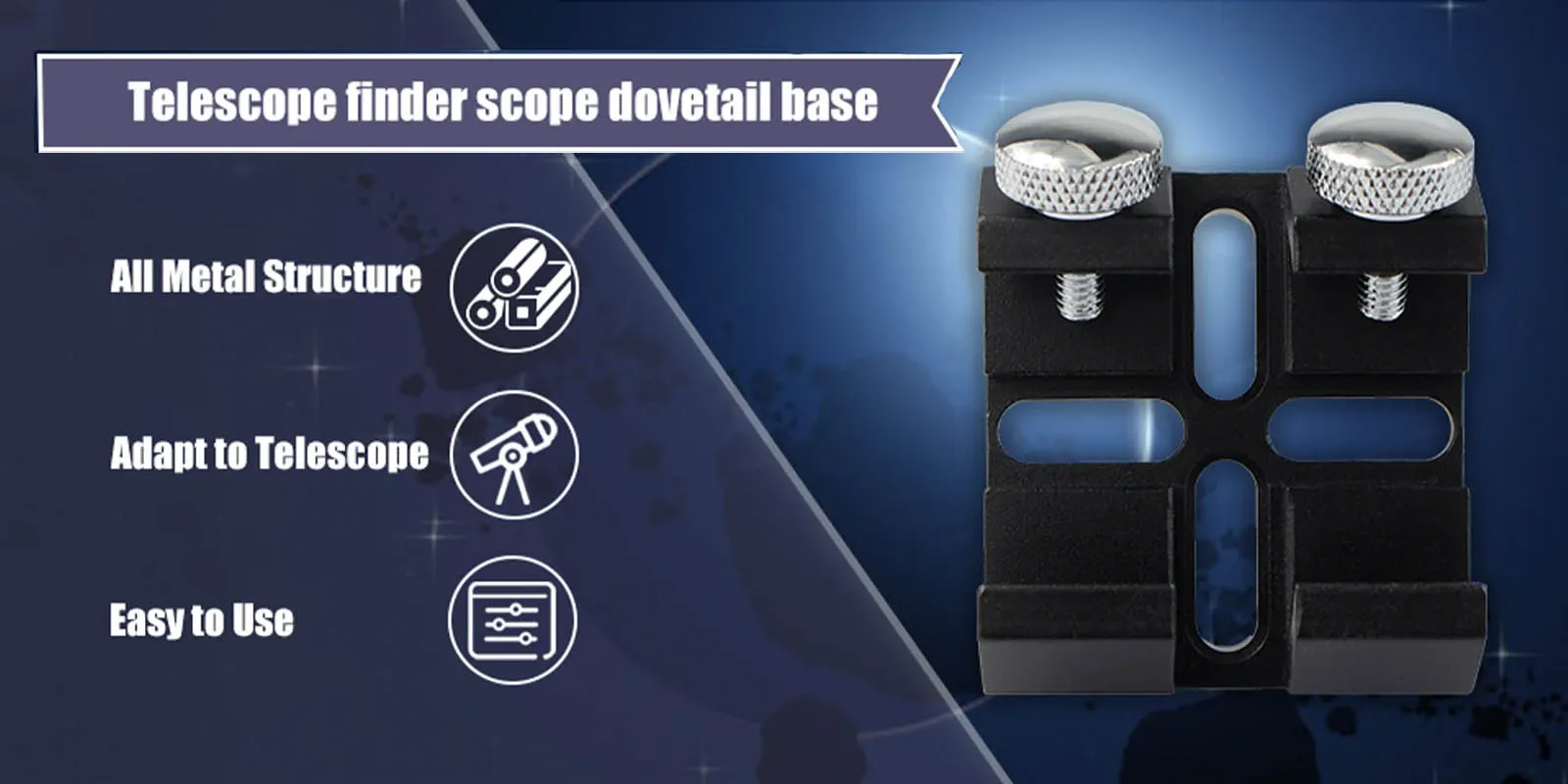

- Universal Dovetail Slots, SKU: W2370A
- SV172 Dew Heater Strip, SKU: W9132D
In Stock
Special offers and product promotions
Product Quality
Perfect product.
Happy with my purchase
SVBony503 102ed
Great telescope with all required astrophotography accessories for cheap price.
With field flattener you barely see blue halo around stars for this doublet telescope.
Product Quality
A great refractor, great price, great support and very supportive and kind customer service.
Delivered quick , good shape, contents as mentioned in addition to some gifts.
| Product Name | SVBONY SV503 102F7 ED Astronomy Telescope |
| Type | Refractor |
| ED Glass | S-FPL51 |
| Coating | SMC |
| Aperture | 102mm / 4.01-Inch |
| Focal length | 714mm |
| Focal Ratio | f/7 |
| Type of Focuser | RAP (Rack and Pinion) |
| Gear Reduction | 1:10 Fine movement |
| Resolving capacity | 1.17" |
| Limit value | 12.1 |
| Light gathering capacity | 212x |
| Max. Useful magnification | 204x |
| Tube weight（with rings） | 5.5kg |
| Tube outer diameter | 121mm |
| Tube material | Aluminum |
| Back Focus Length | 101.9mm |
| OTA Length | 630mm |
| Dovetail & Ring | Yes |
| Dovetail Length | 200mm |
| Model | SV193 |
| Fit For | SV503 102ED F7 |
| SKU | W9152D |
| Back Focus | 55mm |
| Barrel Size | 2-inch |
| Threads Standard | M48*0.75 |
| Lens Structure | 3-Elements/2Groups |
| Lens Coating | FMC |
| Blackened Lens Edges | Yes |
| Net Weight | 177g / 6.24oz / 0.39lb |
| Model | SV211 |
| Color | Red |
| Material | 6061T Aluminums |
| Length | 203mm |
| Width | 42mm |
| High | 39mm |
| Net Weight | 161.5g/5.7oz |
| Fit For OTA | SV503 102mm f/7、SV550 122mm f/7 |
| Distance Between Two M6 Screws | 187mm |
| Model | W2370B |
| Length | 39mm |
| Width of internal slot | 5mm |
| Horizontal length of internal slot | 46mm |
| Vertical length of internal slot | 46mm |
| Can be fixed | M5 screw |
| Color | Black |
| Model | W9132D |
| Total Length | 550mm |
| Heater Length | 430mm |
| Interface Type | USB Type-A |
| Input Voltage | DV 5V |
| Input Current | 2A |
| Power | 10W |
| Temperature Adjustable | Yes |
| PWM Function | Support |
| Power Cable Length | 1.2m |
| Strip Material | Imitation OK cloth + SBR + Black-T +Aluminum Film+ Pure Cotton |
| Power cord material | Silicone |
| Fit for OTA | MK105, SV48P 102, SV503 102ED |
Features
- 1. The appearance of the telescope is baked with high-end fine-grained paint, with exquisite appearance and delicate feel
- 2. The objective lens features an S-FPL51 extra-low dispersion glass ED element, which eliminates chromatic aberration. This results in the best color correction for an ED doublet lens
- 3. The lens adopts optical processing and low polishing technology, which is carefully carved
- 4. The deceleration ratio of the two-speed 2'' toothed focusing seat is 1:10, which makes it easy to achieve accurate focus
The Real Shot Image by SV503 102mm OTA
The Bundle Set of SV503 102mm by Our Clients
