This SV503 Telescope Bundle Set With Solar Filter is suitable for solar observation and photography.

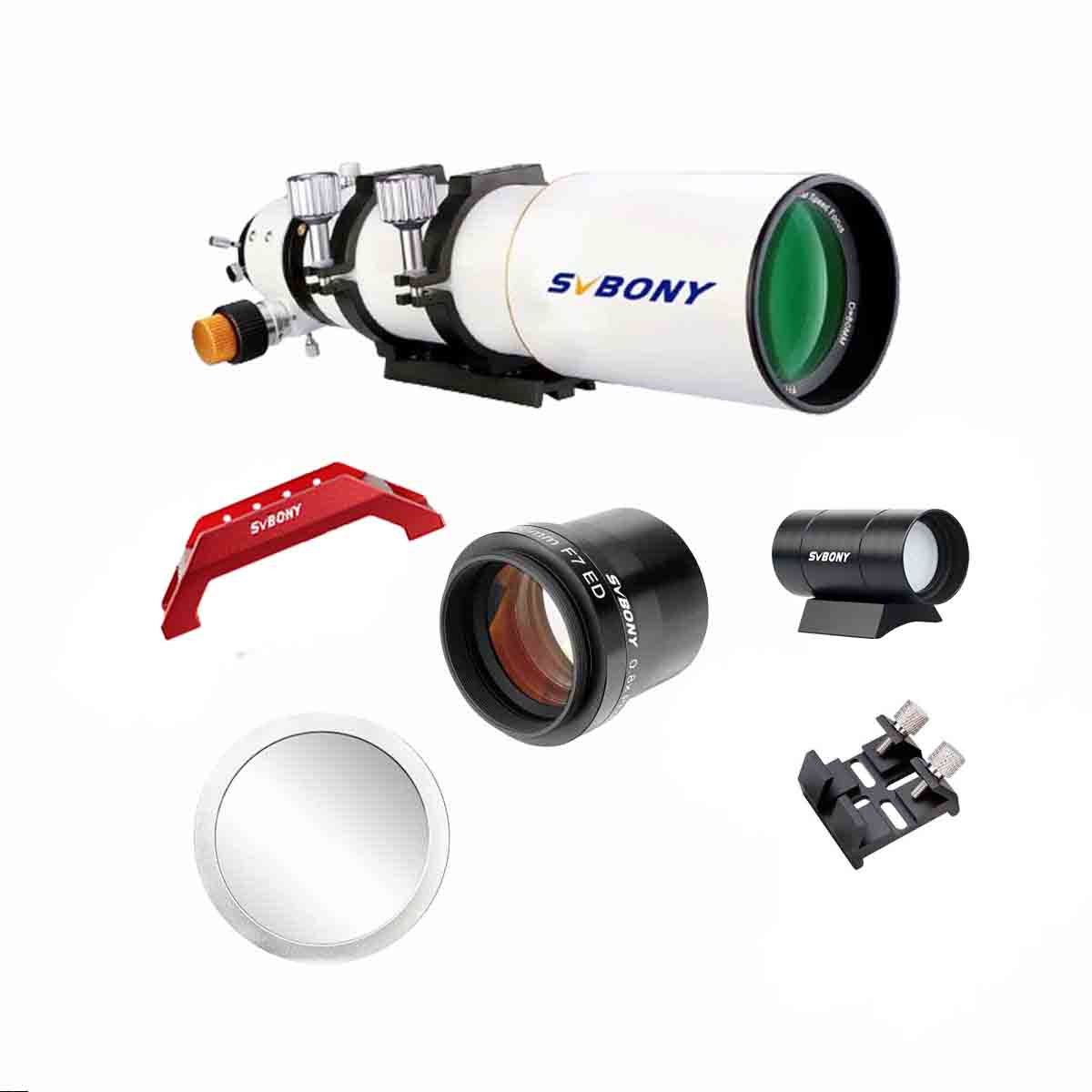

Set Includes:
- SV503 80ED F7 Telescope Refractor OTA, SKU: F9359B
- SV182 6x30 Straight-Through Metal Finderscope, SKU: W9141A
- SV229 Solar Filter, SKU: W9183B
- Universal Dovetail Slots, SKU: W2370A
- SV193 2 Inch 0.8X Focal Reducer / Filed Flattener, SKU: W9152B
- SV194 Photography Adapter for Nikon Camera, SKU: W1077B
In Stock
Special offers and product promotions
Specifications
| Model | SV503 |
| Objective Lens Diameter | 80mm |
| Eye Piece Lens Description | ED |
| Focal Length | 560 mm |
| Focal Ratio | F7 |
| Lens Coated | Ultra-wideband Coating |
| Objective Lens Type | Double Separation Lens Structure |
| Limit Magnitude | 11.6 |
| Set The Light Force | 130.6x |
| Resolution | 1.5 Arcseconds |
| Weight | 3950g |
| Telescope Tube Material | Aluminum |
| Tube Outer Diameter | 103mm |
| Focuser | 2 inch Dual Speed Focuser; The Gear Ratio 110 |
| Focuser Type | Rack Pinion Design |
| Packages | 1x SV503 White 80ED F7 Telescope OTA (for observing and for astrophotography) |
| Product Dimensions | 540mm*215mm*230mm |
| Model | SV182 |
| Lens Diameter | 30 mm |
| Focal Length | 120 mm |
| Magnification | 6x |
| Eye Relief | 15mm |
| Exit Pupil | 5mm |
| Field of View | 7.5° |
| Lens coating | FMC |
| Objective | Achromatic 2-Element |
| Net Weight | 225g / 0.49lb / 7.92oz |
| Model | SV229 |
| Name | Solar Filter |
| Material | Polymer+ Aluminum Frame |
| Model | W9183B |
| Aperture | 103mm |
| Outer Diameter | 80mm - 118mm |
| Fit for OTA | SV503 70mm f/6、SV503 80mm f/7、SV550 80mm f/6 |
| Model | W2370A |
| Length | along the 34mm |
| Width of internal slot | 4.2mm |
| Horizontal length of internal slot | 36.5mm |
| Vertical length of internal slot | 36.5mm |
| Can be fixed | M3-M4 screw |
| Color | Black |
| Weight | 41g |
| L*W*H | 45*40*25mm |
| Model | SV193 |
| Fit For | SV503 80ED F7 |
| SKU | W9152B |
| Back Focus | 55mm |
| Barrel Size | 2-inch |
| Threads Standard | M48*0.75 |
| Lens Structure | 3-Elements/2Groups |
| Lens Coating | FMC |
| Blackened Lens Edges | Yes |
| Net Weight | 164g / 5.78oz / 0.36lb |
| Model | SV194 |
| Size | M48*0.75 |
| Male thread | Nikon F-mount Male |
| Color | Black |
| Material | Metal Aluminum |
| Net weight | 26.3g / 0.93oz |
