SV550 122 Triplet APO Telescope Set For Astronomical Visual Observation

SKU: F9381C-W9180B-W9163B-
US$

This SV550 122 APO telescope set comes with a SV550 Triplet APO, SV211 203mm handle, SV223 90-degree 2" diagonal, zoom eyepiece, and a customized backpack for telescope. Get this great travel telescope suits for your astronomical visual observation.

Review Video by @NebulaPhotos    Unboxing Video

  Free Shipping

In Stock Out Of Stock

SV550 122MM Triplet APO Telescope Set For Astronomical Observation

sv550 122 refractor telescope-2.jpg



sv550 with sv182-5.jpg

sv550 set package.jpg

4 reviews

Write a review

SV 550 122mm Visual set

Having always been interested in astronomy I have owned a couple of low budget telescopes over the years but was unable to see what I wanted with these. I started looking at reviews on the internet, on forums and YouTube and SVBony were looking very good. It was a spur of the moment decision to order the SV 550 122mm visual set and I wondered if i had done the right thing, but I have to say that SVBony are a real pleasure to deal with, they have excellent communication right throughout the ordering process and answered my queries promptly and politely. I used the telescope for the first time last night and it was amazing! This is a really well made instrument and optically superb. I am looking forward to dealing with SVBony again and will order an SV230 eyepiece next. My goal is to venture into astro-photography. Thank you SVBony.

SV550 122mm Visual set.

I have been interested in astronomy for a long time and through the years have owned a couple of low budget telescopes that didn't quite live up to expectations. This meant that my ability to see what I wanted was not possible. I looked at many reviews online and YouTube, and SVBony were looking very good in comparison to others, both on performance and cost. It was one of those spur of the moment decisions to order an SV550 122mm refractor and was unsure if I had done the right thing, but, I have to say that SVBony are a pleasure to deal with and they have excellent communication, right throughout the ordering process. The telescope has exceeded my expectations, I was able to use it last night for the first time and it is a superb instrument, very well made and optically brilliant. I am looking forward to the next time the sky is clear. I will definitely use SVBony again for accessories, next on the list is an SV 230 eyepiece and one day to venture into astro-photography. Thank you SVBony.

Great Refractor

I don't have much experience with telescopes as I'm fairly new to the hobby, but this scope is fantastic compared to the other few scopes I've used. I bought bundle one for visual, and I am hooked on looking through this refractor. If the weather permits I'm out looking at something even if only for 20 minutes. I can't wait to try imaging in the future!

A Good Refractor

Finally, the weather has cool enough for me to enjoy setup and imaging. I primarily use my OTA for imaging and it does a great job. Anyone looking for a good telescope will find the 854mm focal length exceptional for viewing or imaging. Do not forget to buy the accessories. You will need them and the prices are pretty good.

Brand​ SVBONY​
Model SV550
Aperture 122mm
Focal Length 854mm
Focal Ratio f/7
ED Glass​ FPL51​
Telescope Type Refractor
Resolution 1.15 arc seconds
Coatings  Fully Multi-coated​
Tube Material Aluminum
Focuser 2.5" rack-and-pinion, dual speed (1/10)
Tube Outer Diameter 154mm
Tube​ Travel 87mm
Visual Limiting Magnitude 12.3
Lens Design  Apochromatic​
Dovetail Plate Length 300mm
Highest Useful Magnification  244x

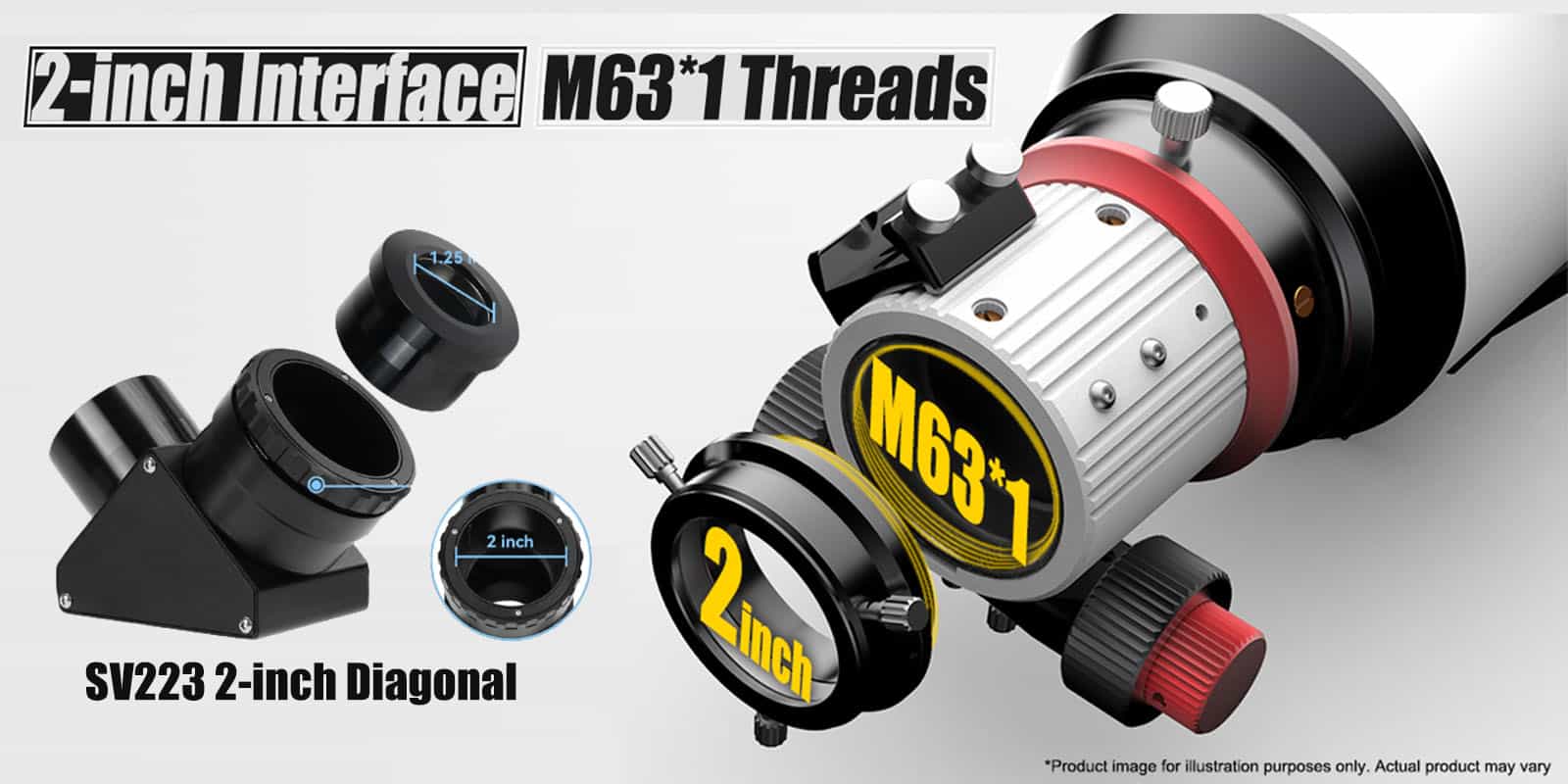

Additional Thread M63x1 female thread for adaptions​​
Dew Shield Type Retractable
Net Weight​ 6440g/14.18lb
Gross Weight​ 10000g
Brand SVBONY Brand SVBONY
Model SV182 Model SV223
Lens Diameter 30mm Size 2inch
Focal Length 120mm Optical Design Mirror Diagonal
Magnification 6x Inner Connection (Lens Sided) Thread M48x0.75
Eye Relief 15mm Outer Connection (Lens Sided) Barrel 2inch
Exit Pupil  5mm Inner Connection (Eyepiece Sided) Clamp 2inch
Field of View 7.5° Reflection Surface Dielectrically Coated
Lens coating FMC Reflectivity >99%
Image Orientation Correct-image Image Orientation Erect image, Mirror Inverted
Reticle Single crosshair Optical Length appr. 109.1mm
Adjustment System Spring-loaded X-Y Clamping System Clicklock
Objective  Achromatic 2-Element Deflection Angle 90°
IIIuminated No Clear Aperture 43mm
Adjustable focus Yes  Material Metal
Viewing angle 90 Degree Thickness of Mirror 11.5mm
Net Weight 295g / 0.651b / 10.41oz Net Weight 573.7g/20.24oz
Brand SVBONY Brand SVBONY
Model SV215 Model SV211
name Zoom eyepiece Color Red
Apparent Field of View 56° Material 6061T Aluminums
Coatings Fully Multi-Coated Length 203mm
Blackened Lens Edges Yes Width 42mm
Eye Relief 10mm High 39mm
Focal Length 3-8mm Net Weight 161.5g/5.7oz
Filter Threads M28.5x0.6 Fit For OTA SV503 102mm f/7、SV550 122mm f/7
Barrel Size 1.25" Distance Between Two M6 Screws 187mm
Lens Elements 6
Lens Groups 4
Barrel Type With safety undercut
Rubber Eye Guard Yes

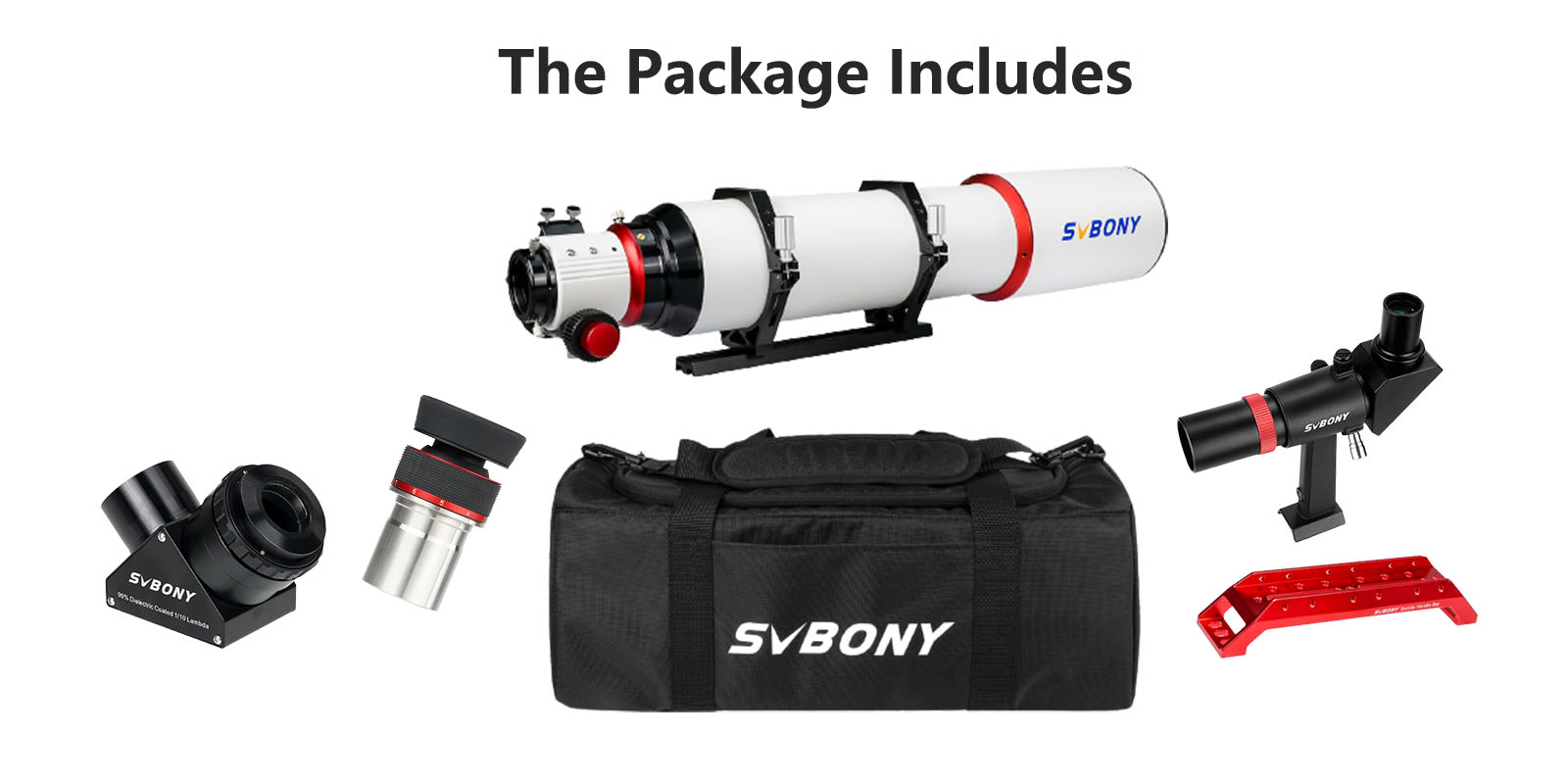

Package Includes

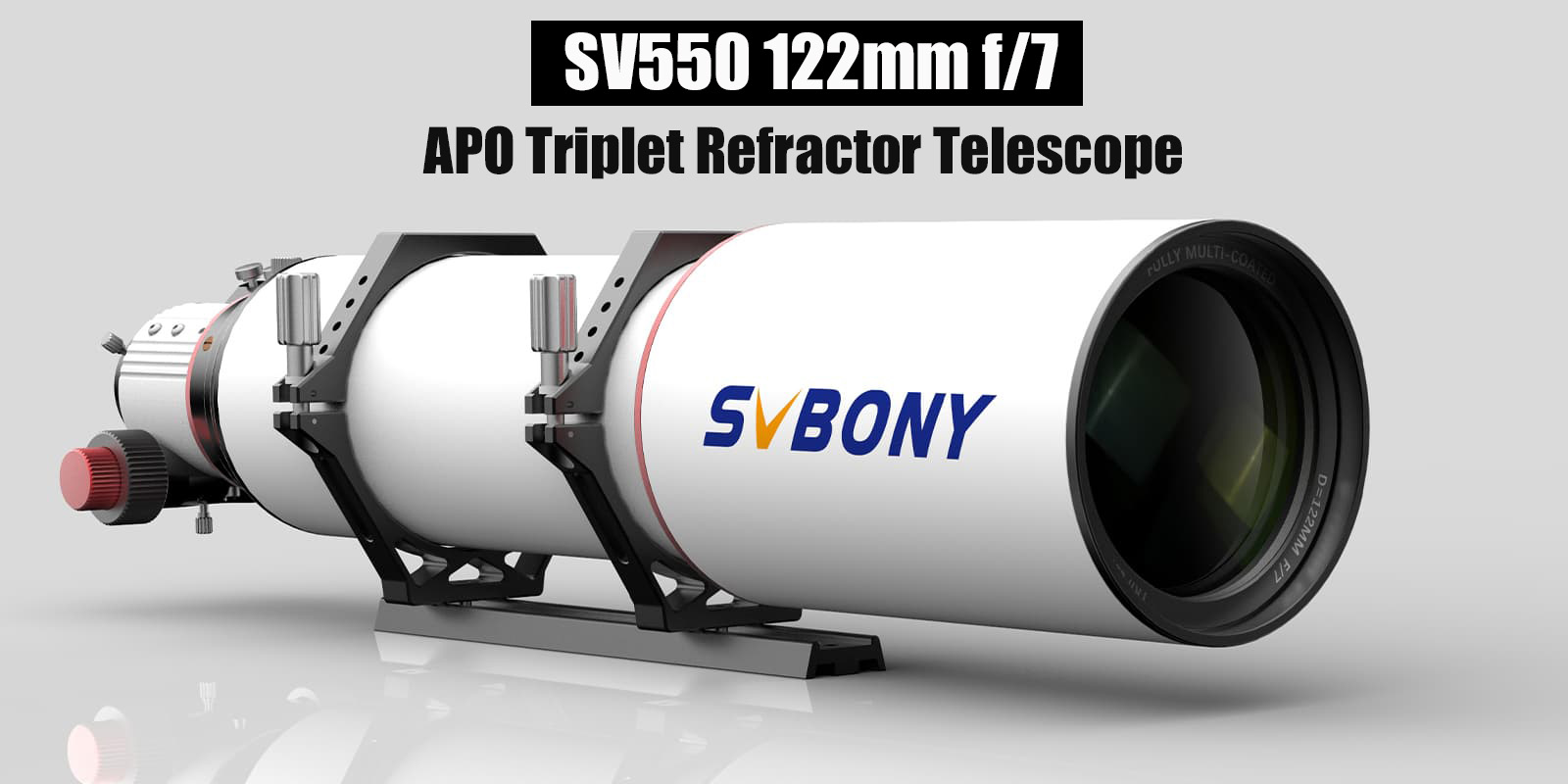

1. 1*SV550 122 APO OTA
2. 1*backpack for telescope

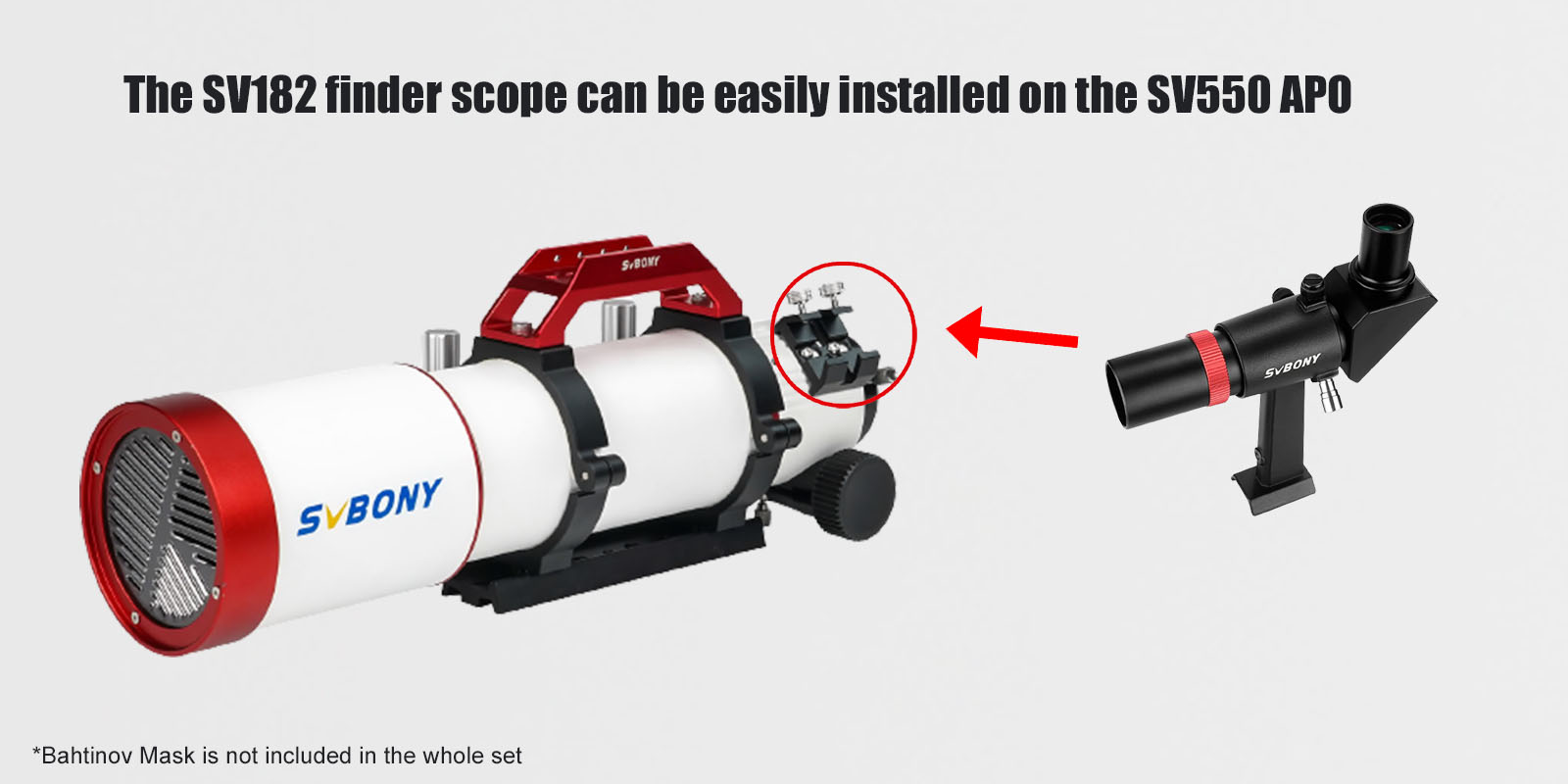

3. 1*SV182 finder scope
4. 1*SV215 zoom eyepiece
5. 1*SV211 203mm handle

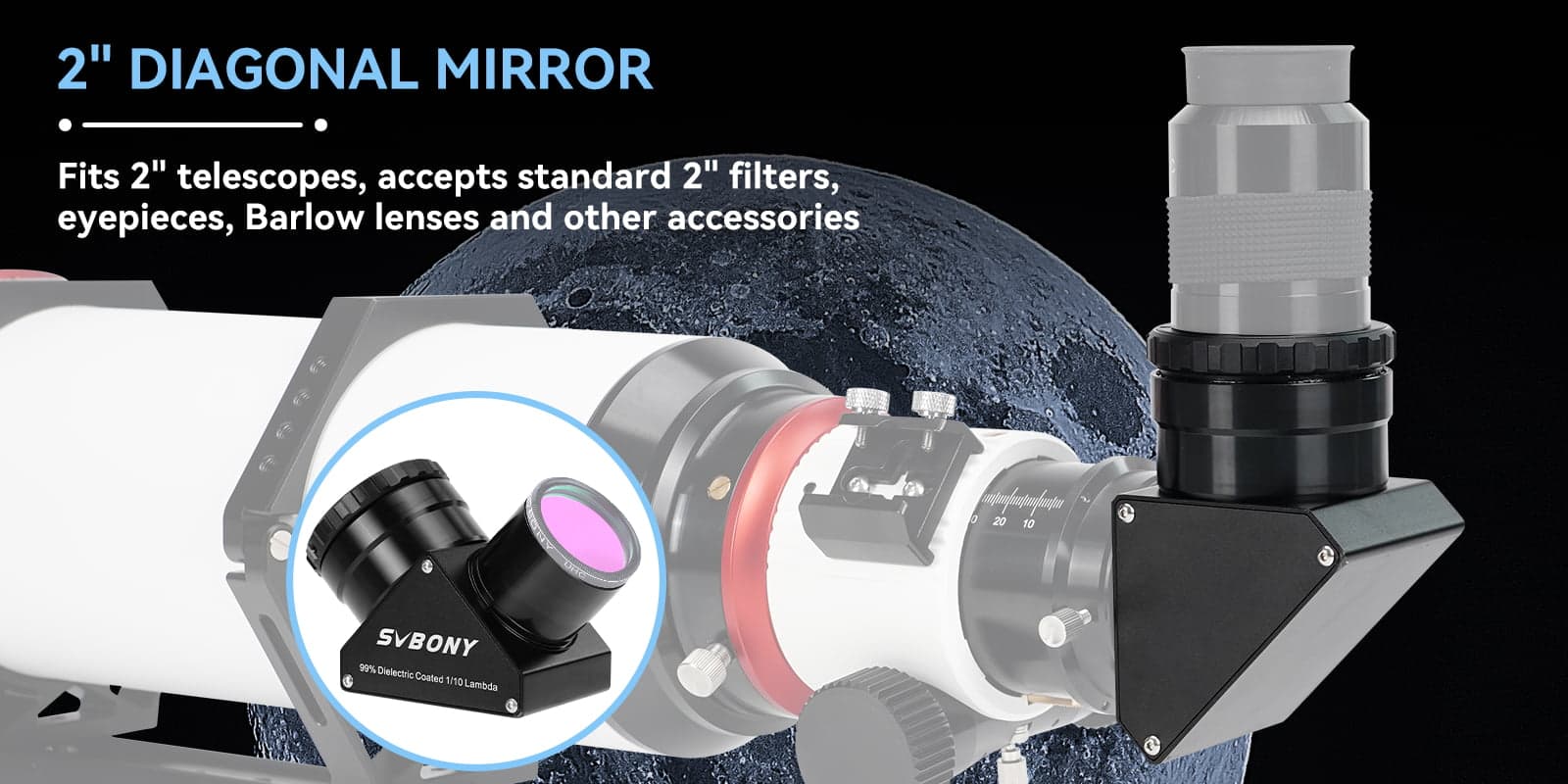

6. 1*SV223 diagonal
