Photography Set Includes:
- SV550 80APO OTA, SKU: F9381A

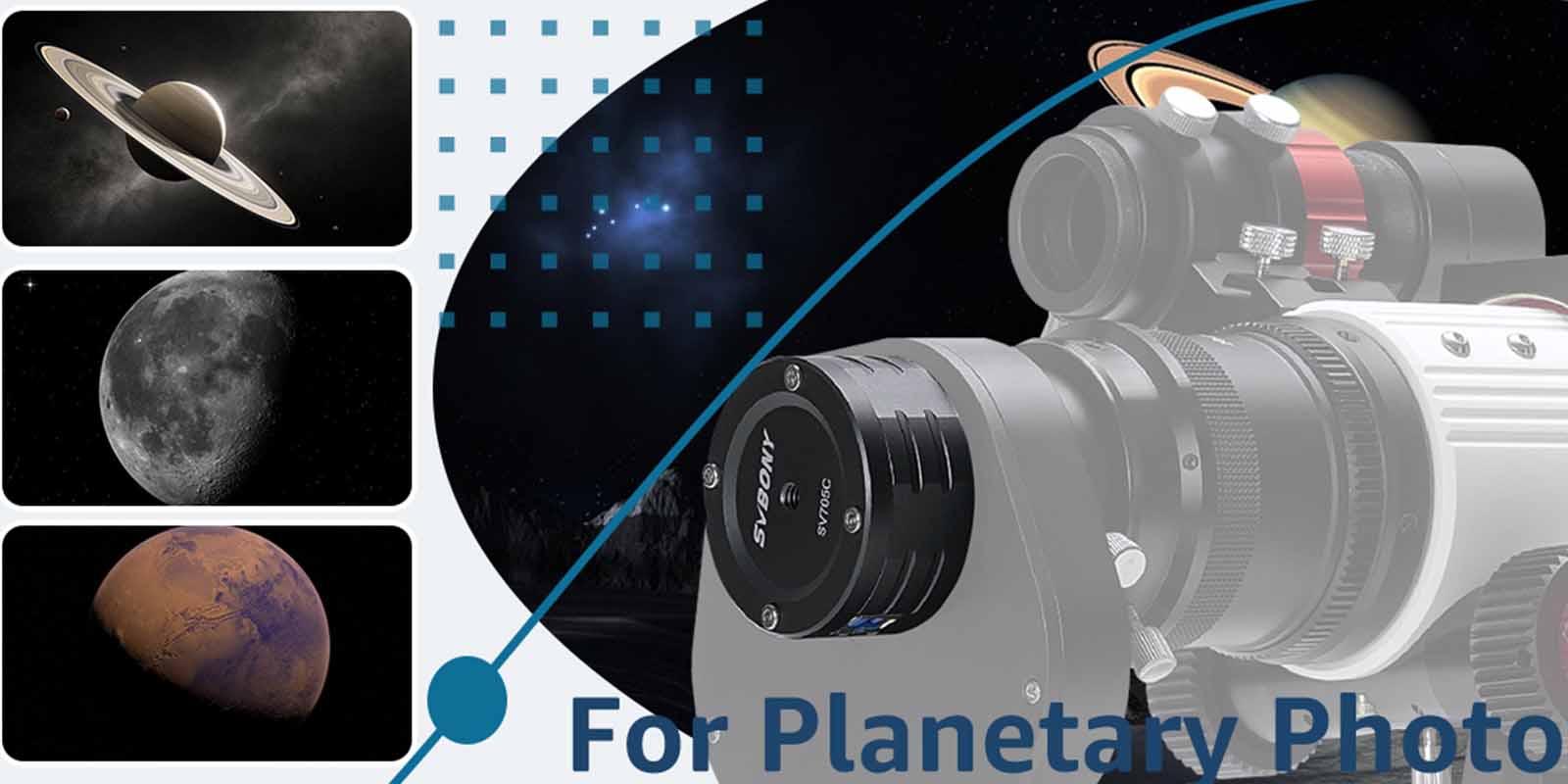

- SV705C Color Planetary Camera, SKU: F9198J
- SV165 30mm Guide Scope, SKU: W9125A
- SV209 1.0x Field Flattener/Focal Reducer, SKU: W9161A
- SV210 M63 CAA 360 Degree Rotator Camera Angle Adjuster, SKU: W9162A
- SV133 Filters Wheel 1.25inch Multiple 5-Position, SKU: W9103A
In Stock
Special offers and product promotions

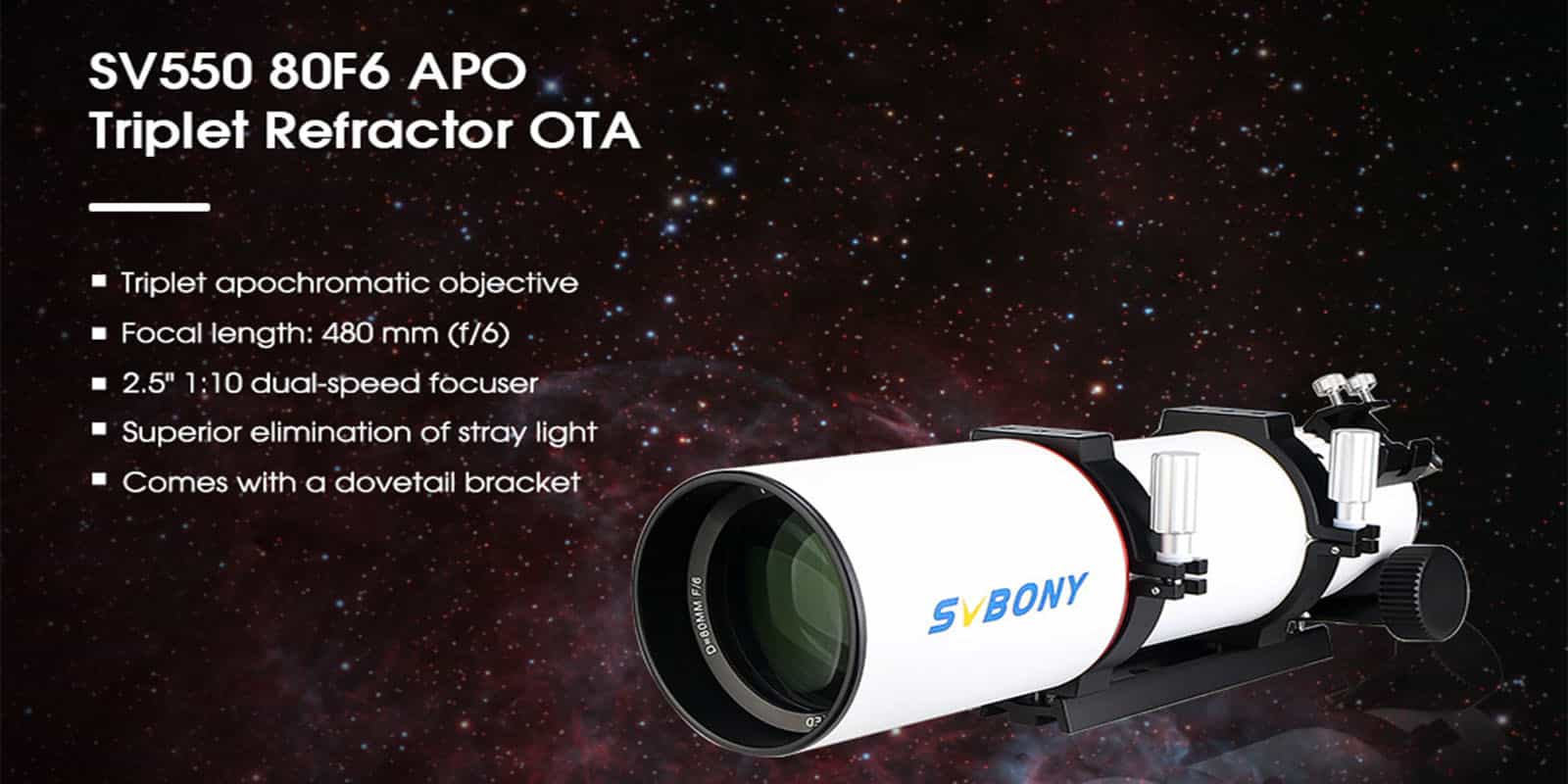

Model | SV550 |
Product Name | APO Refractor |
Aperture | 80mm |
Focal Length | 480mm |
Focal Ratio | f/6 |
ED Glass | FPL51 |
Telescope Type | Refractor |
Resolution | 1.45 arc seconds |
Coatings | SMC |
Limiting stellar magnitude | 11.6 |
Lens design | Apochromatic |
dovetail plate length | 150-175mm |
barrel weight | 2900g |
mirror Brief Size | 377.8mm |
Tube Outer Diameter | 103mm |
Net weight | 3750g |
Gross weight | 3850g |
Package size | 440x220x210mm |
Model | SV705C |
Product Name | Planetary Camera |
Sensor | IMX585 |
Total Pixels | 8.3 Mega Pixels |
Diagonal | 12.85mm |
Max Resolution | 3856×2180 |
Pixel Size | 2.9μm X 2.9μm |
Chip Size | 11.2mm×6.3mm |
Frame Rate | 45FPS |
Shutter | Rolling shutter |
Exposure Range | 32μs-2000s |
Readout Noise | 6.5e~0.7e |
QE Peak | ≈90% |
Full Well | 38k e |
ADC | 12 bit |
ROI | YES |
BIN | 1X1 2X2 |
Digital noise reduction | HCG |
Compatible OS | Windows , Linux OS Raspberry Pi,Mac os, Chrome os |
Caching | 128M |
Guiding Port | ST4 |
Data Port | USB3.0 |
Adapter | 1.25″/2″/ M42X0.75/CS/C |
Back Focal Length | 6.5mm/12.5mm |
Protective Window | AR Coating |
Working Humidity | 30%-80% |
Storage Humidity | 20%-90% |
Operating Temperature | -10℃ to +50℃ |
Storage Temperature | -20℃ to +60℃ |
Net Weight | 575g |
Product Size | Ø58x38.3mm |
Model | SV165 |
Product Name | 30mm Mini Guider Scope |
Aperture | 30mm |
Focal length | 120mm |
Focal Ratio | F4 |
Hoop and Mount | Yes |
Tube travel | 45mm |
Back Focus Length | 26mm |
Mount | UNC 1/4-20 |
Material | Aluminum |
Surface technology | Sandblasting oxidation |
Model | SV209 |
Product Name | Field Flattener 1.0x |
Additional Thread | M63x1 female thread for photo adaptions |
Connection at Telescope Side | M63x1 male thread |
Connection 1 at Camera Side | M63x1 thread female - working distance 103 mm |
Connection 2 at Camera Side | M48x0.75 male thread - working distance 55 mm or 91.5 mm |
Fully Illuminated Field | 45 mm(Support Full Frame Sensors) |
Number of Elements | 2 lenses |
Factor | 1.0 - no change of focal length to the focal plane |
Coating | FMC |
Diameter of the Housing | 67mm |
Length | 87.5 mm without the male thread |
Model | SV210 |
Product Name | M63 CAA 360° Rotator Camera angle adjuster |
Extension thickness | 20.7mm |
Fit for | SV550 80F6 |
Locking Screw | M4 |
Positioning lock Function | Yes |
Male Thread | M63x1 |
Female Thread | M63x1 |
Length of Male Thread | 8mm |
Length of Female Thread | 9mm |
Material | 6061T |
Color | Black |
Net Weight | 91.2g/3.22oz |
Model | SV133 |
Product Name | Filters Wheel 1.25inch Multiple 5-Position |
Size | 1.25'' |
Type | Manual |
Color | Black |
Net Weight | 351.5g / 12.4oz |
