- Use this APO OTA apochromatic refractor to reveal the wonders of celestial bodies; you can observe the Messier catalog targets; the common shooting targets M42 M45; the difficulty factor is simple
- The triplet apochromatic optics structure (1 piece of S-FPL51 low-dispersion ED glass and 2 pieces of correction glass) effectively improves the blue-edge chromatic aberration problem of single-ED structure imaging
- The telescope uses an air-spaced triple optical design that virtually eliminates chromatic aberration; resulting in bright; high-contrast images for exploring galaxies with better graphic clarity
- This little scope also includes the use of a 2.5-inch magnesium alloy dual-speed toothed focus mount (1:10); which reduces vignetting on full-frame cameras and reduces the weight of the support platform
- This APO adopts extreme extinction measures; there are multiple light barriers inside the focusing seat and the inner wall of the lens barrel; and 4 extinction barriers are designed to meet the ultimate pursuit of extinction
Note: This SV550 80 OTA comes with a dedicated dovetail slot for the finderscope.
Special offers and product promotions
SV550 APO Triplet Refractor 80 F6 OTA For Visual & Deep Sky Astrophotography
The SV550 APO Triplet refractor with 80mm aperture and fast f/6 focal ratio, it is definitely a great travel telescope for observation and astrophotography.
The High Performance
Apochromatic 3-element Objective
The triplet apochromatic optics structure (1 piece of S-FPL51 low dispersion ED glass + 2 pieces of correction glass) is adopted to significantly improve the image quality of the captured image (15.8% increase by the spectrometer calculation). Significantly reduces edge dispersion resulting in blue fringing problems.
2.5 inches 1:10 Dual-speed Focuser
The 2.5-inch focusing base can effectively reduce the vignetting problem when connecting to a full-frame camera, and the FPL51 APO can improve the quality of the captured images.
The Elimination Of Stray Light
4 extinction light bars are used inside the lens barrel, which can eliminate all stray light interference on the inner wall of the lens barrel.
Focal Lenght of 480mm
I would definitely recommend this OTA to anyone

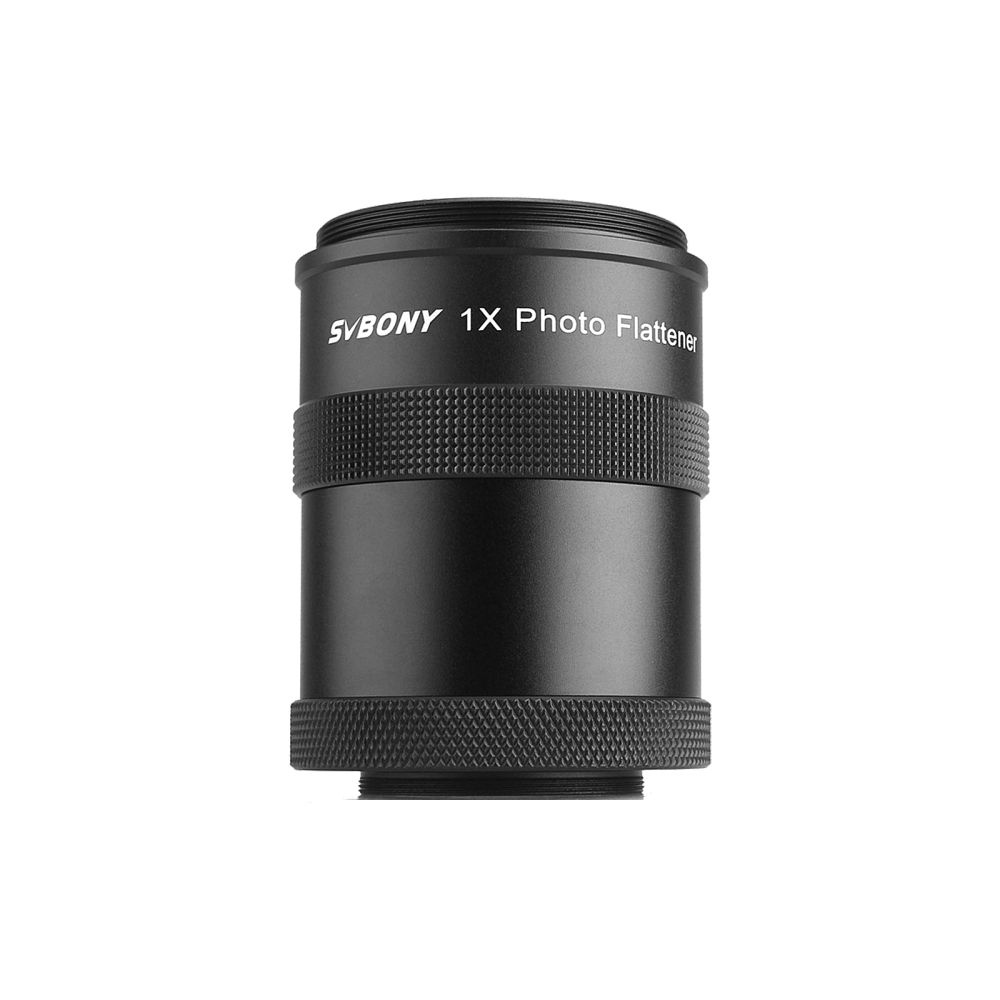

Bargain triplet, don't forget the flattener for it.
So far very impressed
Great APO Telescope at an affordable price.
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 80mm |
| Focal Length | 480mm |
| Focal Ratio | f/6 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.45 arc seconds |
| Coatings | SMC |
| Limiting stellar magnitude | 11.6 |
| Lens design | Apochromatic |
| dovetail plate length | 150-175mm |
| barrel weight | 2900g |
| mirror Brief Size | 377.8mm |
| Tube Outer Diameter | 103mm |
| Net weight | 3750g |
| Gross weight | 3850g |
| Package size | 440x220x210mm |
Features
- 1. Finder base included
2. Triplet APO apochromatic objective lens structure & FMC coating
3. 2.5" dual-speed rack-and-pinion focuser
4. Extreme extinction process - 5. Hollow-out standard 180mm dovetail plate
-
The Real Shot Image by SV550 80mm APO
-

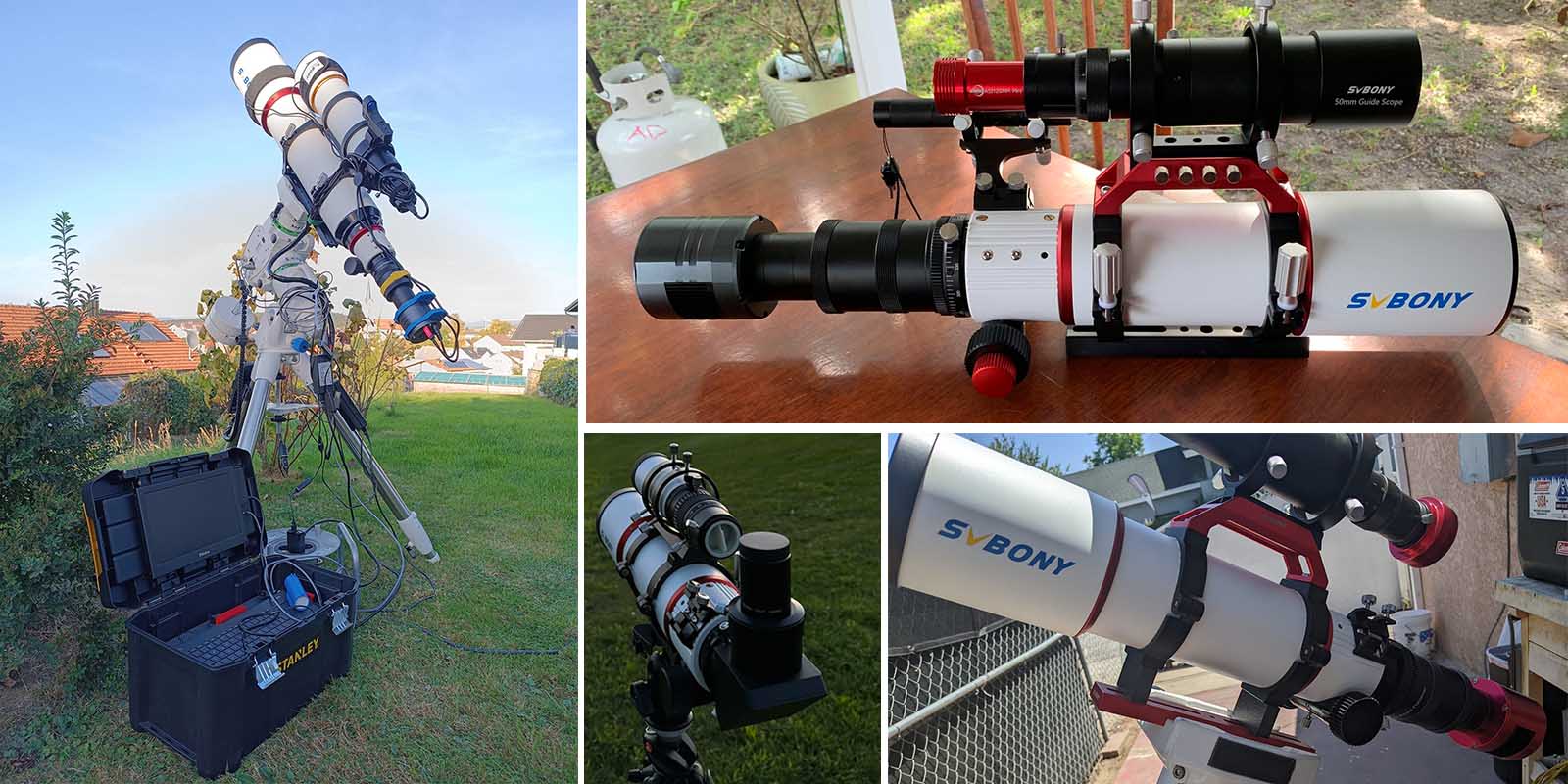

The Bundle Set of SV550 80mm APO by Our Clients

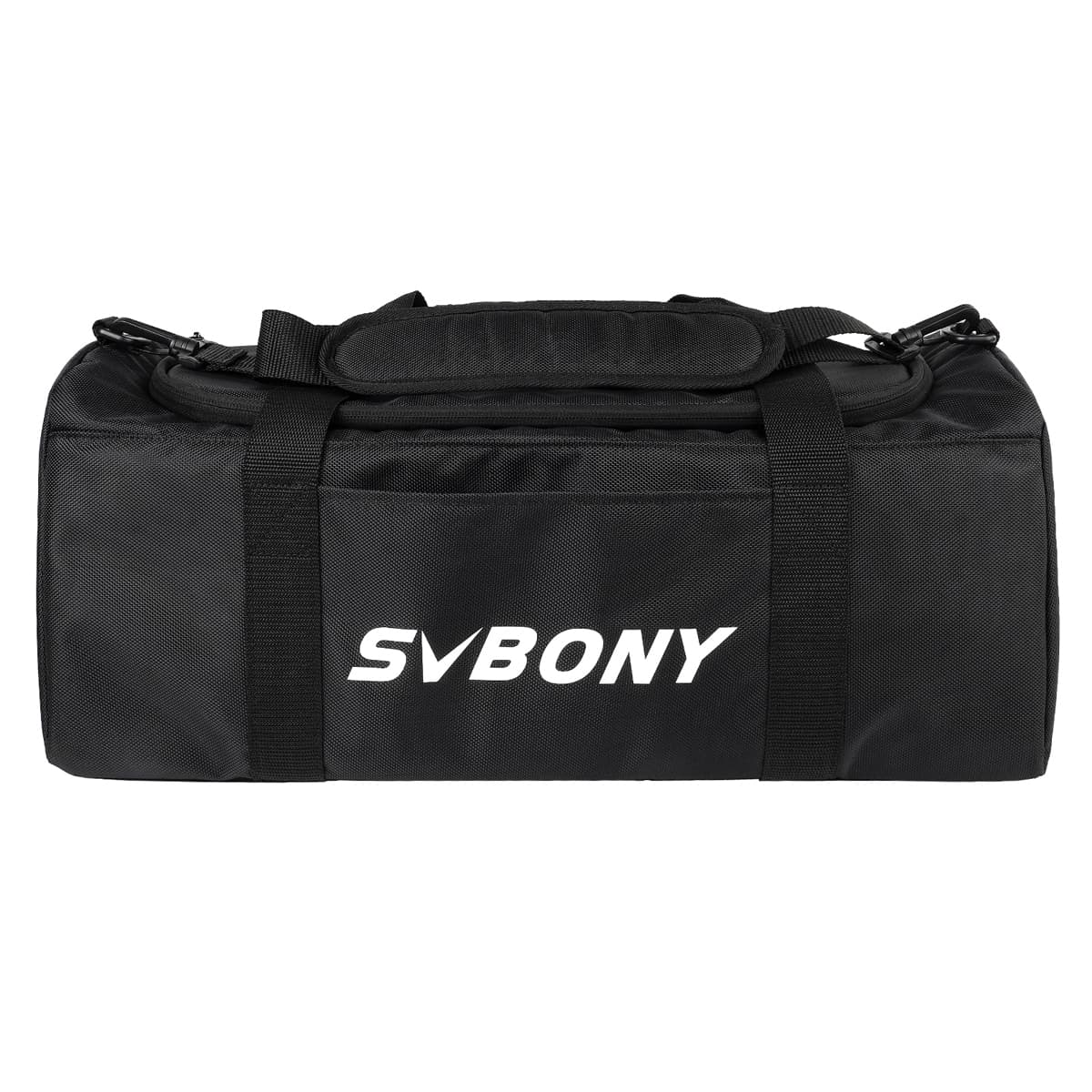

Applicable Accessories
