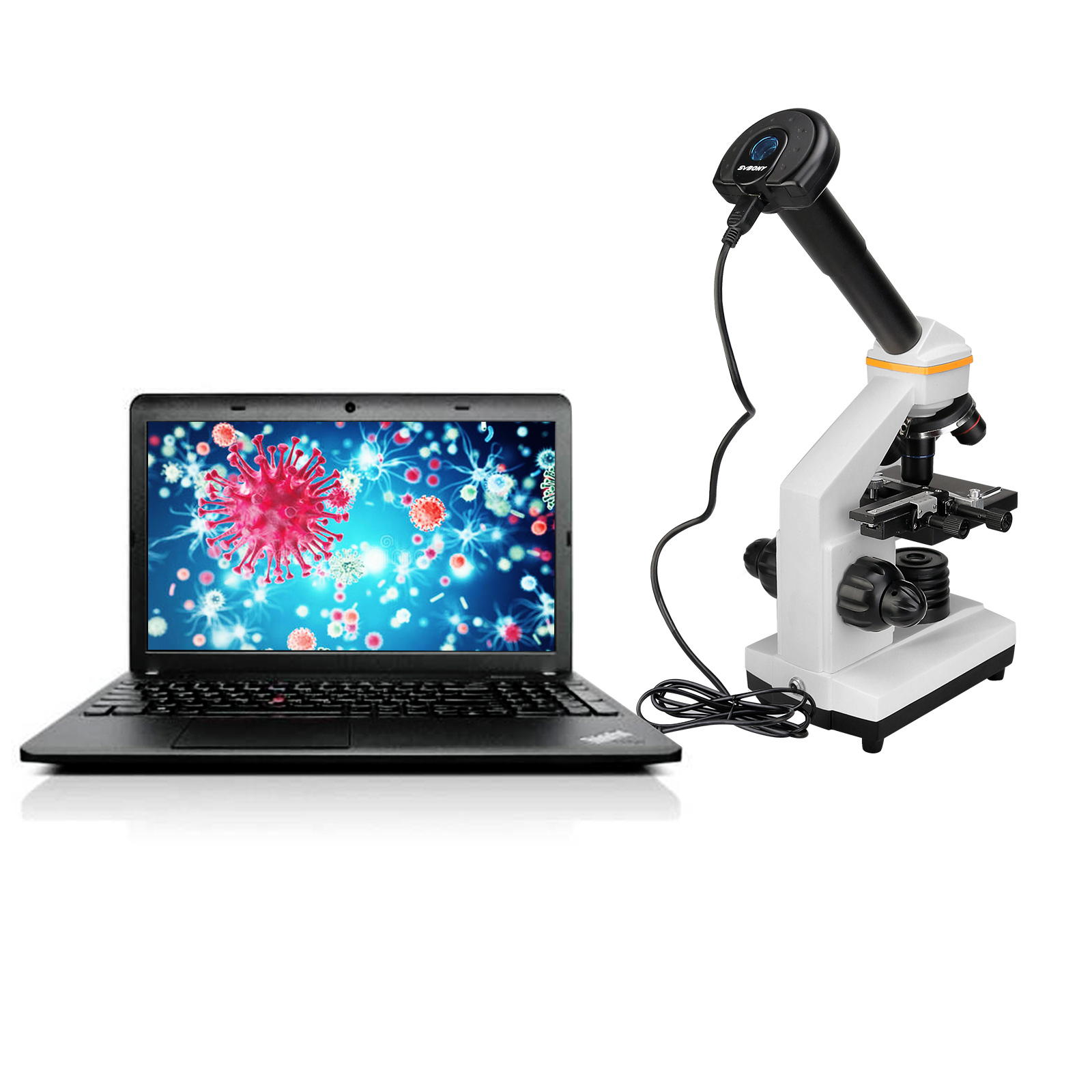

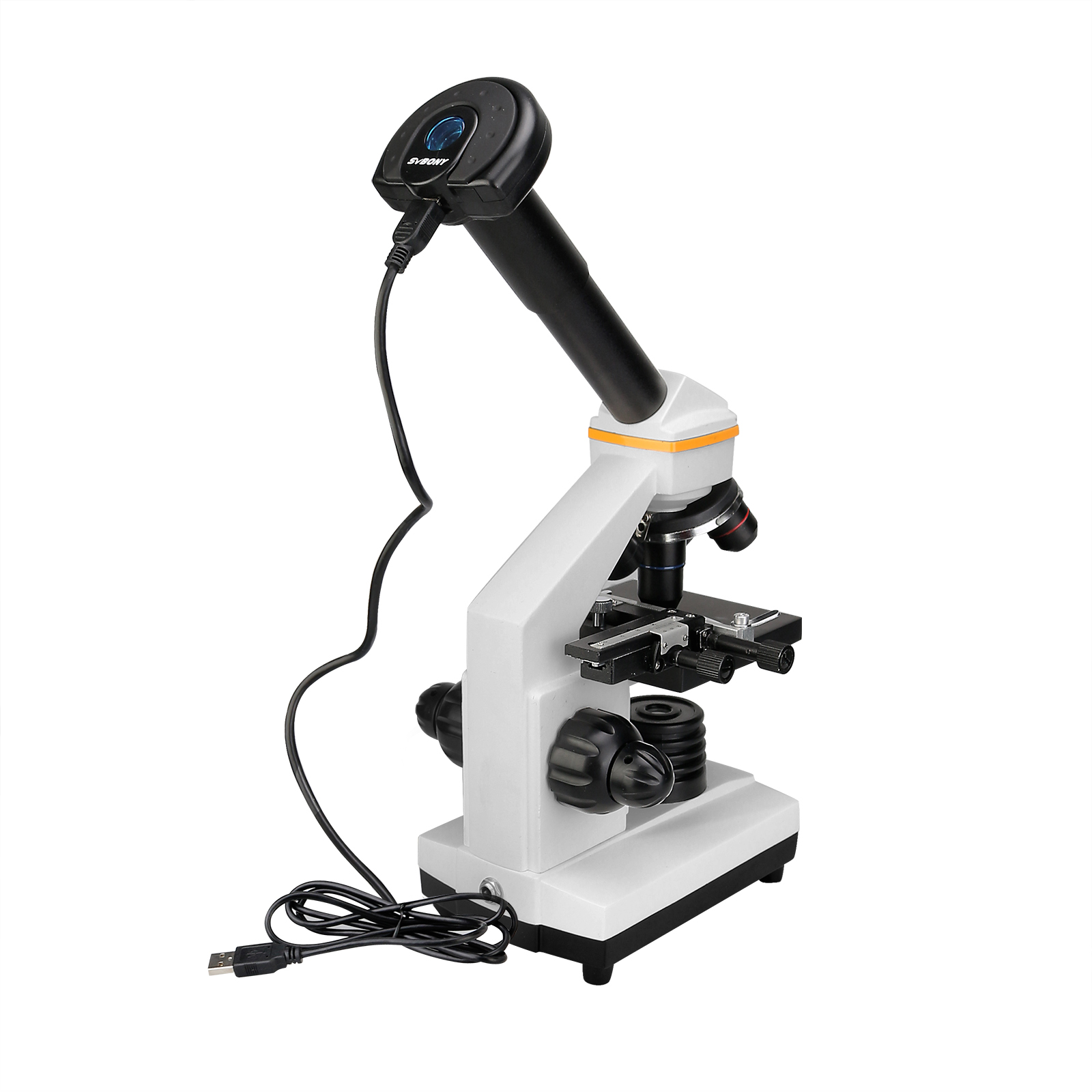

The SV189 camera and the SV601 set can do higher magnification compared to the supplied eyepiece. And the combination can let the microworld be shown on the computer screen, it is easier to share and save these precious memories.
| Model | SV601 |
| Optical System | Finite Biological Microscope |
| Eyepiece | WF10X WF20X |
| Objective | 4X 10X S40X |
| Extender | 2.0X |
| Magnification | 80X-1600X |
| Working Stage | 90mmX90mm Square |
| Adjustment | Coarse Focuser & Fine Focuser |
| Illuminator Top /Bottom | LED Lights |
| Net Weight | 1200g / 2.65lb |
| Model | SV189 |
| Sensor | 1/4" 1.3 million pixel CMOS |
| Static image resolution | 1280*1024, 640*480, 320*240 |
| Dynamic image resolution | 1280*1024Pixels/24fps |
| Sensitivity | 1.0V/lux-sec@550nm |
| Pixel size | 2.8×2.8um |
| Spectrum response | 400nm---1000nm |
| Shutter type | ERS (electronic rolling shutter) |
| Frame rate | 16 f/s @ 1280*1024 |
| Image format | JPG/BMP |
| White balance | automatic/manual |
| USB Interface | USB2.0 |
| Applicable models | SV601/SV605 |
| Net Weight | 90g / 0.2lbs |
| Item Size | 16CM (Total length) |
| System compatibility | MAC, Windows |
SV601
1. The main components are made of metal materials and are precisely processed. It is a very cost-effective microscope
2. Using 18MM wide-angle eyepieces to observe a wider range, high-magnification achromatic objective lenses 4X, 10X, 40x, can be switched with multiple magnifications, the image is clearer and sharper
3. Use mechanical moving platform, with scale, X-axis and Y-axis move coaxially, the movement is more accurate, the surface of the metal platform is wear-resistant and corrosion-resistant, and the upper and lower thickness coaxial focusing wheel structure
4. 5-color filter disc, suitable color filters can be used according to different specimens to obtain better observation results
5. Transmission and epi-illumination dual illumination system, the upper and lower light sources can be independently controlled
6. Support dual power supply system of power and battery, easy to carry
SV189
SV189 is a very cost-effective digital microscope camera. With a 1.3 million pixel CMOS, SV189 allows you to see more—capture still and video images of every details of micro world with your microscope.
USB 2.0 cable is included, compatible with MAC OS10.5 and above, Windows Vista/7/8/10/11 (32/64 bit) operating systems. The easy-to-use software allows users to post-processing, providing multiple advanced functions like measurement, calibration, data export and others, perfect for home, co-op, or classroom use. It works well with SV601 and SV605 also.

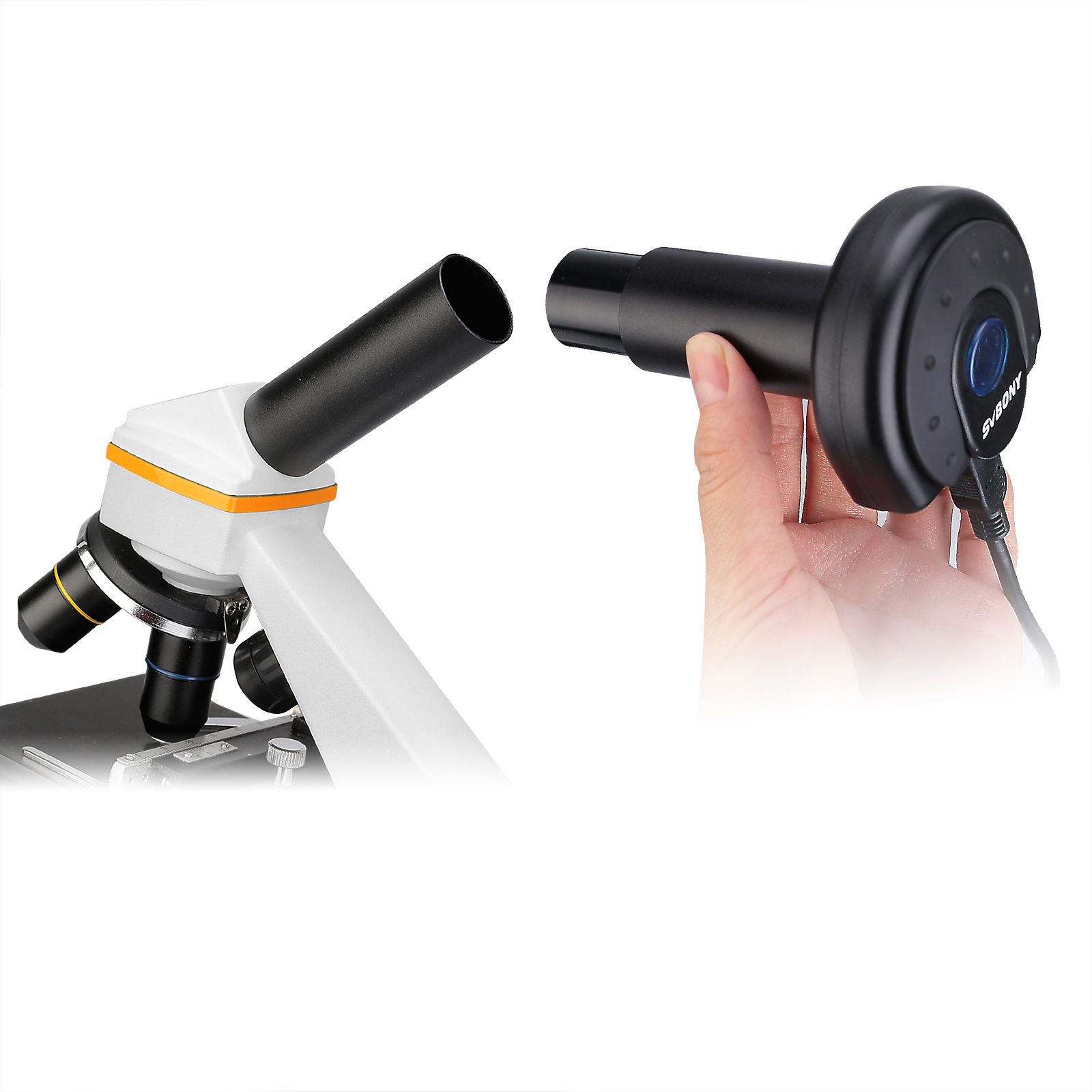

Package includes a digital microscope camera , a microscope adapter, 1.5m USB 2.0 cable and software.
