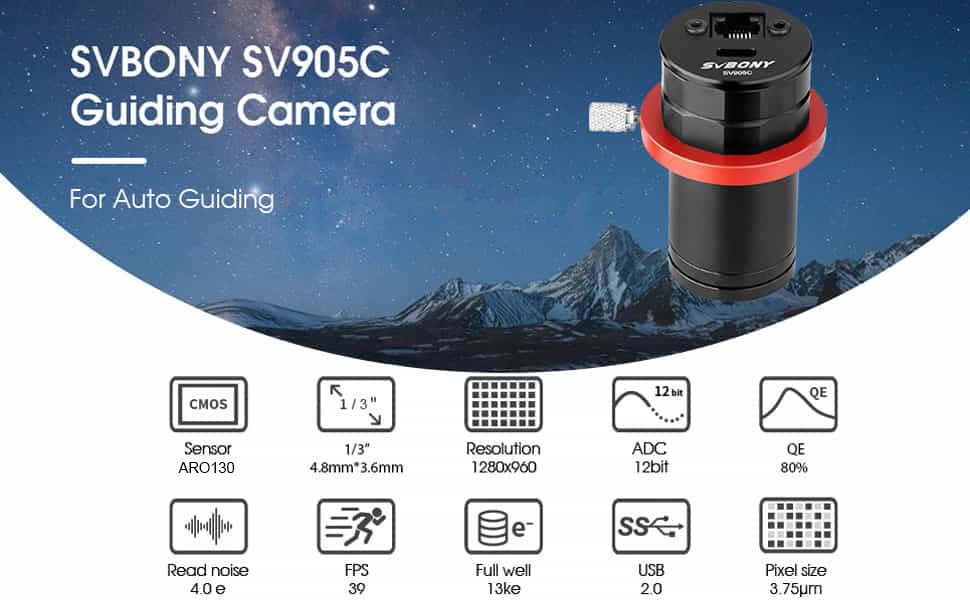

- Telescope camera; compact and highly sensitive 1.23-megapixel color camera with 1/3” CMOS 1280x960 sensor perfect for autoguiding or planetary imaging; small 3.75-micron pixels; high peak QE of 80% and low read noise allows tight tracking of faint guide stars;
- Astronomy guiding camera has USB 2.0 interface output; ST4 guide star interface; can compatible with PHD2; MDL; NINA; SKY-X and other software guide star;

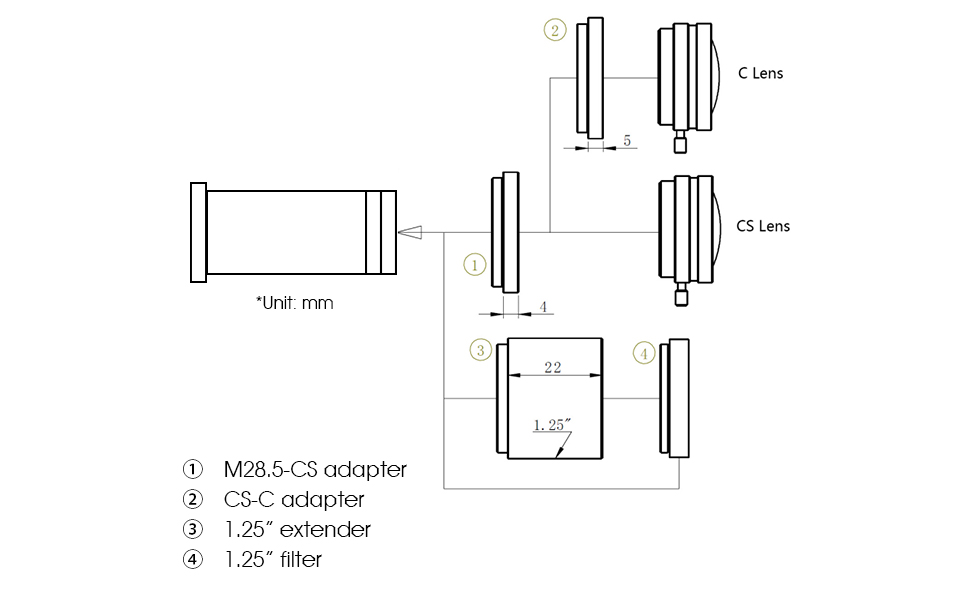

- The front of the eyepiece camera is equipped with a CS interface and a CS-C adapter ring; which can be matched with a CS lens or a C-mount lens;

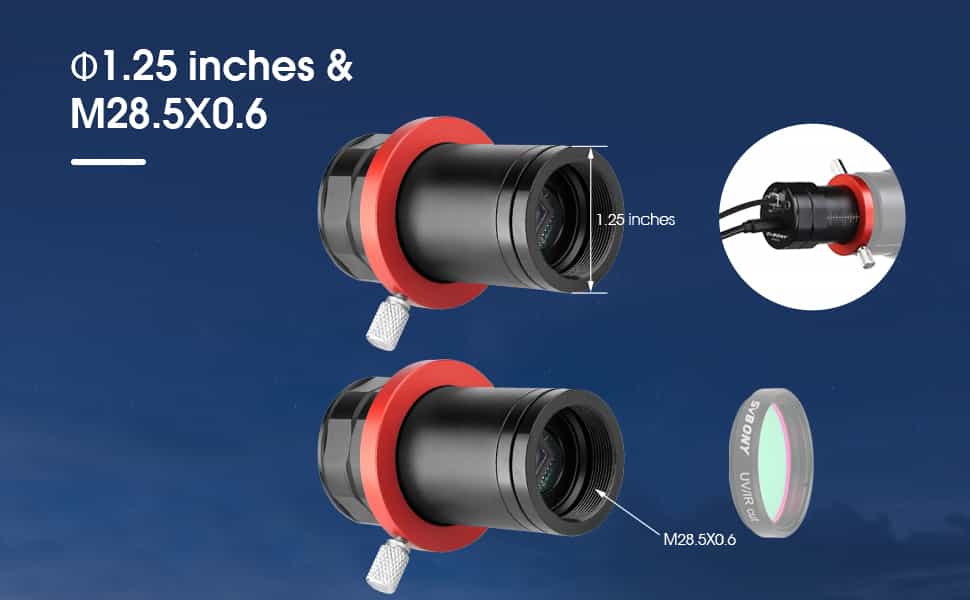

- The shape of the guide camera adopts a diameter of 1.25 inches; which can adapt to different focal length guide lenses and OAG guide stars;

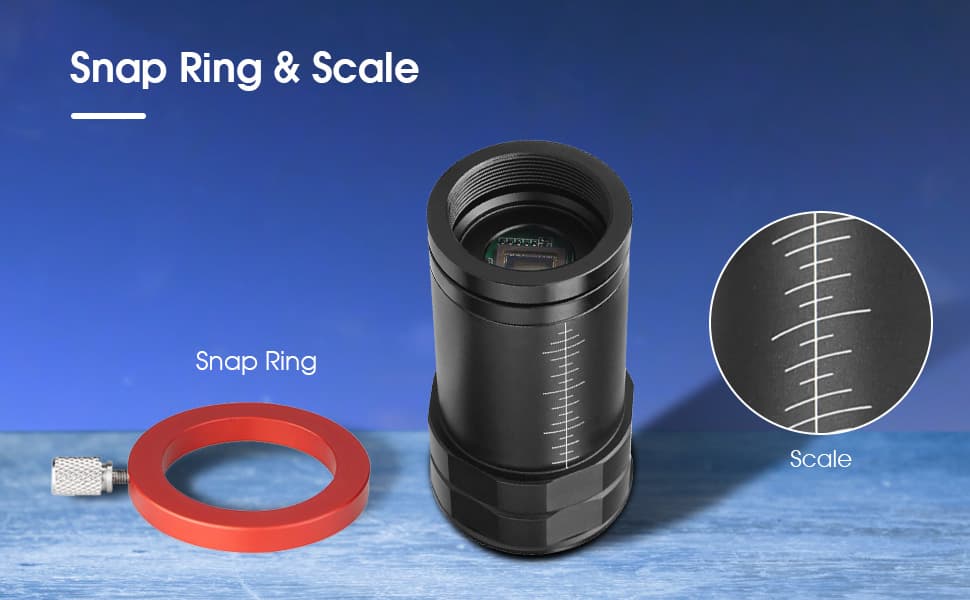

- The astrophotography camera is designed with snap ring and scale mark to facilitate the use of the same guide lens for focusing and positioning;
Pre-sale on Jan 10,2025
Special offers and product promotions

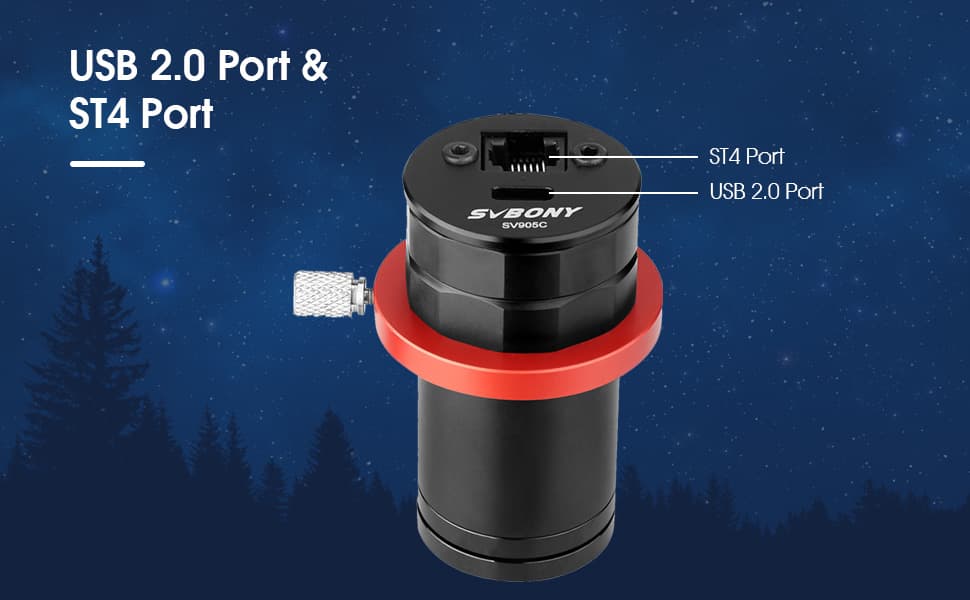

USB2.0 Type-C and ST4 Interface
Standard Thread Size

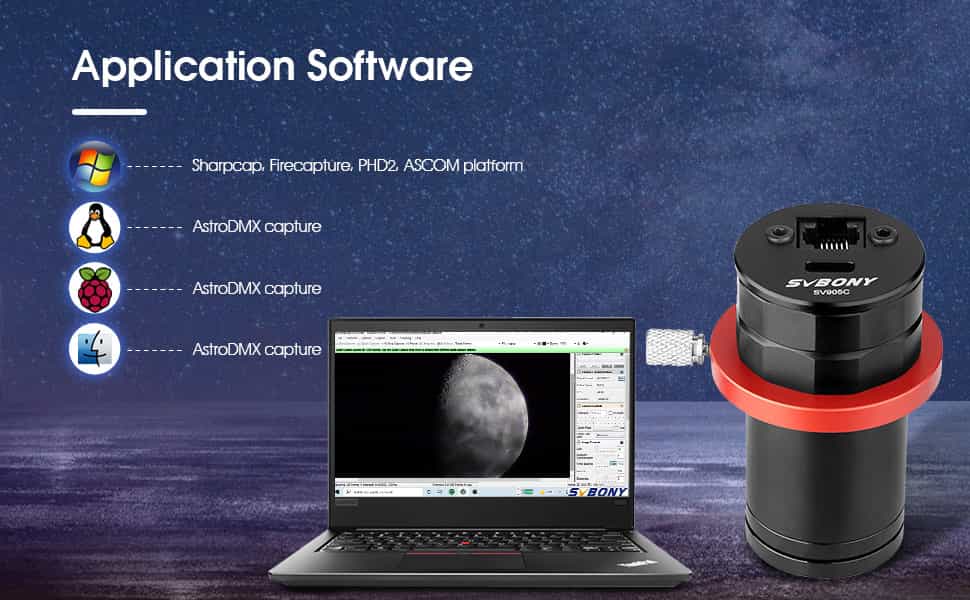

Application Software

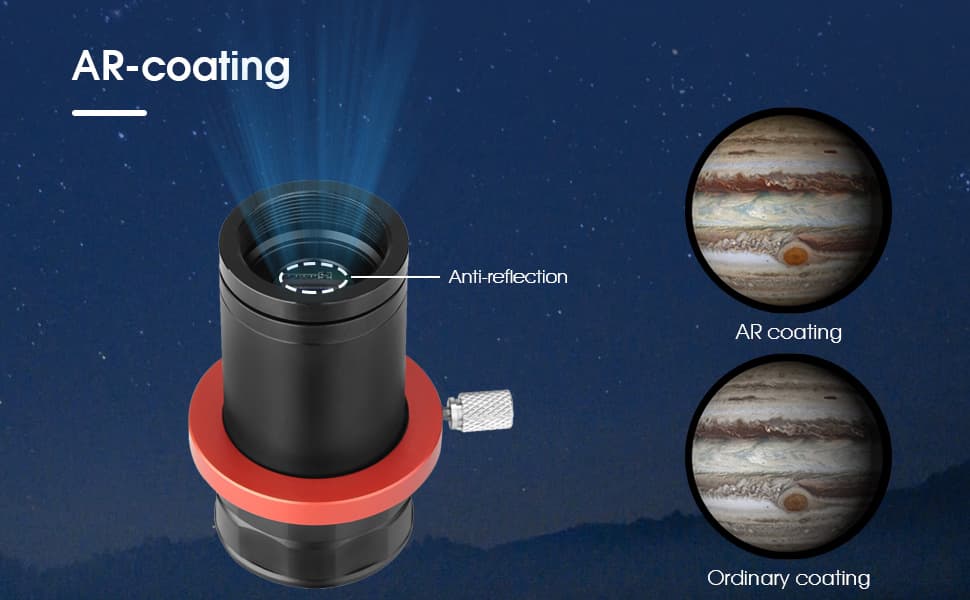

AR-coating
Très bonne caméra
Je l'utilise principalement en caméra acquisition visuelle planétaire avec firecapture ou sharpcap et donne de très bonne image couleur et en usage lunaire vraiment bien.
First Timer
Very pleased with purchase, also have the Svbony SV165 30mm guide scope. While I haven't used it for guiding yet (all very new to me), I am seriously considering buying both again for a dedicated AllSky camera using a Raspberry Pi. I'm new to SharpCap, but been able to get daytime live view images without any problems. Appreciate all the accessories that come along with the camera.
Good camera
It's a good camera for guiding and planets. The only issue - usb socket is too deep inside the case and cable can easily detach.
Still working
I've had this camera now just over two years and still works perfectly I've also used it to do some planetary imaging the best but it does work
Nice simple guide camera that you can also use for planetary imaging.
I really like that this little guide camera has built-in USB-C. That makes it much easier to get a live feed through the camera when I don't want to fire up a session of PHD or TheSky (or if I'm actively using them for guiding).
The ST4 auto-guide port works great and it was immediately recognized by my Meade mount.
This camera comes with a couple of tube extensions and a nice travel-stop ring so that once you get your focus, you can take the camera out to look directly through the telescope and then quickly return it to the same focus depth.
| Model | SV905C |
| Sensor | SONY IMX225 |
| USB Type | TypeC USB2.0 |
| Pixel Size | 3.75µmx3.75µm |
| Image Area | 4.8mm×3.6mm |
| Total pixels | 1.2M pixel |
| Diagonal | 6mm |
| Maximum Resolution | 1280×960 |
| Exposure Time | 64us~20s |
| Gain | 0-500 |
| Maximum Frame Rate | 39 FPS |
| Read noise | 4.0 e |
| QE peak | 80% |
| Shutter type | Rolling Shutter |
| Full well charge | 13ke |
| ADC | 12 bit |
| ROI function | Yes |
| Bin | 1x1 2x2 |
| Digital noise reduction | HCG mode |
| Video format | AVI mode |
| Communication interface | DirectShow interface |
| Application software | Windows OS: Sharpcap, Firecapture,PHD2 ASCOM platform Linux OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX Capture |
| Compatible system | Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS |
| Working temperature | - 5℃～45℃ |
| Storage temperature | - 20℃～60℃ |
| Working humidity | 20% RH-80% RH |
| Storage humidity | 20% RH-95% RH |
| Power consumption | <0.5W |

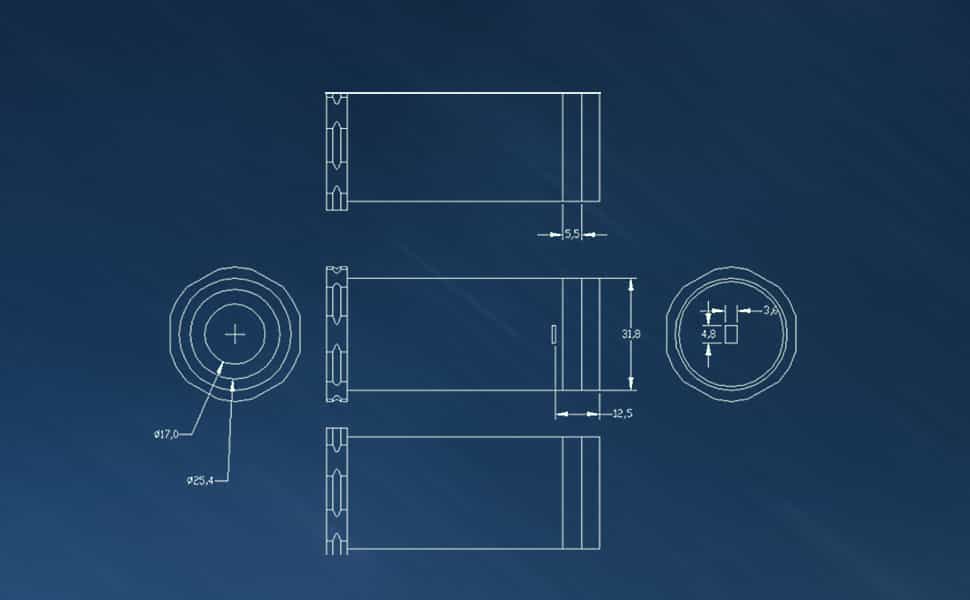

| Back intercept | 8.5mm/12.5mm |
| Protective glass | AR Coating |
| weight(with parcel) | 230g |
| Package size | 162*132*70 mm |
| SKU | Model | CMOS Sensor | Classification | Pixel Size | Resolution | USB Type |
| F9198A | SV305 | IMX290 | Color | 2.9μm x 2.9μm | 2MP | USB 2.0 |
| F9198B | SV305 Pro | IMX290 | Color | 2.9μm x 2.9μm | 2MP | USB3.0 |
| F9198C | SV305Pro AR | IMX290 | Color | 2.9μm x 2.9μm | 2MP | USB3.0 |
| F9198D | SV305M Pro | IMX290 | Monochrome | 2.9μm x 2.9μm | 2MP | USB3.0 |
| F9198L | SV305C | IMX662 | Color | 2.9μm x 2.9μm | 2.1MP | USB2.0 |
| F9198G | SV905C | IMX225 | Color | 3.75μm x 3.75μm | 1.2MP | USB2.0 |
| F9198H | SV505C | IMX464 | Color | 2.9μm x 2.9μm | 4.2MP | USB3.0 |
| F9198J | SV705C | IMX585 | Color | 2.9μm x 2.9μm | 8.3MP | USB3.0 |
| F9384A | SC311 | IMX662 | Color | 2.9μm X 2.9μm | 2.1MP | Type-C |
1. Compact and highly sensitive 1.2-megapixel color camera with 1/3” CMOS 1280x960 sensor perfect for auto-guiding or planetary imaging
2. Small 3.75-micron pixels, high peak QE of 75% and low read noise allows tight tracking of faint guide stars
3. USB2.0 Type-C interface and ST4 port to connect directly to the auto-guider port of a telescope mount
4. Compact form factor with a diameter of 36mm lets you slip the camera into a 1.25” focuser; the weights just 60g (2.1oz); AR-coated protective window to maximize transmission and protect the sensor; includes M28.5X0.6 female thread for astronomy filters
5. Software and drivers available from the manufacturer's website.
