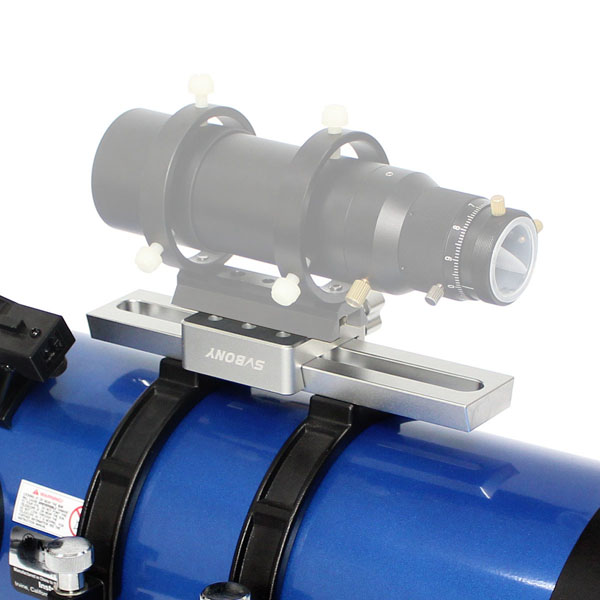

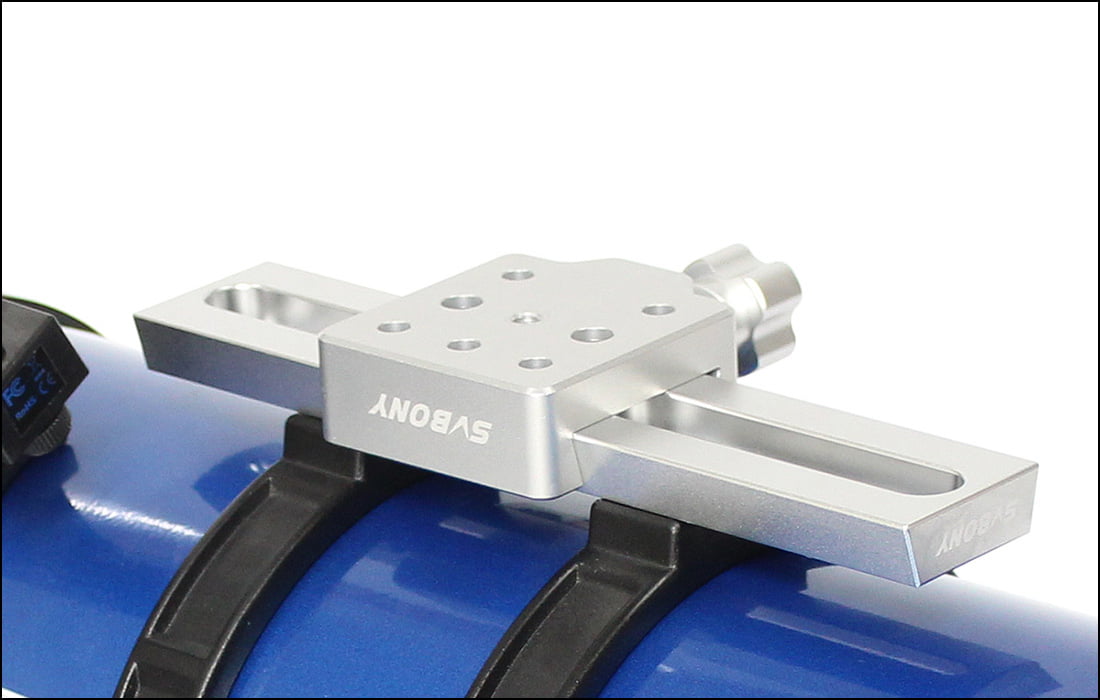

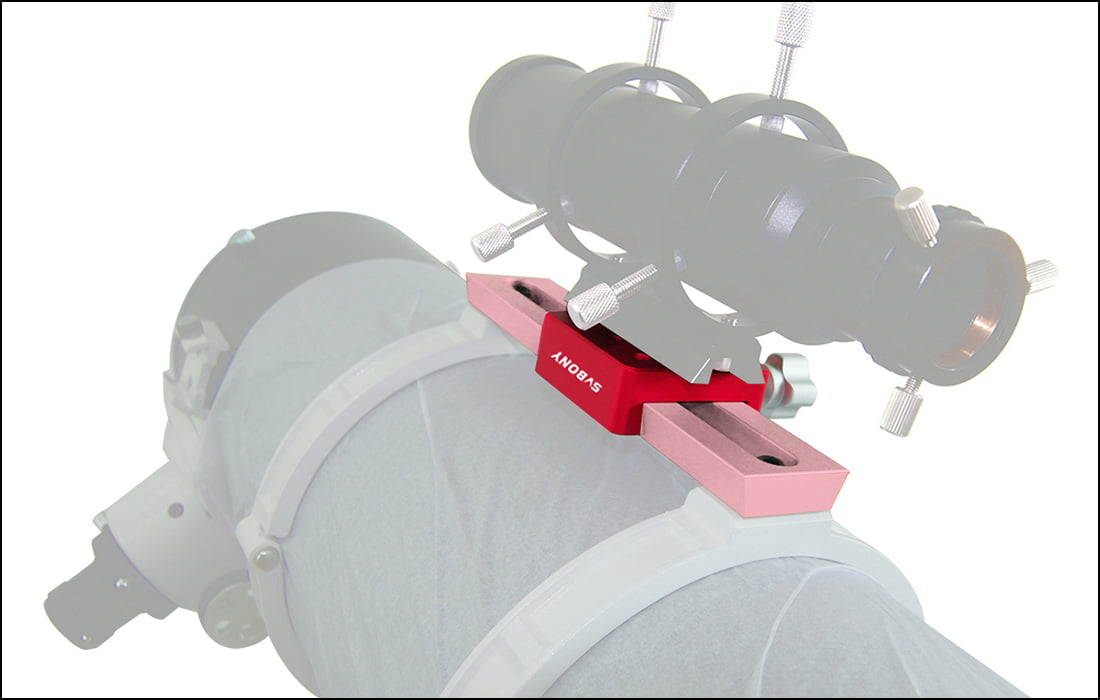

- The dovetail clamp can be used to fix a telescope or camera to a tripod, particularly suitable for creating a double connection where a high load capacity is required;
- 7 holes are available. 5 M6 holes with 1/4" screws and 2 M8 holes can be attached to almost all surfaces;
- The area clamp with brass locking screw protects the accessory and provides a very stable connection;
- The clamping screw is completely kept clamping can be used without problems;
- The all-aluminum dovetail clamp is sturdy in construction, not twisting, high load capacity up to approx 10 kg;
In Stock
Clamps tight!
I got this to attach dovetails to the top of a Star Adventurer and it's just what the doctor ordered. Yet another item from SVBONY that hasn't let me down!
Nice well made dovetail mounting block!
I tried using a ball mount on my telescope but found that the telescope gets loose on the 1/4-20 screw, even with the rubber pad on the mount! I bought this clamp which stays in place on the ball mount using only the 1/4-20 screw. The advantage of this is I can balance the telescope on this mount by sliding telescope rail in the mount. I now have very smooth motions on this tripod with little vibration, and the telescope stays where I put it! I don't have to constantly loosen and tighten a pan handle on the tripod. This clamp works very well and is strong.

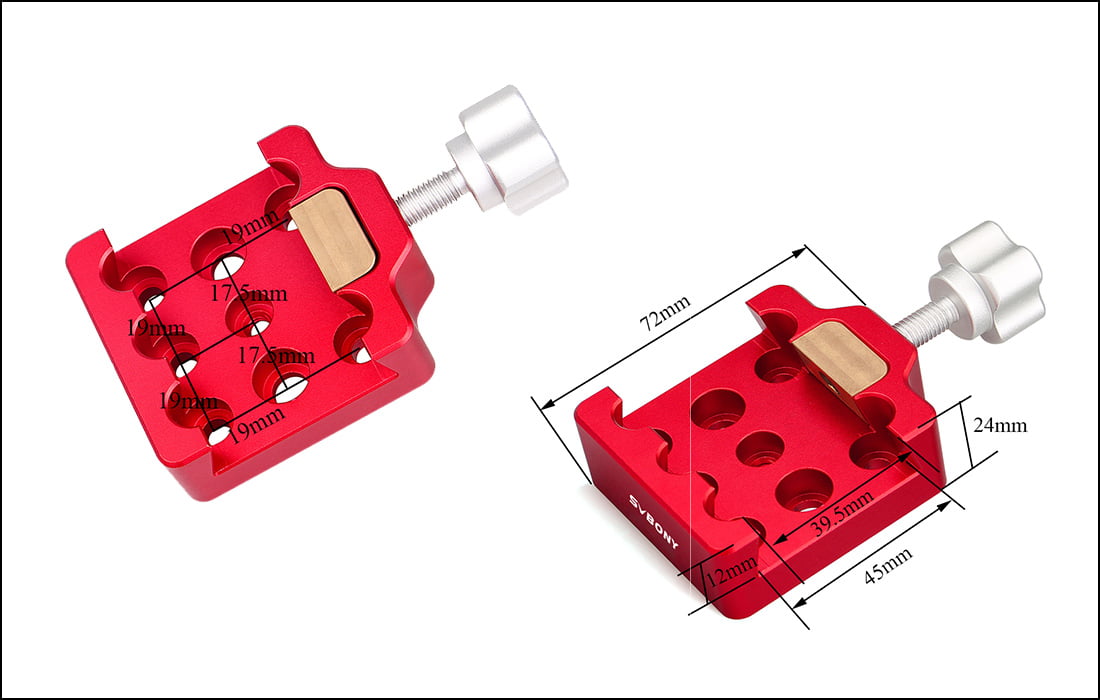

Specifications:
| Model | F9144C/D |
| Material | Aluminum alloy |
| Color | Red/Silver |
| Loading Weight | 10kg |
| Dovetail Upside | 39.5mm |
| Dovetail Downside | 45mm |
| Dovetail Depth | 12mm |
| Net Weight | 193g/6.83oz |
- Features:
- 1. We provide you with two colors to choose from, the red one and the silver one. And we have a matching dovetail mount plate with red and silver colors.
2. With brass screws and locking screws can protect the accessories and provide a very stable connection.

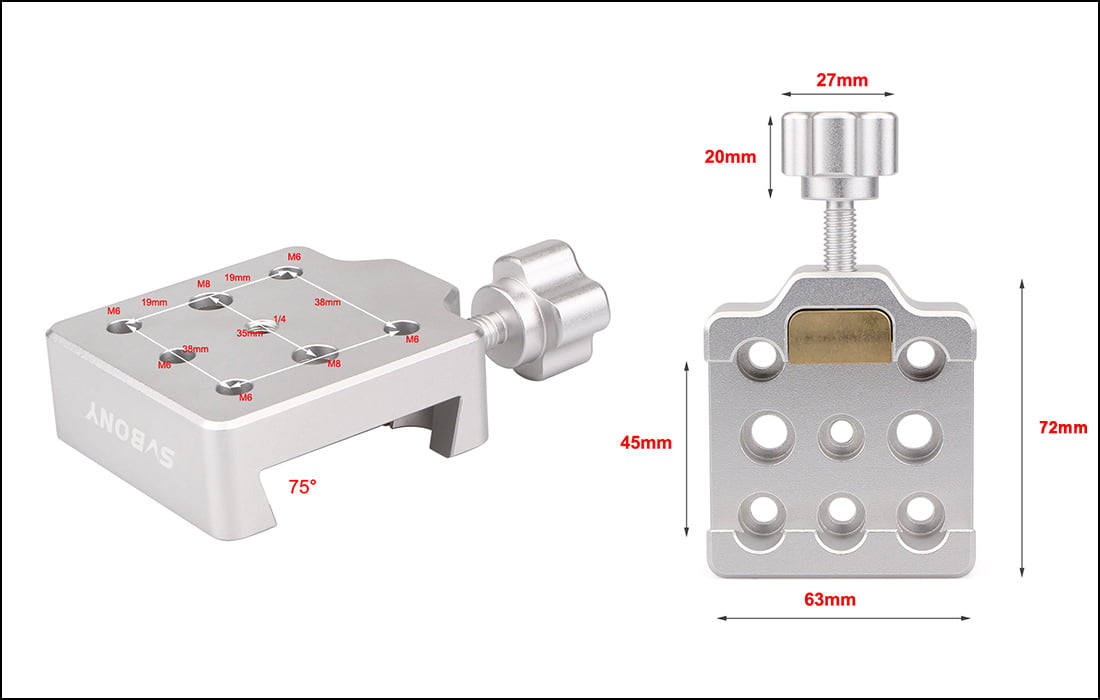

3. For attaching the clamp, 8 holes are available, five bores for M6 and one for 1/4 inch screws, and two bores for M8 screws. The center distance of the two holes for M8 screws is 35mm.
4. 8 holes allow connecting to almost all surfaces.

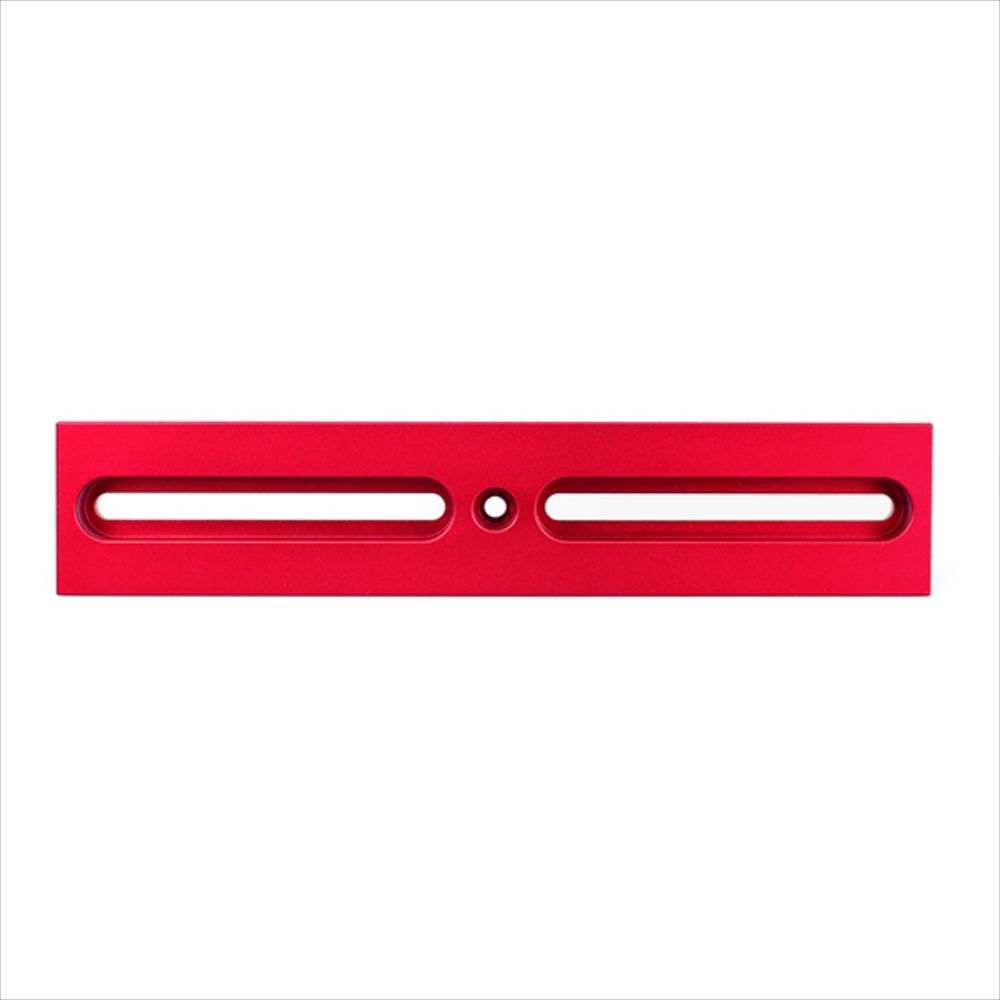

5. This dovetail clamp can be compatible with our F9143 dovetail plate, which is sold separately.
