The SV219 black dovetail mounting plate for different sizes of telescopes. We provide you with three specifications of different lengths to choose from according to your telescope size.
Svbony SV219 Black Dovetail Mounting Plate for Different Size of Telescopes Update
SV219 Vixen Style Dovetail Plate 120/210/300mm with Aluminium Alloy & Anodized Body

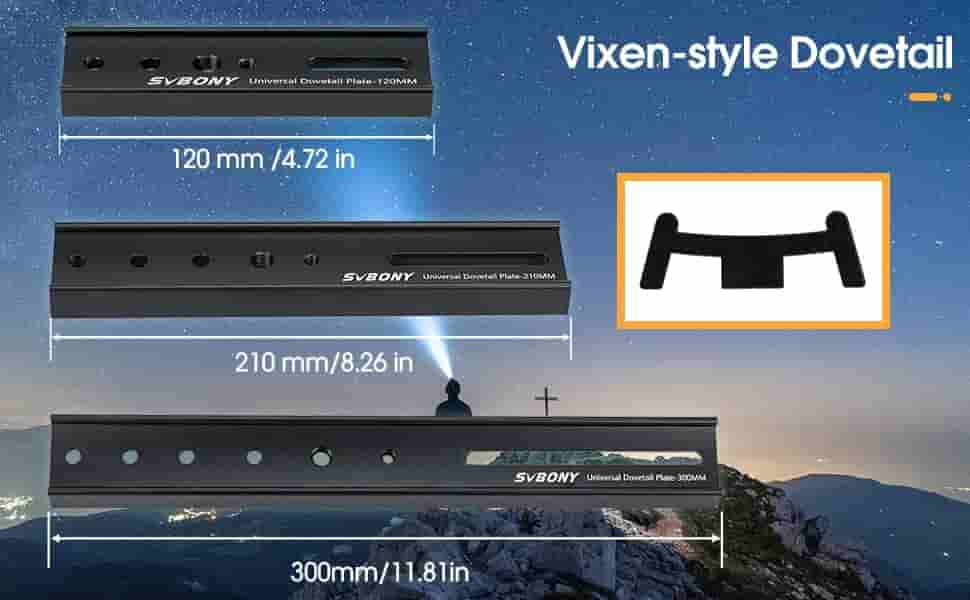

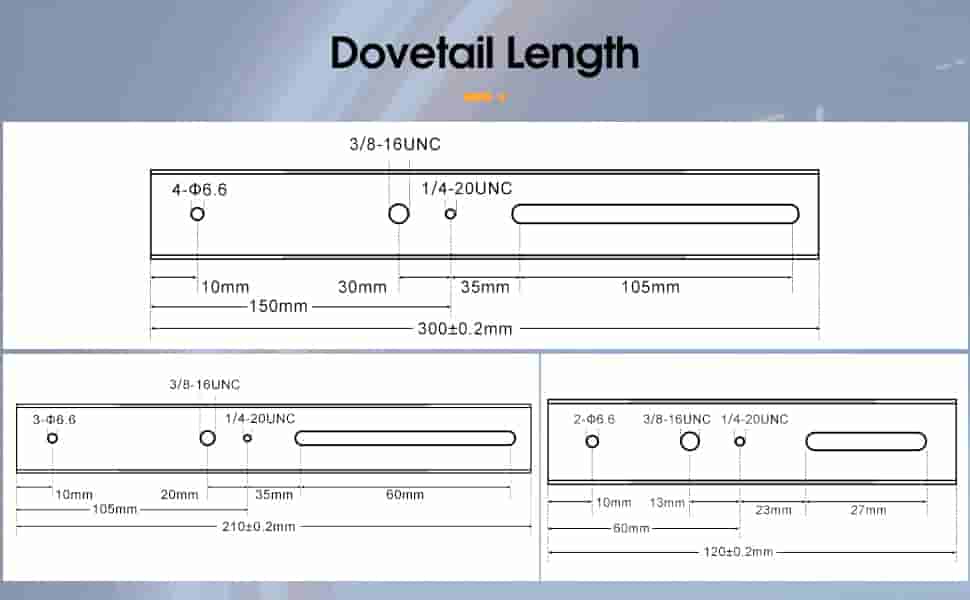

The Specific Structure And Parameters Of The SV219 Dovetail Plate
The Dovetail Groove - More Convenient To Mount

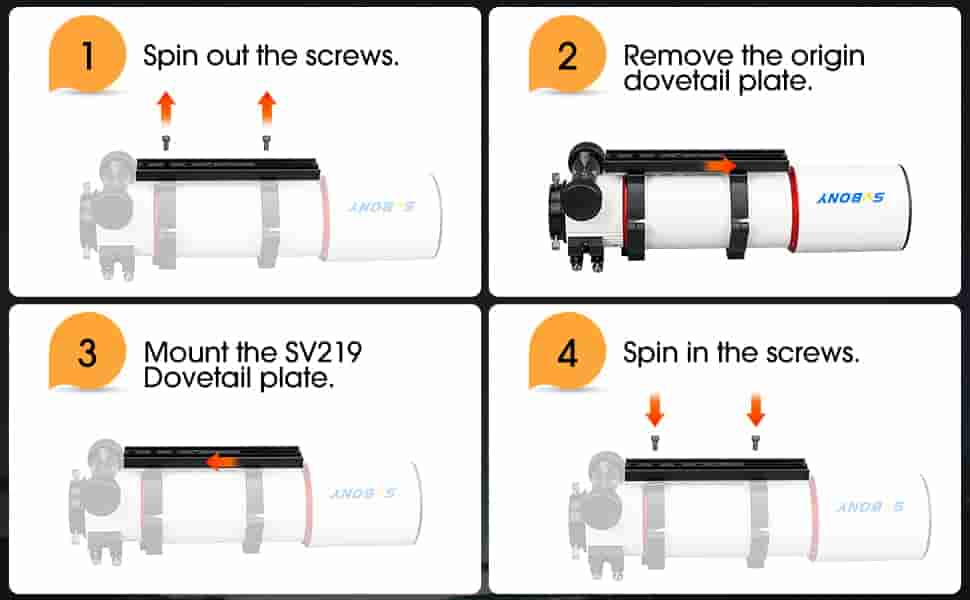

The Installation Instructions Of SV219 Dovetail Plate
Specifications:
| Brand | SVBONY | ||
| Model | SV219 | ||
| SKU | W9175A | W9175B | W9175C |
| Length | 4.72in/120mm | 8.26in / 210mm | 11.81in / 300mm |
| Function | Vixen-Style Dovetail Plate | ||
| Surface Treatment | Black Anodized finish | ||
| Width | Vixen Standard | ||
| Material | Aluminum Construction | ||
Features:
According to your telescope size, we provide you with three specifications to choose from.
2. Fully metal alloy precision manufacturing and full surface oxidized. After anodizing treatment, an electrical insulating coating will be formed on the surface to maintain the smoothness of the metal, and it feels very comfortable.
3. It is easy to attach and detach instruments without using tools.
4. This metal mounting plate can be used to mount your telescopes or spotting scopes to tripod head with dovetail clamp. It provides a platform for coupling telescope optical tubes to equatorial mounting.

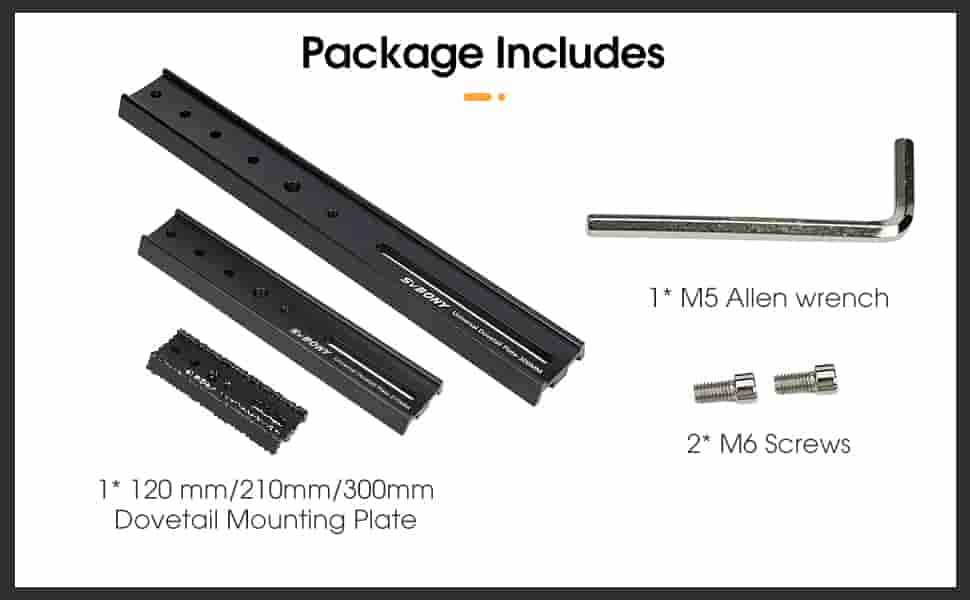

Package Inculdes:
1* 120mm / 210mm / 300 mm Dovetail Mounting Plate
1* M5 Allen Wrench
2* M6 Screws
Applicable Accessories
