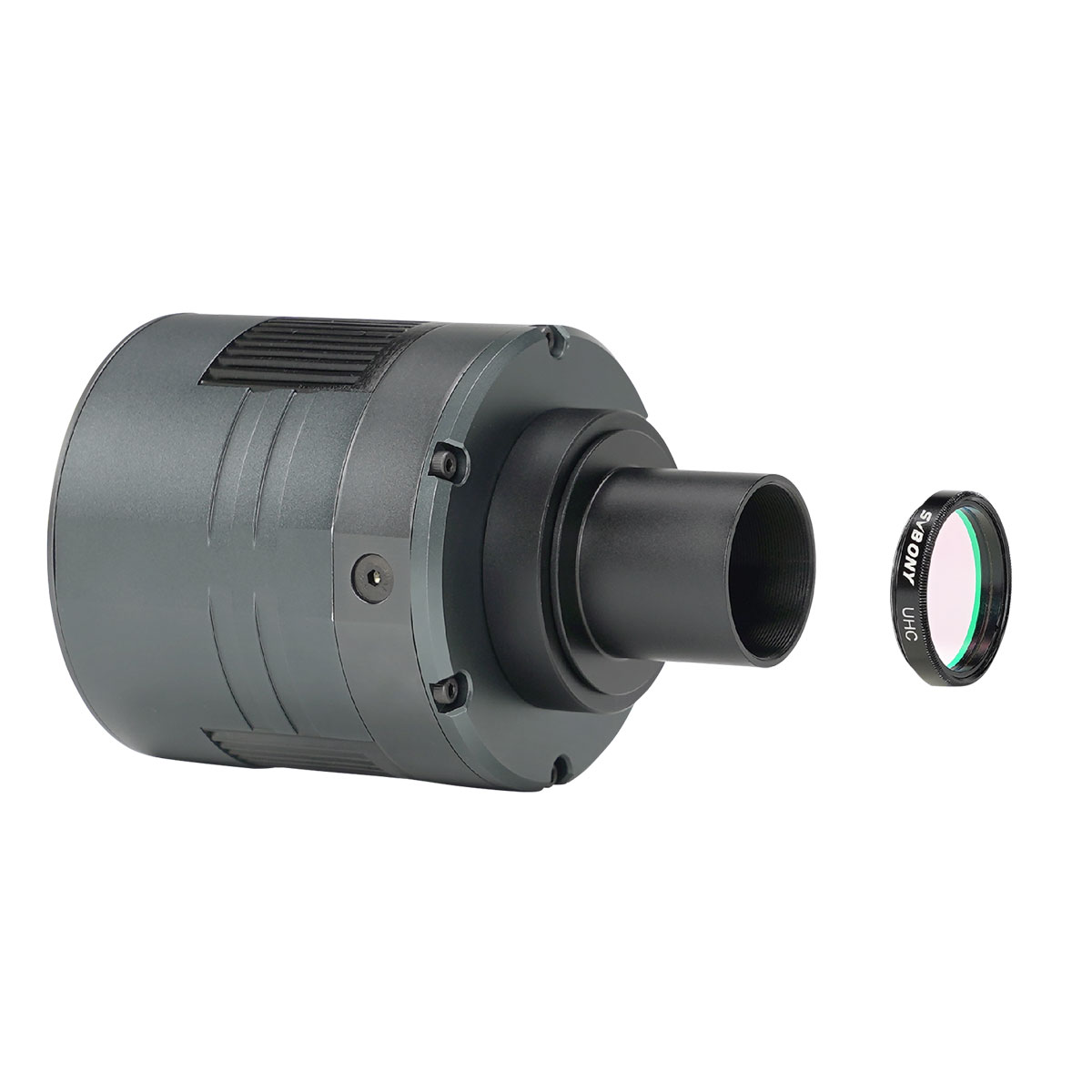

SV605MC Mono Cooled Camera IMX533 for Deep Space Astrophotography

SKU: F9198E-
US$ 899.00
  • The sensor incorporates a 14-bit A/D converter, the 14-bit digital output makes it possible to read out the signals of 9.07M effective pixels at a high speed of 20 FPS. Read-out noise is as low as 1.0e which makes sure the highly suitable for high definition, low noise deep space objects imaging;
  • Foldable and portable: This camera is foldable and easy to carry, it can be easily stored in your backpack or pocket;
  • The SV605MC features a USB 3.0 data transmission interface and a built-in 256MB DDR3 high-speed memory for fast and efficient deep-sky objects imaging, and to buffer image data and ensure stable data transmission;
  • The HCG digital noise reduction technology is adopted, and the readout noise can be greatly reduced while maintaining a high dynamic range;
  • SV605MC features an improved amp glow suppression design, which guarantees a high-quality "dark" image.
Reviews by @Cuiv, the Lazy Geek     Get $20 OFF (Coupon code: Cuiv20)

In Stock Out Of Stock

Special offers and product promotions

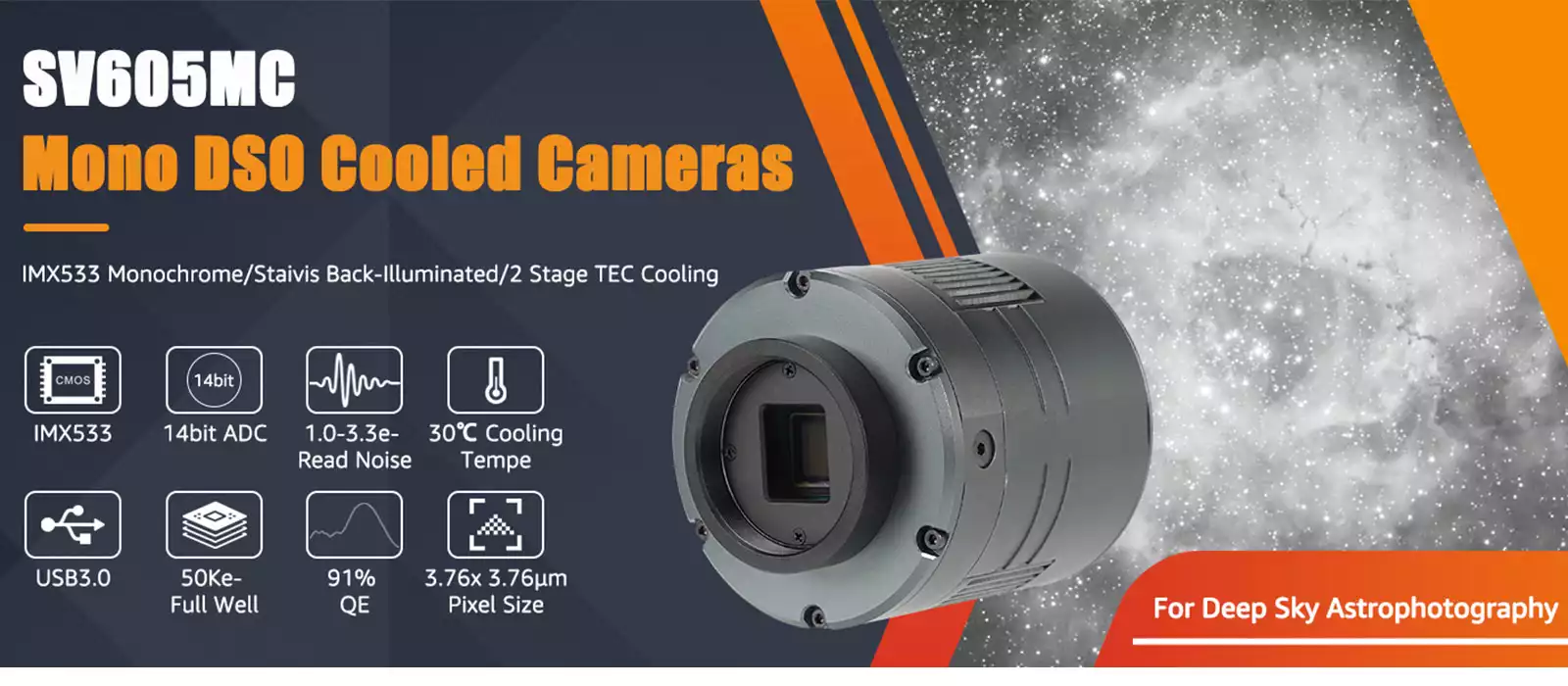

SV605MC IMX533 Monochrome Cooled Camera  for Deep Space Astrophotography

SV605MC mono camera has a high quantum effect (QE), low readout nose, high frame rate. It can make the details more delicate. Staivis back-illuminated pixel technology and the exposure time of 32 μS-2000S improves sensitivity and can help enhancing image quality in a darker environment.

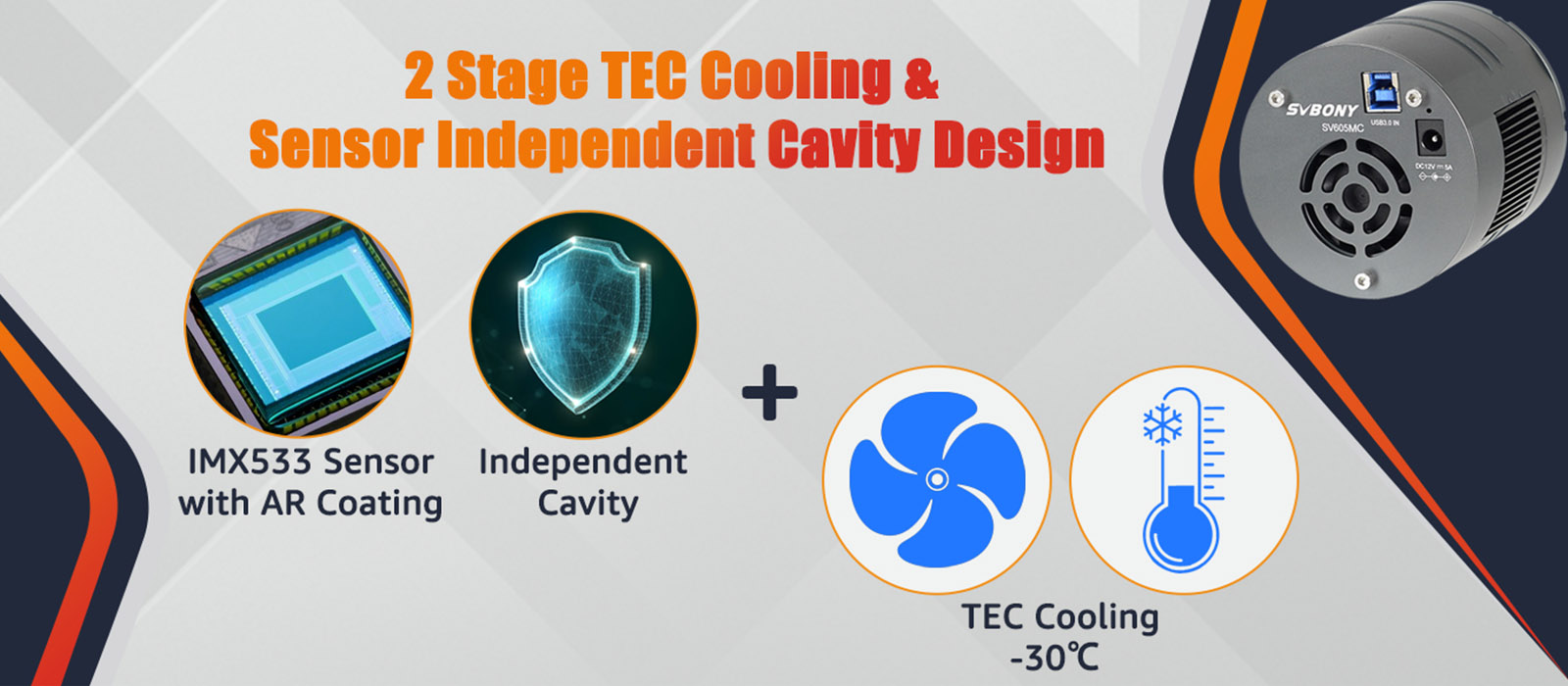

2 Stage TEC Cooling & Sensor Independent Cavity Design

The sensor of SV605MC cooled camera is designed of the independent cavity which can prevent the CMOS and protective window glass from the brought by multiple cooling.

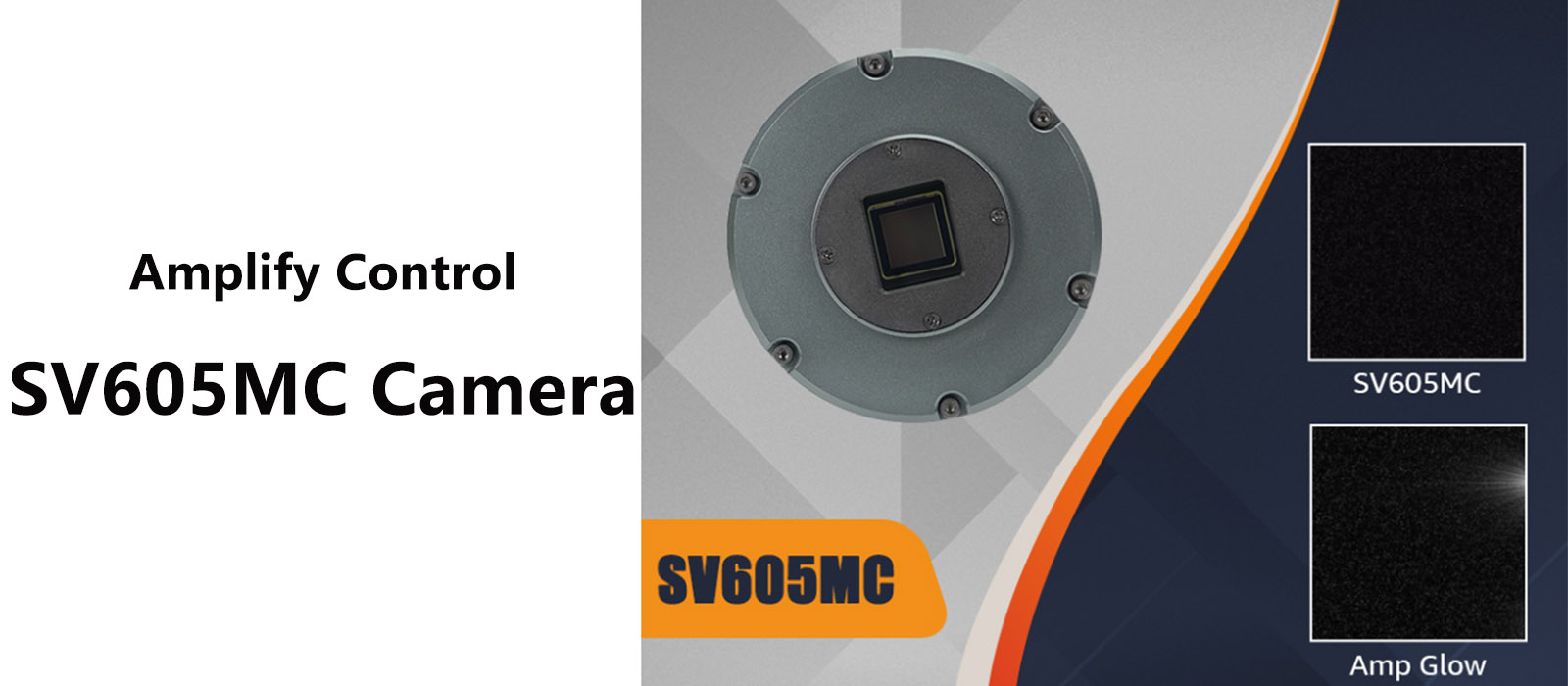

Amplify Control

If you see a weak infrared light source at the corner of the unregulated image, this is a normal phenomenon, because traditional CMOS sensors often do not have no amp-glow during the operation. SV605MC telescope camera uses amplify control circuit, which can effectively suppress the glow.

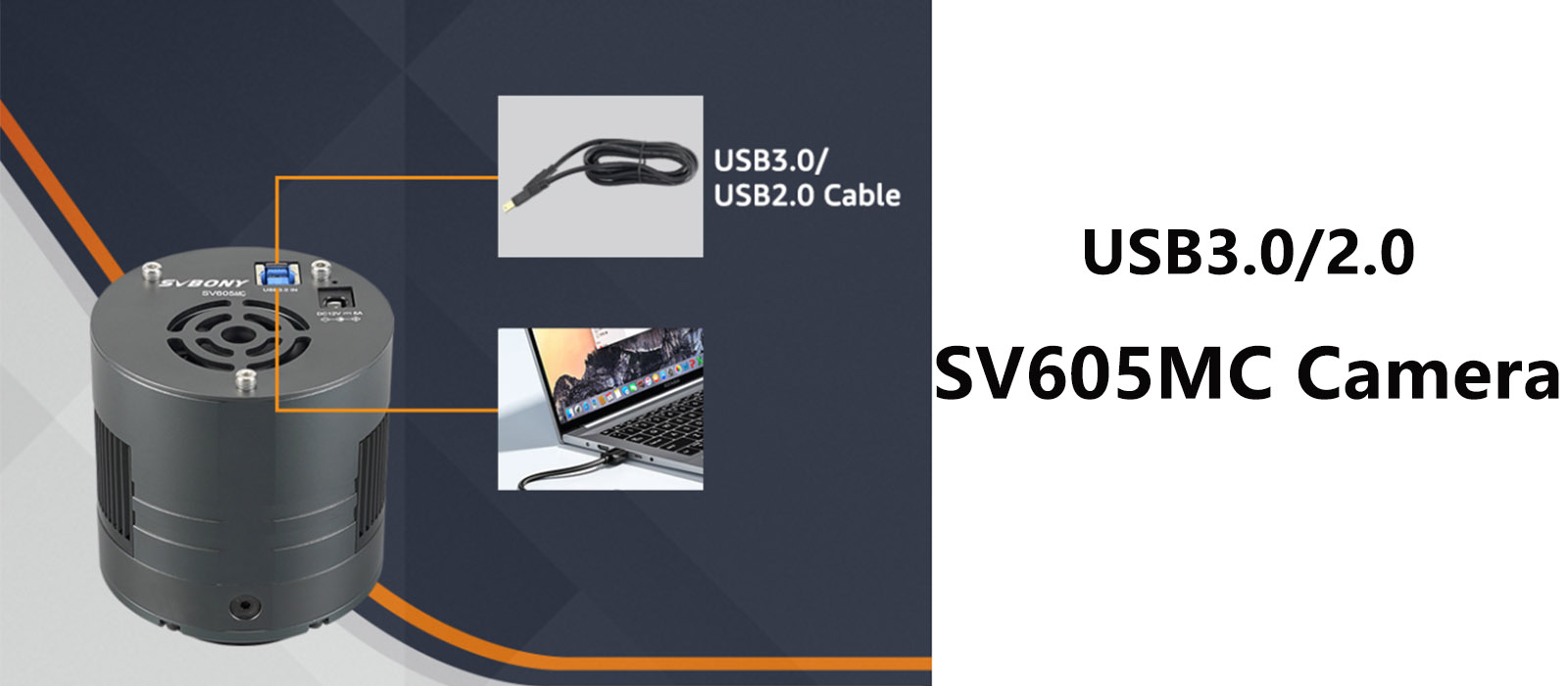

USB 3.0 connection

With USB 3.0 connection, computer can improve the transmission rate, for planet observation, moon default observation, and deep sky objects.

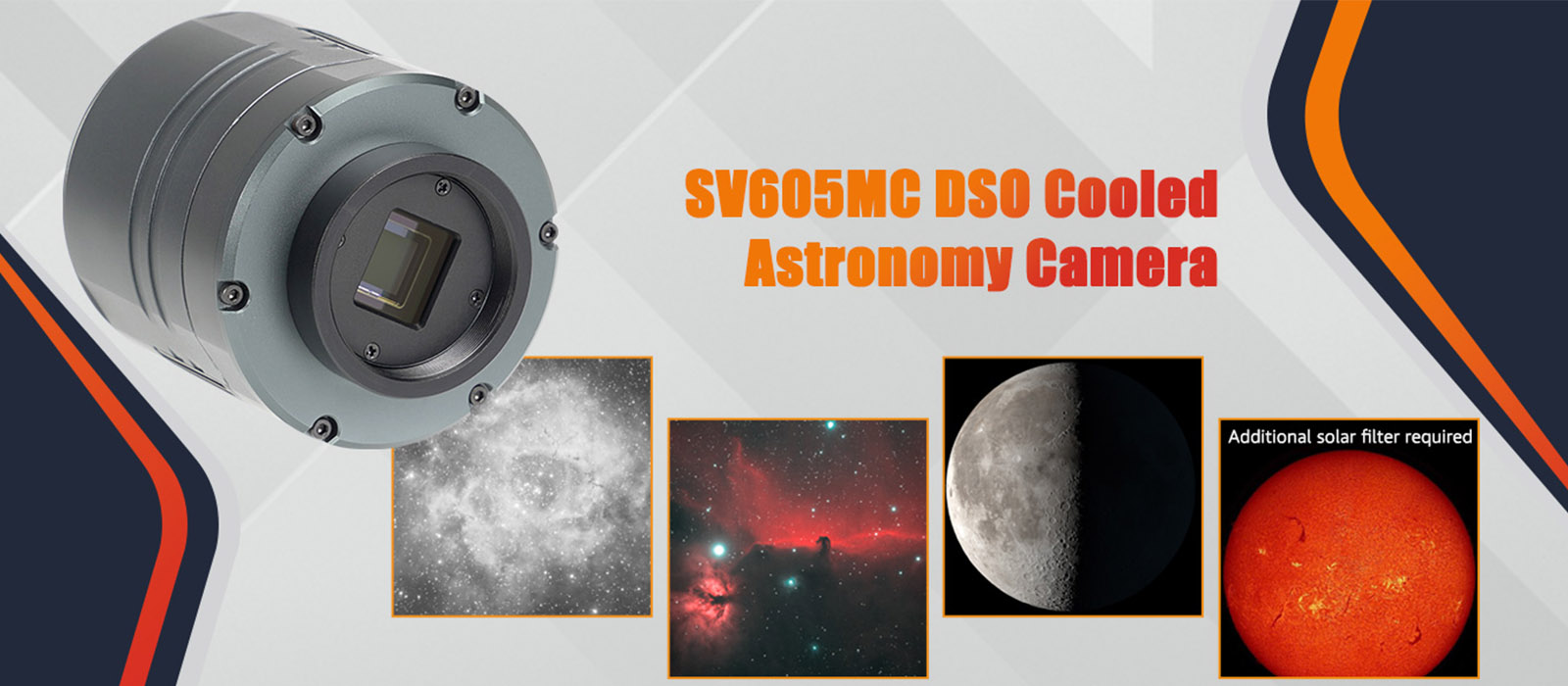

SV605MC For Deep Sky Astrophotography

SV605MC astronomy camera is designed for deep sky photography. It can be used with other attachments for a series of photography activities. It can also be used for moon, planet and sun (extra with solar filter) photography.

SKU F9198E F9198F F9198K F9387A
Model SV605MC SV405CC SV605CC SC432M
Sensor IMX533 IMX294 IMX533 IMX432
Classification Monochrome Color Color Monochrome
Shutter Type Rolling Shutter Rolling Shutter Rolling Shutter Global Shutter
Pixel Size 3.76μm X 3.76μm 4.63µm 3.76μm X 3.76μm
Resolution 9MP 11.7MP 9MP
Diagonal Length 15.968mm 23.2mm 15.968mm 17.5mm
USB Type USB3.0 USB3.0 USB3.0
4 reviews

Write a review

Good value for money, super cost-effective!

First lights of my new monochrome camera received, SvBONY SV605MC (IMX533) camera cooled -10 degrés, gain 100, 31.75mm Uv/IrCut Filter, Bortle 5 Sky. Stack of 36 5mn pictures (3h)Photons are well captured !

SV605MC review

I received the SV605MC camera a month ago and I did multiple nights testing, the camera performed flawlessly, connected to NINA without any issues, cooling was performing as expected and the picture quality was on top level, no banding whatsoever. I am a very happy customer and I am waiting for the future to capture with this camera great mono camera at very reasonable price. I posted my Helix nebula image in Svbony facebook page.

My new every day camera :)

Just received my new SV605MC camera in France, quickly sent and perfectly packaged, and hopefully the clouds were not in my sky in the beginning of the night !!! So i was able to do a quick test, 3 hours on M31, and this "budget" camera is really awesome :) I will send my test image on the facebook group of SvBony users. Clear skies !

Bang for buck product!

ok so i just received the sv605mc with the filterwheel and NB filters. Also the clouds came rolling in as soon as i received it so bummer i don't think i'll be able to test it out any night soon, so this review is related to the product packaging and general inspection and i promise photos will come as soon as there is a break in the never ending clouds. The order was shipped on monday and i received it today after a little more than four days, which is blazingly fast for my location (mauritius). The camera module as well as all the accessories were well packaged. My biggest gripe about the camera is that it looks too much like the sv605CC ( the one shot color version svBony makes) but you get quite a generous number of different stickers so you can differentiate if you've got both cameras. I have both the sv605CC and now the sv605MC and the build quality is phenomenal! feels solid and well built, i bet you could use that as the end of a hammer and it wouldn't even have a dent :P About the filter wheel, it is solidly built but i did run into some issues when trying to move the filter positions. I disassembled the filter wheel by removing the 4 small screws using the allen key provided and immediately noticed that one of the tube will block the wheel if screwed in all the way inside, so if you ever happen to experience the same issue you just need to unscrew that tube a bit and all will be sorted out. If you want to buy it then go for it you won't be disappointed!

Brand SVBONY
Model SV605MC
Sensor Size 15.469mm(H) x16.375mm(V)
Diagonal 15.968mm
Image Area 11.31mm x 11.31mm
Maximum Resolution 3008*3008
Effective Pixels 9MP
Maximum Frame Rate 20FPS
Pixel Size 3.76μm(H) x 3.76μm(V)
Shutter Type Rolling Shutter
Exposure Time 32ms-2000S
Read Noise 1.0-3.3e-
Buffer Memory DDR3 256M
ROI YES
QE 0.91
Full Well Charge 50Ke-
ADC 14bit
Output Image Format Mono8/Mono16
Pixel Binning BIN1,BIN2,BIN3,BIN4

Features

1. IMX533 Sensor With AR Coating
2. Independent Cavity
3. 2 Stage TEC Cooling
4. Amplify Control
5. Staivis Back-Illuminated Technology
6. USB 3.0/2.0 Cable
