- 40-2500X magnification; the compound binocular microscope offers 6 magnification levels; micron-level magnification can clearly observe bacteria and viruses cell structure of bacteria; protists; etc;
- 2 power supply methods; battery power supply （3 AA) and 5V1A power interface; two power supply methods can solve your various indoor and outdoor uses;
- Achromatic objective lens; immersing the 100X lens in cedar oil for observation can greatly improve the clarity of image details; and is used to observe finer structures such as chlamydia; bacteria; and organelles;
- Eqquipped with mobile phone adapter; it can meet your photography needs ; and it can also connect to computer with SV189 microscope camera;
- LED light; single-bulb LED lighting built into the bottom of the binocular biological microscope, intensity adjustable; transmitted (lower) LED light can be used to view translucent specimens from below;
- Professional binocular head; the microscope equipped with 10X and 25X widefield eyepieces with 53 to 77mm inter-pupillary adjustment; the right eye of the binocular head has diopter adjustment;
- Double-layer mechanical stage; X Y double-layer loading platform for small items need to observe different locations moderate ideal design; allows you to operate the loading table more convenient and precise; dual focusing knob; coarse focusing knob and fine focusing knob; you can use them to achieve fast focusing and fine focusing to meet your different needs;
- SM201 Binocular use 33mm Rheinberg illumination filter. It can meet your photography needs ; and it can also connect to computer with SV189 microscope camera.

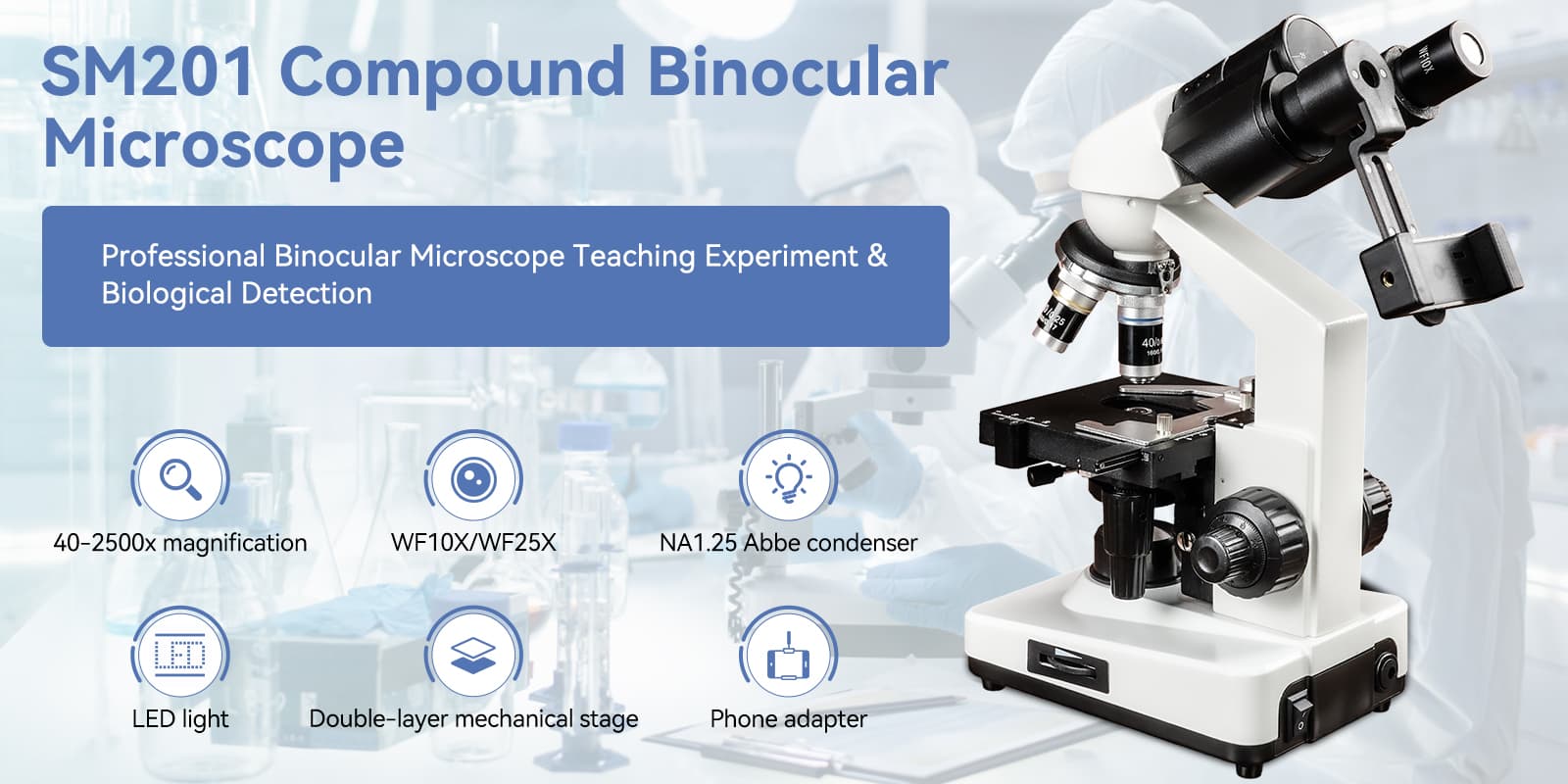

SM201 Binocular Compound Lab Microscope With Phone Adapter

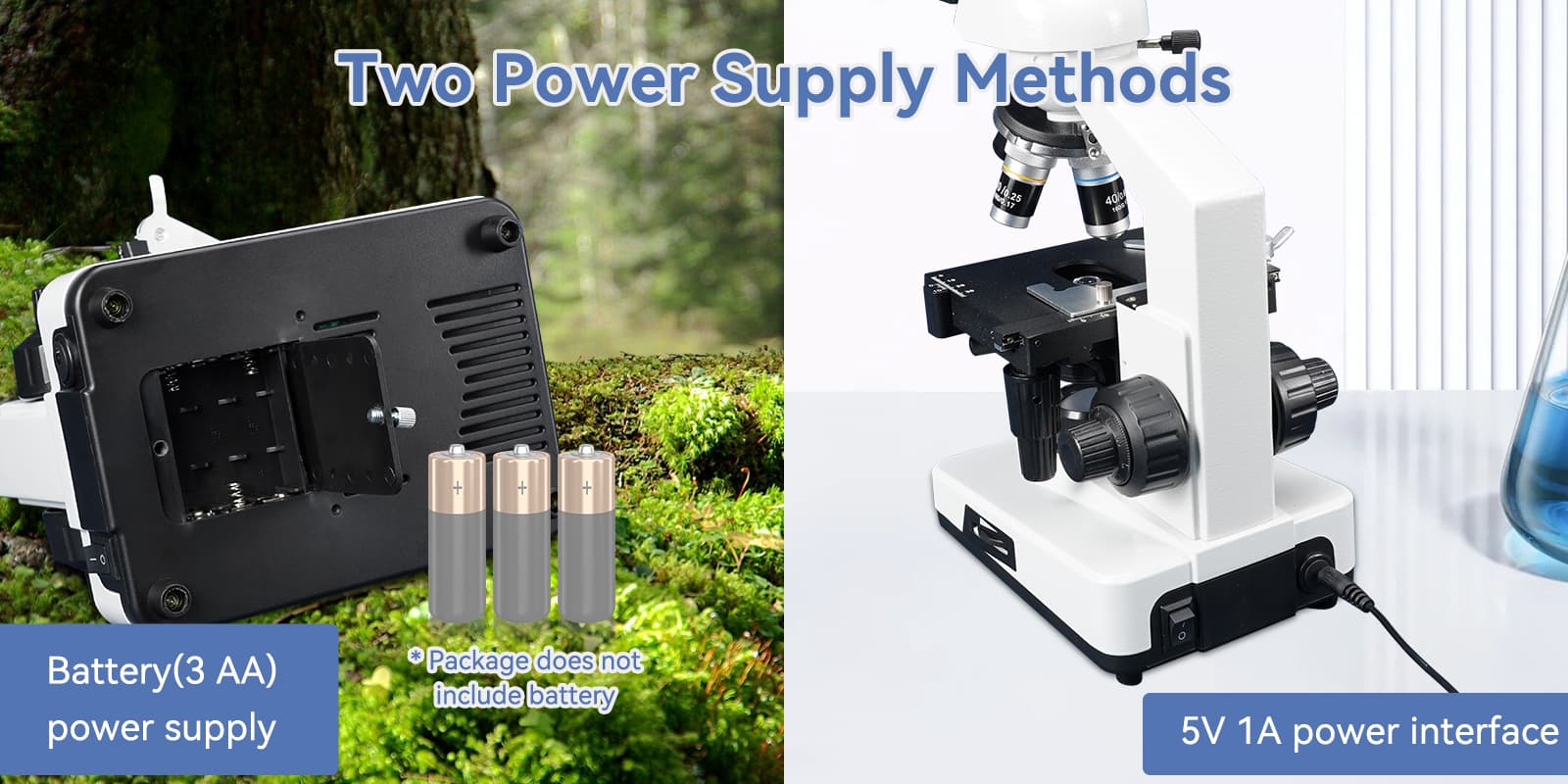

2 Power Supply Methods
SM201 Compound Binocular Microscope supports 2 ways of power supply: batteries or 5V1A power interface(included). Battery power supply (3 AA) and 5V1A power interface; two power supply methods can solve your various indoor and outdoor uses and solve your electricity anxiety.

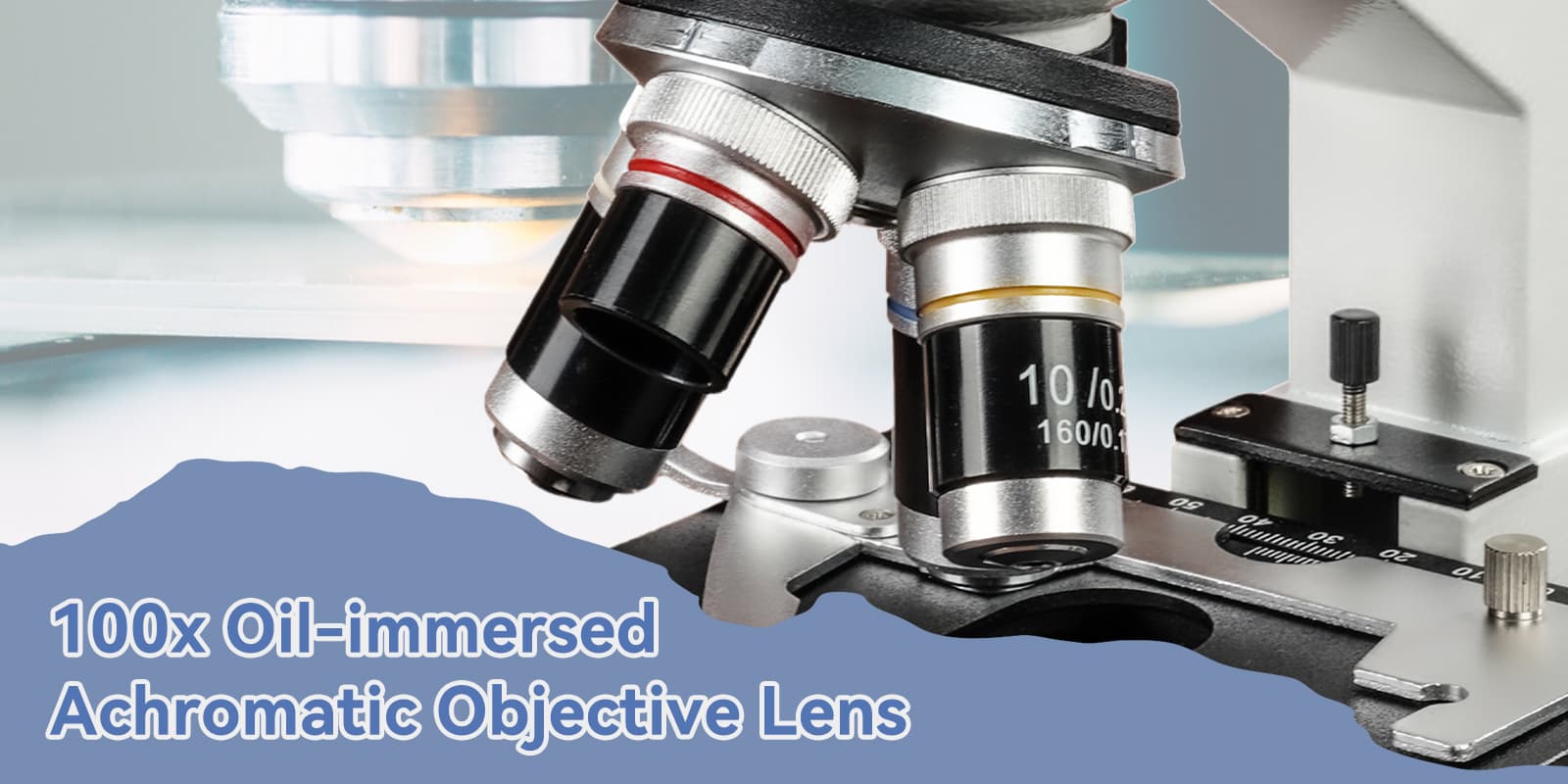

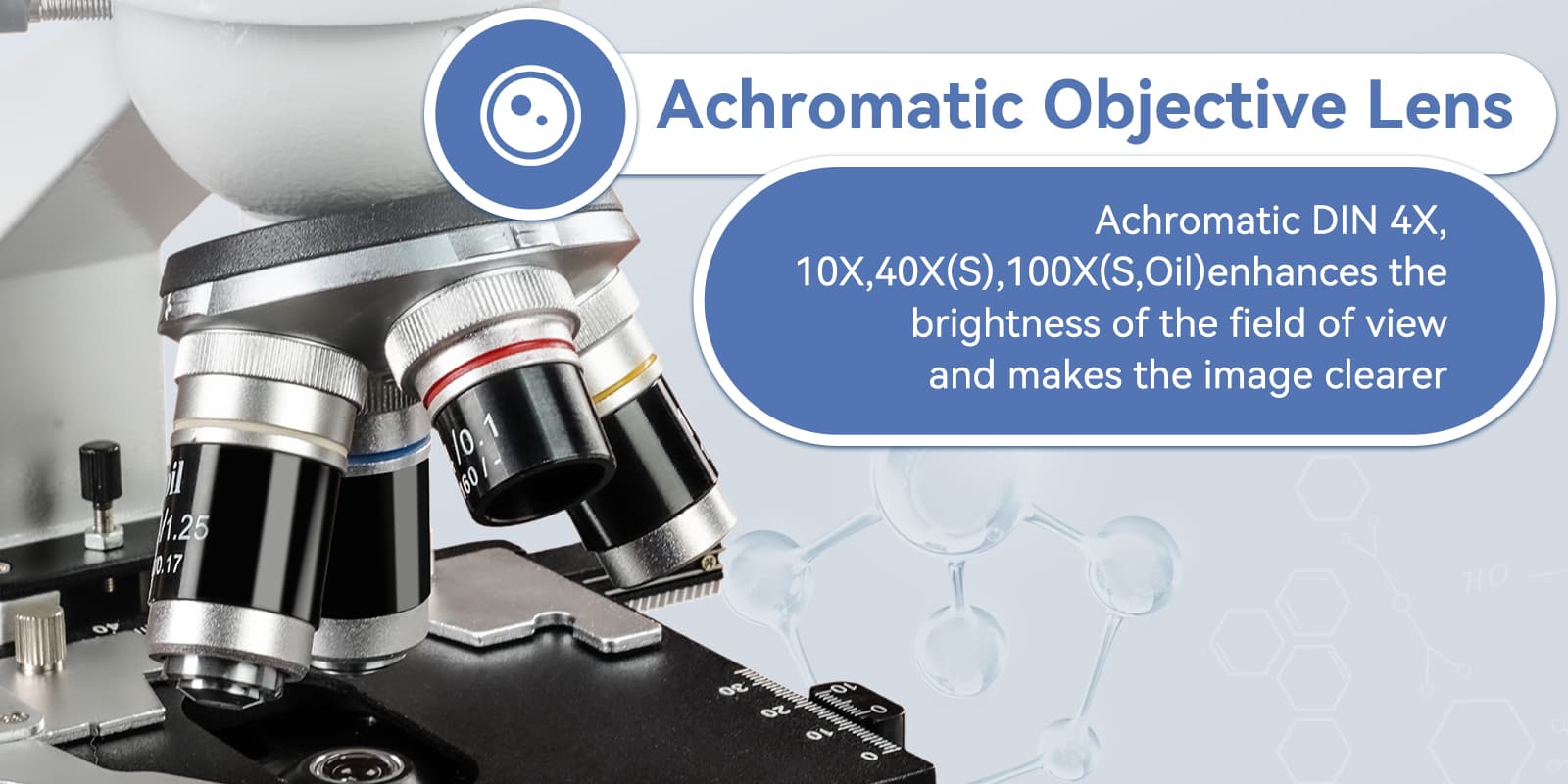

Achromatic Objective Lens
Achromatic objective lens working with 1.25 N.A. condenser effectively correct true color and shape, offering clear, high-contrast, and precise images.
Immersing the 100X lens in cedar oil for observation can greatly improve the clarity of image details; and is used to observe finer structures such as chlamydia; bacteria; and organelles.

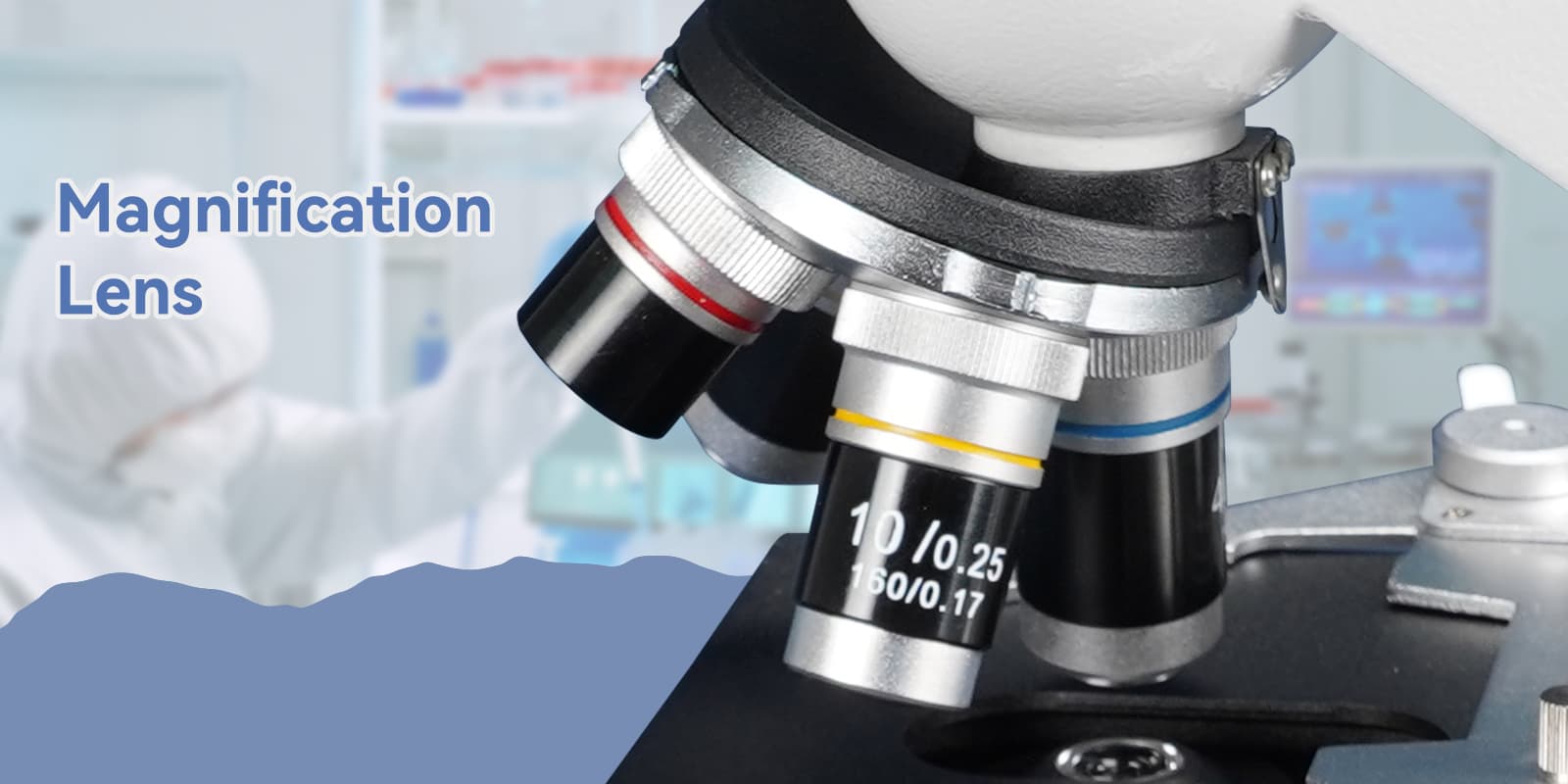

Magnification Lens
High magnification lens give you a better usage experience，transmit LED light,intensity adjustable,for clear examination and light control.

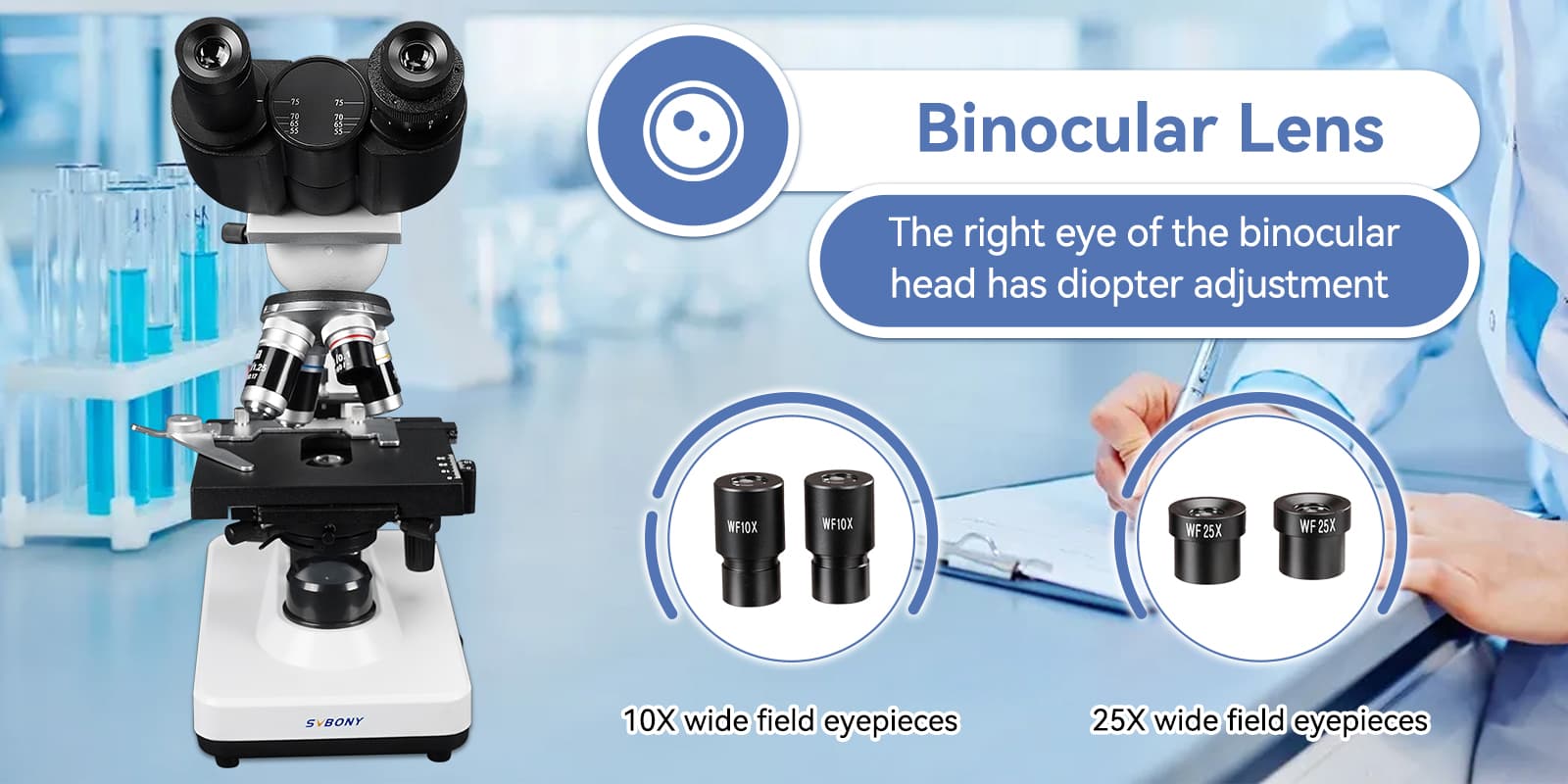

Binocular Lens
Professional binocular head with pairs of 10x wide field and 25x wide field eyepieces with 53 to 77mm inter-pupillary adjustment.

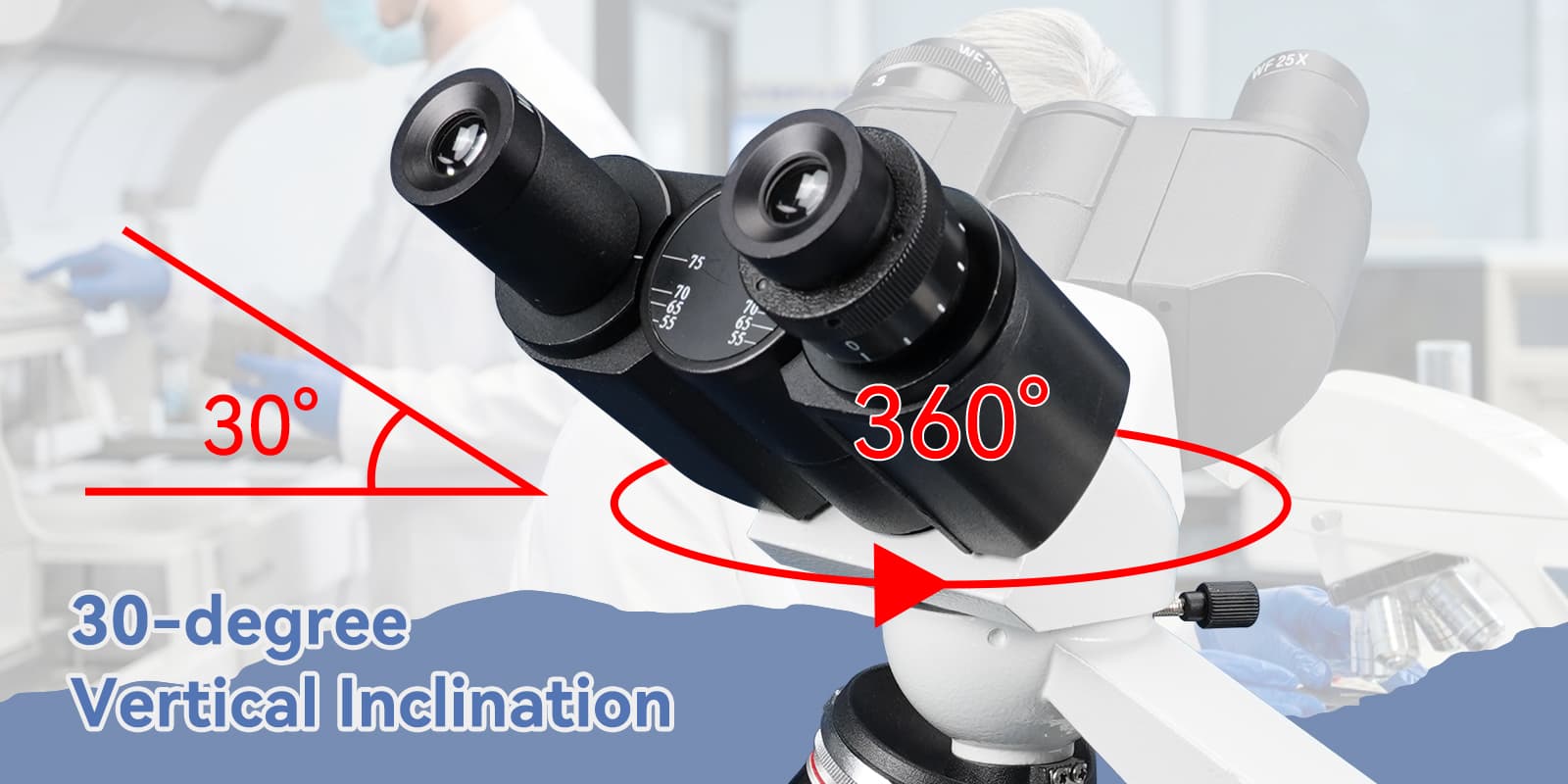

30-degree Vertical Inclination
Binocular head fixed 30-degree vertical inclination to reduce eye and neck strain,and 360-degree rotation.

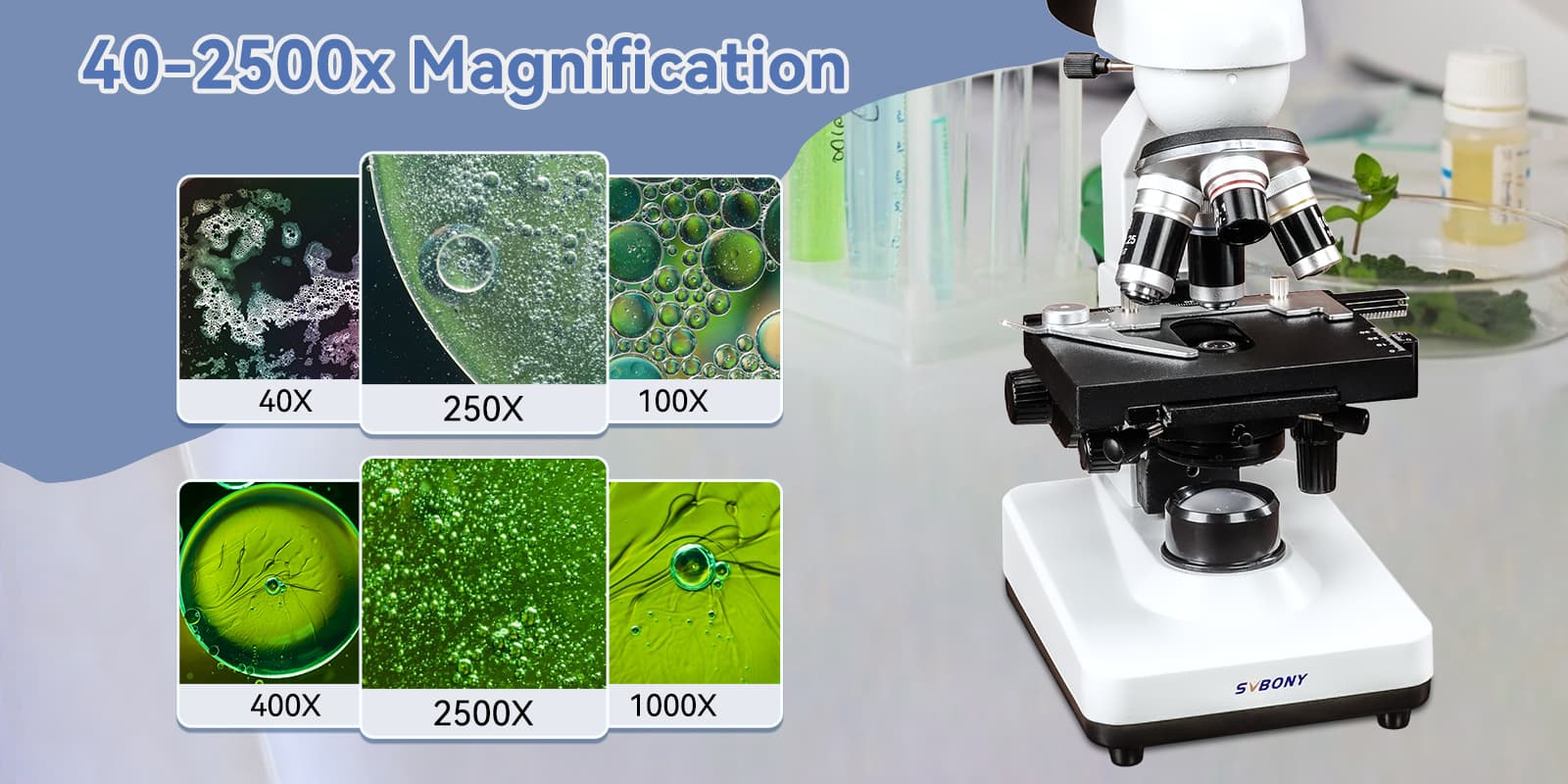

40-2500x Magnification
Wide field Eyepiece WF25X and 10X lens work with achromatic objective lenses: 4X 10X 40X 100X, providing 40-2500X magnifications.High qualityobjective lenses working with 1.25 N.A. condenser, offering a image clearer and precise.

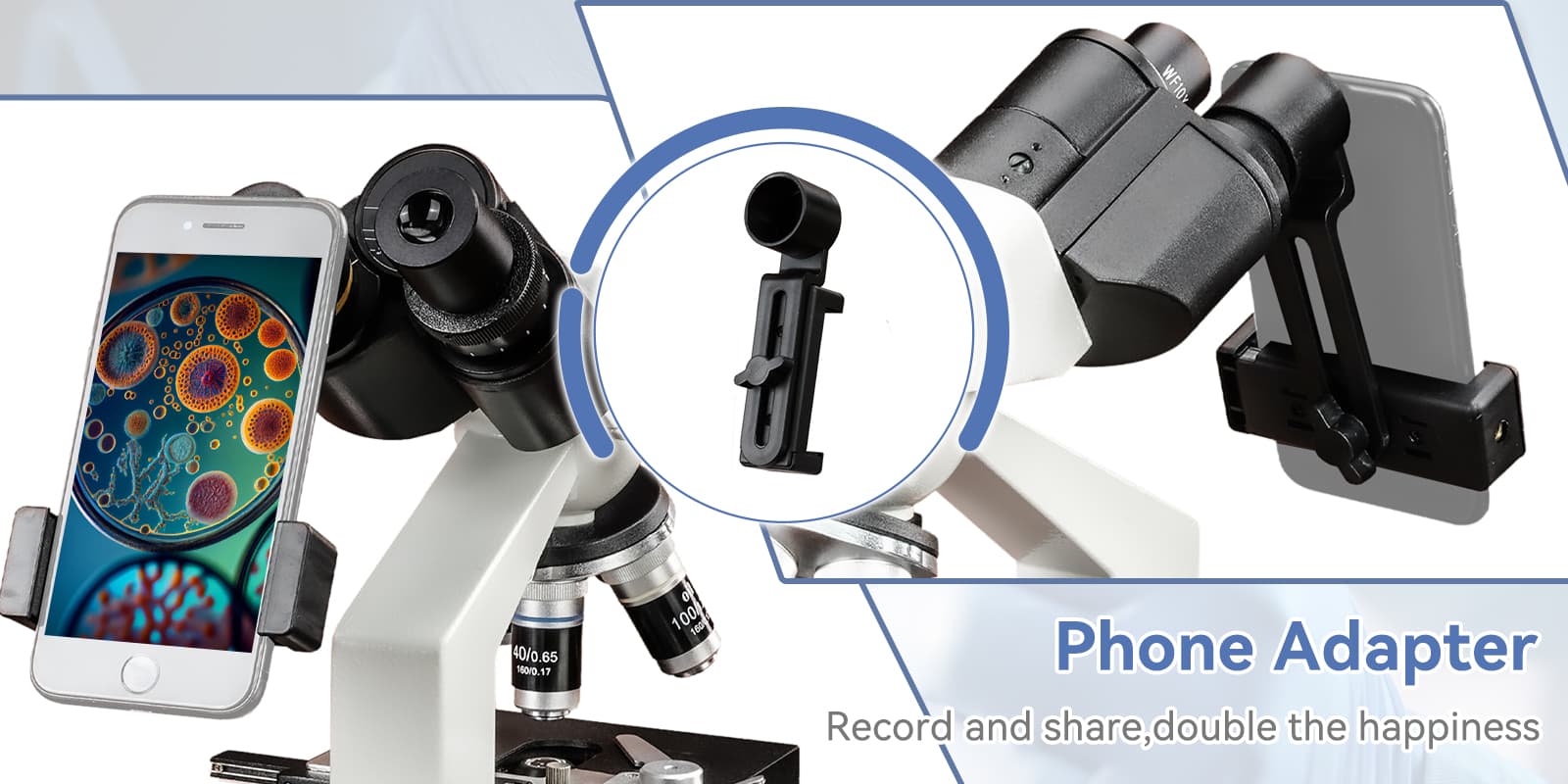

Available Phone Holder
SM201 binocular compound lab microscope has phone adapter, so you can record and share the moment. After mounting the phone holder, you can see the image from phone's camera, and also you can further magnify the image or take pictures and videos directly.

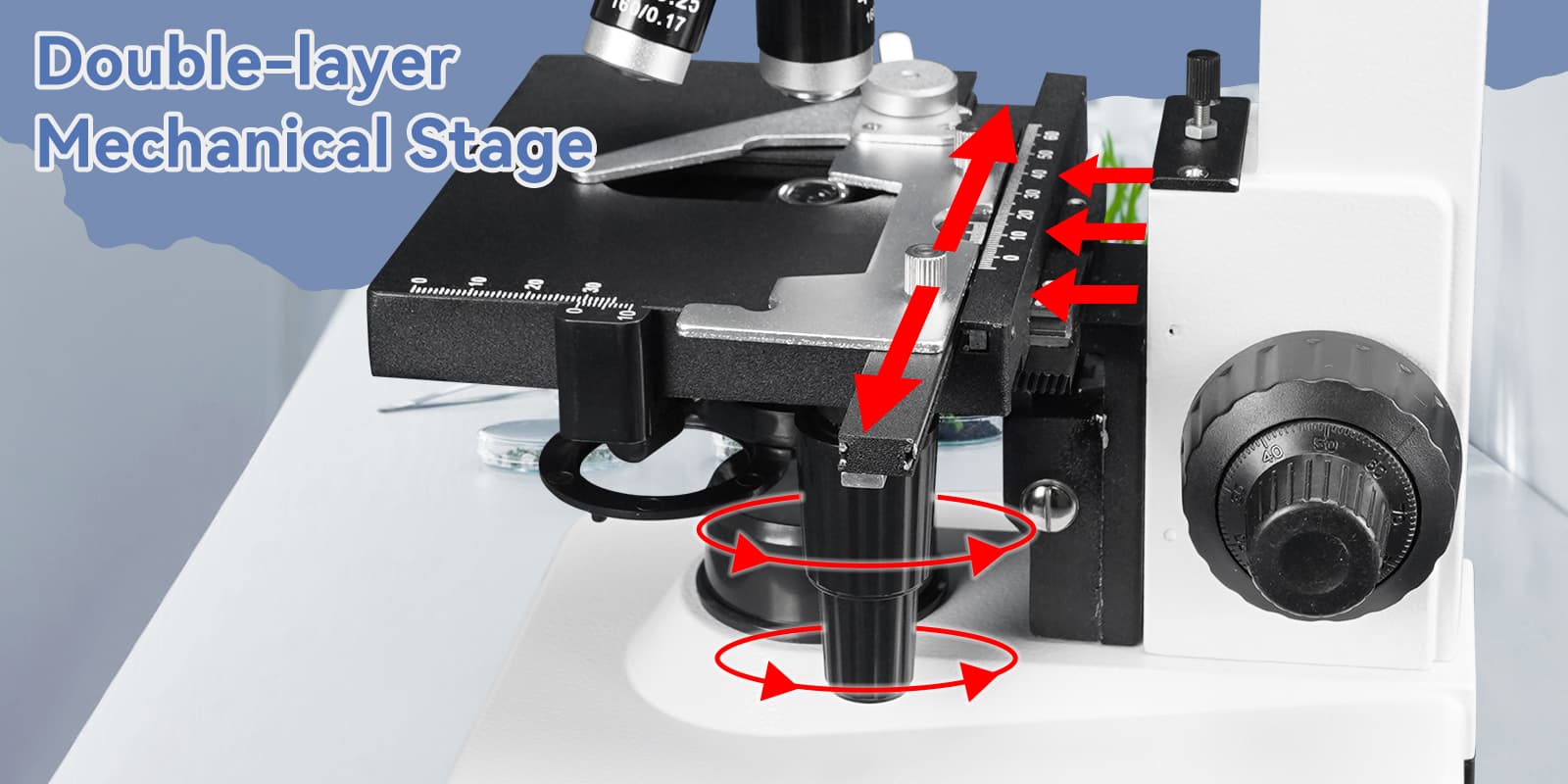

Double-layer Mechanical Stage
SM201 has double-layer mechanical stage, which provides precise slide manipulation along the X-and Y-axis to allow coordinates to be recorded,enabling the viewer to return to a specific location on the slide.

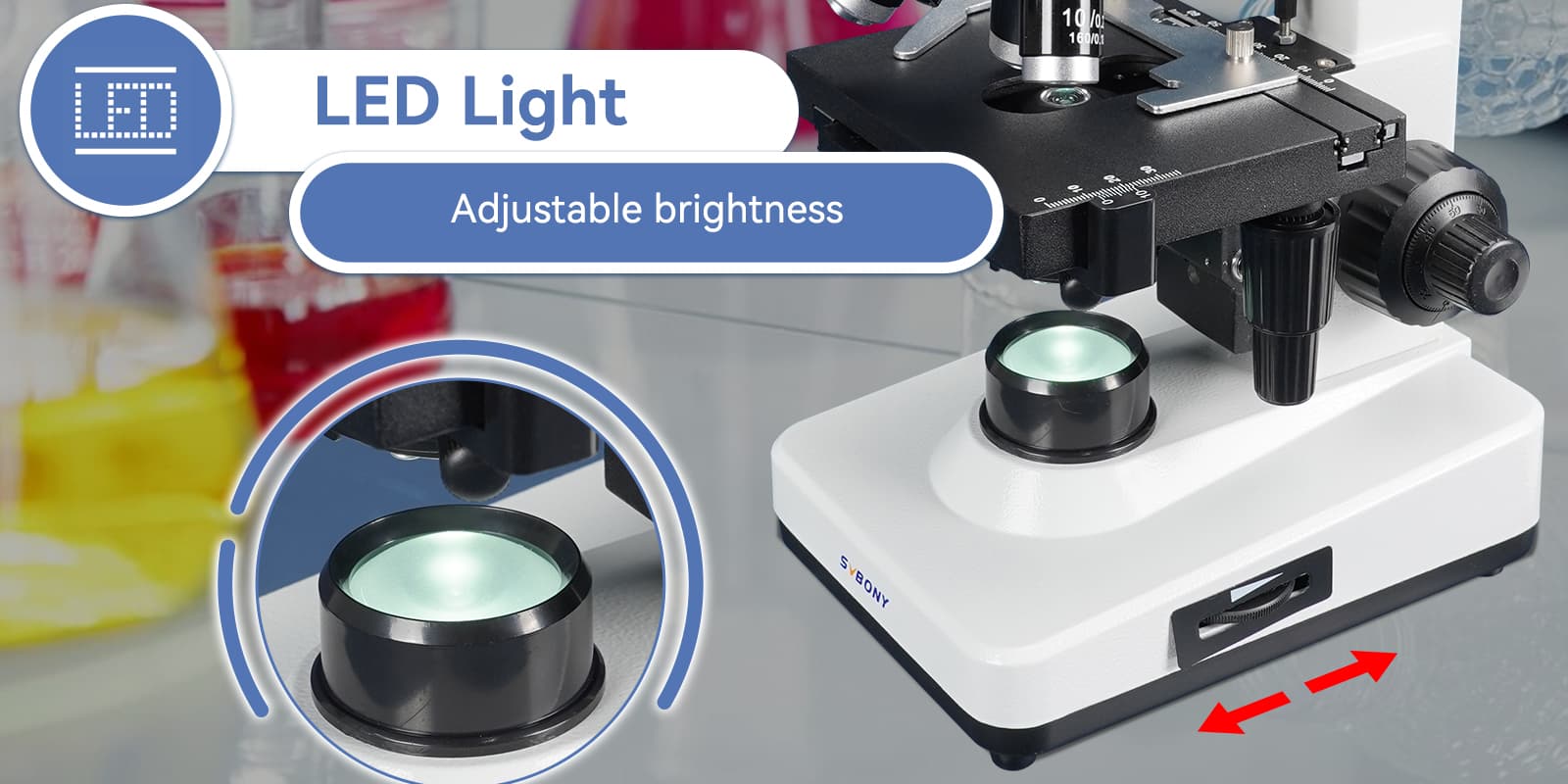

LED Light adjustable Brightness
Brightfield, LED illumination, and 1.25 NA Abbe condenser with iris diaphragm for clear examination and light control.

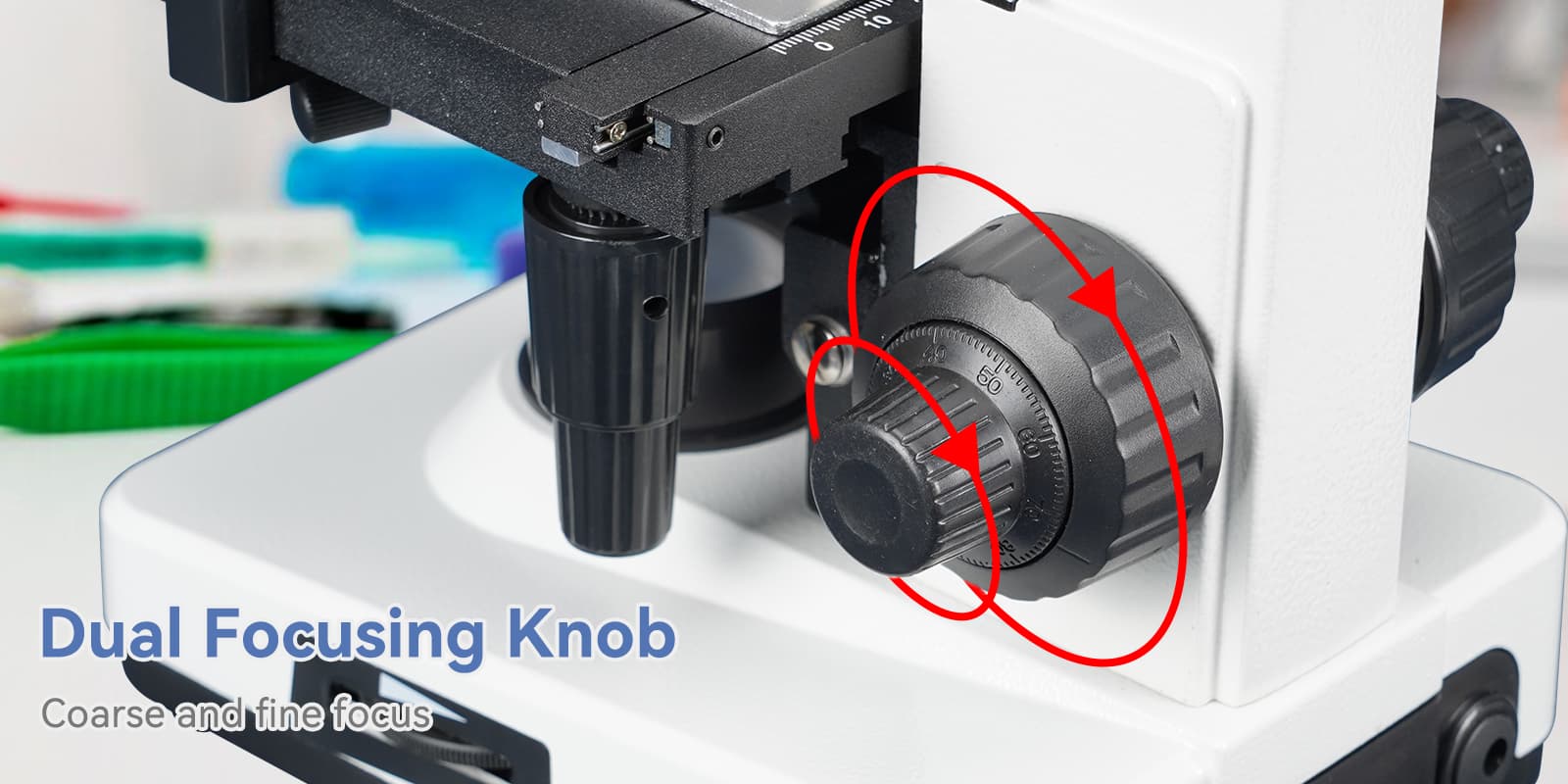

Dual Focusing Knob
Coarse focusing works to find the image quickly, and Fine focusing adjust to find the image clearer precise and shaper.

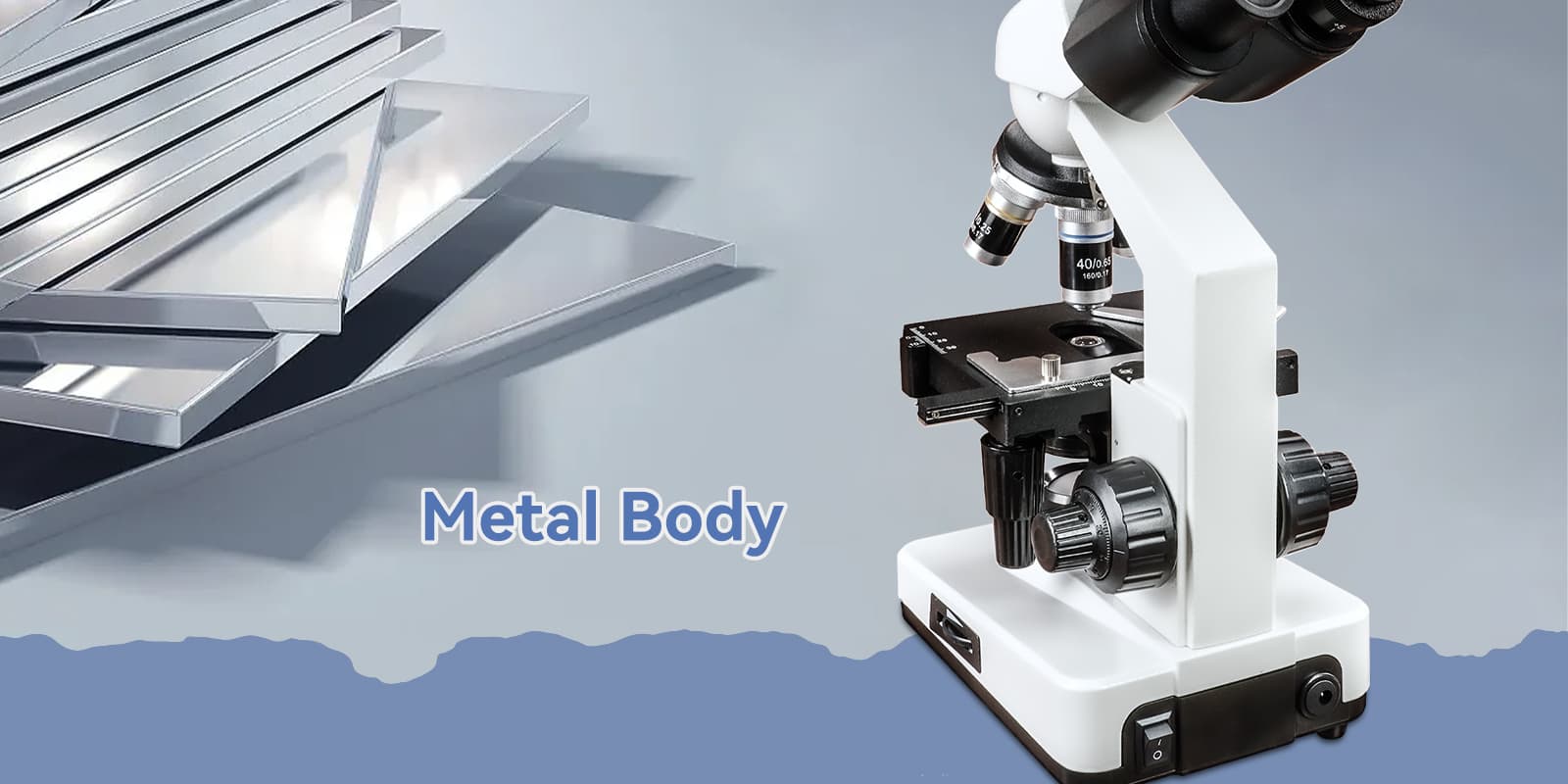

Metal Body
Enjoy long-lasting durability with our metal body microscope. Make you easy to view your specimen in different positions, allowing for a more comprehensive examination.
Widely Usage
SM201 Compound Binocular Microscope is an ideal teaching instrument for students.Children can be encouraged to learn in Science Explorer and find answers by themselves. It is also an great choice for laboratory to conduct an experiment.

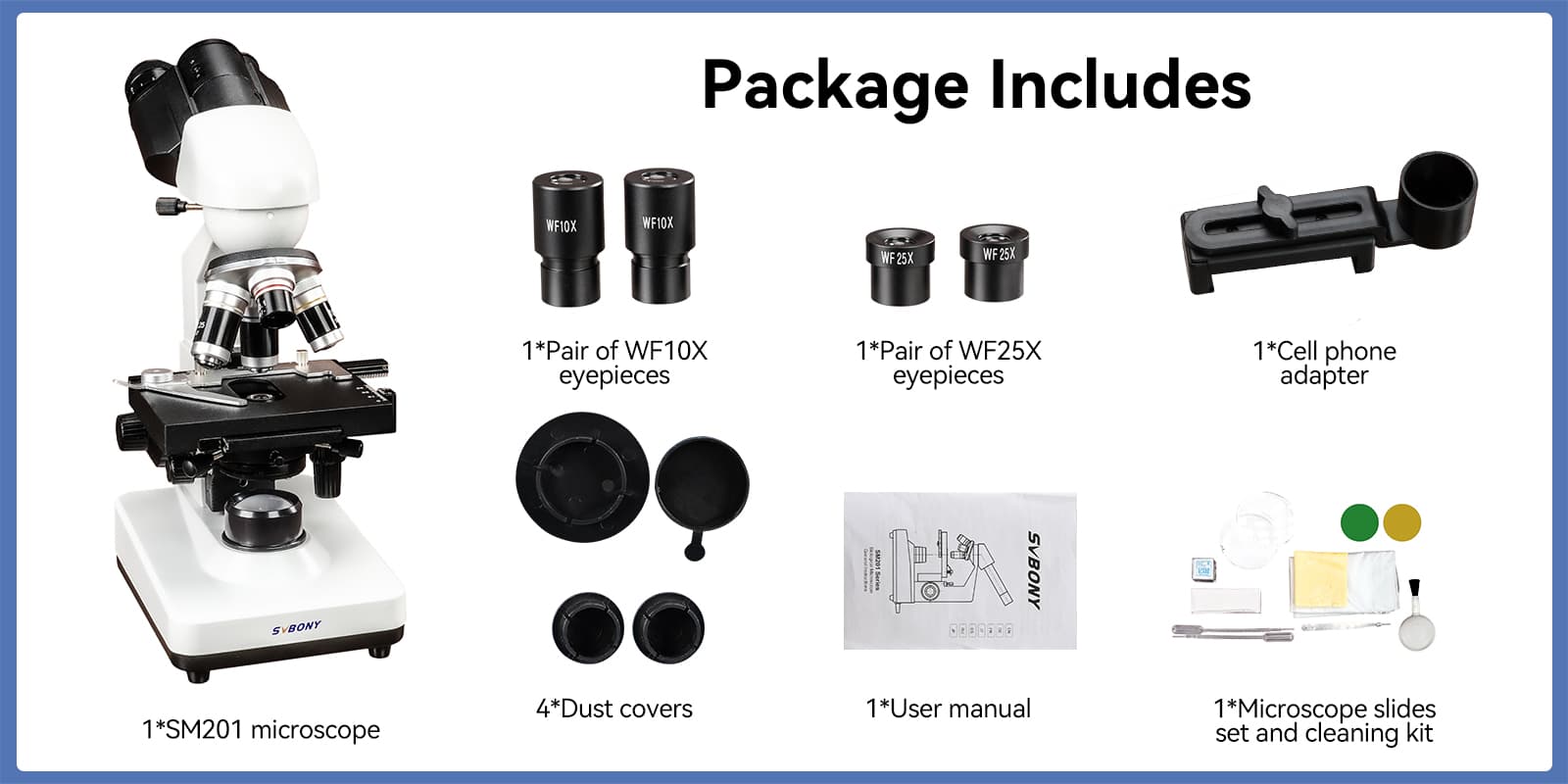

The Package Includes
Specifications
| Brand | SVBONY |
| Model | SM201 |
| Power Source | 5V1A or Battery-Powered |
| Light Source | Type LED |
| Color | White, Black |
| Real Angle of View | 30 Degrees |
| Magnification | Maximum 2500x |
| Item Weight | 2600g |
| Package size | 540x390x400mm |
Features
1. 2 power supply methods;
2. Achromatic objective lens;
3. With mobile phone adapter;
4. 40-2500X magnification;
5. LED light;
6. Professional binocular head;
7. layer mechanical stage;
8. All metal body;
9. NA1.25 Abbe condenser;
10. 30°tilt and 360°rotation;
11. Dual focusing knob.
