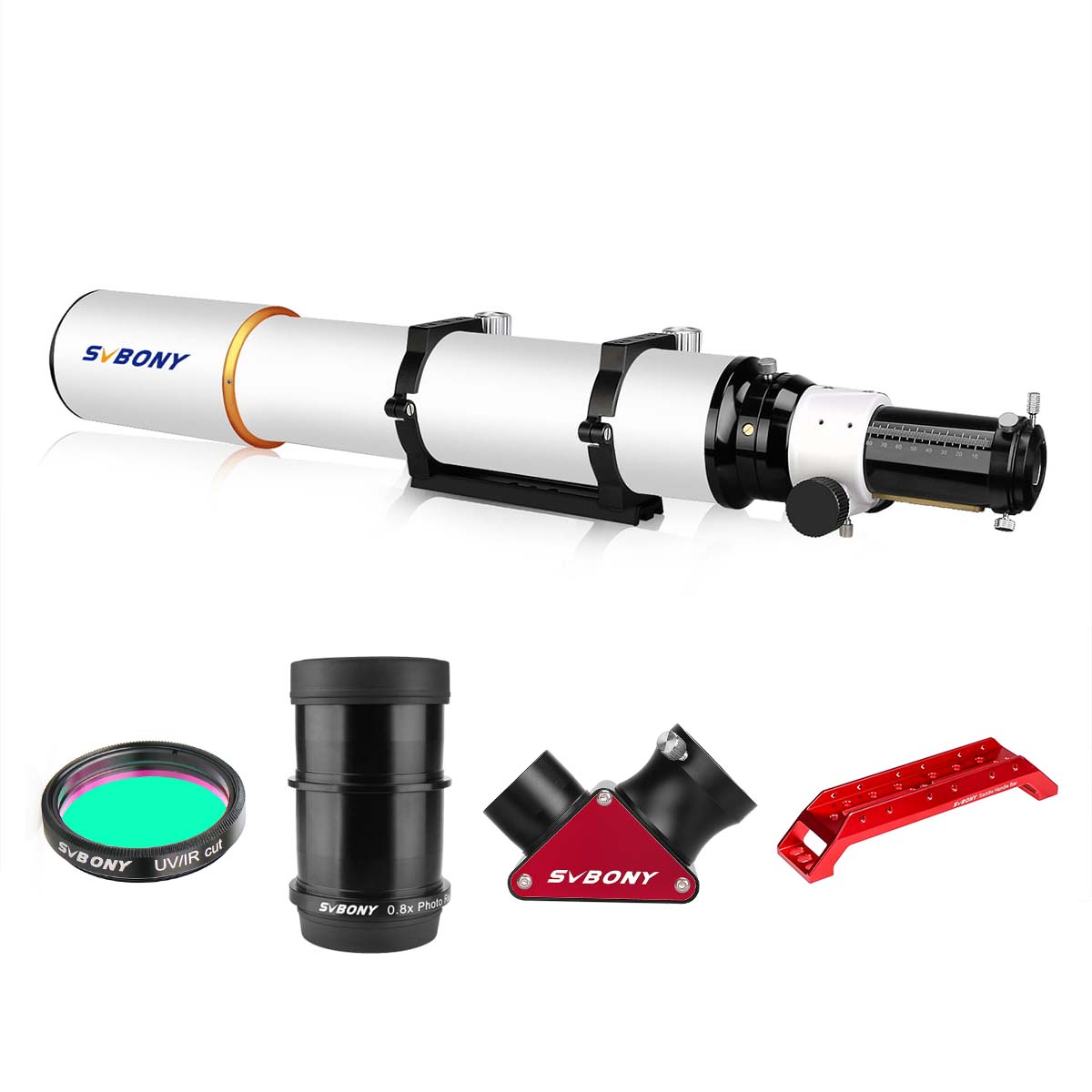

Set Includes:
- SV503 102ED Refractor OTA Telescope, SKU: F9359D
- SV193 Focal Reducer, SKU: W9152D
- SV188P Diagonal, SKU: F9171B
- 2inch UV/IR Cut Filter, SKU: F9127B
- SV211 203mm Handle Bar, SKU: W9163B
In Stock
Special offers and product promotions
SV503 102ED Telescope Bundle Set For Visual Observation
Reviewing the SvBony 102 ED Doublet Refractor
Just a quick review for anyone wondering about this scope. First impressions are excellent build quality. Critical items like the focuser and dew sheild are near perfect. The Focuser has just the right weight and zero play. I can bring my DSLR to focus with the draw tube at 65 mm - the focuser is easily strong enough to hold it in position. Colour correction? First look at The Moon and Jupiter - there was no CA. But when I video through the scope with camera phone then yes you can see CA - the camera of course can see into the Ultra-Violet Spectrum unlike the human eye. I bought this scope for visual, so I'm super impressed with an ED Doublet (I also wanted the Doublet for its lightness) that shows no CA visually at the same price as an achromat. I've looked at The Moon, Saturn and Jupiter at high power - 223x (8-24mm zoom with 2.5x Barlow) and views are outstanding. I can't help pass a glance over the 122 mm - LOL - but now for now the 102 ED is ruling the scope shed.
Product Name | SVBONY SV503 102F7 ED Astronomy Telescope |
Type | Refractor |
ED Glass | S-FPL51 |
Coating | SMC |
Aperture | 102mm / 4.01-Inch |
Focal length | 714mm |
Focal Ratio | f/7 |
Type of Focuser | RAP (Rack and Pinion) |
Gear Reduction | 1:10 Fine movement |
Resolving capacity | 1.17" |
Limit value | 12.1 |
Light gathering capacity | 212x |
Max. Useful magnification | 204x |
Tube weight(with rings) | 5.7kg |
Tube outer Diameter | 121mm |
Tube Material | Aluminum |
Back Focus Length | 101.9mm |
OTA Length | 630mm |
Dovetail & Ring | Yes |
Dovetail Length | 200mm |
product Dimensions | 690mm*210mm*250mm |
Model | SV193 |
Fit For | SV503 102ED F7 |
SKU | W9152D |
Back Focus | 55mm |
Barrel Size | 2-inch |
Threads Standard | M48*0.75 |
Lens Structure | 3-Elements/2Groups |
Lens Coating | FMC |
Blackened Lens Edges | Yes |
Net Weight | 177g / 6.24oz / 0.39lb |
Model | F9127B |
Size | 2'' |
Thread | M48*0.75 |
thickness | 1.85mm |
Type | UV IR cut filter |
Model | SV188P |
SKU | F9171D |
Size | 2inch |
Optical Design | Mirror Diagonal |
Coatings | Dielectric |
Reflectivity | dielectric 99% coating for bright images |
Material | Aluminum Alloy |
Filter Threads | M48x0.75 |
M4 Set Screws | Yes |
Outer Connection(Lens Sided) | Barrel 2inch |
Inner Connection(Lens Sided) | Thread M48x0.75 |
Inner Connection(Eyepiece Sided) | Clamp 2inch |
Reflection Surface | Dielectrically Coated |
Image Orientation | Erect Image, Mirror Inverted |
Thickness of Mirror | 11mm |
Net Weight | 463g |
Model | SV211 |
Color | Red |
Material | 6061T Aluminums |
Length | 203mm |
Width | 42mm |
High | 39mm |
Net Weight | 161.5g/5.7oz |
Fit For OTA | SV503 102mm f/7、SV550 122mm f/7 |
Distance Between Two M6 Screws | 187mm |
