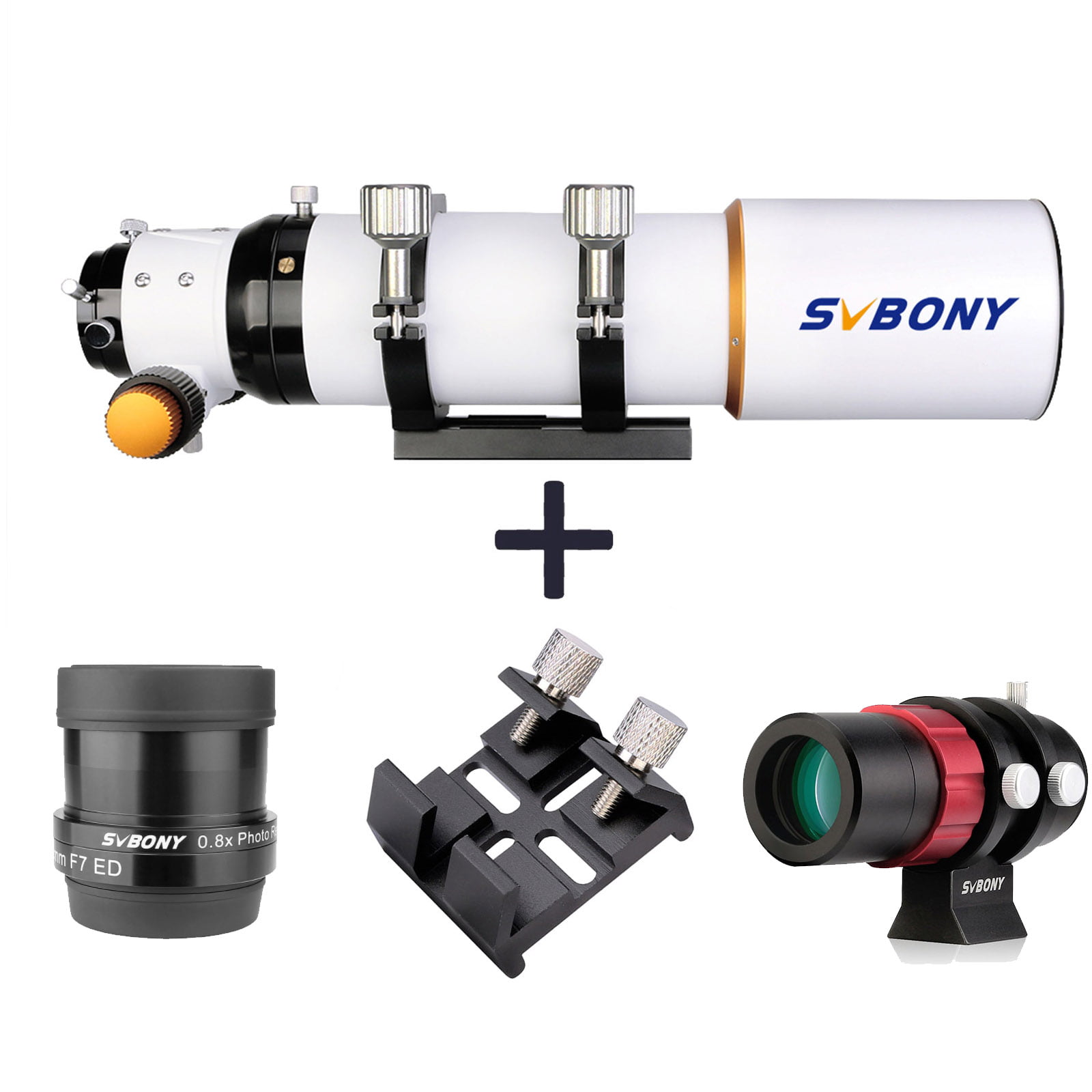

- The popular SV503 80ED F7 telescope refractor will provide the best optical quality, whether you use it for deep-Sky objects or planets, visual or photography.
- The compatible SV193 0.8x field flattener & focal reducer will increase the field of view and improve the image flatness， which is essential for deep-sky photography.
- The SV165 30mm F4 guide scope is very mini and easy to use, widely used in different Astro-observations.
- The side dovetail slot provides you with an easy way to install the finder.
In Stock
Special offers and product promotions
SV503 Package Deal
As someone new to astrophotography, I'm quite pleased with my choice of the SV503 80mm scope package from SvBony.
Here's my current setup:
SV503 Scope
SV193 Reducer/Flattener
SV165 Guide Scope
Sky-Watcher AZ-GTi Mount
Canon T3/1100D DSLR
ZWO ASI120MM-S Monochrome CCD
MacBook Pro (16-inch, 2019)
KDE Kstars/Ekos
The SV503 is pushing the load limit on the AZ-GTi mount, but everything is working together smoothly. Last night, with active guiding in Ekos using the ZWO CCD, I was able to capture 120-second exposures of the Horsehead Nebula and get perfect pinpoint stars in the field one after another. I'm excited, and looking forward to many productive sessions while I explore and learn the heavens.
| Product Name | SV503 70F6 ED Astronomy Telescope | SV503 80F7 ED Astronomy Telescope | SV503 102F7 ED Astronomy Telescope |
| Type | Refractor | Refractor | Refractor |
| ED Glass | S-FPL51 | S-FPL51 | S-FPL51 |
| Coating | SMC | SMC | SMC |
| Aperture | 70mm / 2.75-Inch | 80mm /3-Inch | 102mm / 4.01-Inch |
| Focal length | 420mm | 560mm | 714mm |
| Focal Ratio | f/6 | f/7 | f/7 |
| Type of Focuser | RAP (Rack and Pinion) | RAP (Rack and Pinion) | RAP (Rack and Pinion) |
| Gear Reduction | 1:10 Fine movement | 1:10 Fine movement | 1:10 Fine movement |
| Resolving capacity | 1.97" | 1.5" | 1.17" |
| Limit value | 11.3 | 11.6 | 12.1 |
| Light gathering capacity | 100x | 130.6x | 212x |
| Max. Useful magnification | 140x | 160x | 204x |
| Tube weight | 3.35kg | 3.95kg | 5.5kg |
| Tube outer diameter | 88mm | 121mm | |
| Tube material | Aluminum | Aluminum | Aluminum |
| Back Focus Length | 90mm | 90mm | 101.9mm |
| OTA Length | 318mm | 465mm | 630mm |
| Dovetail & Ring | Yes | Yes | Yes |
| Dovetail Length | 150mm | 137mm | 200mm |
| Model | SV193 | |||
| SKU | W9152B | W9152D | ||
| Back focus | 55mm | |||
| Barrel size | 2-inch | 2-inch | ||
| Threads Standard | M48*0.75 | M48*0.75 | ||
| Lens Structure | 3-Elements/2Groups | 3-Elements/2Groups | ||
| Lens Coating | FMC | FMC | ||
| Blackened Lens Edges | Yes | Yes | ||
| Net Weight | 164g / 5.78oz / 0.36lb | 177g / 6.24oz / 0.39lb | ||
| Model | Svbony SV165 |
| Aperture | 30mm |
| Focal length | 120mm |
| Focal Ratio | F4 |
| Hoop and Mount | Yes |
| Back Focus Length | 45mm |
| Mount | UNC 1/4-20 |
| Material | Aluminum |
| Surface technology | Sandblasting oxidation |
| Model | W2370A |
| Length | along the 34mm |
| Width of internal slot | 4.2mm |
| Horizontal length of internal slot | 36.5mm |
| Vertical length of internal slot | 36.5mm |
| Can be fixed | M3-M4 screw |
| Color | Black |
| Weight | 41g |
| L*W*H | 45*40*25mm |
1. The popular SV503 series refractor will provide the best optical quality, whatever you use it for Deep-Sky Object or Planets, visual or photography;
2. The compatible SV193 reducer will increase the field of view and improve the image flatness， which is essential for deep-sky photography;
3. The SV165 guide scope is very mini and easy to use, widely used in different Astro-observations;
4. The side dovetail slot provides you with an easy way to install the finder;
5. This combination will provide more choices among different ways to use your SV503 telescope.
