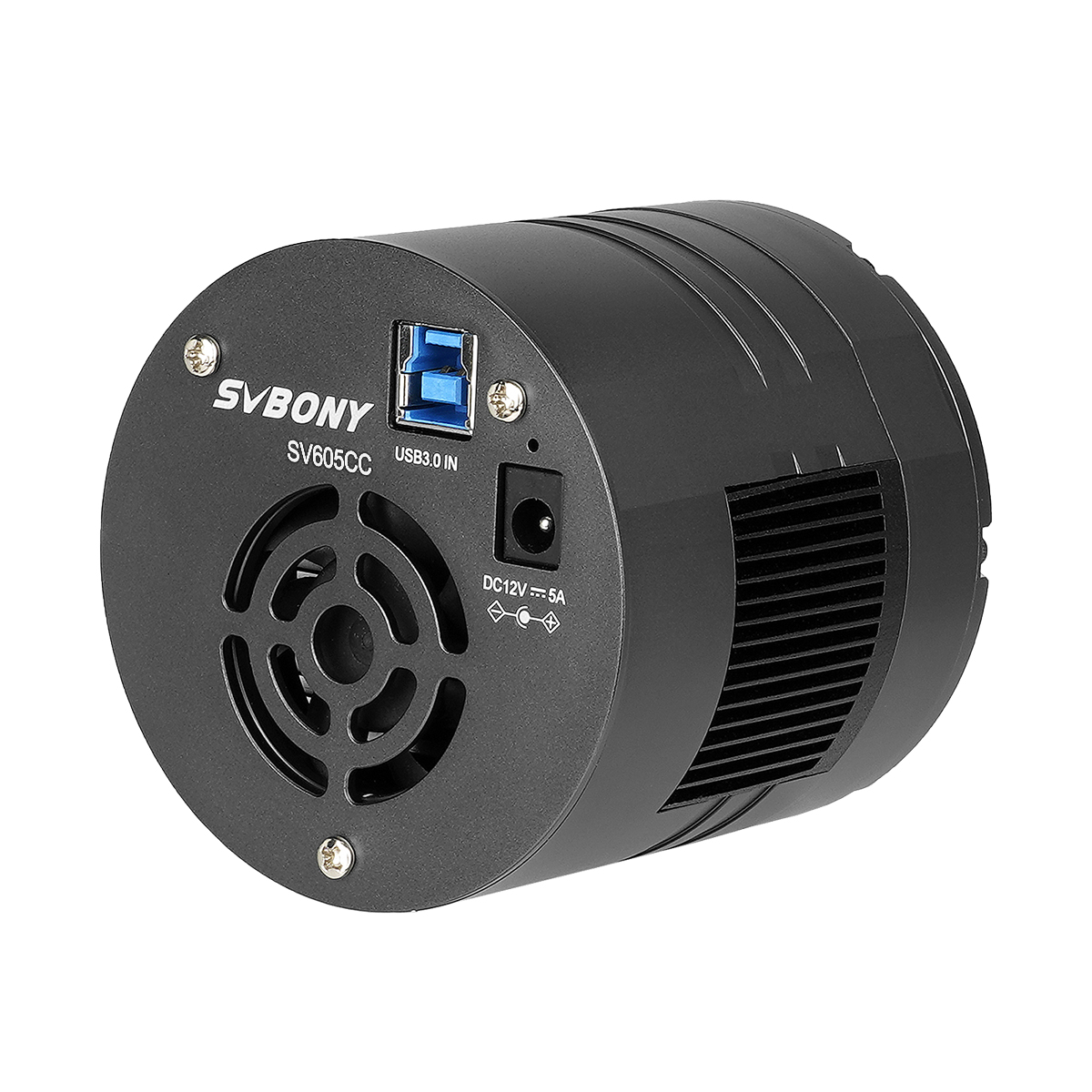

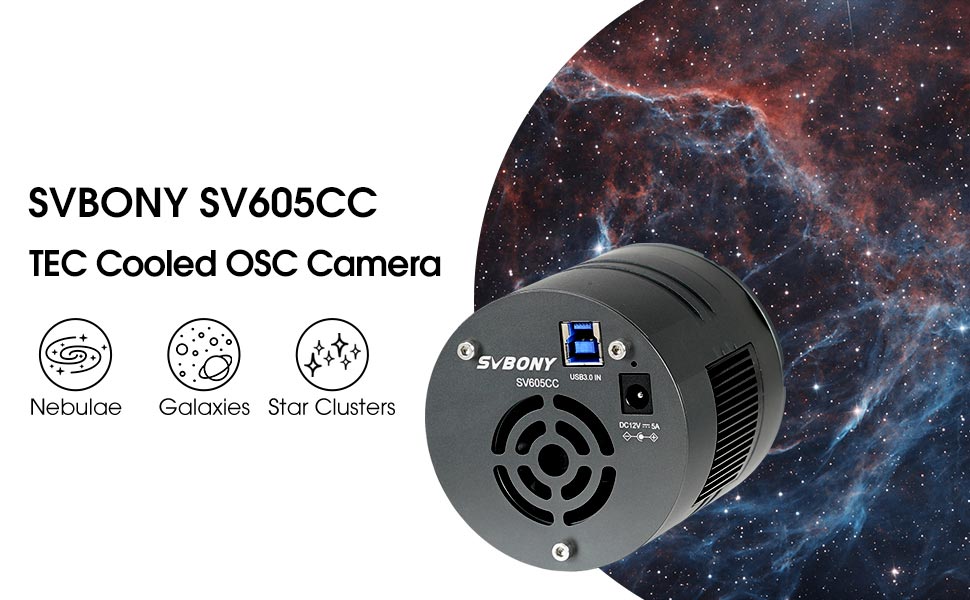

- SV605CC is a 1-inch color deep space camera with square frame, 3.76um pixel size, better resolution and 80%+quantum efficiency. It can get good imaging in light polluted environment with double narrowband filters;

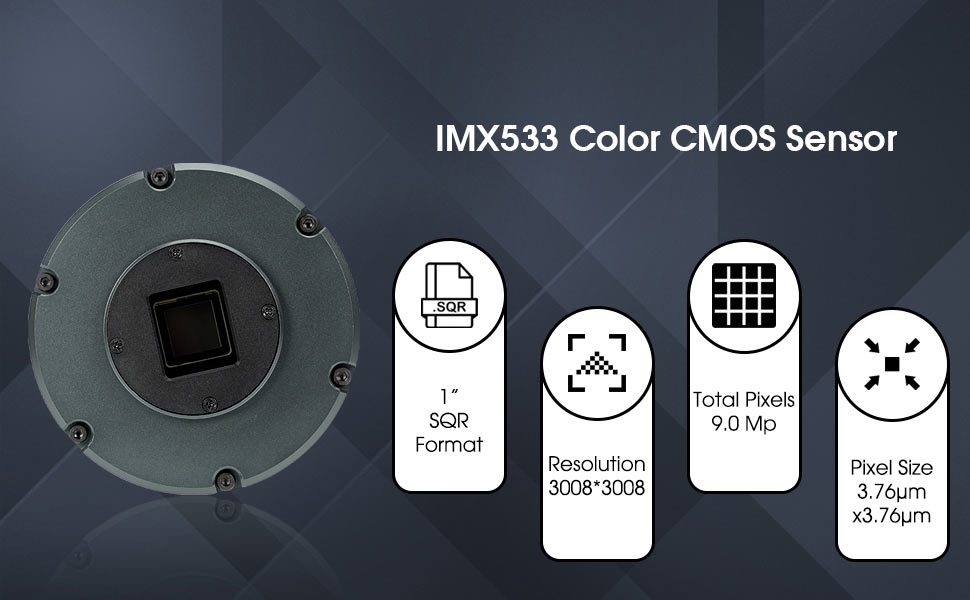

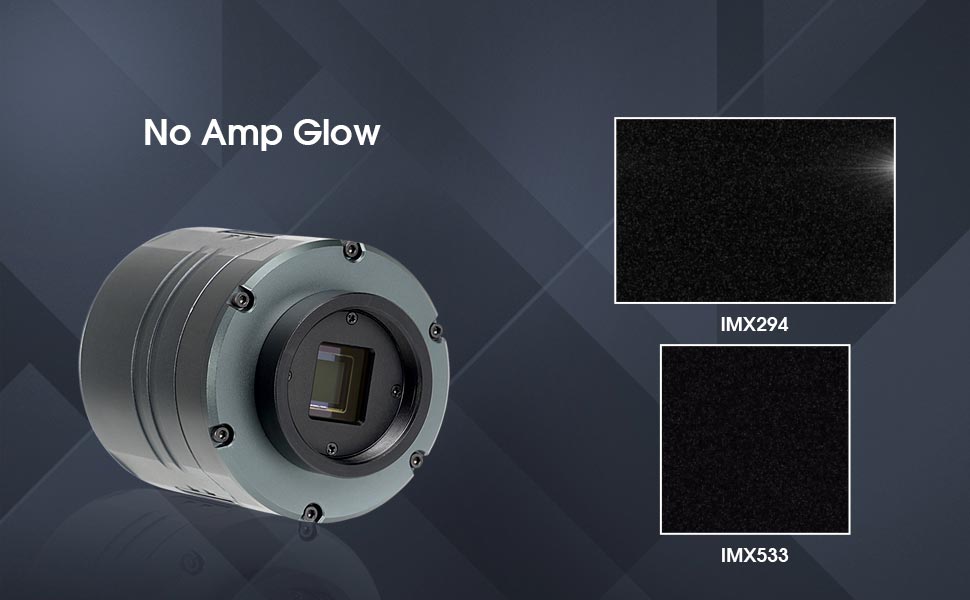

- IMX533 color 1-inch chip: The glow of CMOS will affect the signal-to-noise ratio of the glow affected area, resulting in residual glow or reduced signal-to-noise ratio of the area. IMX533 achieves glow suppression and better shooting effect;

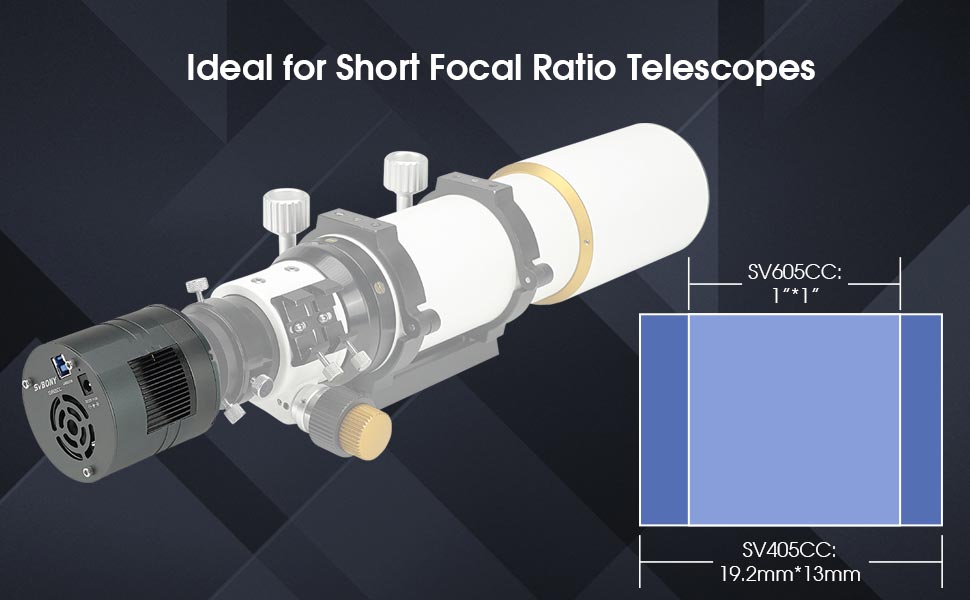

- With a short focus mirror or a fast mirror system: Even if the target is too small, more details cannot be obtained due to the analytical force; IMX533 chip uses 3.76μm pixel; easy to analyze 10 angle split field of view;

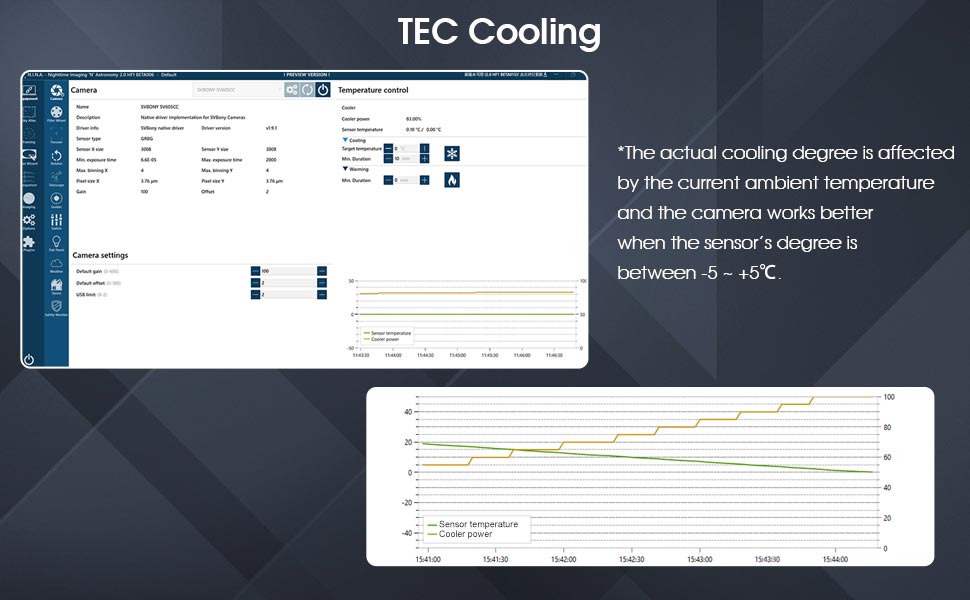

- Cooling System: Thanks to the two-stage TEC cooling, the SV605CC can lower the CMOS sensor temperature to 30°C below amboent temperature, which can greatly reduce dark current generation and sensor noise even during longer exposure times.
- Support system: SV605CC camera works with Windows, Linux, Mac OS, Chrome OS and Raspberry Pi systems by running AstroDMx Capture. For Windows system, also support Sharpcap, N.I.N.A, TheSkyX and other softwares run throuth ASCOM platform by suing ASCOM driver;
- The Bayer Pattern of SV605CC is GRBG.
Note: The SV605CC has completed the product change to optimize the horizontal stripe, and the S/N serial number of the new product has been changed to S/N(B).
Pre-sale on Mar 20,2025
Special offers and product promotions

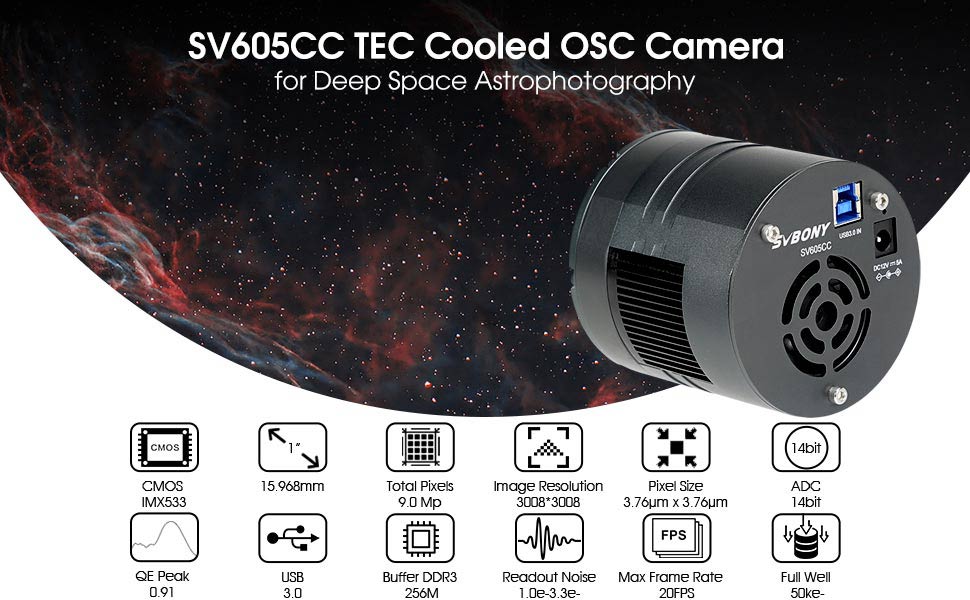

SV605CC OSC Camera MIX533 for Deep Space Astrophotography
| SKU | F9198E | F9198F | F9198K | F9387A |
| Model | SV605MC | SV405CC | SV605CC | SC432M |
| Sensor | IMX533 | IMX294 | IMX533 | IMX432 |
| Classification | Monochrome | Color | Color | Monochrome |
| Shutter Type | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter |
| Pixel Size | 3.76μm X 3.76μm | 4.63µm | 3.76μm X 3.76μm | |
| Resolution | 9MP | 11.7MP | 9MP | |
| Diagonal Length | 15.968mm | 23.2mm | 15.968mm | 17.5mm |
| USB Type | USB3.0 | USB3.0 | USB3.0 |
Fantastic Camera
Excellent camera and great customer service and delivery.
I cannot recommend Svbony and this camera high enough.
If you are in the UK and have any concerns about ordering from abroad then there is no need to worry, Svbony have provided me excellent service and I had zero problems with delivery.
Well done Svbony 👌
605 CC
I had great support on the repairs to my 605CC camera. The Svbony team help me through the returns process to get the problem resolved. Many thanks. The darks calibration files look very good now with out the banding.
Very good camera
Ich bought the 605CC as an upgrade for my Canon 600Da. The quality is very good aswell as the customer support. I´ve taken a 1h exposure of NGC 7000 with my 600Da and it looks very similiar to the 3min exposure of the 605CC with the Sv220 DNB filter. I think that says everything.
I can totally recommend this camera, espacially for its price and when using with the Sv220 or a SvBony scope.
5/5
Nice enough
This is a great budget camera for the price but there is a minor "amp glow" showing on a corner of the sensor and there is somewhat more banding even after the upgrade. Satisfied but not thrilled!!!
Value for money
This is a great budget camera for the price but there is a minor "amp glow" showing on a corner of the sensor and there is somewhat more banding even after the upgrade. Satisfied but not thrilled!!!
Great Camera
I bought this SVBONY 605 camera because it was less expensive than competitive cameras with the same image sensor. This camera takes great images and works with the software that I use for automated astrophotography.
I have used this camera weekly over the last several months and I am pleased with the performance and reliability.
I absolutely love this camera
My first camera had the known banding issue but SVBONY took care of it for me and got me the updated version. I'd been using a DSLR and had no idea what I was missing in the sky. I use this with Stellarmate on a Pi4 but could never get it working in Astroberry. I have stacks of 8 hours from my DSLR that don't come close to what I get from 1 hour with this camera. I know it's not a pro level camera but if you're on a budget and want great results, this is for you.

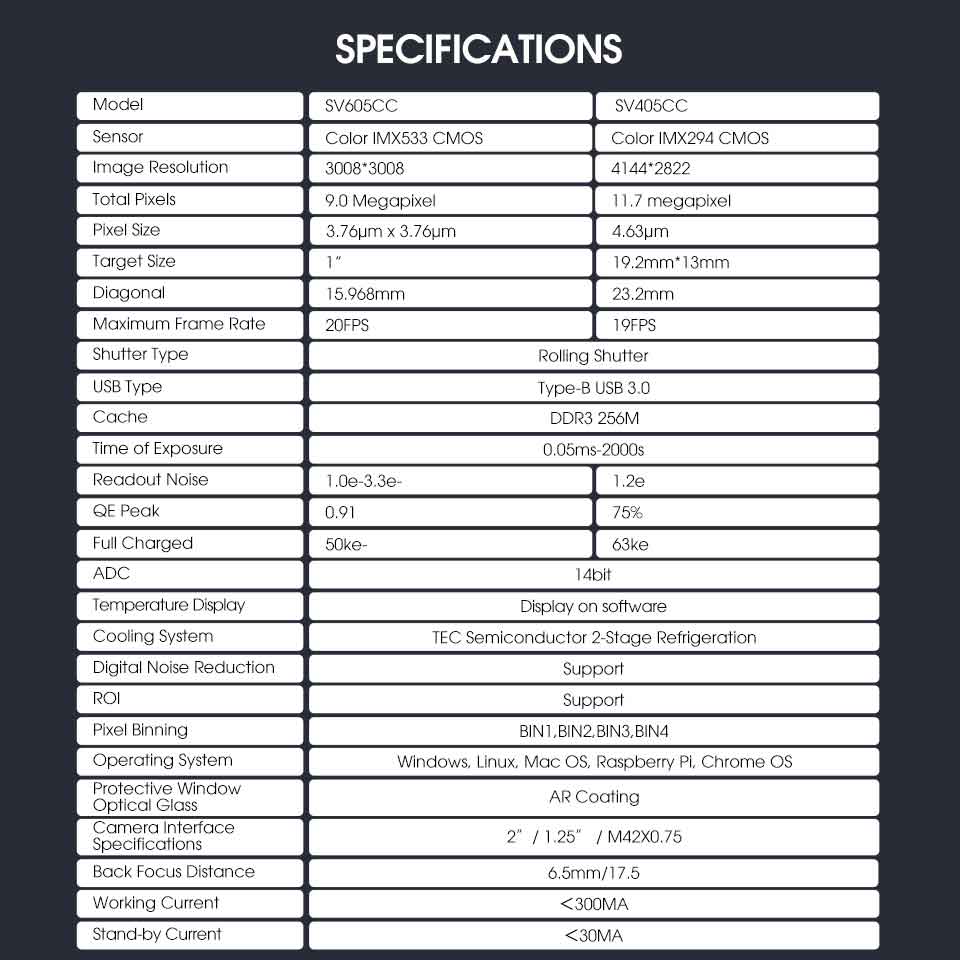

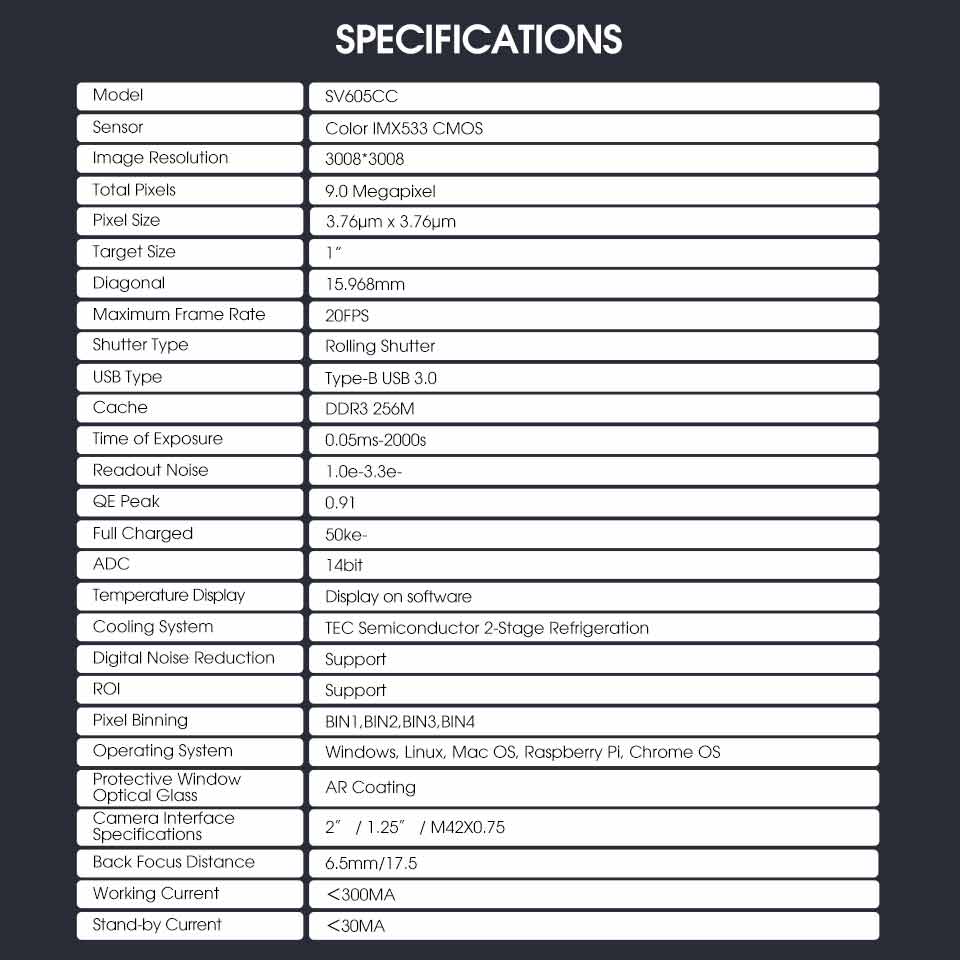

| Model | SV605CC |
| Sensor | Color IMX533 CMOS |
| Image Resolution | 3008*3008 |
| Total Pixels | 9.0 Megapixel |
| Pixel Size | 3.76μm x 3.76μm |
| Target Size | 1'' |
| Diagonal | 15.968mm |
| Maximum Frame Rate | 20FPS |
| Shutter Type | Rolling Shutter |
| USB Type | Type-B USB 3.0 |

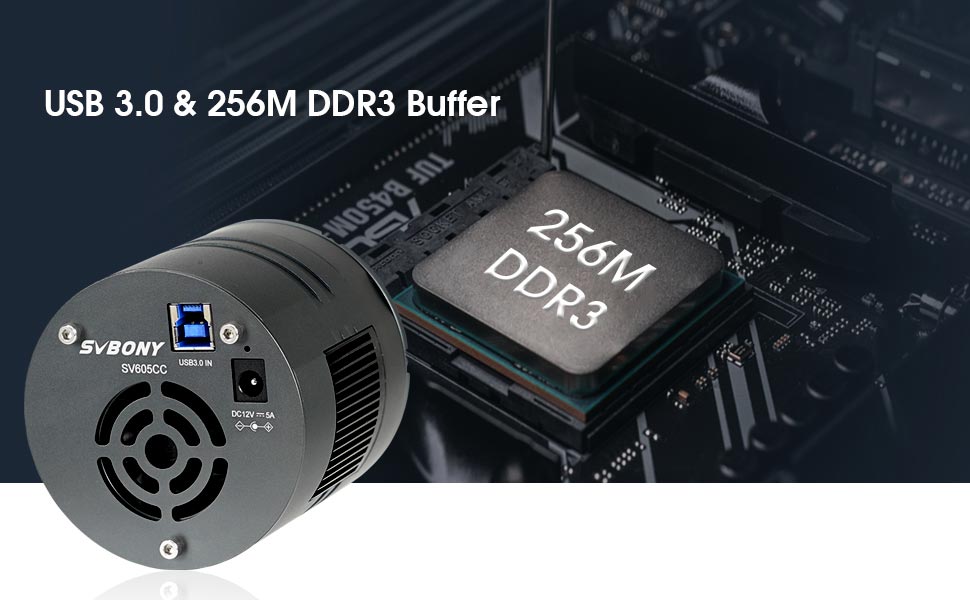

| Cache | DDR3 256M |
| Time of Exposure | 0.05ms-2000s |
| Readout Noise | 1.0e-3.3e- |
| QE Peak | 0.91 |
| Full Charged | 50ke- |
| ADC | 14bit |
| Temperature Display | Display on software |

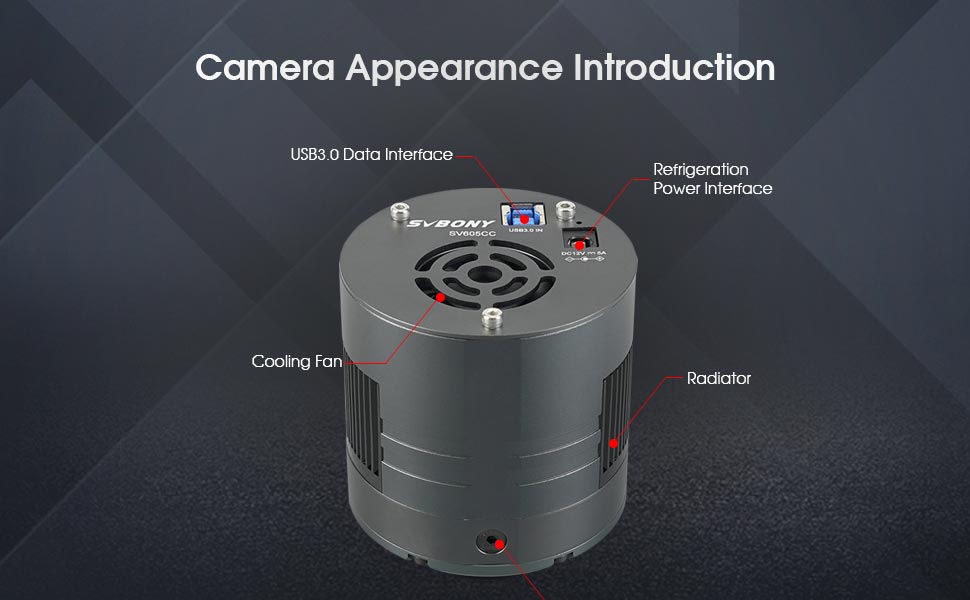

| Cooling System | TEC Semiconductor 2-Stage Refrigeration |

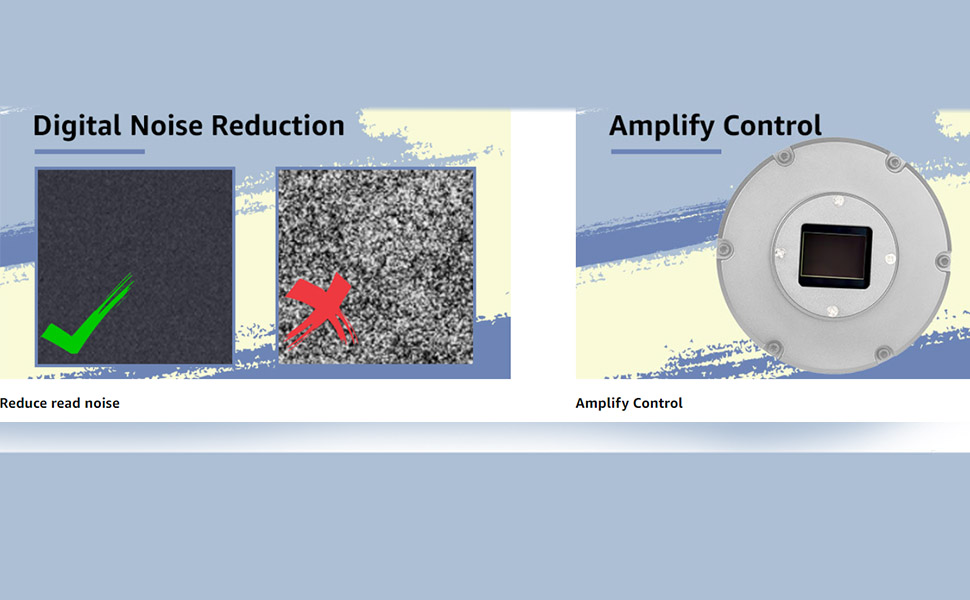

| Digital Noise Reduction | Support |

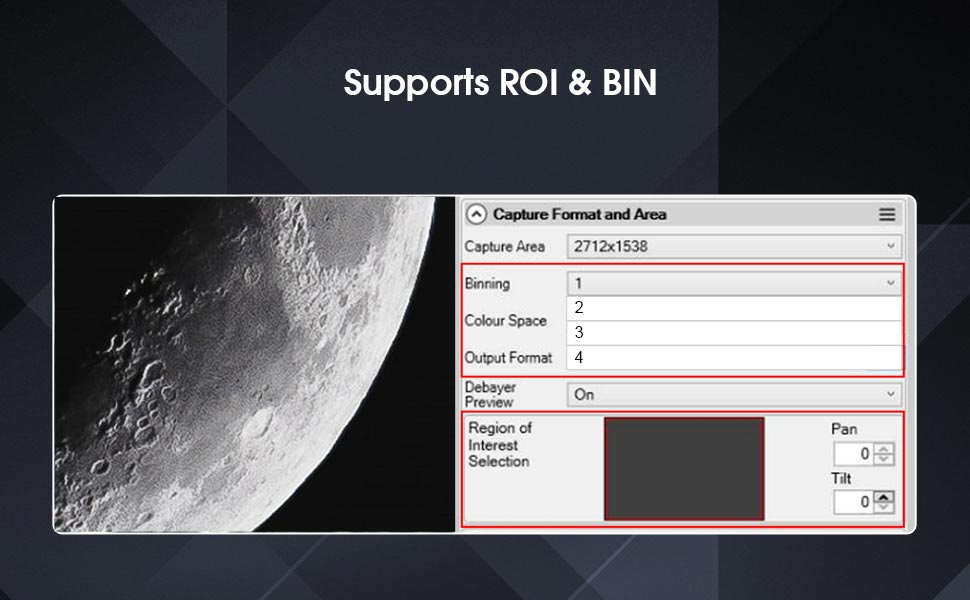

| ROI | Support |
| Pixel Binning | BIN1,BIN2,BIN3,BIN4 |
| Operating System | Windows,Linux,Mac OS,Raspberry Pi,Chrome OS |

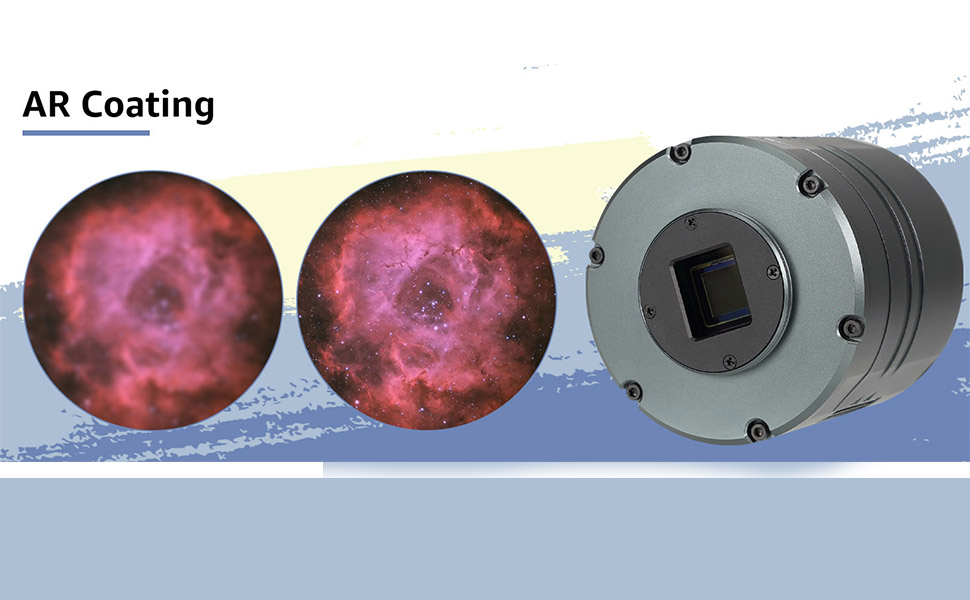

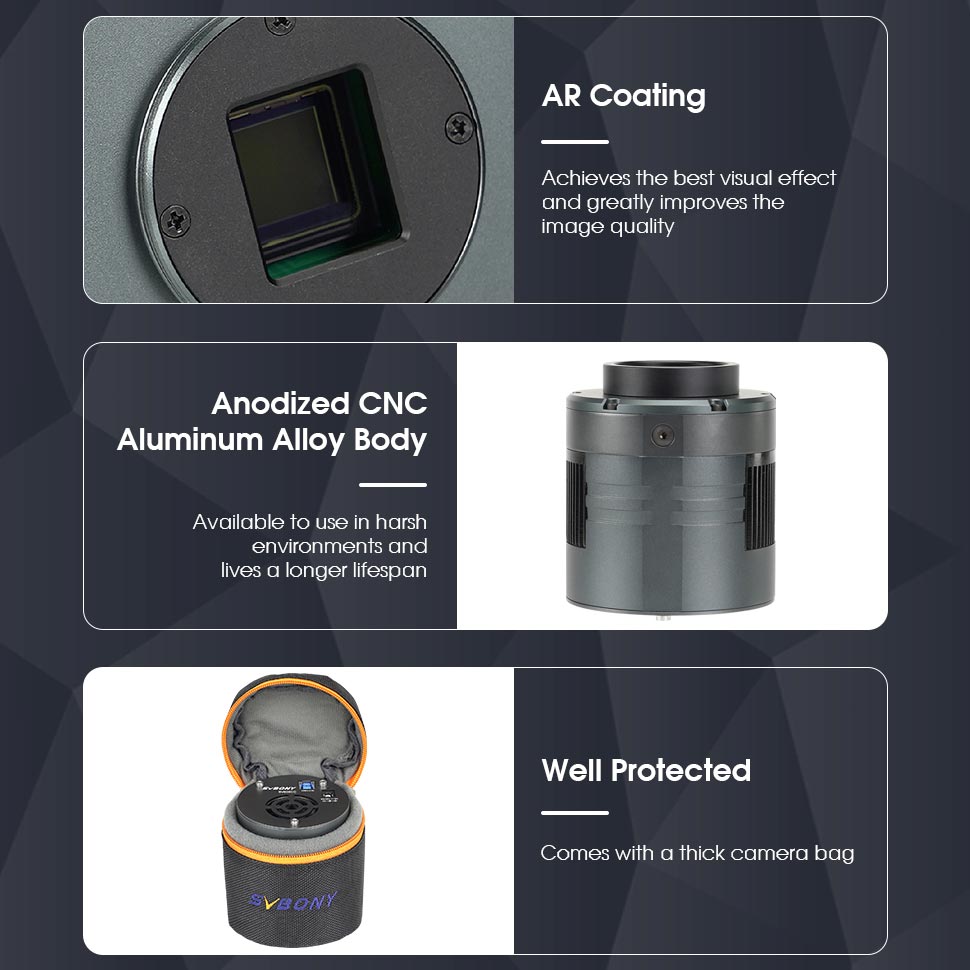

| Protective Window Optical Glass | AR Coating |

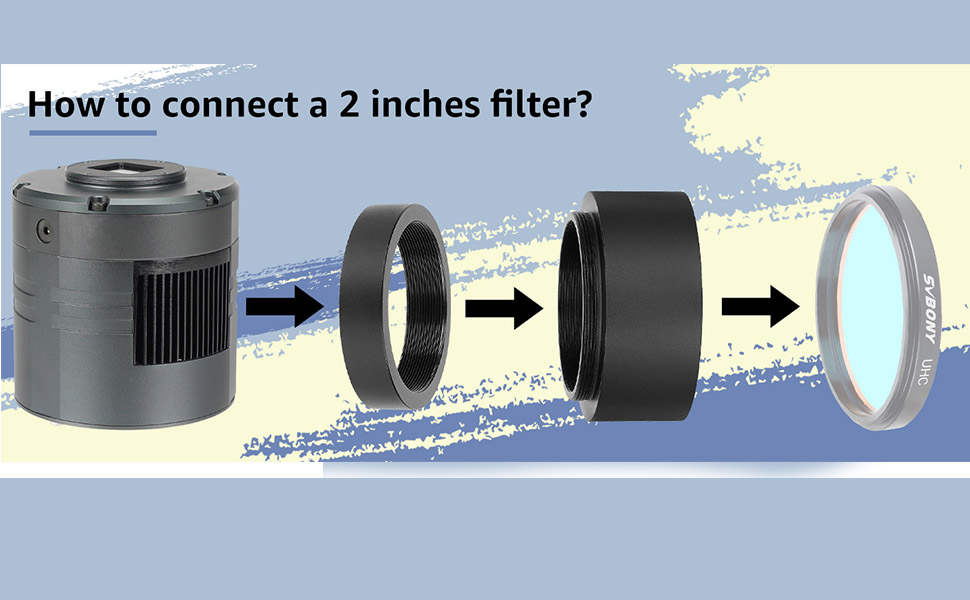

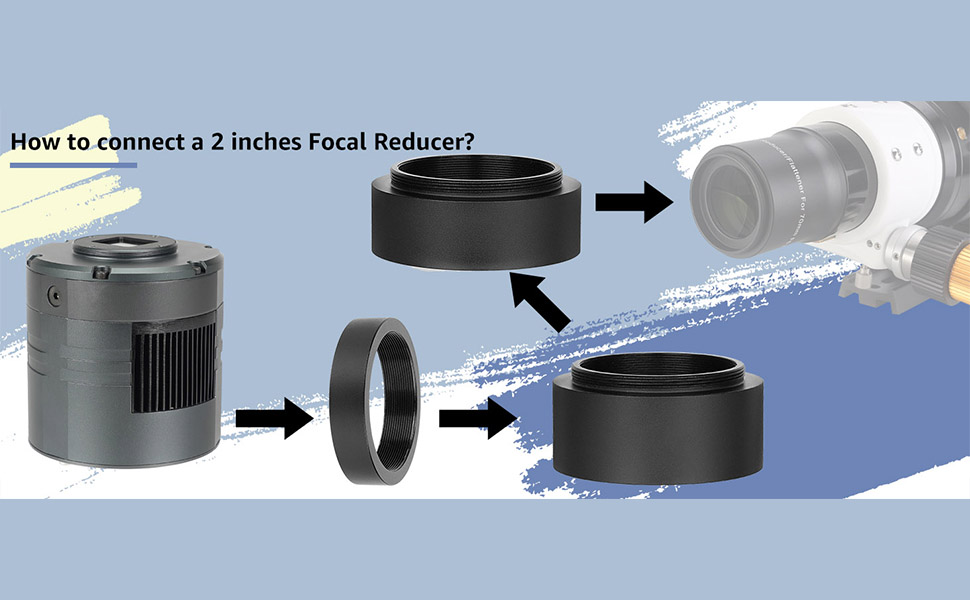

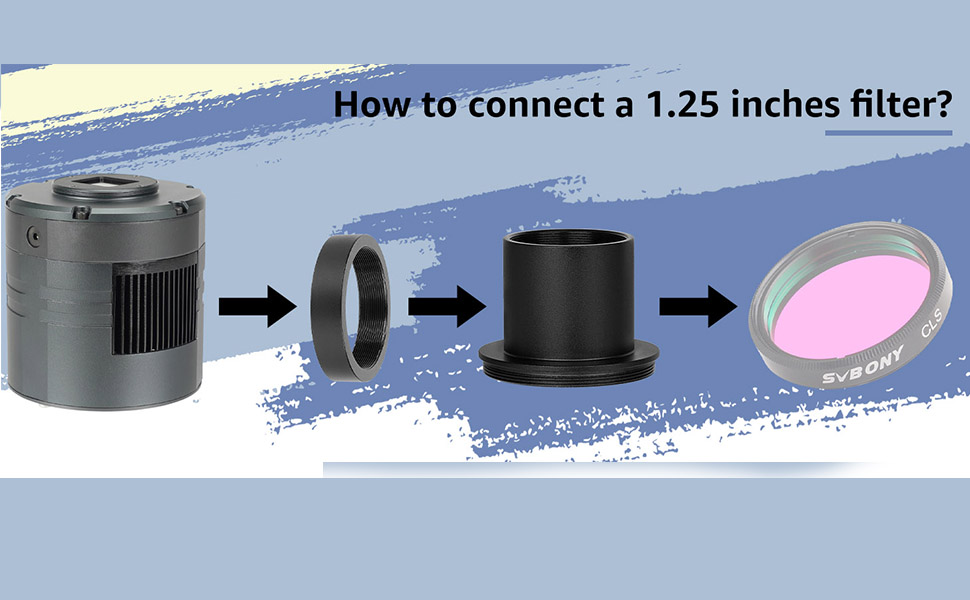

| Camera Interface Specifications | 2''/1.25''/M42X0.75 |
| Back Focus Distance | 6.5mm/17.5 |
| Workiung Current | < 300MA |
| Stand-by Current | < 30MA |
| Operating System | Windows, Linux, Mac OS,Raspberry Pi, Chrome OS |
Features
- SV605CC is the deep space camera of SVBONY brand. It is designed with SONY IMX533 color SMOS sensor,which is recommended by amateur asreonomers.Here are some highlights:
- 1. Back-illuminated sensor - improving sensitivity and reducing noise
- 2. 1'' format with 3.76 um pixel size - ideal for many types of telescopes
- 3. 14-bit ADC - giving high dynamic range of 13 stops.
- 4. An impressive 50ke-full well capacity - helping to reduce the issue of,for example,saturated stars.

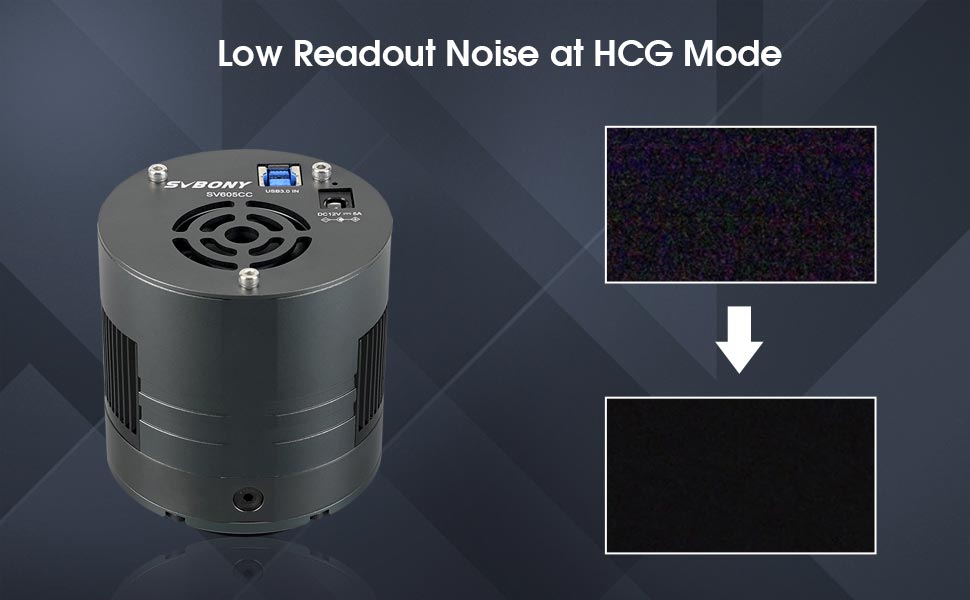

- 5. HCG mode - When set the gain at 120 or higher,the HCG mode is autonatically enabled,and reduce the read noise to even lover levels without loss the dynamic range.
- 6. Exceptuinal low-illumination performance of SNR1s:0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 3.76um.This makes the IMX533 ieal for security camera market applicatiuons that require low illumination performance.
- 7. The IMX533 sensor adopts the 1'' format and provides the necessary number of pixels for true 4k output at 120 frames per second(W/ ADC 10-bit output mode,the SV605CC can run up to 20fps at 4k format when used with USB3.0)
The Real Shot Image by SV605CC
