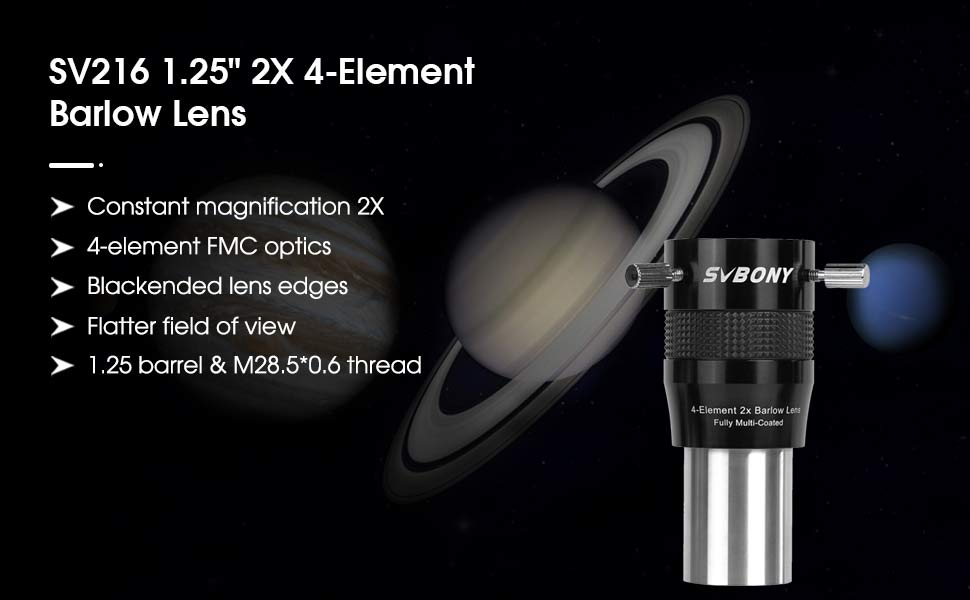

- The SV216 Barlow lens adopts a 4-piece telecentric design, which effectively prolongs the focal length of the primary mirror without introducing chromatic aberration and vignetting problems that bother users. Offers excellent spherical aberration control, resulting in a flatter field of view than standard Barlow lens;
- The magnification of the SV216 Barlow lens is constant at 2 times. the 4-piece design of the Barlow lens and the optimized optical structure ensure that the magnification factor of the Barlow lens remains unchanged no matter where the Barlow lens is installed in the optical system;

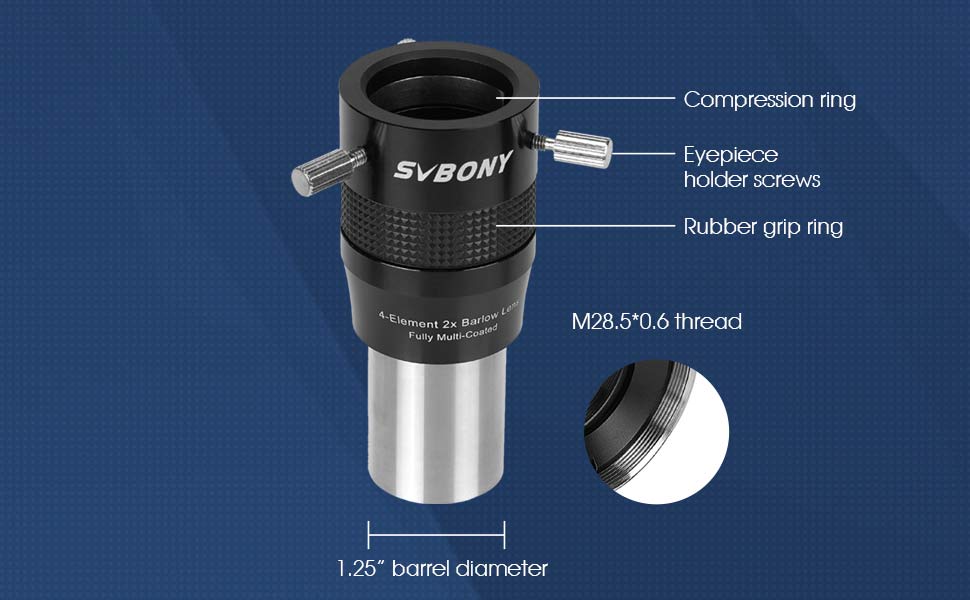

- SV216 2x Barlow lens adopts 3 screws design and coaxial locking device. Improving the concentricity of the optical axis of the system can significantly improve the quality of captured images;

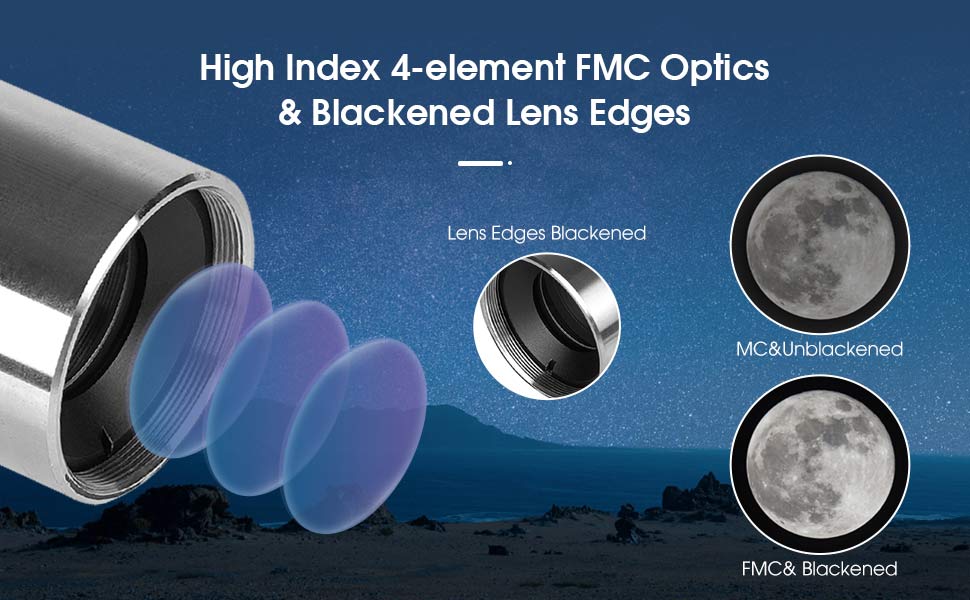

- The 4 lenses of the SV216 Barlow lens are fully multi-layer enhanced coating, which makes the picture bright and sharp. The edges of the lens are blackened to eliminate internal light scatter to maximize image contrast;
- The low magnification eyepiece is matched with the SV216 telecentric 2x 4-element Barlow lens, which can enjoy the magnification effect of the high magnification eyepiece while the eye relief distance is still within the comfortable observation range of the human eye.
Beautiful piece of equipment

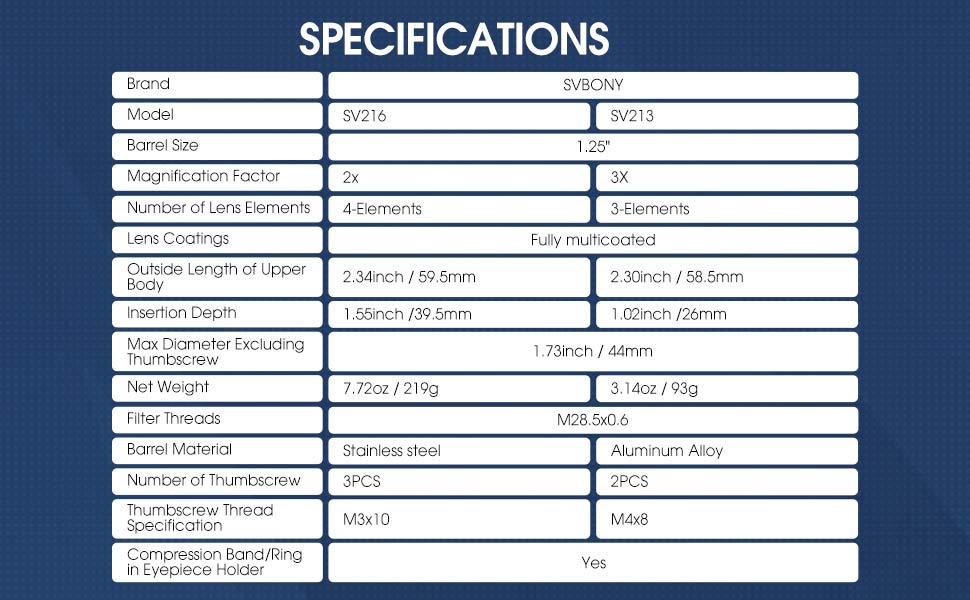

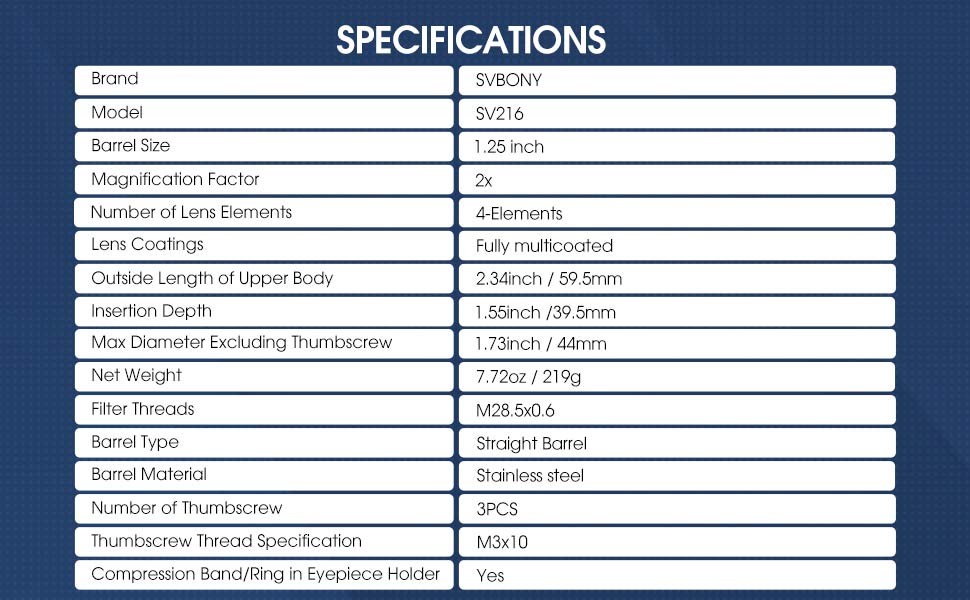

| Brand | SVBONY |
| Model | SV216 |
| Barrel Size | 1.25 inch |
| Magnification Factor | 2x |
| Number of Lens Elements | 4- Elements |
| Lens Coatings | Fully multicoated |

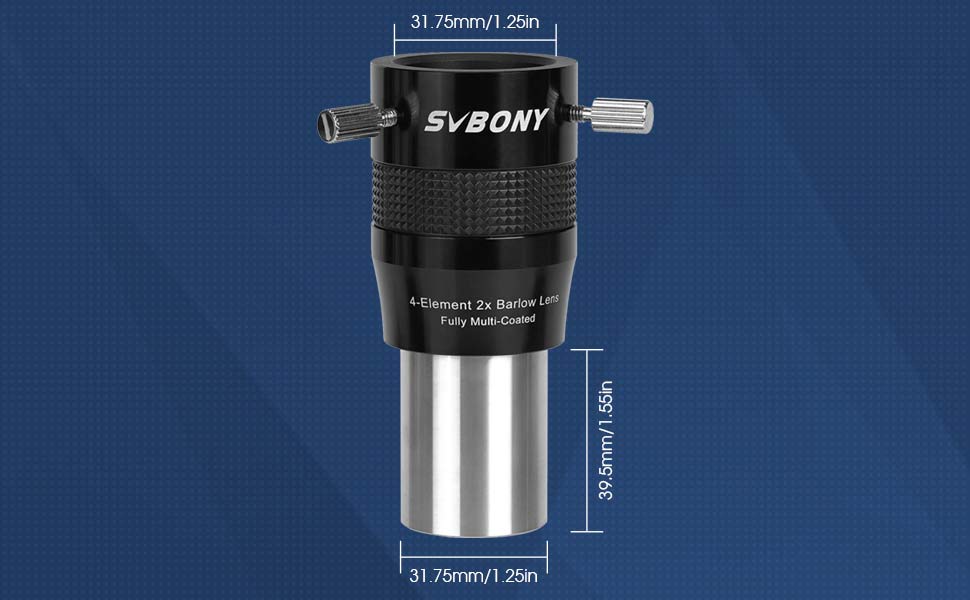

| Outside Length of Upper Body | 2.34inch / 59.5mm |
| Insertion Depth | 1.55inch /39.5mm |
| Max Diameter Excluding Thumbscrew | 1.73inch / 44mm |
| Net Weight | 7.72oz / 219g |

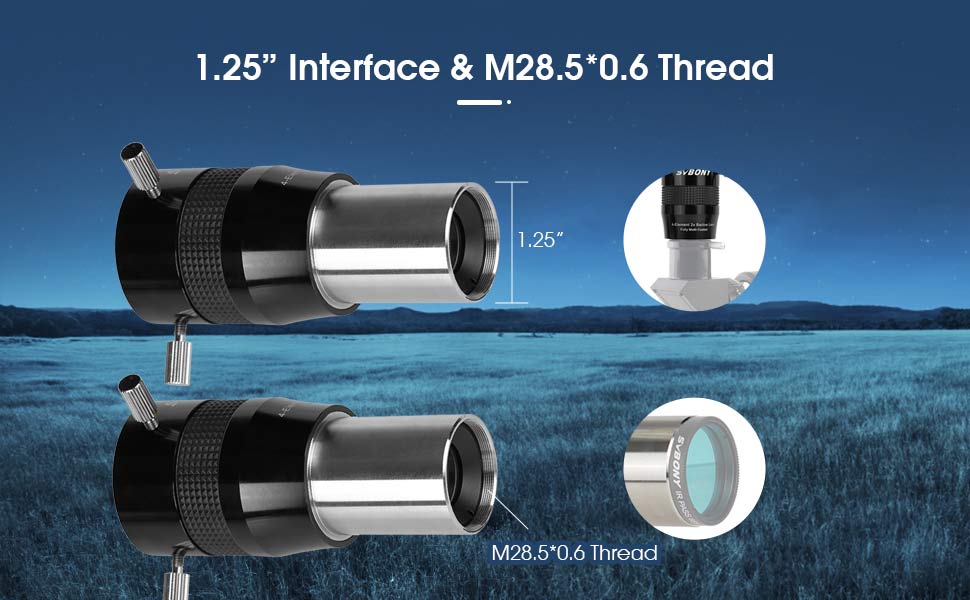

| Filter Threads | M28.5x0.6 |
| Barrel Type | Straight Barrel |
| Barrel Material | Stainless Steel |
| Number of Thumbscrew | 3PCS |
| Thumbscrew Thread Specification | M3x10 |

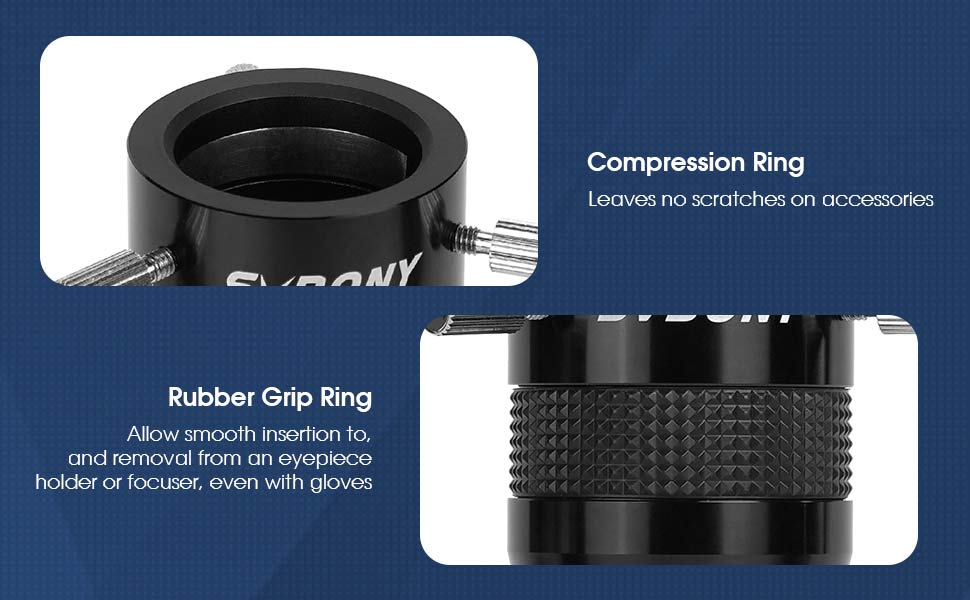

| Compression Band/Ring in Eyepiece Holder | Yes |
1. Each of the four elements in SV216 is fully multi-coated enhanced coatings, resulting in bright, sharp images. the lenses are edge-blackened to eliminate internal light scatter to maximize image contrast.

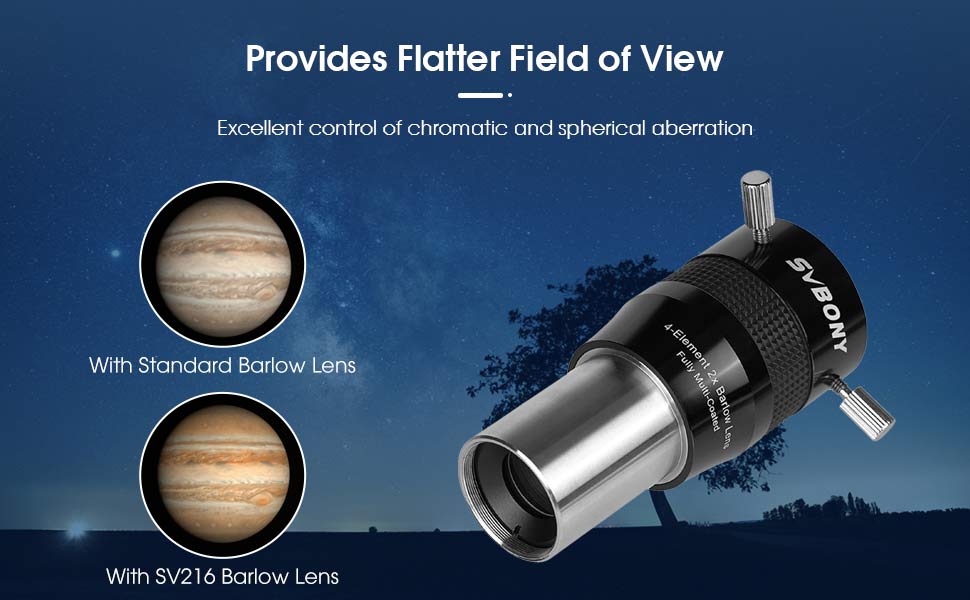

2. Provides excellent control of chromatic and spherical aberration, and a flatter field-of-view compared to standard barlows.

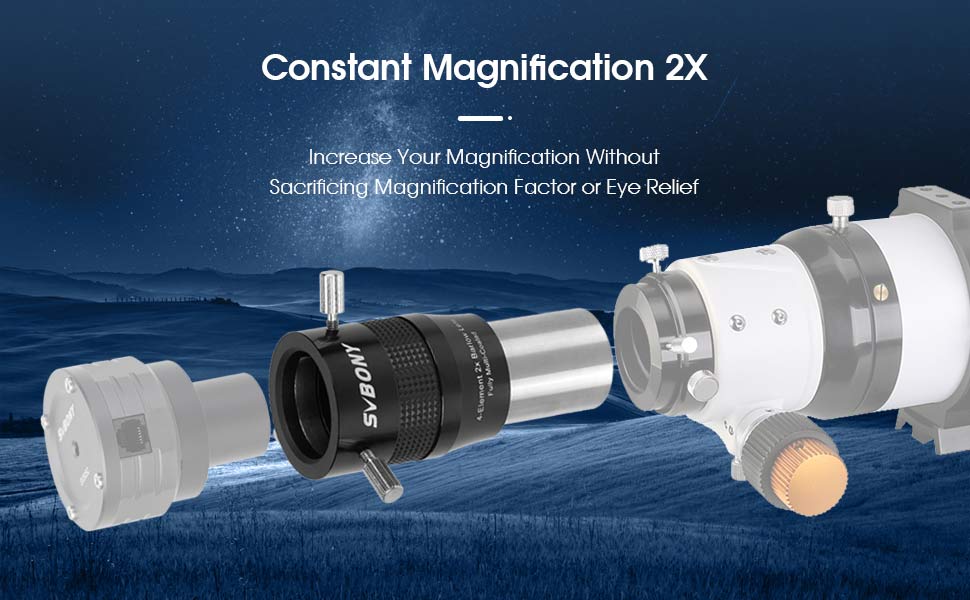

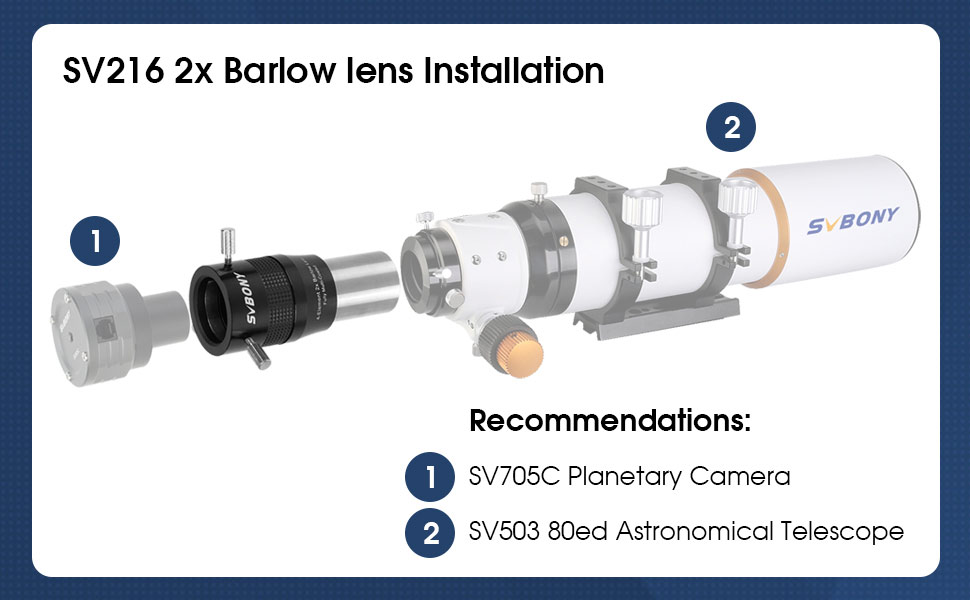

3. Increase Your Magnification Without Sacrificing Magnification Factor or Eye Relief: When using a Barlow to increase magnification, get to enjoy the generous eye relief of the lower power eyepiece, especially for eyeglass wearers or for those with fast telescopes. The distance is changed, the magnification remains the same. Can place Barlow anywhere along the optical chain between an eyepiece or a camera.
4. Comes in a beautiful Bolt Cases box. Includes one dust plug and one end cap

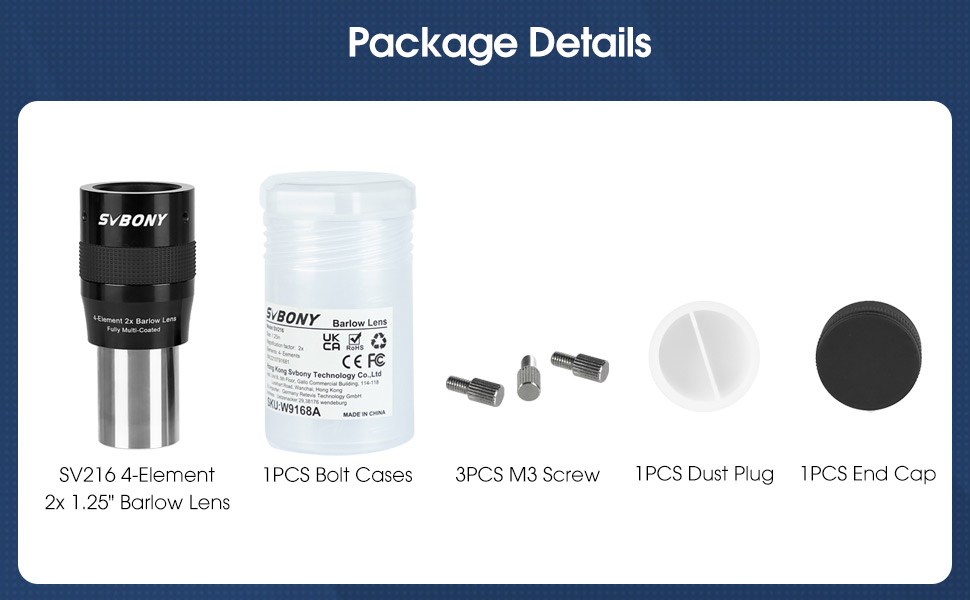

Package Includes:

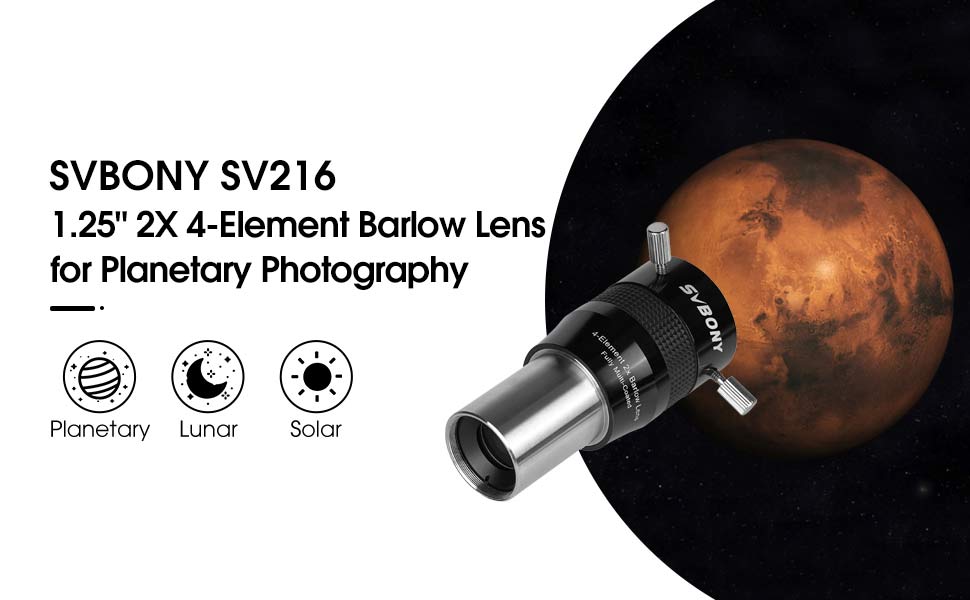

- SV216 4-Element 2x 1.25" Barlow Lens
- 1PCS Bolt Cases
- 3PCS M3 Screw
- 1PCS Dust Plug
- 1PCS End Cap
