- WIFI connection; connect your smartphone for remote control; suitable for bird watching photography and target training; allow you to see the surface of the target in real time on your phone; greatly improve efficiency and comfort;
- CS-C interface; the front end of the camera is CS-mount; equipped with a CS-C adapter ring; which can be used with C-mount lenses or CS-mount lenses for shooting; time-lapse shooting is possible in schedule shooting mode;
- 32G TF card memory; equipped with 32G large-capacity TF card; it does not occupy the storage space of the mobile phone; you can download and share photos in real time;
- The camera is supported by WIFI Mode and UVC Mode. When using uvc mode, you need to use the built-in data cable, connecting the Type-C port to the device, and the USB port to the PC; Open the UVC mode software on the PC (Amcap software can be used), select UVC CAMERA, and enter the image interface.
Special offers and product promotions

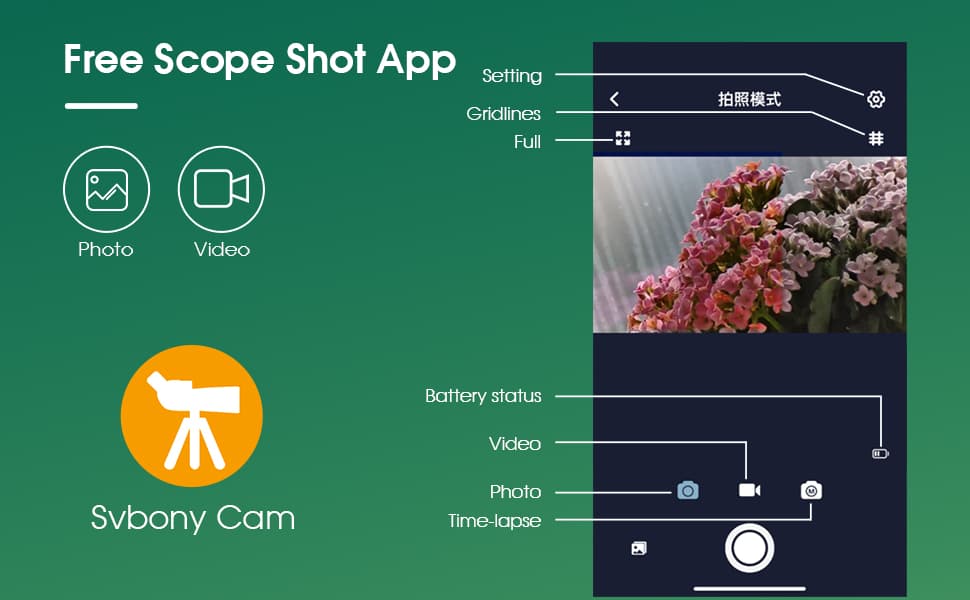

Free Scope Shot App
Svbony Cam, a free scope shot app, is of rich functions. Operate on your app to shoot pictures and videos, download pictures or
video to your phone, available to post on media platforms.

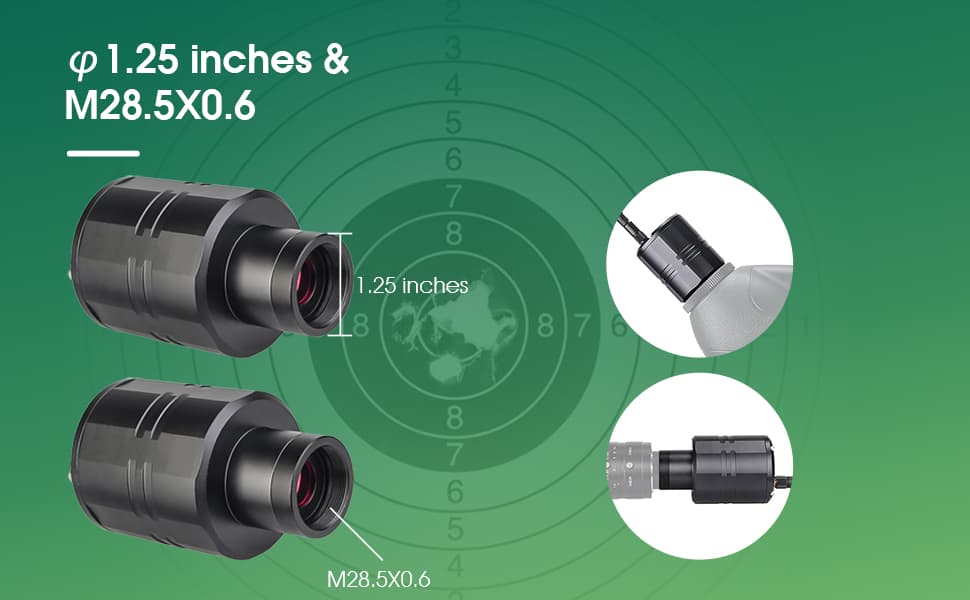

1.25 Inches and M28.5*0.6
The standard 1.25-inch barrel makes the camera suited for various spotting scopes of 1.25-inch interface, easy connect as well as

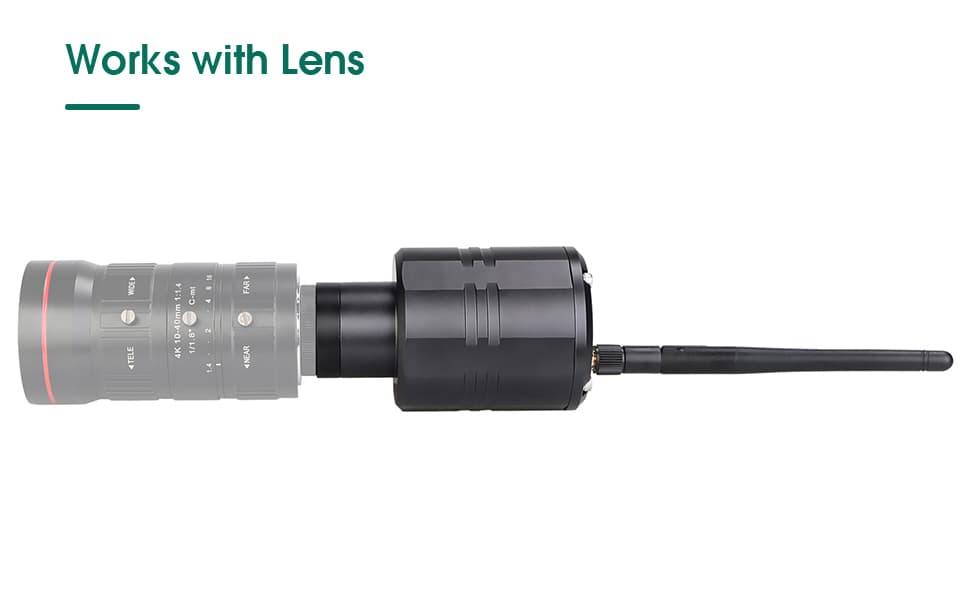

makes sure the optical axis is coaxial. The thread of the barrel is M28.5X0.6, for matching with CS mount lens, and here comes a
C-CS adapter, for matching with C mount lens for shooting.

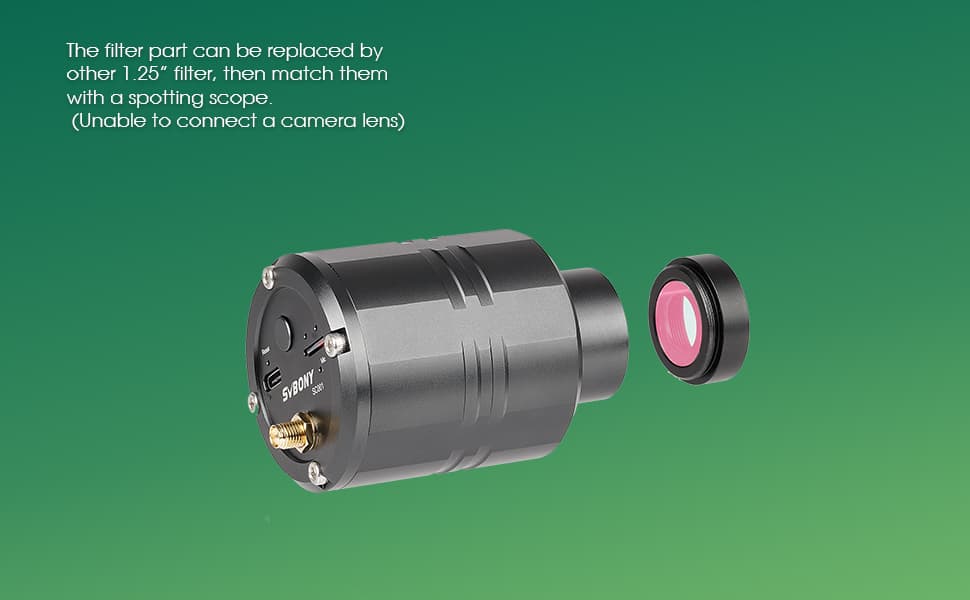

Compatible with 1.25 inch Filter
Comes With a 32G TF Card

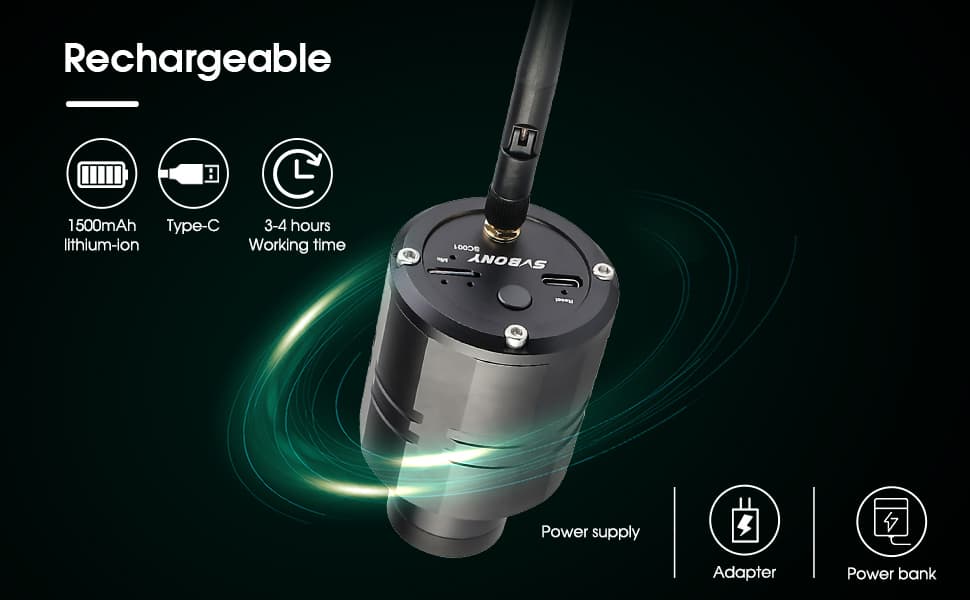

Rechargeable
The built-in 1500mAh lithium-ion ensures that the camera keeps running more than 3 hours when fully charged and the battery
status shows on APP interface. The camera is of easy charging: if you engage a long-time outdoor observing or shooting, bring
a power bank with you, and charge your camera at any time.(Power adapter is not included.)
High Definition Image
With the 1080P resolution, you can clearly identify the details and feathers of birds and enjoy shocking visual experiences.

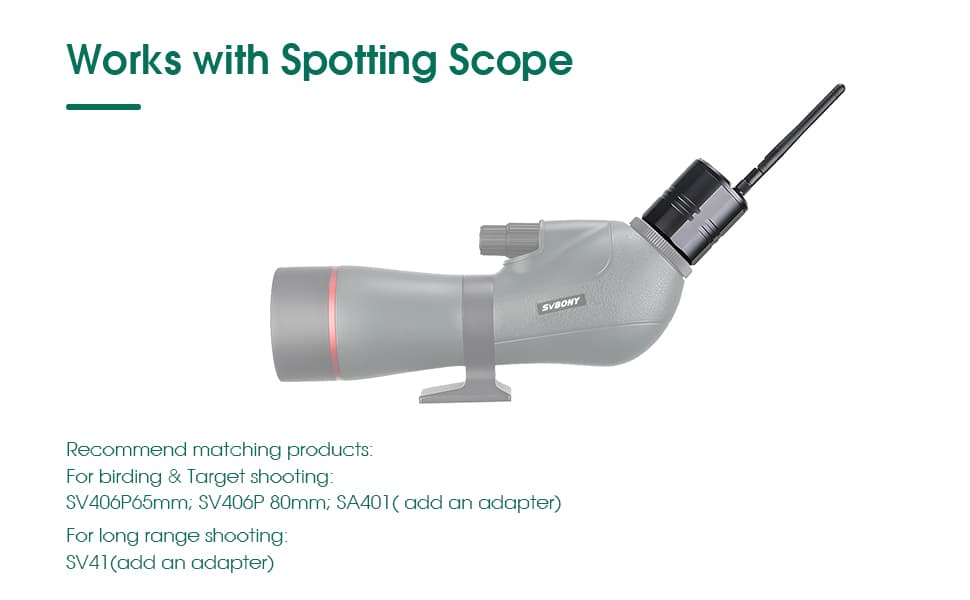

When SC001 works with SV406P, images show in full screen. There is no occlusion area on the phone, and the picture is smooth,
and there is basically no field curvature or aberration at the edge.

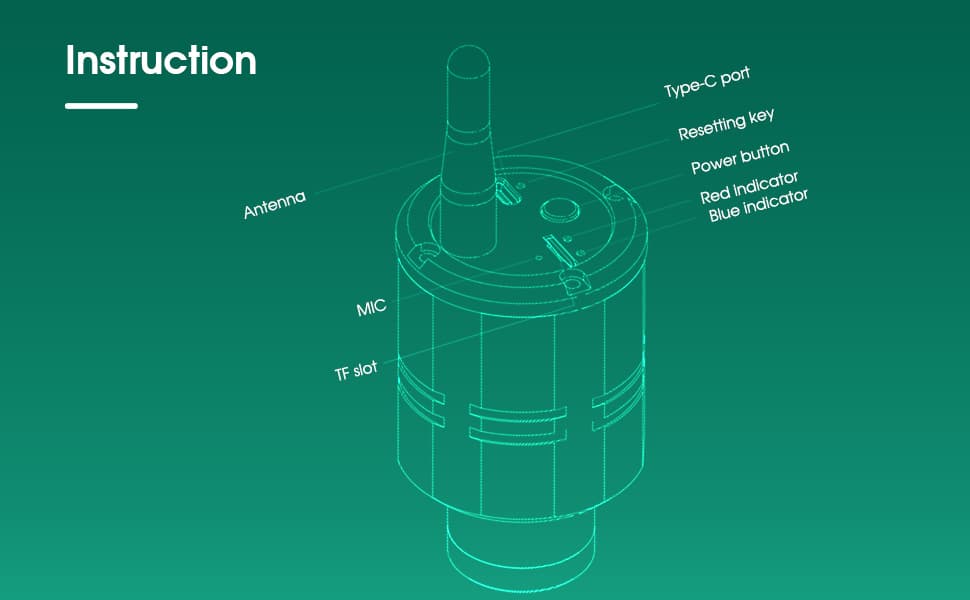

Instructions
Very good finder scope
SvBonyCam
Extremely well-designed and well-made WiFi color CCD camera!
Easiest way for digiscoping
Compatibilité
| Brand | SVBONY |
| Model | SC001 |
| Solution | 1920*1080 |
| Pixel Size | 2.8μm * 2.8μm |
| Sensor | OV2718 |
| Effective Pixels | 2M |
| Wifi module | 2.4G,150Mbps |
| Storage | TF Card. Max support 128G, the package includes one 32G TF card |
| TF card USB Type | Type-C |
| Build-In Battery | 1500 mAh |
| Video | support |
| Photograph | support |
| Plan to take pictures | support |
| Working Humidity | 20%RH-80%RH |
| Storage Humidity | 20%RH-95%RH |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Weight | 184g |
| Package | 150mm*132mm*70mm |
Description

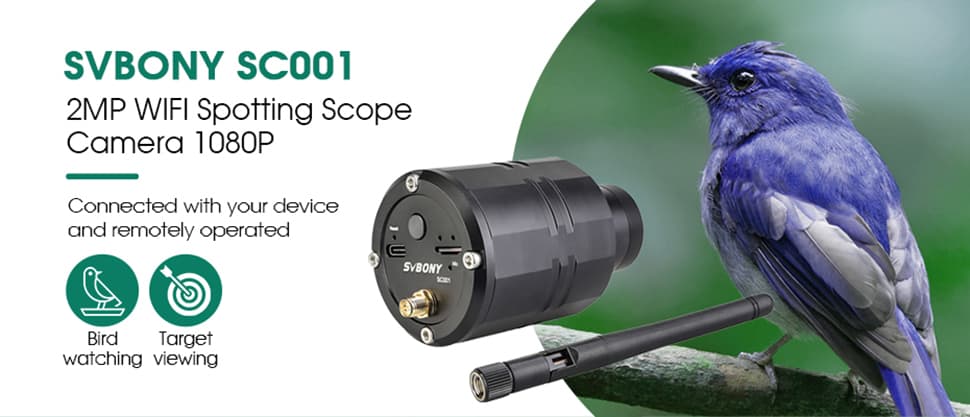

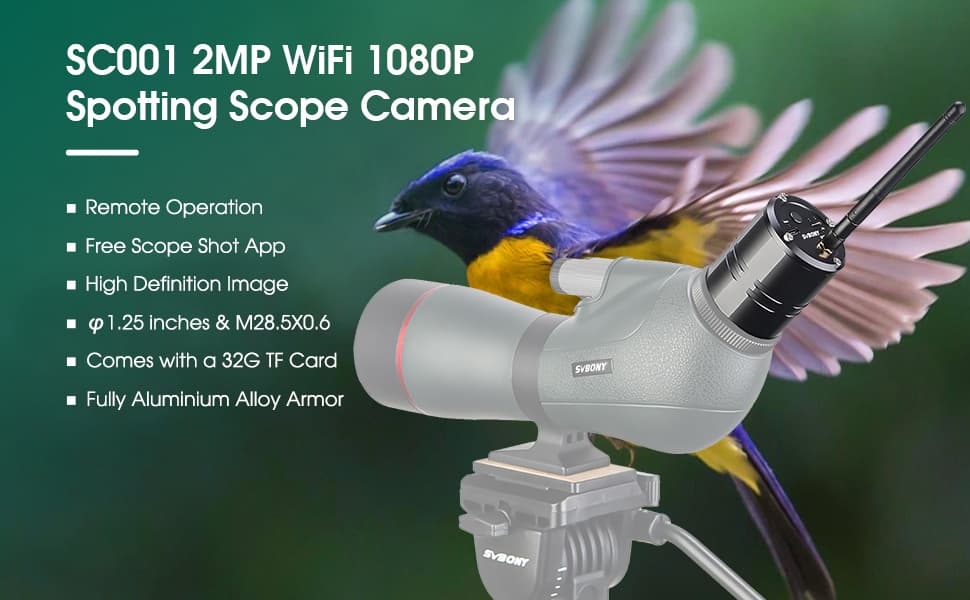

Svbony SC001 is a WiFi electronic camera for spotting scopes, with generates wifi hotspot, It could be connected with mobile phone via APP, people could capture photos and video on the APP directly, and share to social media asap. The photos or videos file could be saved to the TF card included, and downloaded to the mobile phone, more convenient to edit on a mobile phone and share with your friends.(SC001WiFi camera supports Android and iPhone.)
External power supply voltage and current (DC5V 1A)
Feature
- Universal Spotting scope WIFI Camera
- The device generates its own Wi-Fi Hotspot
- Mobile phone App, the app is a full-featured software application available for free
- Universally Mounts directly to spotting scopes with 1.25-inch diameter eyepiece
- Rechargeable LiPo Battery (estimated 1500mAh for 3-4 hour battery life)
- Compatible with current Svbony Camera App
- Capture pictures/videos directly through phone APP, then download and share to social media asap.
- Certificates include: FCC, MIC and CE certification.
UVC Mode Use
1.Take out the device, connect the external antenna, remove the lens cap, install the TF card, and connect your spotting scope or other external devices;
2.Use the built-in data cable, connect the Type-C port to the device, and connect the USB port to the PC;
3.Open the UVC mode software on the PC (Amcap software can be used), select UVC CAMERA, and enter the image interface.
Note: In the process of using WIFI mode, after switching to UVC mode, the device will automatically default to UVC mode. If you want to return to WIFI mode, you need to unplug the data cable connection and then reconnect the device to return to WIFI mode.

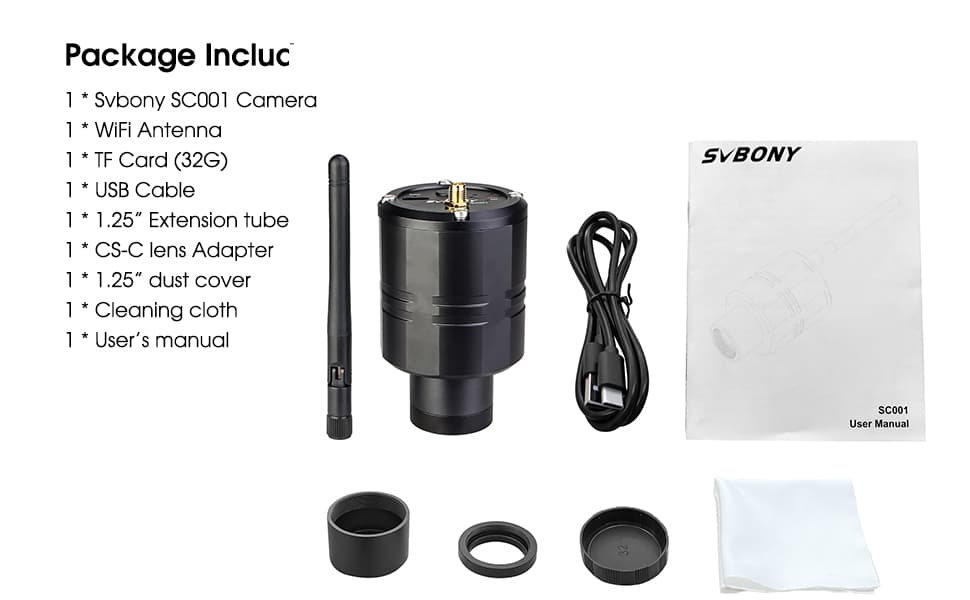

Package includes
- 1 * Svbony SC001Camera
- 1 * WiFi Antenna
- 1 * TF Card (32G)
- 1 * USB Cable
- 1* 1.25” Extension tube
- 1* CS-C lens Adapter
- 1* 1.25” dust cover
- 1* Cleaning cloth
- 1* User’s manual
